Description

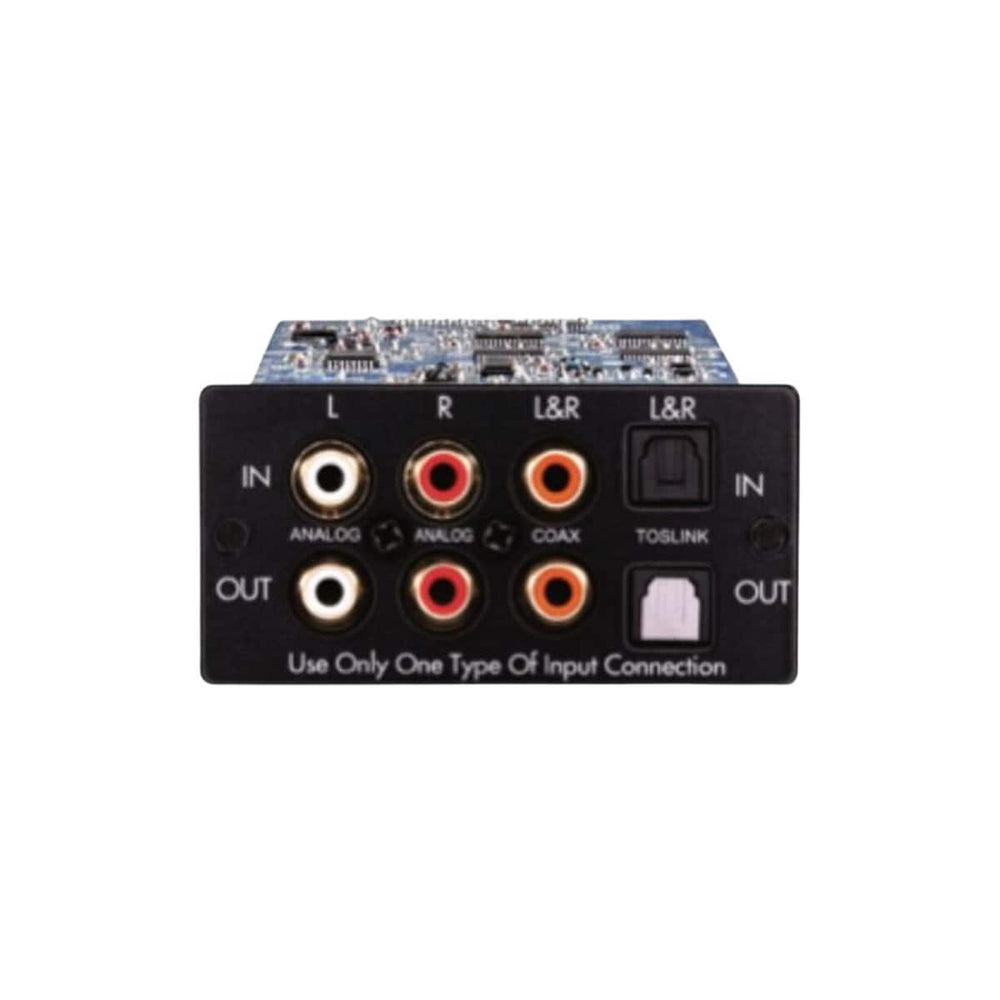

Sonance's Hybrid Input Module (HiM) delivers flexibility with the ability to receive digital or analogue sources into a Sonance MKI or MKII legacy DSP amplifier.
The digital inputs create a direct connection, ensuring the signal passes through to the sophisticated 24 bit or 96kHz capable DAC in the amplifier with the shortest signal path possible, producing the highest performance level possible.
This input module offers a simple rear panel installation. Simply remove two screws, install the HiM and connect a digital source and then the unit is ready to be plug and play with no firmware updates or special settings required.
Specifications
Compatible With | Sonance DSP amplifier |
Input Signal | Analogue or PCM audio. Not compatible with 5.1/7.1 surround signal |
Bit Rate | 16 to 24 bit |
Sample Frequency | 44.1Hz to 96kHz |
Input 1 | Analogue or Toslink optical digital or coaxial digital. Only 1 can be used |
Loop Output 1 | Analogue or buffered Toslink optical or coaxial digital |
Input 2 | Analogue or Toslink optical digital or coaxial digital only 1 can be used |
Loop Output 2 | Analogue or buffered Toslink optical or coaxial digital |
Dimensions | Height: 38mm / 1.5" Width: 75mm / 3" Depth: 87mm / 3 13/32" Depth With RCAs: 93mm / 3 11/16" |
Features
- When paired with a Sonance DSP amplifier, allows for playback of up to 24 bit or 96 kHz audio content
- Components maintain a pristine audio signal from input stage through DSP phase for no compromise performance
- Directly connect digital audio sources to Sonance DSP amplifiers eliminating the need for external DACs, preamps or switchers and additional wiring saving rack space
- Simple rear panel installation
- Plug and play with no firmware updates or special settings necessary
