Description
The K3 In Wall Cinema Bundle comprises all Sonance VX speakers needed for a great sounding cost effective 5.1 Surround System.
These Visual Experience speakers offer flexibility as they can be mounted horizontally or vertically delivering fabulously improved frequency response in an off axis installation.
The S10i 10" Active Subwoofer offers powerful bass in a minimalist and compact design.

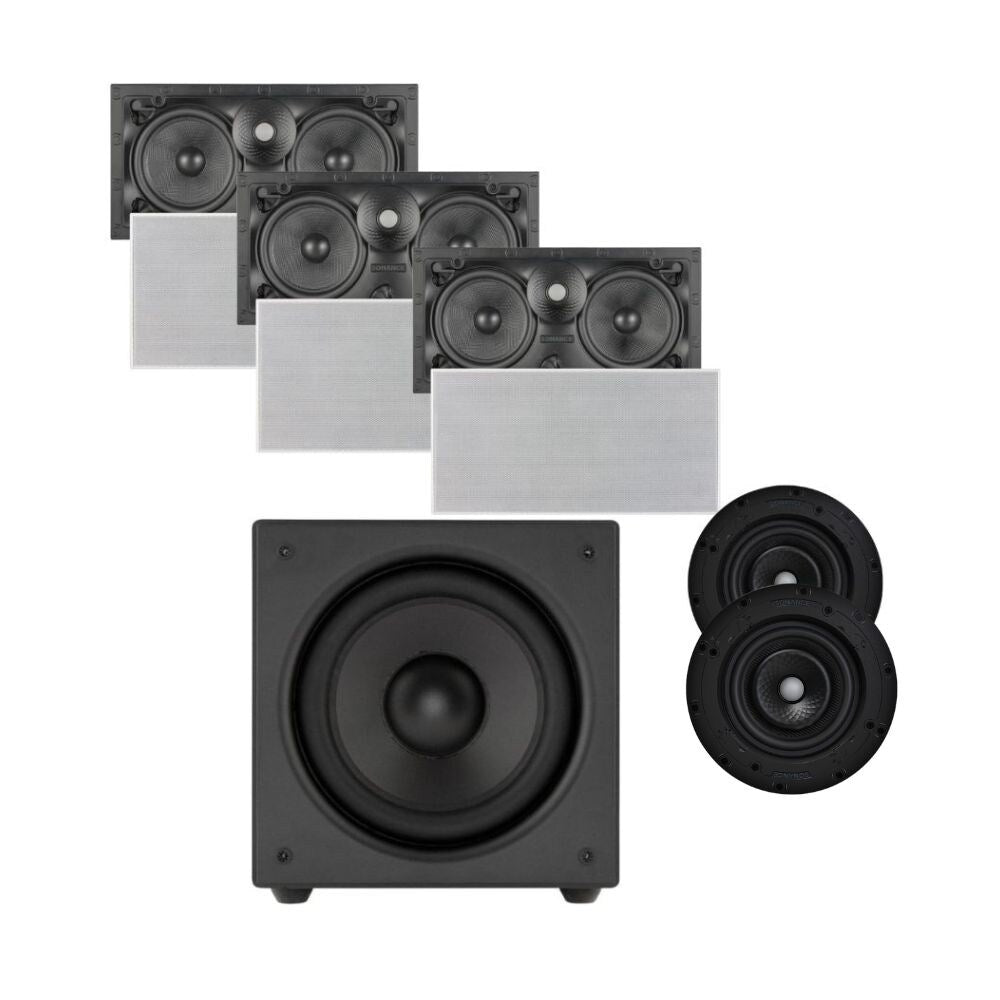

Habitech has put together this Sonance K3 Cinema Bundle to offer a great sounding system at a cost effective price that's also easy to install. This set comprises three VX66-LCR in wall speakers, one VX66R ceiling speakers and a Sonance S10i 10" active subwoofer.

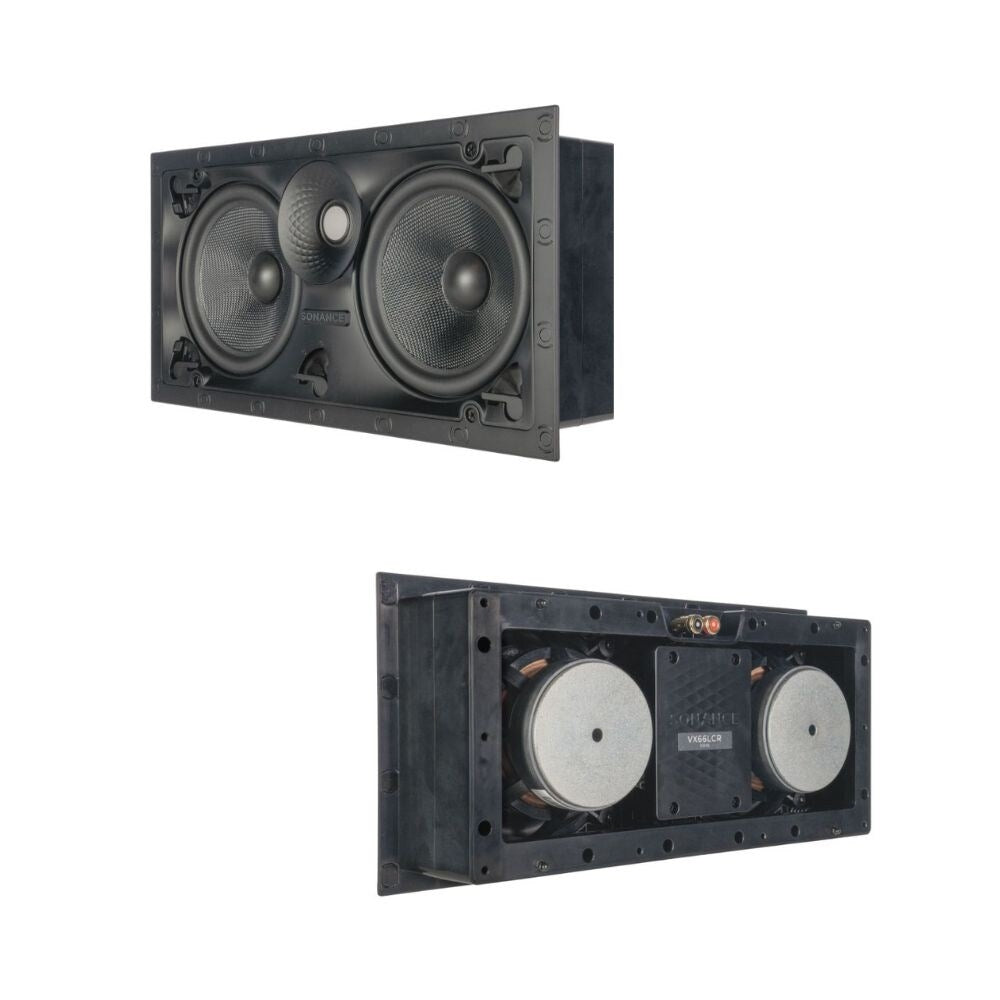

The in wall LCR speakers have two 6.5" woofers and a 1" centrally positioned tweeter. They can be mounted horizontally or vertically depending on install needs. They are simple to install as well.

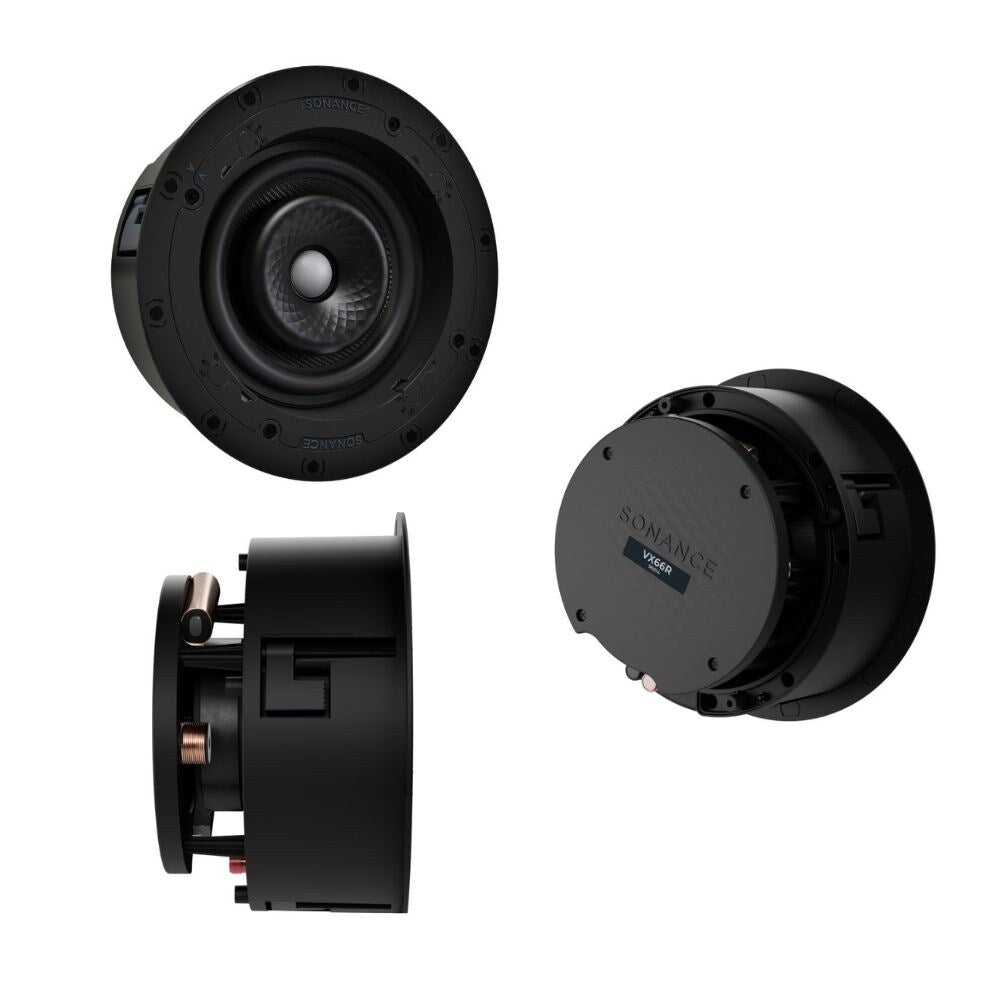

The VX66R speaker has a pivoting woofer and tweeter for improved frequency response in off axis installations.

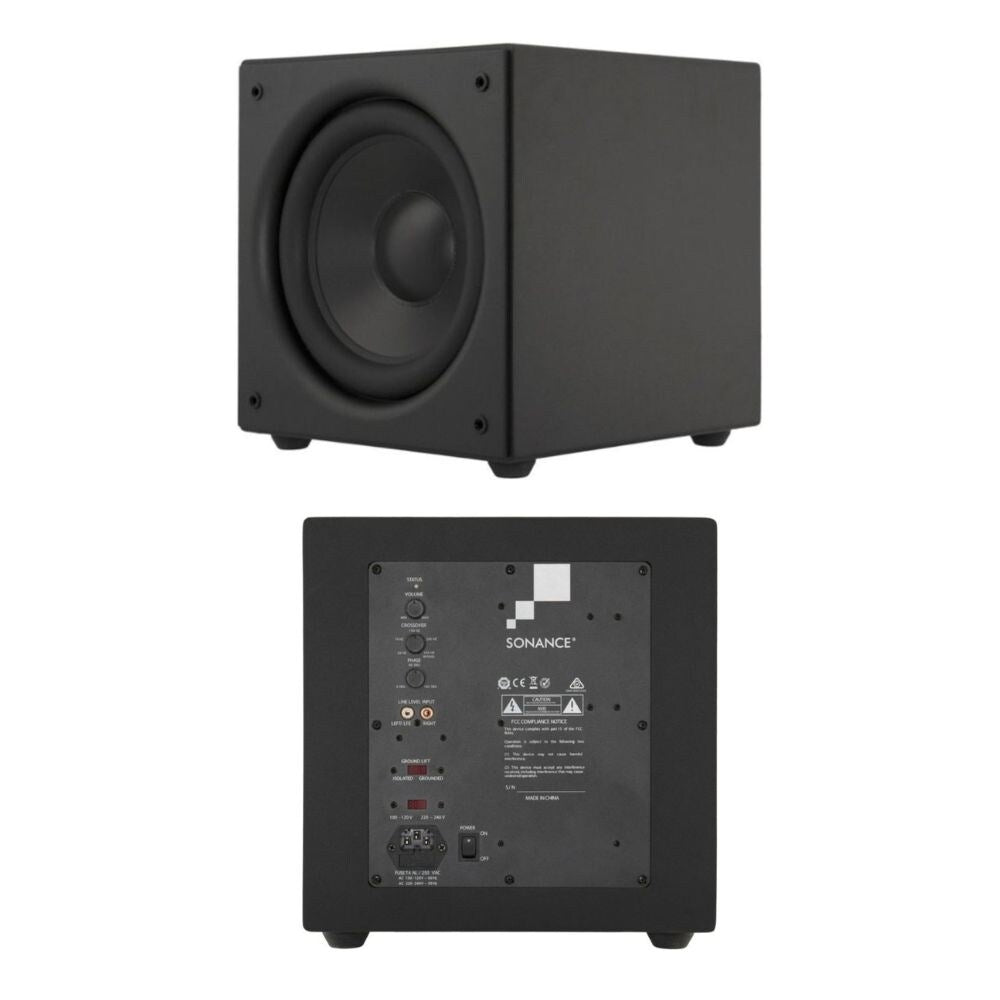

the S10i 10" active subwoofer offers powerful bass in a minimalist and compact design with crossover and phase controls to ensure a smoother bass response bringing to life both music and movies.
This subwoofer comes in an all black cabinet with a textured finish and black cloth grille.
Please Note: The optional square adaptor and square grille can turn any round speaker into a square speaker, allowing easy alignment of the square grille with other ceiling features
Specifications
| SON-VX66-LCR Speaker | |
| Tweeter | 25mm / 1" ceramic dome, Ferrofluid cooled and acoustic back chamber |
| Woofer | Two 165mm / 6.5" Kevlar/Nomex cones, rubber surrounds |
| Frequency Response | 43Hz to 20kHz ±3dB |
| Impedance | 8Ω nominal 6Ω minimum |
| Power Handling | 5W minimum to 140W maximum |
| Sensitivity | 90dB SPL (2.83V/1m) |
| Dimensions | Grille: Height: 208.9mm / 8.23" Width: 403.1mm/ 15.87" Cut Out: Height: 176mm / 6.9375" Width: 370mm / 14.57" |
| Speaker Mounting Depth | 89mm / 3.5" |
| SON-VX66R Speaker | |
| Tweeter | 25mm / 1" ceramic dome, Ferrofluid cooled and acoustic back chamber |
| Woofer | 165mm / 6.5" Kevlar Nomex laminated cone with a rubber surround |
| Frequency Response | 43Hz to 20kHz ±3dB |
| Impedance | 8Ω nominal 6Ω minimum |
| Power Handling | 5W minimum to 140W maximum |
| Sensitivity | 90dB SPL (2.83V/1m) |
| Grille Construction | Perforated steel |
| Dimensions | Diameter: 244.4mm / 9.62" Depth: 125mm / 4.92" Cut Out: Diameter: 210mm / 8.25" |
| SON-S10i Active Subwoofer | |
| Frequency Response | 27Hz to 250Hz |
| Phase Control | 0° to 180° |
| Drive Unit | 10" |
| Amplifier Power Output | 275W |
| Peak Power Handling | 550W |
| Enclosure Type | Sealed enclosure |
| Connection | Line level input left or right 2 x RCA phono |
| Finish | Black |
| Grille Material | Black cloth |
| Dimensions | Height: 300mm / 11.8" Height With Feet: 310mm / 12.2" Width: 300mm / 11.8" Depth: 320mm / 12.6" |
| Weight | 17.24kg / 38lb |
Features
Performance
- Now featuring the Sonance Visual Experience speakers
- Latest high tech driver and tweeter material technology
- Improved low frequency performance
- Improved driver cone materials
- Low diffraction woofer and tweeter design
- Pivoting woofer and tweeter for improved frequency response in off axis installations
- Chambered tweeter design, which lowers the resonance frequency of the tweeter, allows for a lower crossover frequency to the woofer, reduces the back pressure on the tweeter dome and reduces the distortion of the tweeter near the crossover frequency
- S10i 10" active subwoofer offers powerful bass in compact design
- With crossover and phase controls, the S10I ensures a smoother bass response
Installation
- Easy to install
- Easier to access RotoLock® screws
- Removed metal hang tabs
- One piece paintable grille with peel and stick scrim cloth for easier painting
- Two piece toggle feet allows installation with double dry wall and thicker ceiling and wall materials
User guides
Download User Guides:
Data Sheet VX66LCR
Data Sheet VX66R
S10i Data Sheet
VX66 LCR Technical Drawing
VX66R Technical Drawing
S10i Technical Drawing
Visual Experience Brochure
VX SST Manual
S10i Quick Start Guide
S10i Instruction Manual
Grille Painting Manual
VX Series Accessories
