Description

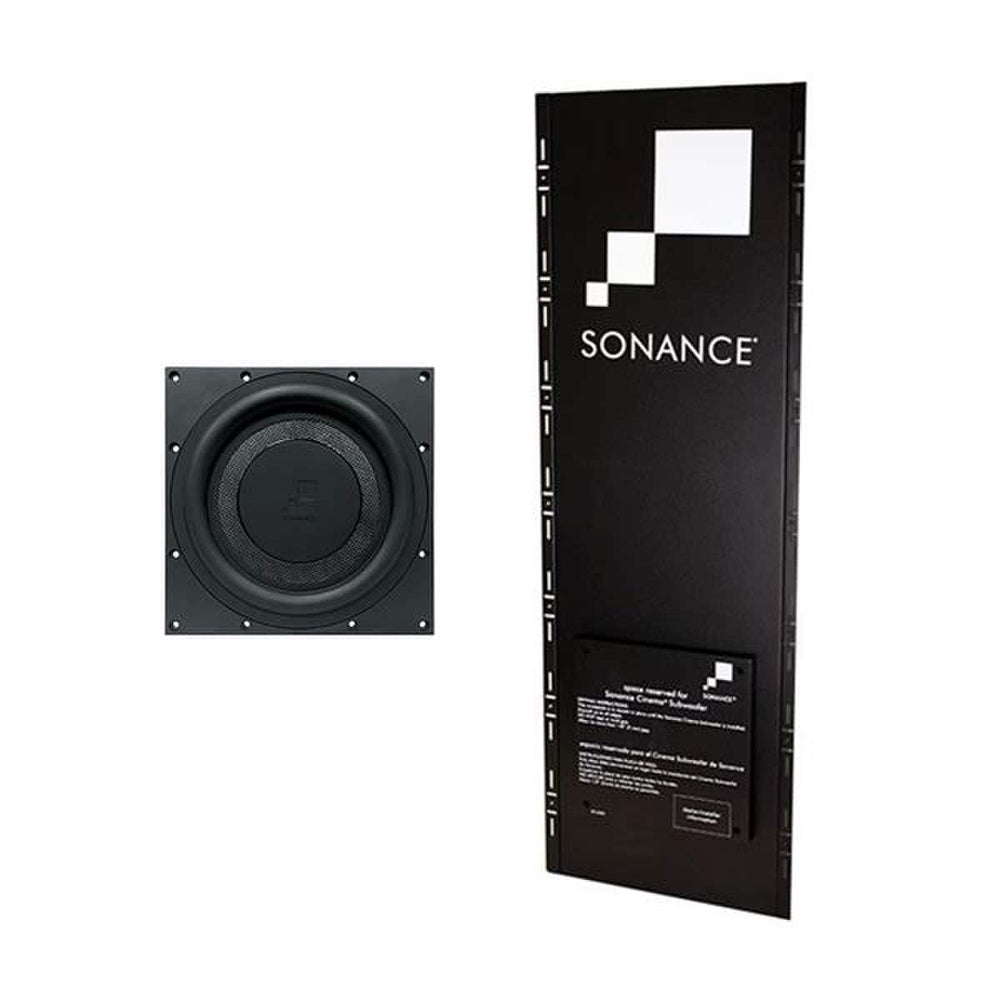

The Sonance In Wall R10 Sub Kit consists of the R10 in Wall 10" subwoofer, SON-93354, together with the subwoofer rear enclosure, SON-92874.
Specifically designed for installation during the construction or renovation process, the enclosure, within this kit, is positioned behind the wall to deliver unprecedented performance with minimal visual intrusion.
The Sonance Reference Series R10 In Wall Sub offers state of the art design and cutting edge materials to deliver the bass of a large cabinet subwoofer without sacrificing floor space.
Mass damping of front and back walls of each enclosure and long strand fibre glass internal damping for standing wave dissipation is also incorporated. In addition, a floating enclosure design minimises vibration transfer to adjoining rooms.
Sonance Reference Series In Wall Subwoofer enclosures are constructed from a combination of 12.7mm / 1/2" and 25.4mm / 1" MDF for superior isolation of bass and extruded aluminium bracing for minimal obstruction of airflow inside the enclosure.
This In Wall Sub Kit is available in a 10" / 254mm model to suit any sized room or available wall space and provides an aesthetic consistent with Sonance Visual Performance Series speakers too.
Pair with Sonance DSP Amplifiers for custom tuned performance.
Specifications
| R10 in Wall 10" Subwoofer | |
| Woofer | 254mm / 10" laminated carbon fibre cone with a rubber surround |
| Frequency Response | 30Hz to 250Hz ±3dB |
| Impedance | 8Ω nominal |
| Sensitivity | 88dB (2.83V/1 metre) |
| Required Enclosure | VP10 SUB NC acoustic enclosure sold separately |
| Required Amplification | Sonance DSP2-150 or Sonance DSP8-130MKII (using two channels bridged) |
| Dimensions: Woofer | Height: 265mm / 10 7/16" Width: 265mm / 10 7/16" Depth: 80.2mm / 3 5/32 |
| Dimensions: Grille | Height: 332mm / 13 1/16" Width: 332mm / 13 1/16" Depth: 4mm / 5/32" |
| R10 Subwoofer Enclosure Back Box | |
| Compatible With | Sonance R10SUB only SON-93354 |
| Construction | MDF wood box with long strand fibreglass acoustic dampening material |
| Internal Volume | 22.6 Litres / 0.80 cubic feet |
| Enclosure Dimensions | Height: 1200mm / 47 1/4" Width: 362mm / 14 1/4" Depth: 87mm / 3 7/16" |
| Mounting Depth | 85.7mm / 3 3/8" |
| Mounting Bracket Width | T409mm / 16 1/4" |
| Included | Integrated L shaped bracket mounting system |
Features
Aesthetics
- Mix and match with Reference in wall or in ceiling speakers
- One piece paintable grille to blend into your walls
- Available in 254mm / 10" or 304.8mm / 12" models to suit any sized room or available wall space Subwoofer
Performance
- 0.64kg / 1.4lb N38SH Neodymium Magnet
- Dual Spider Technology (DST) allows for increased movement
- 115mm / 4.5" precision aligned voice coil with 30mm / 1.5" winding height
Enclosure Installation
- Designed for installation during the construction or renovation process
- Enclosure is positioned behind the to deliver unprecedented performance with minimal visual intrusion
- Custom tuned amplifiers ensure optimum sonic performance
- Constructed from a combination of 12.7mm / 1/2" and 25.4mm / 1" MDF
- Superior isolation of bass
- Extruded aluminium bracing
- Minimal obstruction of airflow inside the enclosure
User guides
Download User Guides:
Data Sheet
Technical Drawing
Surround Sound Brochures
Sonance Brochure
Quick Start Guide
Instruction Manual
Sub Enclosure Instruction Manual
