Created for AV specialists designing systems projects, which require the best in surround sound performance with a look that blends into any space, Sonance Reference series provide a truly incredible solution.
Engineered to give you an amazing cinema experience in any room, Sonance designed the new Reference Series using Klippel II technology to ensure that every movement was carefully measured and accurately tuned. The high excursion woofers, 4th generation coaxial driver, individual crossover networks, optimised diffraction baffle and new matte finish combine to create the standard in fidelity.

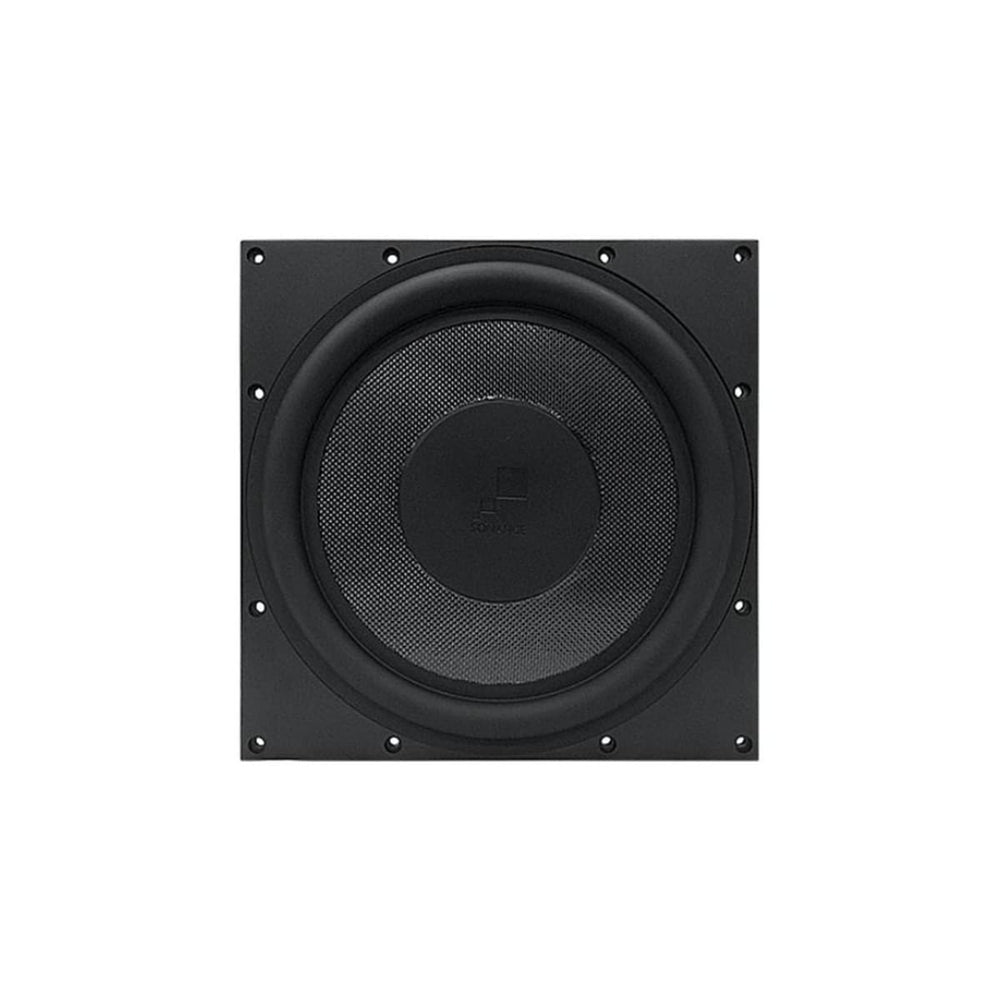

Sonance Reference Series in wall subs share the same award winning low profile grille design as the rest of the Visual Performance family, creating a consistent aesthetic throughout the home. Designed specifically for installation during the construction or renovation process, this sub's enclosure is positioned behind the wall to deliver unprecedented performance with minimal visual intrusion.
Please Note: Sonance R12SUB ENC Subwoofer Enclosure is required. Sold separately
Woofer | 305mm / 12" laminated carbon fibre cone with a rubber surround |
Frequency Response | 25Hz to 250Hz ±3dB |
Impedance | 8Ω nominal |
Sensitivity | 90dB (2.83V/1 metre) |
Required Amplification | Sonance DSP2-750. Set for 8Ω operation |
Dimensions | Woofer: Height: 314mm / 12 3/8" Width: 314mm / 12 3/8" Depth: 80.2mm / 3 5/32" Grille: Height: 381mm / 15" Width: 381mm / 15" Depth: 4mm / 5/32" |
Please Note: Sonance R12SUB ENC Subwoofer Enclosure is required. Sold separately
