Description

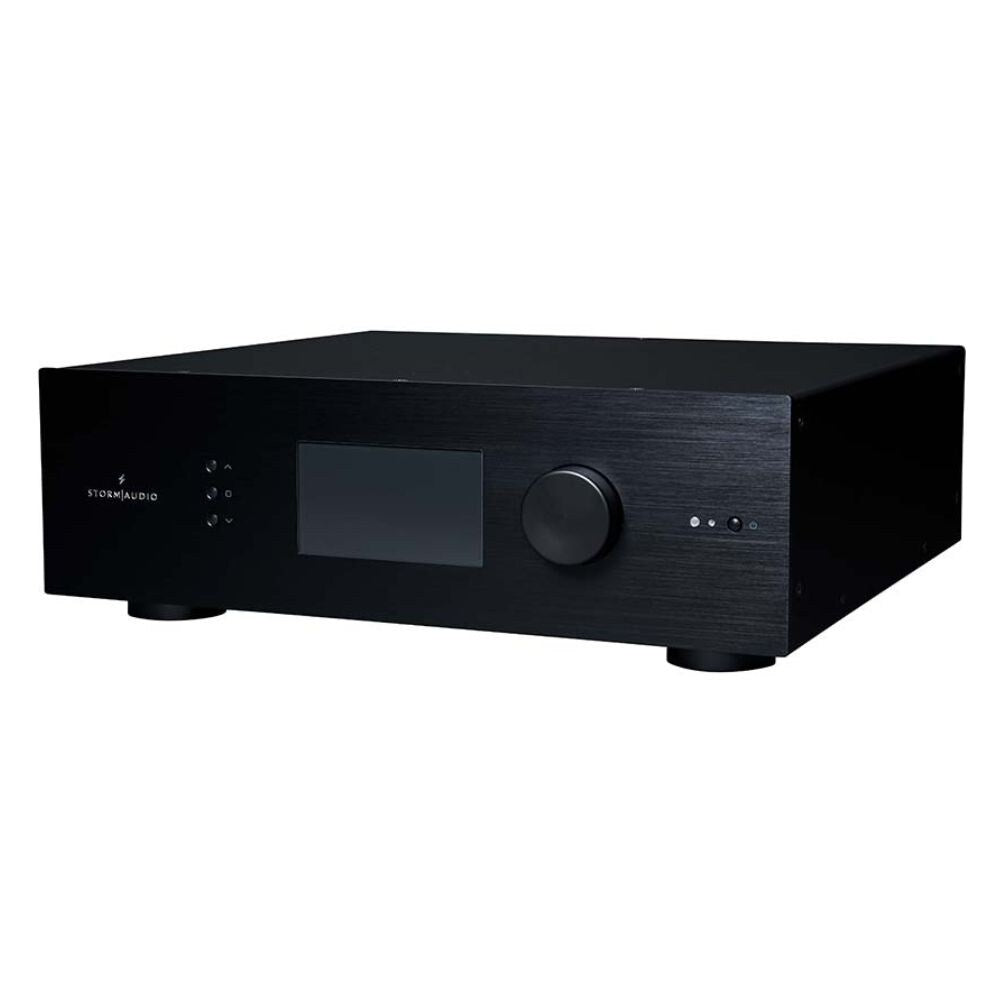

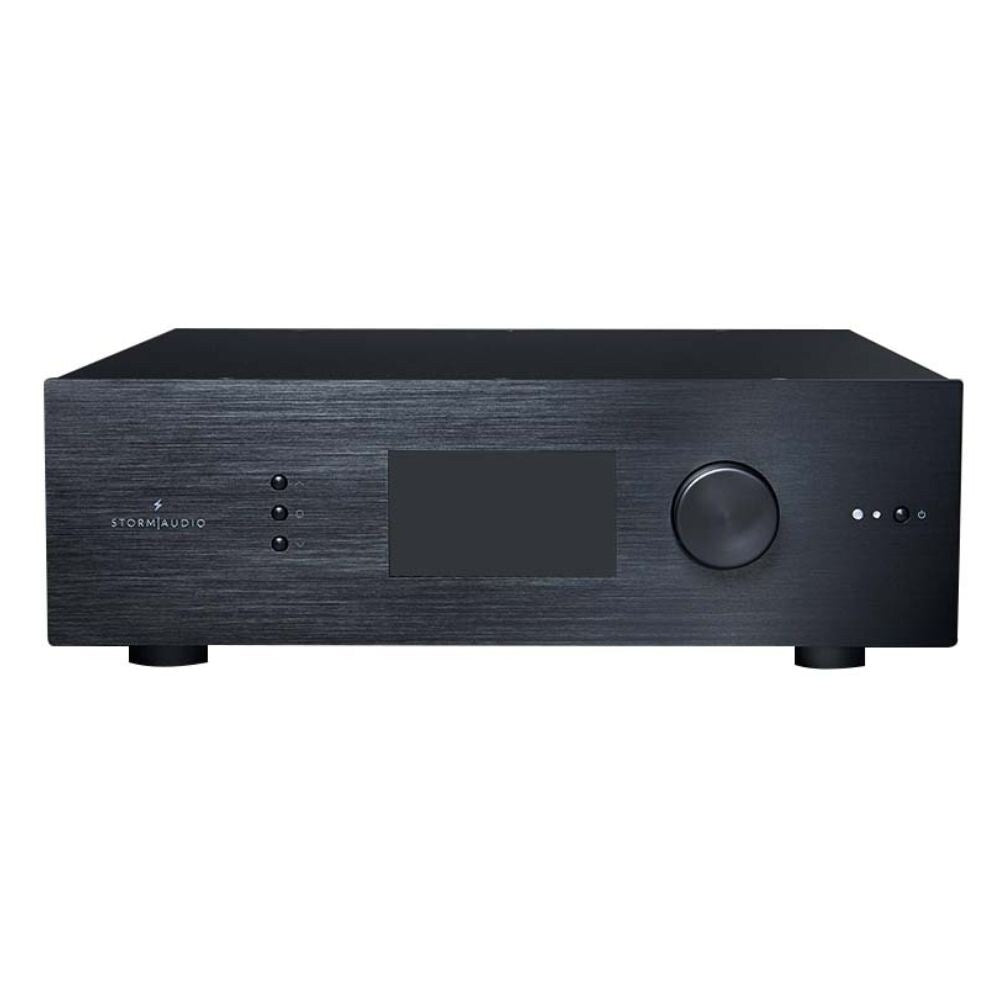

With a design based on the award winning StormAudio ISP MK2 platform, the ISP CORE 16 gives you a sleek, compact and premium processor that delivers StormAudio's signature functionality and performance in a 3U chassis.With a design based on the award winning StormAudio ISP MK2 platform, the ISP CORE 16 gives you a sleek, compact and premium processor that delivers StormAudio's signature functionality and performance in a 3U chassis.
The ISP CORE 16, manufactured in France, supports up to 16 channels and has all the DSP power to decode all the latest immersive formats such as Auro-3D, Dolby Atmos, DTS:X Pro, IMAX Enhanced, HDR10, HLG and Dolby Vision. It enables post processing to optimise any speaker to any room straight out of the box.
It includes the highest implementation of Dirac Live on the market for easy and accurate room calibration, whilst supporting up to 20 PEQs per channel and driving up to four way active crossovers and any number of subwoofers.
This processors delivers a refined minimalist design highlighting a new full colour 5" display that provides access to a wealth of information such as real time multichannel VuMeter or HDMI signals details for quick accessible overview of essential data.
The ISP Core 16 can be easily controlled by a variety of tools, ranging from the included IR remote control to home automation systems or the Android/iOS available on smartphones or tablets. StormAudio's desire is to engineer high performing products that are simple to use and easy to set up for the customer and as such the ISP Core 16 is no exception. It comes with StormAudio's intuitive User Interface and user friendly installation configurator.
Based on the design of the ISP MK2, the ISP Core 16 delivers the same audio performance with the same DAC portion and proprietary analogue/digital hybrid volume adjustment that maximises the dynamic range for a more accurate, detailed and dynamic reproduction of any movie soundtrack or music playlists. Although the ISP Core 16 does not offer modularity, upgradability of the HDMI board remains possible so you can stay up to date whenever new updates are released.
Additionally, an optional firmware package is available to activate additional features such as StormXT, Expert Bass Management, Dirac Live Bass Control and HDMI matrix features.
Specification

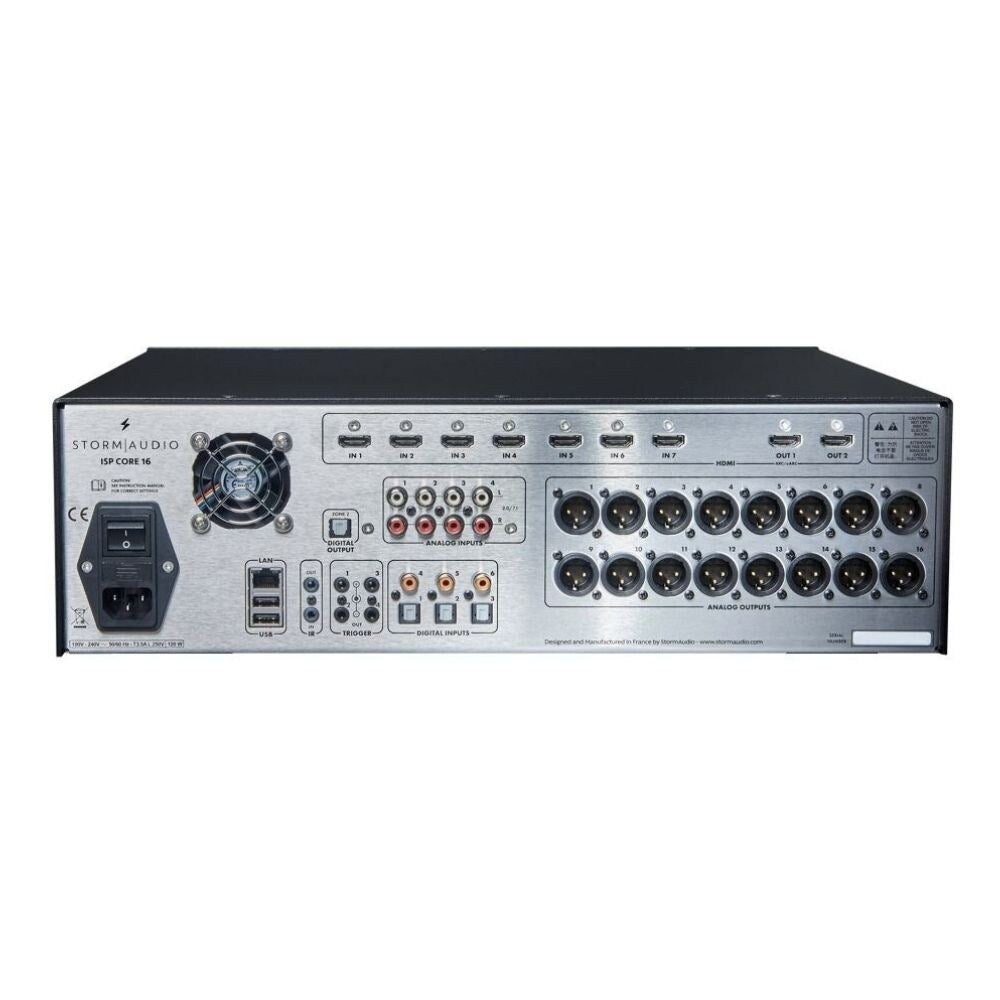

| HDMI In / Out | 7" 2 Out (ARC/eARC) HDMI2.0b HDCP2.2 4K UHD 18Gbps on all ports HDR10 Dolby Vision HLG |
| Audio Outputs | 16 channel analogue XLR 1x XLR analogue stereo downmix |
| Audio Inputs | 4x Analogue RCA, 7.1 or stereo 6x Digital: 3x Coaxial SPDIF and 3x Optical Toslink |
| Decoding | 16 decoding and up mixing channels Dolby ATMOS Dolby Auro-3D IMAX enhanced DTS:X Pro ready All legacy codecs up to 192kHz Optional StormXT |
| Processing | Up to 16 channel Standard bass management Optional expert bass management Multi theatre and Multi room Multi way speakers Multi subwoofer 20 PEQ per channel |
| Room Correction | DIRAC Live Optional Dirac Bass Control Module REW Plugin |
| Streaming | Roon ready |
| Control | TCP/IP (Ethernet) IR StormRemote (iOS App) Web based configuration: Control4 Crestron RTi Savant Elan driver/modules available |
| Dimensions | Height: 145mm / 5.71" Width: 479mm / 18.86" Depth: 395mm / 15.55" |
Features
- Up to 16 channel native decoding
- DIRAC
- Crestron, Control4, Savant, RTI home automation drivers
- Optional bass management, multi bass zones and routing
- Multiple layout pre-sets
- Multi zone
- 3RU rack ears included
User guides
Download User Guides:
Data Sheet
