Description
Description:

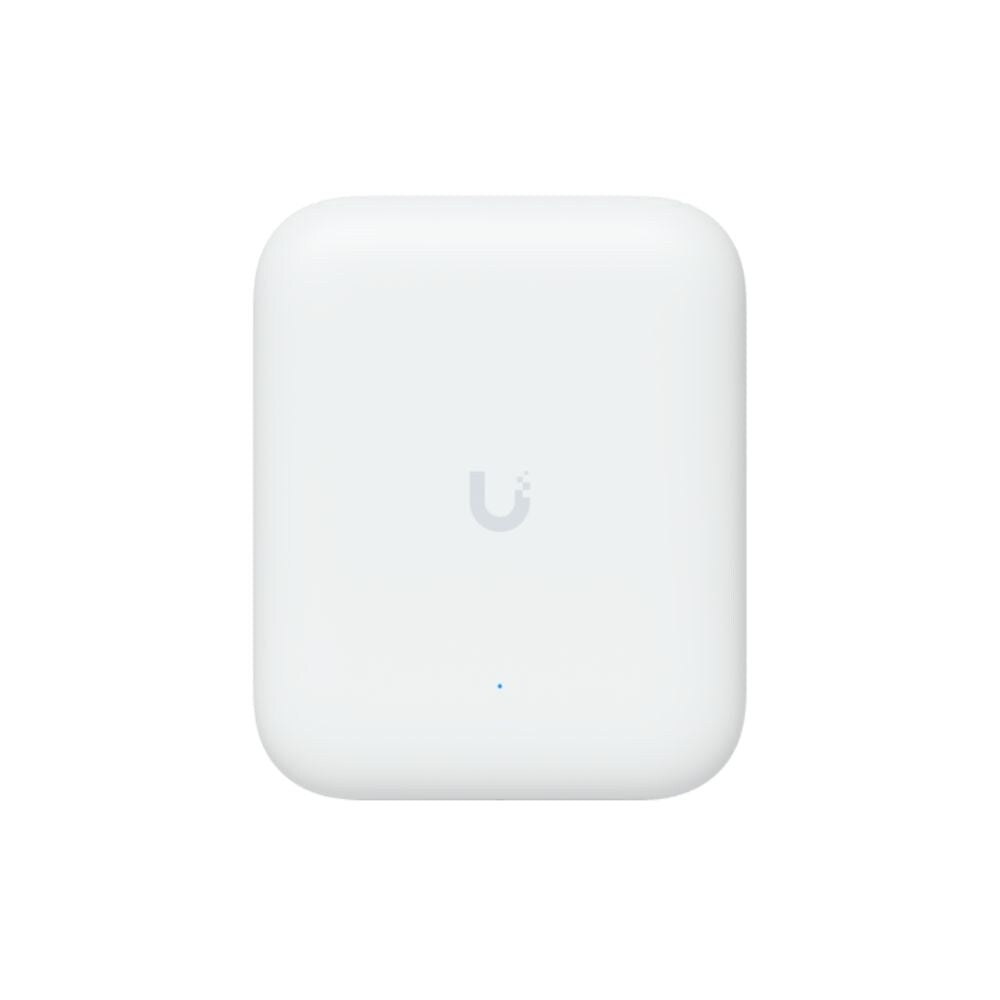

The U7-Outdoor from Ubiquiti is engineered to deliver top tier wireless connectivity in all weather conditions with 4 spatial streams, an integrated directional super antenna and versatile mounting options.
With its robust IP rated weatherproof enclosure, the U7-Outdoor access point withstands the elements, ensuring reliable performance rain or shine.
The integrated directional super antenna offers extensive coverage up to 465 m2 in open spaces, ideal for large outdoor environments. Its flexible mounting options, including wall, ceiling and pole mounts, provide installation versatility to suit various deployment scenarios.
Designed to handle high density environments, this access point supports over 200 concurrent devices. This capability is crucial for public spaces, events and commercial areas where multiple users need seamless internet access simultaneously.
The U7-Outdoor operates on Wi-Fi 7, leveraging 4 spatial streams to maximise data throughput, achieving speeds up to 5 Gbps. The 2.5 GbE uplink ensures a robust connection to your network backbone, further enhancing the performance and reliability of your wireless infrastructure. Whilst, the dual band MIMO technology of 2x2 for both 2.4 GHz and 5 GHz, ensures efficient data transmission and reception, minimising interference and enhancing overall network performance.
Managed with Ubiquiti's central management system UniFi, allows configuration and monitoring of the device remotely, as well as full support for guest portals and hotspots with options to apply different bandwidth rates, limit duration of usage and total data usage.
Features:
- Wi-Fi 7 dual radio
- 4 spatial streams
- 465 m coverage
- An integrated directional super antenna
- Supports 300+ connected devices
- 1 x 2.5GbE Uplink
- PoE+ powered
- IPX-6 Weatherproof. Outdoor capable
- Wall or pole mount
- All mounting hardware included
Specifications:
| Wi-Fi | 802.11a/b/g/n/ac/ax/be Wi-Fi 6 and Wi-Fi 7 |
| Antenna Gain | 2.4 GHz: Directional internal: 8 dBi or external omni: 3 dBi 5 GHz Directional internal: 12.5 dBi or external omni: 4 dBi |
| PHY Rate | 2.4 GHz: 688 Mbps (BW40) 5 GHz: 4.3 Gbps (BW240) |
| Radio Streams | 2.4 GHz: 2 x 2 (DL/UL MU-MIMO) 5 GHz: 2 x 2 (DL/UL MU-MIMO) |
| SSID Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| Concurrent Clients | 200+ |

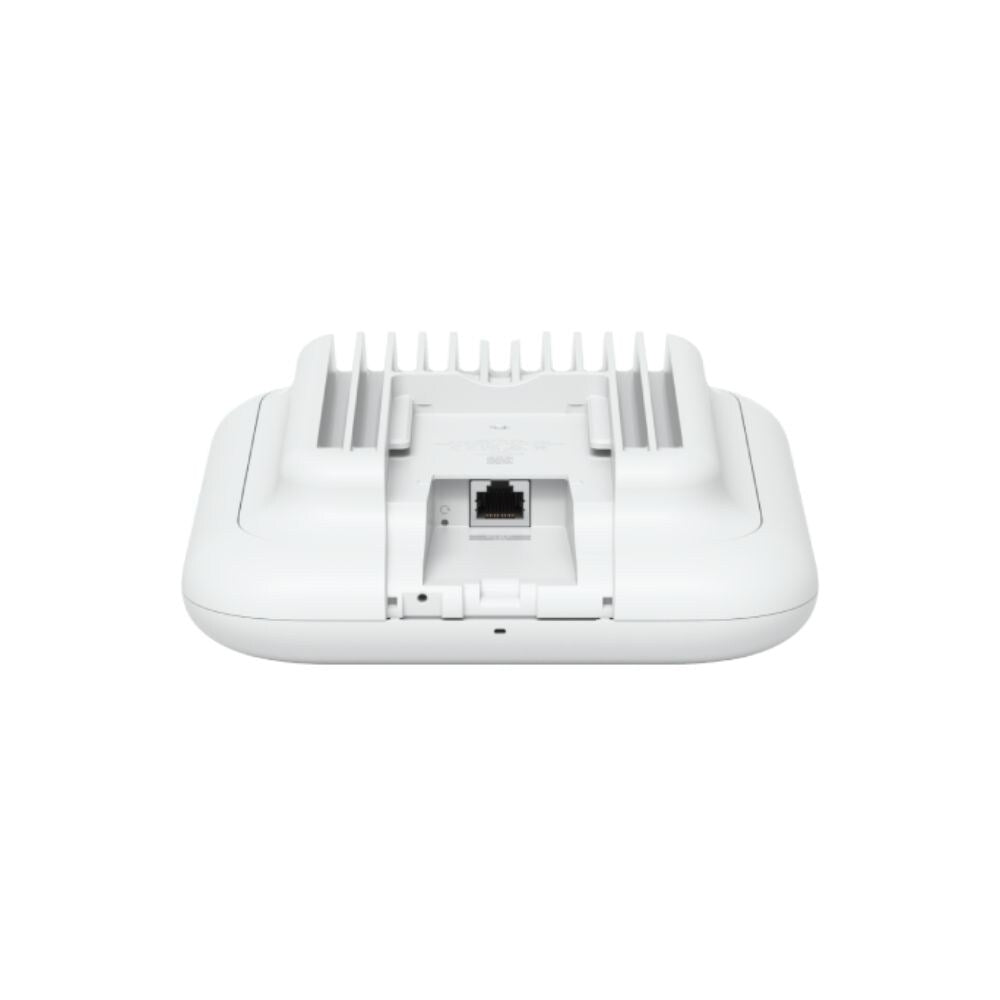

| Interface | 1 x 1/2.5 GbE RJ45 port |
| Power | PoE+ |
| Power Consumption | 19W |
| Operating Temperature | -30°C / -22°F to 60°C / 140°F Relative Humidity: 5 to 95% non condensing |
| Dimensions | Height: 208mm / 8.2" Width: 170mm / 6.7 Depth: 54.5mm / 2.1" |
| Weight | 1.2kg / 2.6lb |
| Mounting Options | Outdoor wall, ceiling or pole |

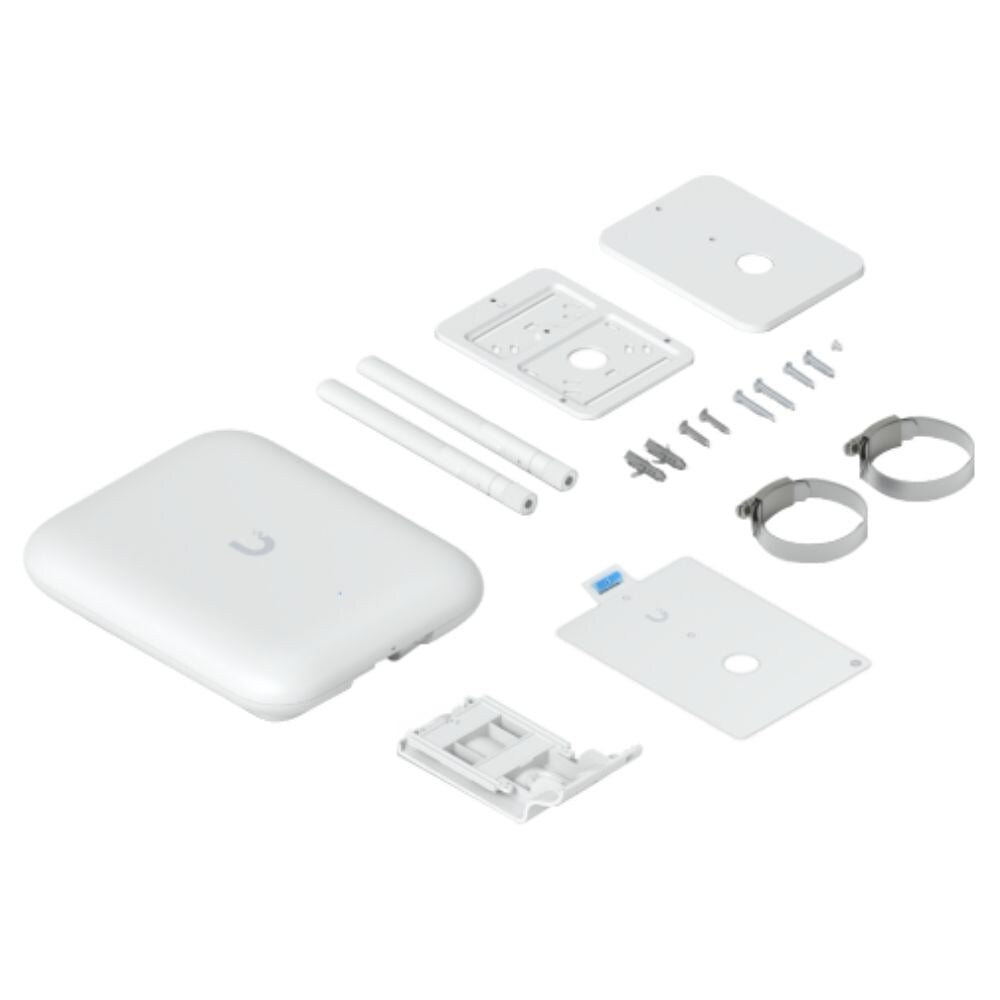

| Included | 2 x External antennas 1 x Wall plate template level 1 x Wall plate mount 1 x Multipurpose mount 2 x Jubilee clips All mounting hardware |
User guides
Download User Guides:
Unifi Brochure
Quick Start Guide
DoC
