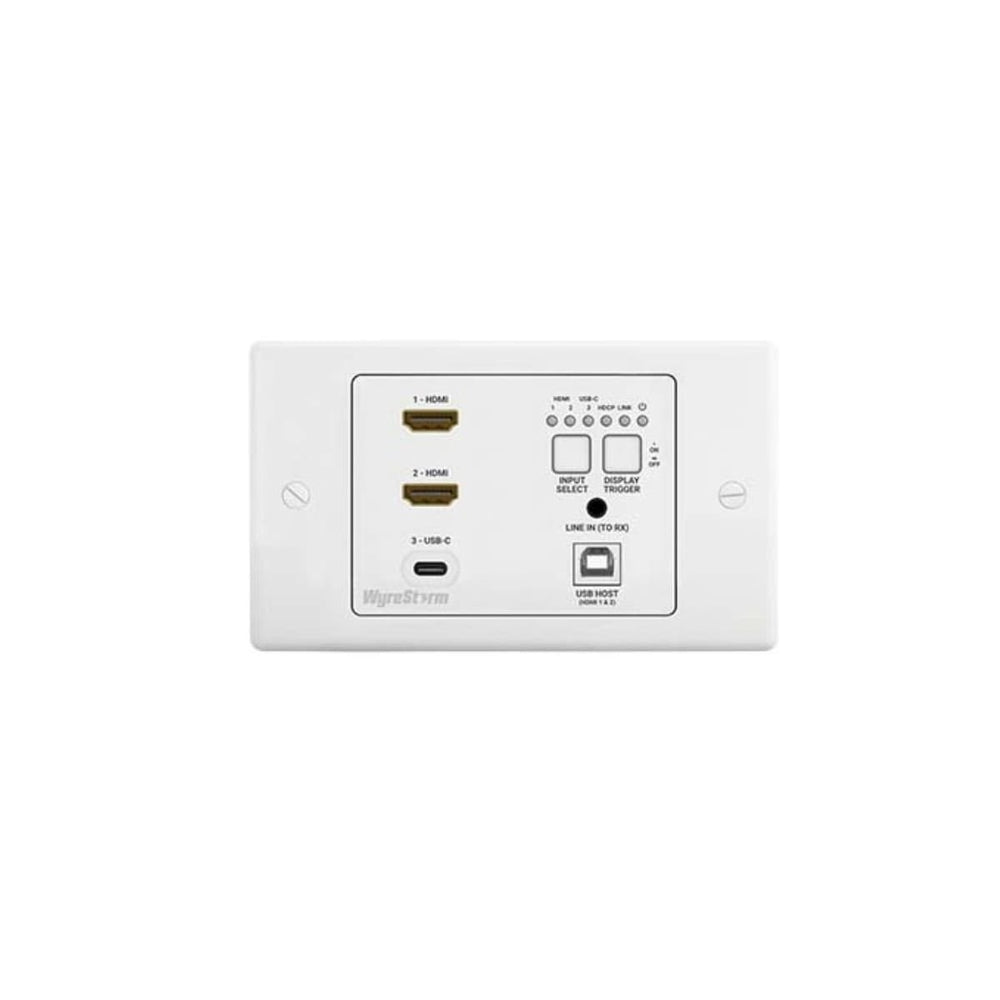

WyreStorm 3 Input In Wall HDBaseT Transmitter, 4K and 2 HDMI USB-C, With 2 Gang UK Back Box

WyreStorm's SW-130-TX-UK transmitter features three inputs and powerful HDBaseT® transmission, makes this powerful switching transmitter perfect for corporate meeting and classroom environments. Automatic or manual switching of 2 HDMI's or USB-C and CEC power triggering via HDBaseT® means a simple user experience. This sets the standard for in wall HDBaseT® transmission.

WyreStorm's SW-130-TX-UK transmitter features three inputs and powerful HDBaseT® transmission, makes this powerful switching transmitter perfect for corporate meeting and classroom environments.

Automatic or manual switching of 2 HDMI's or USB-C and CEC power triggering via HDBaseT® means a simple user experience. This sets the standard for in wall HDBaseT® transmission.

Further functionality allows USB devices to be routed back to the source via USB host, or natively via USB-C and charging for the connected USB-C device.

This sets the standard for in wall HDBaseT® transmission can achieve 4K over 100m or 328ft and has the latest HDR standards, including HDR-10 and Dolby Vision™ at 30Hz.

Please Note: For optimum performance, use with RX-700 4K HDR 4:4:4 60Hz HDBaseT 2.0 receiver with USB device inputs, Ethernet and PoH (4K: 100m/328ft)

Specifications:

Please Note: WyreStorm recommends the use of shielded category cable to minimise signal noise and interference

Features:

• Professional HDBaseT switcher/transmitter for video conference or meeting rooms
• 3 switchable inputs: 2 HDMI and USB-C supporting content up to 4K/30 4:4:4 and RGB or 4K/60 4:2:0 8 bit
• The latest HDR standards, including HDR-10 and Dolby Vision™ at 30Hz
• HDCP 2.2 encryption technology ensuring compatibility with the latest 4K UHD content and sources
• HD multichannel audio up to DTS:X and Dolby Atmos™
• USB-C port supports alt-mode functionality for A/V and USB data
• USB-C charging for connected devices up to 2A
• Compatible with DVI-I and DP++ v1.3 signals from supported devices
• Additional 2 channel analogue audio input for sending separate stereo audio to RX
• USB2.0 host port for connection of far end devices such as webcams, smart touchscreens and microphones
• Automatic or manual CEC triggering for compatible connected screens or projectors
• Additional power input via DC port on rear via 12v 1A PSU which is not included
• Port shared with RS-232 input
• Control options include automatic switching, manual switching and CEC trigger and RS-232 control
• Compatible with TS-280 touchscreen for control with 12v power outlet
• 2 gang UK form factor, white fascia, non removable

Please Note: For optimum performance, use with RX-700 4K HDR 4:4:4 60Hz HDBaseT 2.0 receiver with USB device inputs, Ethernet and PoH (4K: 100m/328ft)
