The EX-SW-0301-H2 HDMI Switching Extender with Scaling Receiver from WyreStorm is a powerful HDBaseT extender with support for VGA, HDMI and DP inputs at the transmitter. It also features a 4th source local to the scaling receiver. Condition based relays and support for HDCP 2.2 are included in this formidable package.
The EX-SW-0301-H2 HDMI Switching Extender with Scaling Receiver from WyreStorm is a powerful HDBaseT extender with support for VGA, HDMI and DP inputs at the transmitter. It also features a 4th source local to the scaling receiver. Condition based relays and support for HDCP 2.2 are included in this formidable package. Its slim chassis design means easy and discreet device placement.

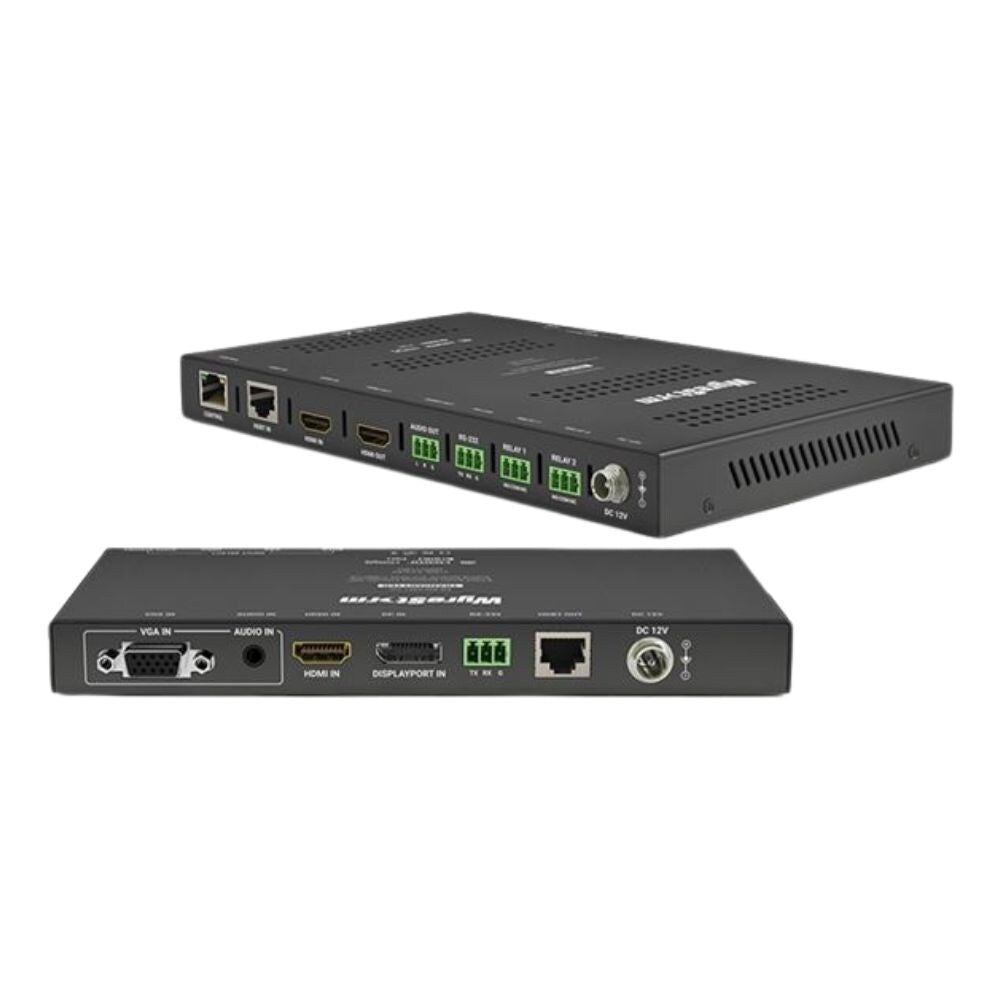

The WYR-EX-SW-0301-H2 from WyreStorm is the newest addition to the switching extender line up. It brings features of the H2 family into the huddle and meeting space products. Supporting HDCP 2.2 and 4K/60 content, this extender accepts HDMI and DP sources with a VGA + audio input for legacy devices. Class B HDBaseT™ Transmission to 35m / 115ft @4K and 70m / 230ft @ 1080p.

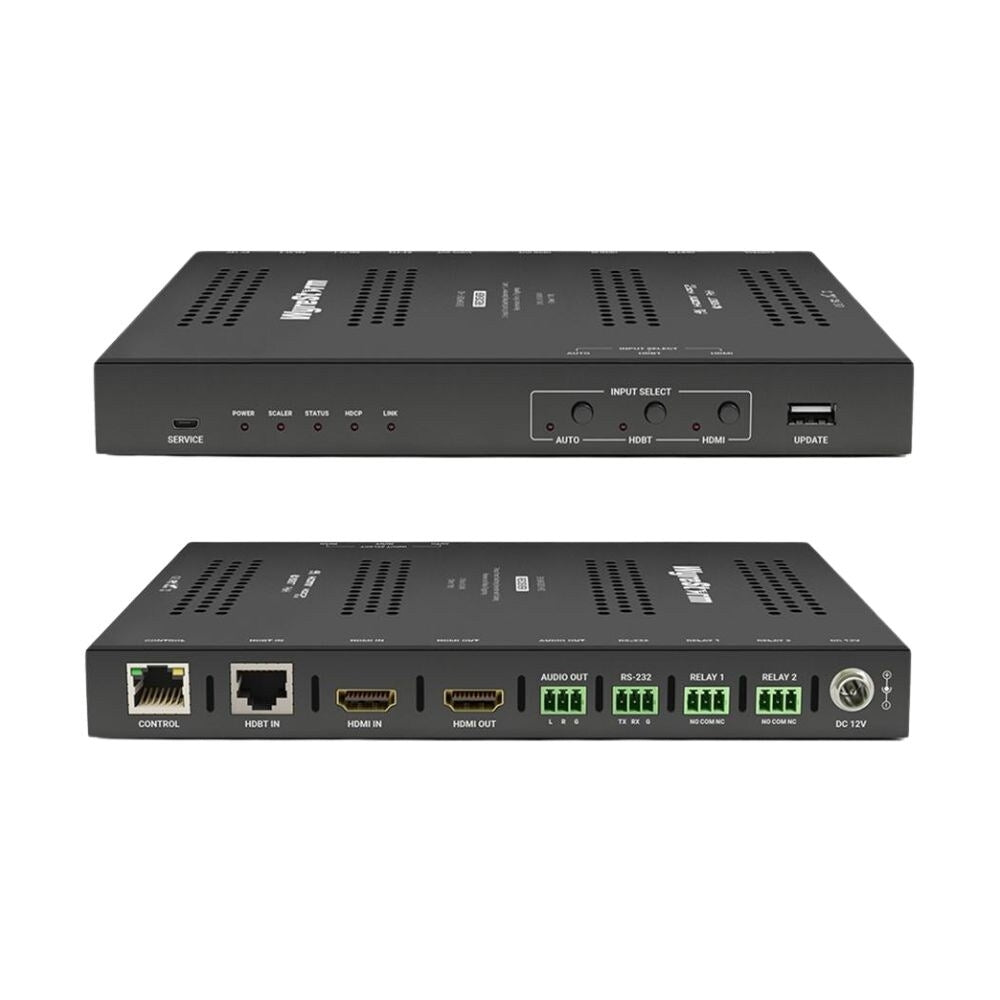

Upon the meeting room being in an idle state, the receiver can switch to its secondary input (HDMI) which can be used for anything from a signage player to a satellite receiver, keeping the screen active and displaying content. This input can also be triggered manually at any time should a Chromecast or AppleTV™ be fitted for screen mirroring. So the receiver automatically scales content to match capability of connected TV or projector.
With autonomy in mind, this "meeting room in a box" product can be configured to automatically trigger motorised devices within the room. The relays will open or close depending on the status of the transmitter, meaning, when a source connection is made, the meeting room will come to life with projector screens appearing and window blinds closing.
Rock solid Class B HDBaseT™ transmission ensures signal integrity from transmitter to receiver, with PoH being supplied in the opposite direction, this allows the transmitter to be sited without having any concerns about power sources. The receiver automatically scales incoming content to the capability of the connected screen, ensuring no signal drop outs to interrupt the flow of your meeting.
Specifications:
| Inputs | Transmitter: 1x VGA In: 15 pin VGA 1x Display Port In: Display Port 1.3 1x HDMI In: 19 pin type A Receiver: 1x HDMI In: 19 pin type A 1x HDBT In: 8 pin RJ-45 Female |
| Outputs | Transmitter: 1x HDBT out Class A: 8 pin RJ-45 Female Receiver: 1x HDMI out: 19 pin type A 1x Audio Out: 3 pin Phoenix |
| Audio Formats | 2 channel analogue PCM, multichannel: LPCM |
| Output Video Encoding | HDBaseT™ Class A |
| Encoding Data Rate | 9.2Gbps |
| End to End Latency | 10μs |
| Video Resolutions (Max) | Video Resolutions: 1920x1080p @60Hz 12bit, 1920x1200p @60Hz 12 bit, 3840x2160p @30Hz 8bit 4:4:4 and 4096x2160p @60Hz 8bit 4:2:0 HDMI: 15m/49ft and 7m/23ft |
| Maximum Pixel Clock | HDMI: 600mHz, HDBaseT™: 297MHz |
| Communication and Control | |
| HDMI | HDMI, HDCP 2.2, EDID and DVI/D supported with adaptor. Not included |
| HDBaseT™ | HDMI, HDCP 2.2, EDID, 1 way PoH receiver to transmitter |
| RS-232 | 1x RS-232: v1 Chassis: 3 pin Phoenix, v2 Chassis: 4 pin Phoenix transmitter and receiver |
| Ethernet | 1x 8 pin RJ-45 female, IP Control (TELNET), WEB UI (v2 only) |
| Relays | 2x Relay: 3 pin Phoenix (receiver only) |
| Power Supply | 12V DC 3A |
| PoH | IEEE 802.3af 15.4 W Max, receiver to transmitter |
| Max Power Consumption | Transmitter: 7W Receiver: 17W |
| Operating Temperature | 0°C / 32°F to 45°C / 113°F |
| Storage Temperature | -20°C / -4°F to 70°C / 158°F |
| Maximum BTU | Transmitter: 24 BTU/hr Receiver: 58 BTU/hr |
| Rack Units | Both transmitter and Receiver <1U |
| Dimensions | Transmitter: With feet, brackets or handles Height: 24.5mm / 0.97" Width: 237.7mm / 9.37" Depth: 95.5mm / 3.76" Receiver: With feet, brackets or handles Height: 24.5mm / 0.97" Width: 237.7mm / 9.36" Depth: 95.5mm / 3.76" |
| Weight | Transmitter: 0.5kg / 1.1lb Receiver: 0.94kg / 2.07lb |
| Regulatory: Safety and Emissions | CE, FCC, ROHS |
Features:
- 3 input switcher and HDBaseT extender perfect for education or huddle room environments
- HDMI, DisplayPort and VGA inputs with automatic or manual switching
- 2 x automatic (condition based) or manually triggered relays on receiver for projector screen or curtain control
- Receiver automatically scales content to match capability of connected TV or projector
- Class B HDBaseT™ Transmission to 35m / 115ft @4K and 70m / 230ft @ 1080p
- HDMI input on receiver for connection of additional source device, such as a signage player when a room is not in use
- Line level audio output on receiver
- PoH from receiver to transmitter means less clutter and cables on desk
- Compatible with latest 4K/60 4:2:0 source devices
- HDCP 2.2 compliant
- Control via Ethernet port (TELNET) on RX, RS-232 or front panel buttons
- Slim chassis design means easy and discreet device placement
