Description

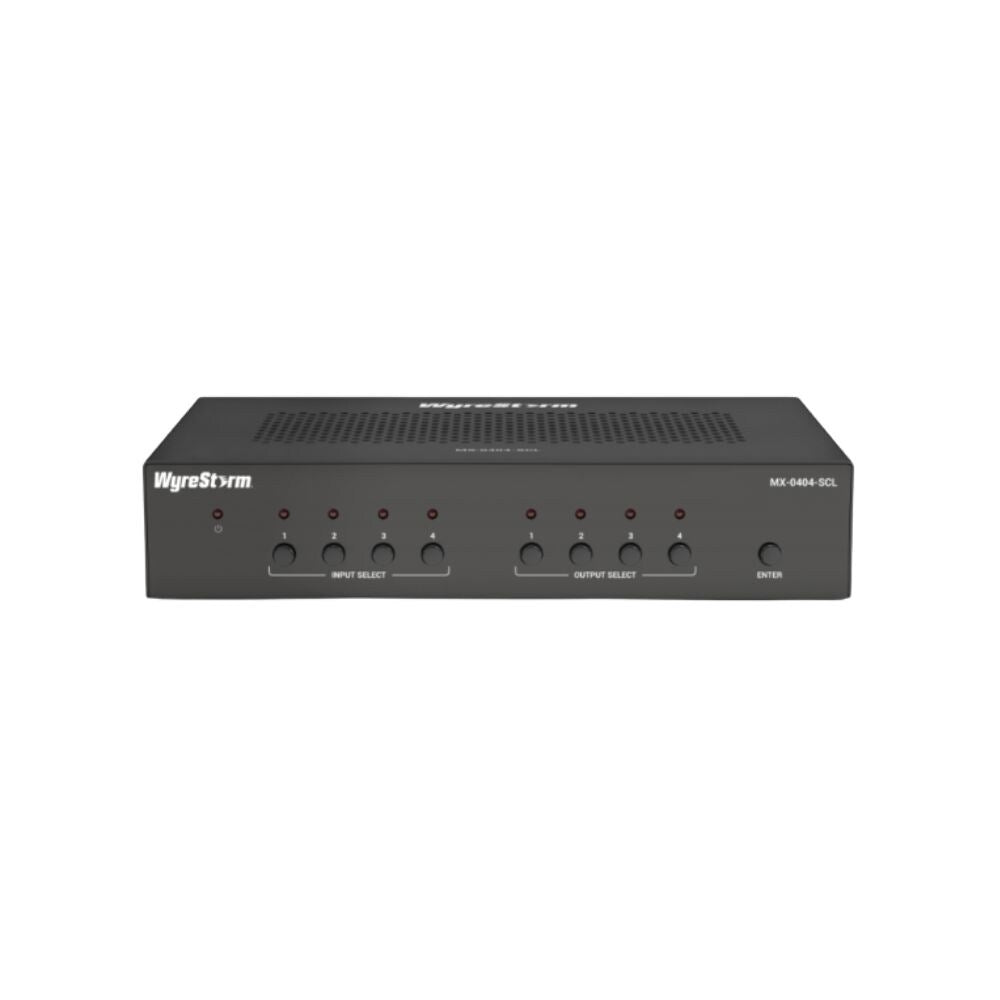

The MX-0404-SCL from WyreStorm is a new 4K HDMI matrix switcher that supports seamless switching across all HDMI inputs and outputs. This matrix switcher outputs can be configured to work in different modes to meet different application requirements. In matrix mode, all four HDMI inputs and outputs are active and matrix switching.
The MX-0404-SCL from WyreStorm is a new 4K HDMI matrix switcher that supports seamless switching across all HDMI inputs and outputs. This matrix switcher outputs can be configured to work in different modes to meet different application requirements. In matrix mode, all four HDMI inputs and outputs are active and matrix switching.
Each of the 4 outputs on the SCL feature down scalers, allowing support for mixed resolution distribution of HDMI content to 4K and 1080p display simultaneously.
This matrix features balanced analog and a digital S/PDIF, easily de-embed audio from either the HDMI outputs to a secondary audio distribution system without the need for external adaptors or converters. In addition, it offers seamless switching, so you will not see a black screen between switching sources to the output display.
As a standard requirement with the latest WyreStorm products, the SCL supports the latest video formats including 4K HDR and Dolby Vision content all in uncompressed HDMI glory.
Specifications:
Audio and Video | |

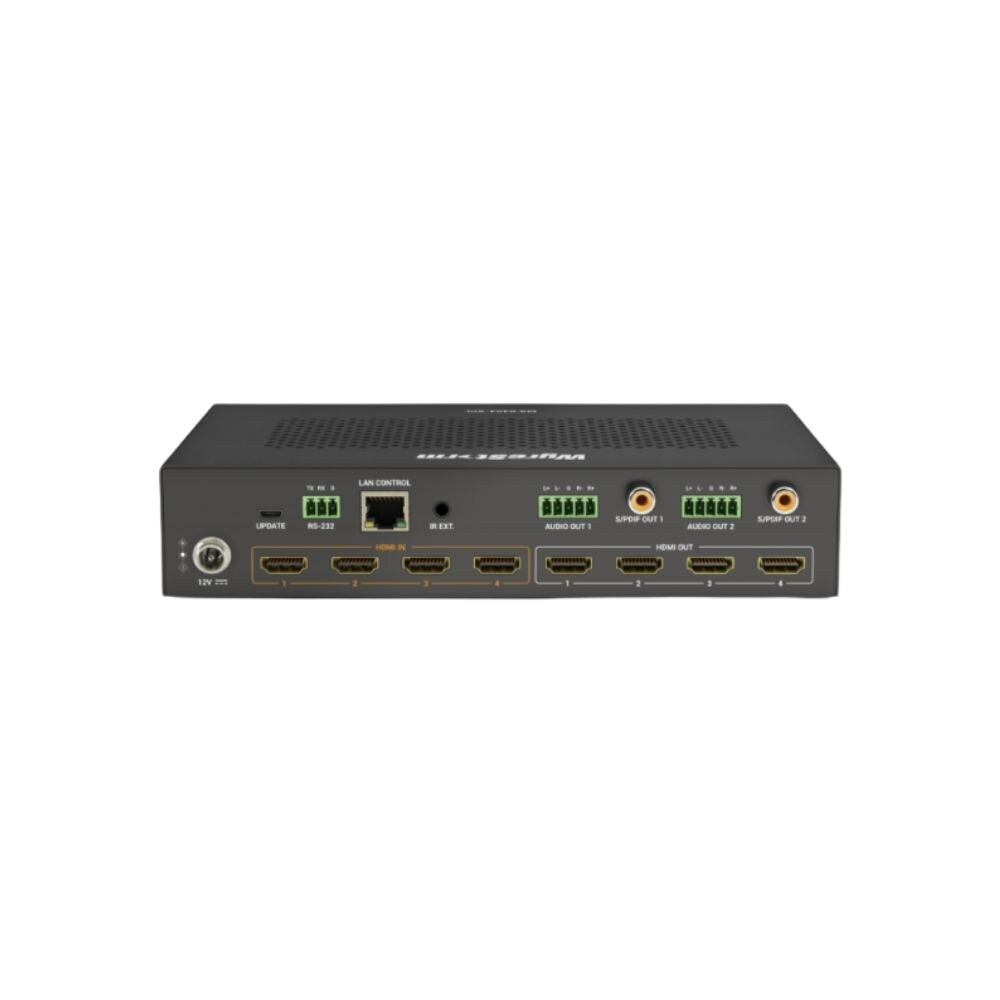

Inputs | 4 x HDMI Type A 1 x Micro USB 1 x LAN port 1 x RS-232 port 1 x IR Ext |
Outputs | 4 x HDMI Type A 2 x 5 pin balanced audio 2 x Coaxial S/PDIF |
Max Video Resolutions | 1920x1080p @60Hz 3840x2160 @60Hz 4:4:4 8bit |
Video Encoding | Uncompressed HDMI |
Audio Formats | 2 channel PCM |
Supported Standards | DCI, RGB, HDR10, HLG and BT.2020 |
Communication and Control | |
HDMI | HDMI 2.0, HDCP 2.3, EDID, CEC |
Ethernet | 1x 8 pin RJ-45 |
Power | Supply: 12V DC 3A Max Power Consumption: 16W |
Operating Temperature | 0°C / 32°F to 45°C / 113°F Relative Humidity: 10% to 90% non condensing |
Dimensions | Height: 215mm / 8.46" Width: 42mm / 1.65" Depth: 140.2mm / 5.52" |
Weight | 1.2kg / 2.64lb |
Certifications | CE, FCC, RoHS, RCM and EAC |
Included | 1 x IR remote handset 1 x IR receiver 2 x Wall mounting brackets 2 x 5 pin terminal block 1 x Power Supply 12V 3A Suitable for US, UK, EU, AU |
Features:
- Uncompressed HDMI signal distribution supporting full 18Gbps bandwidth and 4K60 444 video content
- Pair with WyreStorm HAOC cables to send uncompressed HDMI video up to 50m
- Compatible with latest HDR video standards including HDR10, HDR10+ Dolby Vision and HLG
- Video Wall support with bezel adjustment
- Multi View supports up to 5 layout modes
- Balanced analog and digital S/PDIF audio de-embed for distributing audio to an amplifier or DSP
- Each HDMI output supports down scaling to support mixed resolution systems
- Output downscaling controlled intuitive web UI or API commands
- Automatic or manual CEC power triggering of displays through HDMI outputs via API
- Supports AV Mute for enabling disabling HDMI outputs per zone
- API triggered standby mode puts unit into low power state during downtime
- EDID Management through API
