Description

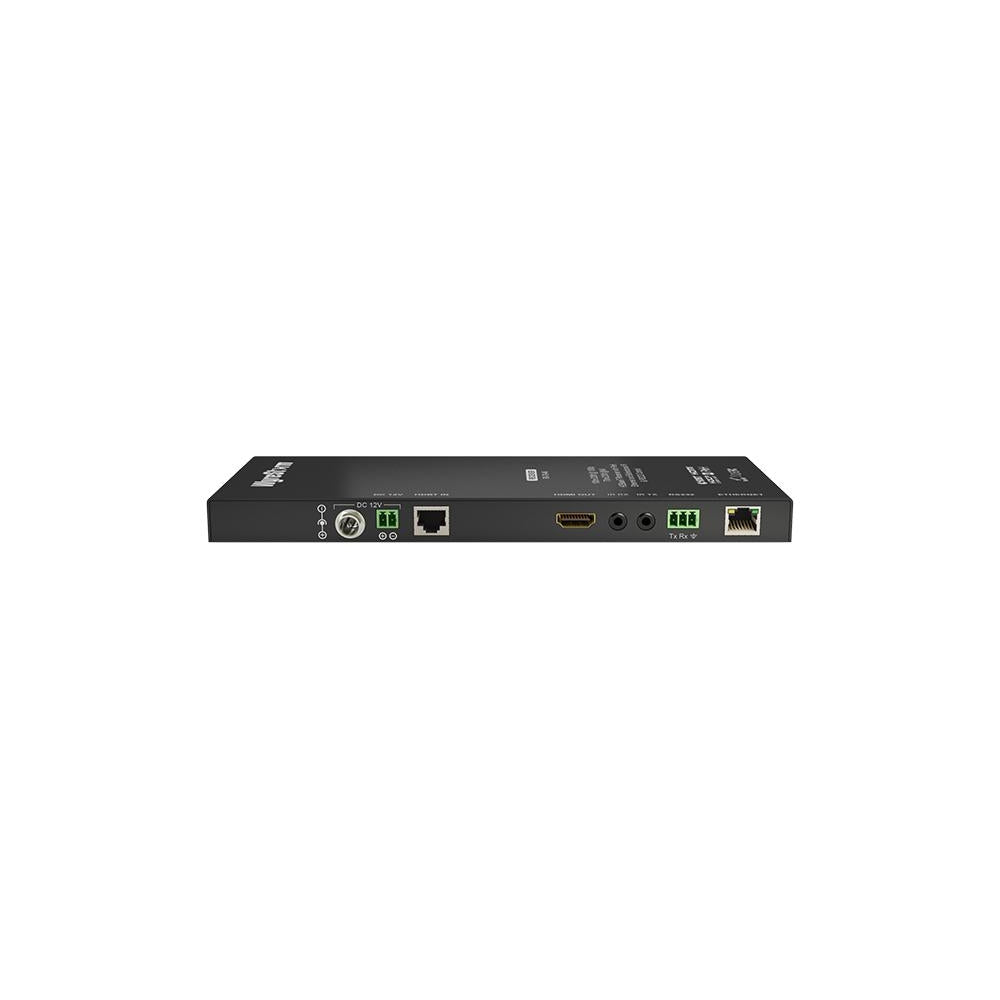

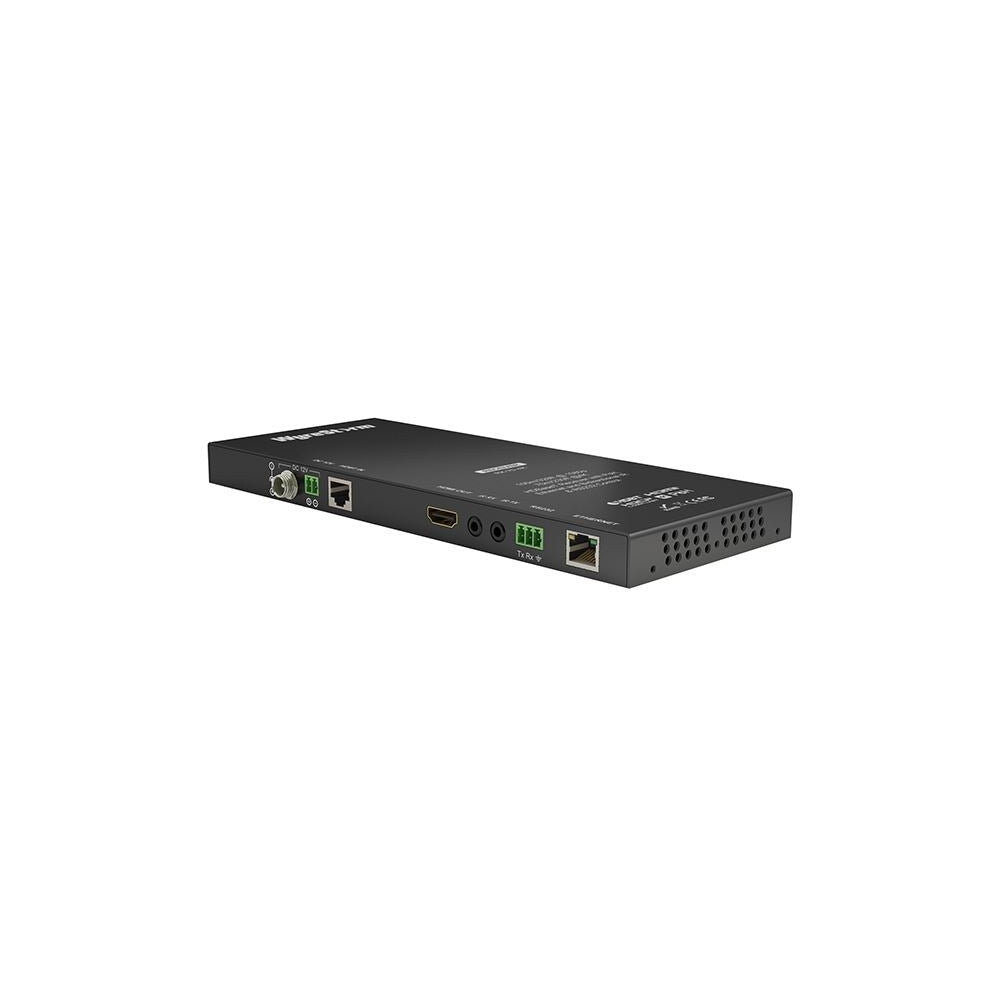

The perfect complement to WyreStorm's HDBaseT matrix system, presentation switch or in wall transmitter solution, the RX-70-4K ultra slim display receiver supports 4K UHD video with HDR up to 70m and 1080p to 100m.
The perfect complement to WyreStorm's HDBaseT matrix system, presentation switch or in wall transmitter solution, the RX-70-4K ultra slim display receiver supports 4K UHD video with HDR up to 70m and 1080p to 100m with multi channel audio, control, ethernet and PoH.
This receiver supports 3 methods of control pass through and as a pure HDBaseT device, it can handle bi directional IR, RS-232 and even CEC routing when used as part of a compatible WyreStorm matrix or extender system
The RX-70-4K can either be powered by a PoH compatible matrix or presentation switcher or it can deliver power to a transmission device such as the WyreStorm In wall HDBaseT transmitters.
Featuring a low profile chassis height of just 18mm or 0.7", this receiver offers greater installation convenience and ease, even if it's to be sited behind the slimmest of wall mounts.
Specifications:
Inputs | 1x HDBT |
Outputs | 1x HDMI |
Output Video Encoding | HDBT Class A |
Encoding Date Rate | 9.2Gbps |
End to End Latency | 10us (microseconds) |
Audio Formats | HDMI: 2ch LPCM Multichannel up to Dolby Atmos and DTS-X |
Vidio Resolutions (Max) | 4096x2160 @60Hz 8Bit 4:2:0 |
Maximum Pixel Clock | 297MHz |
HDMI | HDMI 2.0, HDCP 2.2, EDID, CEC and DVI-D supported with adaptor which is not included |
HDBT | HDMI 2.0, HDCP 2.2, EDID, CEC, 2 way POH and bidrectional IR |
IR | 1 x IR TX 3.5m mono jack 1 x IR RX 3.5mm stereo jack |
RS232 | 1x RS232 2 pin terminal black 3.5mm |
Power | 12V 2A DC 48V 15.4W 2 way PoH |
BTU | 24.6 BTU/hr |
Dimensions | Height: 18mm / 0.71" Width: 232mm / 9.13" Depth: 93mm / 3.66" |
Weight | 0.5kg / 1.1lb |
Included | Mounting brackets and IR connections |
Features:
- Low profile chassis of 18mm for easier, more convenient installations behind screens at display zones
- Transmits discrete wide band bidirectional IR control signal or routed serial commands, from compatible matrix), together within the HDMI signal over a single CAT5e or CAT6
- Robust Class A HDBaseT technology for stable 4K/HD distribution and control resistant to electrostatic and environmental interference compared to conventional UTP transmission
- Distribution of video, 4K and 1080p, multichannel audio, bidirectional IR, PoH and 10/100 Ethernet over single CAT5e or CAT6
- Multichannel audio supports 7.1 DTS Master HD and Dolby True HD
- 2 way PoH. Receiver draws power from matrix so no local power required at display location
- HDMI v2.0 with HDCP 2.2
- Full 3D compatibility up to 1080p
- Switchable RS-232 selection for firmware update
- Power options with additional phoenix port and threaded DC for use of both standard and locking DC power plugs

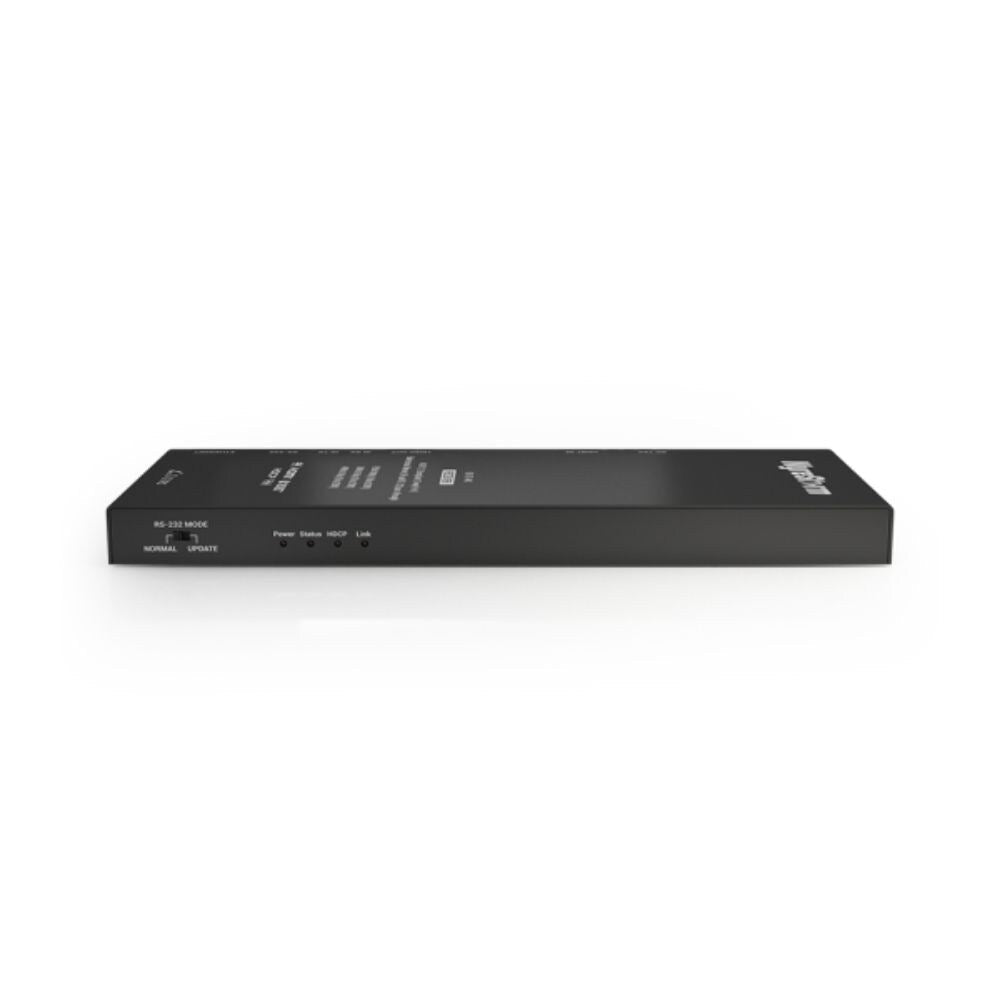

- Visual LED indication for power supply, signal status to show display connection, HDCP in signal and link between HDBaseT devices
- Automatically adjusts feedback, equalisation and amplification of signal
- Energy efficient universal power supplies included
- Mounting brackets and IR connections included
