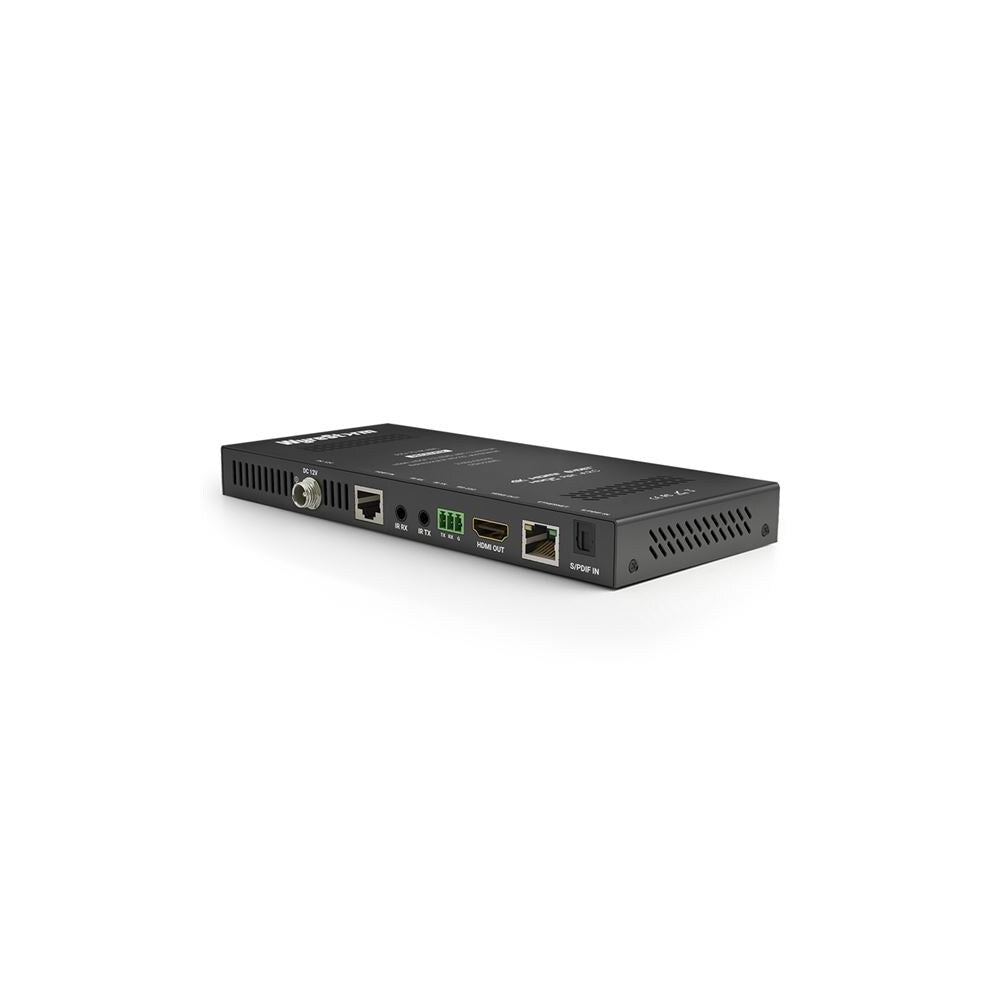

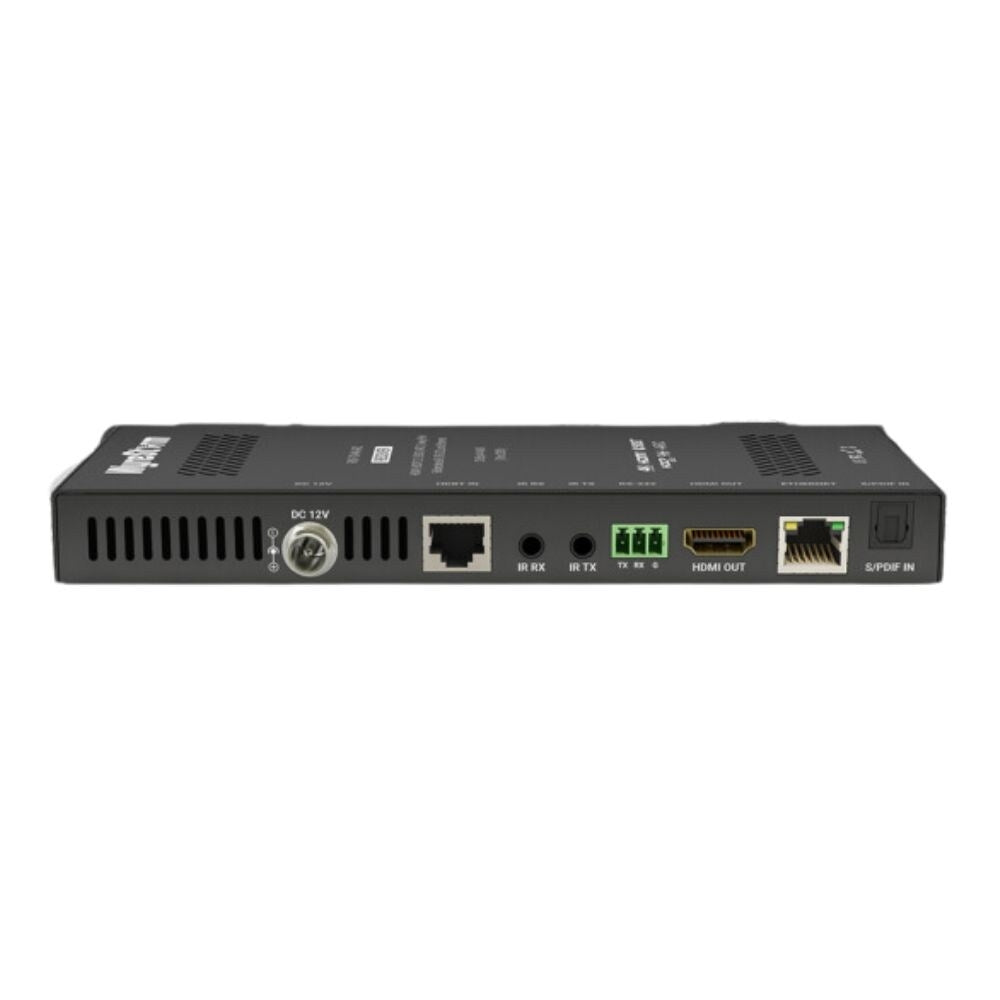

WyreStorm 4K HDR 4:4:4 60Hz HDBaseT Receiver With ARC, For Use With MX-H2XC Modular Matrix Switches

With high frame rate HDR-10 and HLG technology exceeding the capabilities of HDBaseT™, WyreStorm has implemented light compression technology with the RXV-70-4K-ARC receiver. It forms part of the new generation of signal extension technology and frees the 5.1 audio from an ARC compatible TV and sends it back to an H2XC matrix over HDBaseT™ an optical S/PDIF input is also present for sending digital audio signals. This HDBaseT™ receiver can be used with the WyreStorm WYR-MX-H2XC modular matrix switches.

With high frame rate HDR-10 and HLG technology exceeding the capabilities of HDBaseT™, WyreStorm has implemented light compression technology with the RXV-70-4K-ARC receiver.

It forms part of the new generation of signal extension technology and frees the 5.1 audio from an ARC compatible TV and sends it back to an H2XC matrix over HDBaseT™ an optical S/PDIF input is also present for sending digital audio signals. This HDBaseT™ receiver can be used with the WyreStorm WYR-MX-H2XC modular matrix switches.

The RXV-70-4K-ARC from WyreStorm can transmit multi channel digital audio from the TV location back to the matrix device for onward connection to an AVR or multi room amplifier. Audio Return is selectable between HDMI or S/PDIF optical input which allows for audio from a TV without ARC support to send audio to the transmitter or matrix.

This receiver can handle both current and future video content technologies. The highest possible bandwidth that currently exists according to the HDMI 2.0 specification can still be sent using HDBaseT™ and the latest in without loss compression technology from the matrix to this device.

The RXV-70-4K-ARC receives HDBT transmissions of 4K up to 70m / 230ft and 1080p up to 100m / 328ft with multi channel audio, control, Ethernet and PoH being also supported.

Specifications:

Features:

• WyreStorm's proprietary compression technology for lossless transmission of 4K HDR content, without latency
• Supports ARC via HDMI or optical input for audio return over HDBaseT™
• Selector switch for ARC (via HDMI) or Optical Return via Toslink
• Reliable HDBaseT™ HDMI conversion over distance using single Cat6 cable 4K HDR signals up to 70m / 230ft (2160p 4:4:4 60Hz 8 bit) and 2K signals up to 140m / 459ft (1200p 60Hz)
• Supports HDMI2.0 video standard up to 18Gbps
• Compatible with HDR standards including HDR-10, HDR-10+, HLG and Dolby Vision™ (Dolby Vision™ supported up to 30Hz)
• Class A HDBaseT™ supporting the transmission of video, multichannel audio, Ethernet, bidirectional control and PoH
• Powered remotely via PoH from H2XC matrix
• Bi directional IR supported with both IR TX & RX ports
• RS-232 port for routed 2 way serial communication Supports Ethernet pass through from matrix (Class A HDBaseT™ transmission only)
• LED indication for HDCP presence within signal and transmission link between devices
• Ventilated steel chassis HDCP 2.2 compatible
• Compact design for convenient and unobtrusive installation
• Wall mounting brackets and IR accessories included
