Description

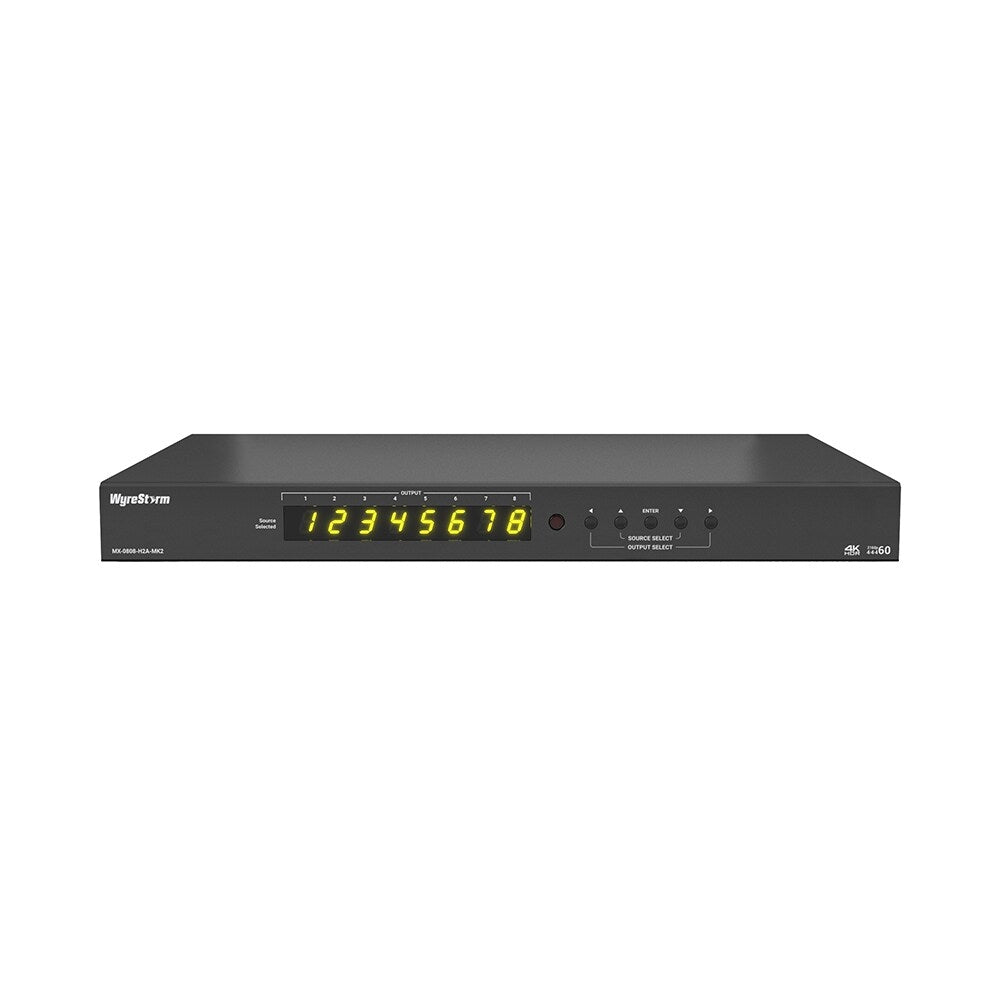

The MX-0808-H2A-MK2 from WyreStorm has HDMI outputs featuring 4K > 1080p down scalers promoting easier integration of mixed resolution displays into a single system. The HDMI outputs also support Audio Return Channel from smart TVs to bring audio from apps like Netflix, Prime Video, Hulu to an external audio system. The analogue audio outputs have been updated to balanced connections to ensure there is no loss in fidelity or interference.
The MX-0808-H2A-MK2 from WyreStorm has HDMI outputs featuring 4K > 1080p down scalers promoting easier integration of mixed resolution displays into a single system. The HDMI outputs also support Audio Return Channel from smart TVs to bring audio from apps like Netflix, Prime Video, Hulu to an external audio system.
The analogue audio outputs have been updated to balanced connections to ensure there is no loss in fidelity or interference.
Each of the 8 outputs on the MK2 feature down scalers, allowing support for mixed resolution distribution of HDMI content to 4K and 1080p display simultaneously.
Featuring balanced analogue and a digital S/PDIF, easily de-embed audio from either the HDMI inputs or ARC to a secondary audio distribution system without the need for external adapters or converters.
All 8 HDMI outputs support Audio Return Channel from smart TVs apps like Netflix, Prime Video, Hulu etc. The ARC audio can then be sent through either the digital S/PDIF or balanced analogue outputs to an AVR or stereo amp.
As a standard requirement with the latest WyreStorm products, the MK2 supports the latest video formats including 4K HDR and Dolby Vision content all in uncompressed HDMI glory and comes with a 5 Year Warranty
Specifications:
| Audio and Video | |
| Inputs | 8 x HDMI in: 19 pin type A |

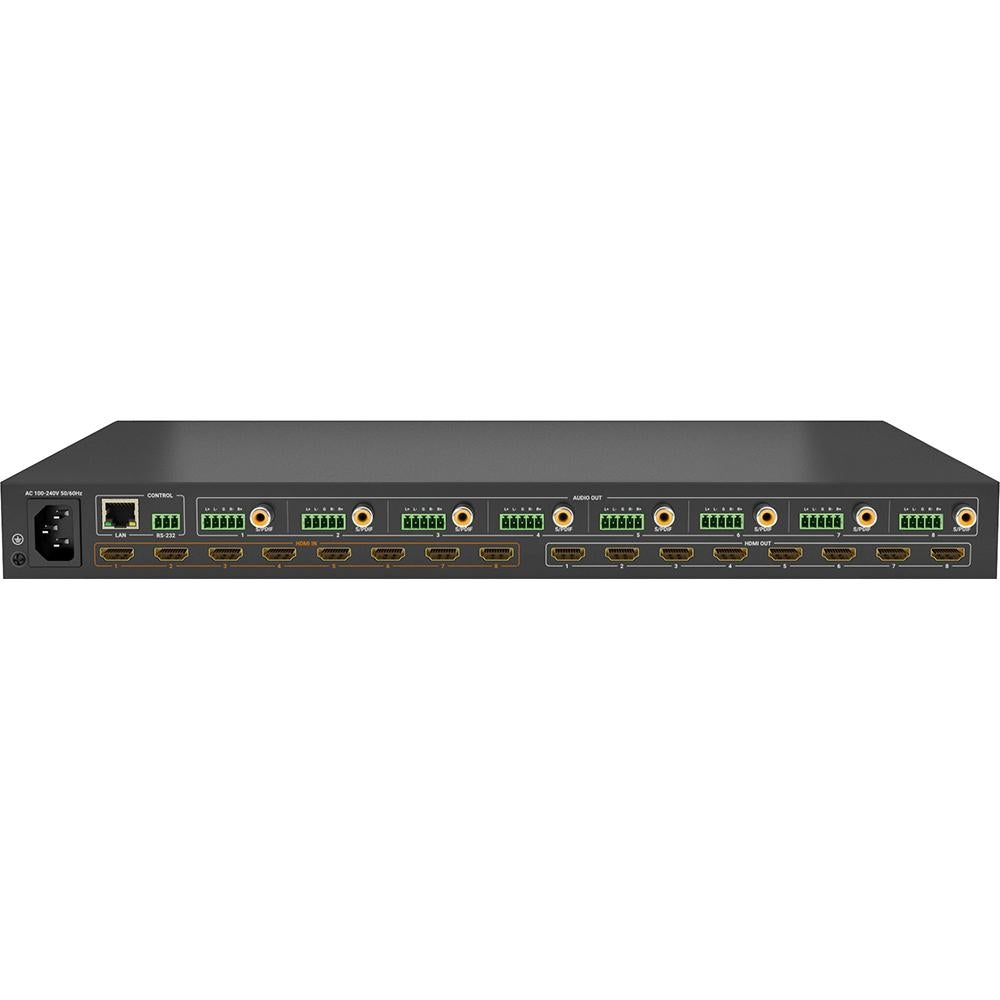

| Outputs | 8 x HDMI Out: 19 pin type A 8 x Audio Out: RCA Female Stereo (L/R) 8 x S/PDIF Out: RCA Female |
| Audio Formats | 2ch PCM, Multi Channel Up to 5.1 DTS and Dolby Digital™ |
| Max Video Resolutions |
Video Resolution:HDMI 1920 x 1080p @60Hz 12bit15m/49ft 1920 x 1080p @120Hz 12bit7m/23ft 3840 x 2160p @24Hz 10bit 4:2:0 HDR15m/49ft 3840 x 2160p @30Hz 8bit 4:4:47m/23ft 3840 x 2160p @60Hz 10bit 4:2:0 HDR5m/16ft 3840 x 2160p @60Hz 12bit 4:2:2 HDR5m/16ft 4096 x 2160p @60Hz 8bit 4:2:07m/23ft 4096 x 2160p @60Hz 8bit 4:4:45m/16ft |
| Supported Standards | DCI, RGB, HDR, HDR10, Dolby Vision™, HLG, BT.2020, BT.2100 |
| Maximum Pixel Clock | 600MHz |
| Communication and Control | |
| HDMI | HDMI 2.0, HDCP 2.2, EDID Input supports DVI/D and DisplayPort Dual Mode (DP++) v1.3 with adapter (not included) |
| CEC | CEC power triggering. Requires CEC compatibility |
| IR | 1 x Front Panel IR Sensor. Handheld IR Remote Included. 1 x IR Ext 3.5mm (1/8") TRS Stereo |
| RS-232 | 1 x RS-232: 9-pin DB9 Female. Matrix Control. Telnet commands supported |
| Ethernet | 1 x LAN: 8 pin RJ-45 Female, 10/100 Mbps auto negotiating. Built in Web UI. IP Control |
| Power Supply | 100V to 240V AC 50/60Hz |
| Max Power Consumption | 60W |
| Operating Temperature | 0°C / 32°F to 45°C / 113°F. 10% to 90% non condensing |
| Storage Temperature | -20°C / -4°F to 70°C / 158°F, 10% to 90% non condensing |
| Maximum BTU | 205 BTU/hr |
| Rack Units / Wall Box | 1U |
| Dimensions | Height: 43.5mm / 1.72" Width: 440mm / 17.33" Depth: 300mm / 11.82" |
| Weight | 3.66kg / 8.07lb |
| Regulatory: Safety and Emissions | CE, FCC, RoHS |
Features:
- Uncompressed HDMI signal distribution supporting full 18Gbps bandwidth and 4K/60 4:4:4 video content
- Compatible with latest HDR video standards including HDR10, HDR10+ Dolby Vision and HLG
- Balanced analogue and digital S/PDIF audio de-embed for distributing audio to an amplifier or DSP
- Each HDMI output supports 4K to 1080p downscaling to support mixed resolution systems
- Output downscaling controlled intuitive web UI or API commands
- Automatic or manual CEC power triggering of displays through HDMI outputs via API, allows custom CEC commands to expand compatibility with displays.
- Audio Return Channel supported on all 8 outputs allowing up to 5.1 audio from smart TV apps to be distributed to external audio systems such as an AVR or stereo amplifier
- Supports AV Mute for enabling disabling HDMI outputs per zone
- API triggered standby mode puts unit into low power state during downtime
- EDID Management through API or front panel buttons
- 1U 19" chassis for convenient installation into standard equipment racks
