WyreStorm 4K HDR HDBaseT Receiver, 70m, For Use With MXV-0808-H2A-70-V3 Matrix Switch

Consumer HDMI content is now breaking through the once comfortable HDBaseT™ restriction of 10Gbps with HFR (High Frame Rate). The RXV-70-4K-G2 4K HDR HDBase T™ receiver from Wyrestorm is the perfect companion for the MXV line up of matrices, especially when distances of under 70m are required. This receiver is exclusively used for WyreStorm 4K HDR HDBaseT Receiver and is for use With WYR-MXV-0808-H2A-70-V3 Matrix solution.

Consumer HDMI content is now breaking through the once comfortable HDBaseT™ restriction of 10Gbps with HFR (High Frame Rate). The RXV-70-4K-G2 4K HDR HDBase T™ receiver from Wyrestorm is the perfect companion for the MXV line up of matrices, especially when distances of under 70m are required.

This receiver is exclusively used for WyreStorm 4K HDR HDBaseT receiver and its for use with WYR-MXV-0808-H2A-70-V3 Matrix solution.

WyreStorm has embraced HDBaseT™ technology and they have taken the capabilities of HDBaseT™ to the next level and supporting video bandwidths in excess of 10Gbps without loss in compression technology built into WyreStorm's H2X matrix platform. The RXV-70-4K-G2 outputs HDMI content at up to 2160p 4:4:4/60.

WyreStorm's receiver are able to respond to both current and future video content technologies. The highest possible bandwidth that currently exists according to the HDMI 2.0 specification can still be sent using HDBaseT™ and the latest in without loss compression technology from the matrix to the RXV receiver.

With PoH available across all HDBaseT™ matrix outputs, the challenge of hiding power supplies is removed. Power to drive the receiver is sent over the category cable along with the video, audio, control and Ethernet, making installations neat, quick and easy as possible.

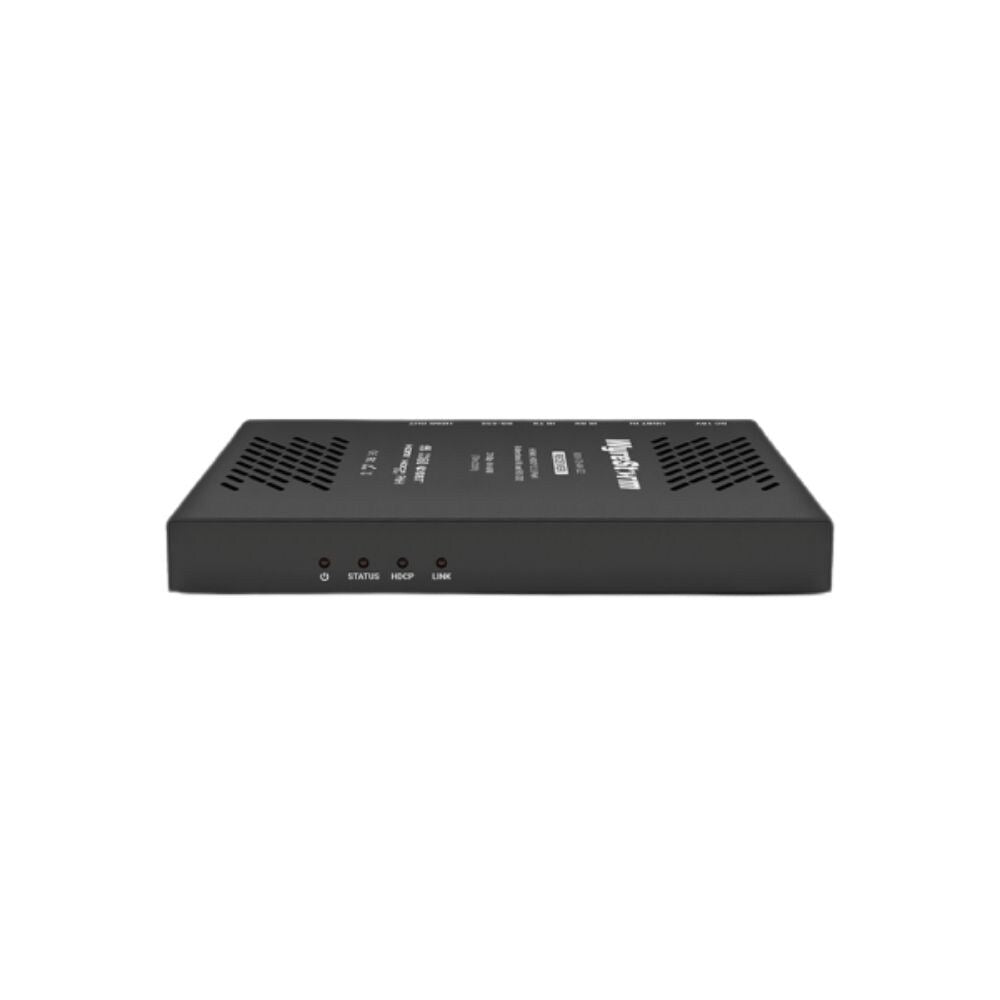

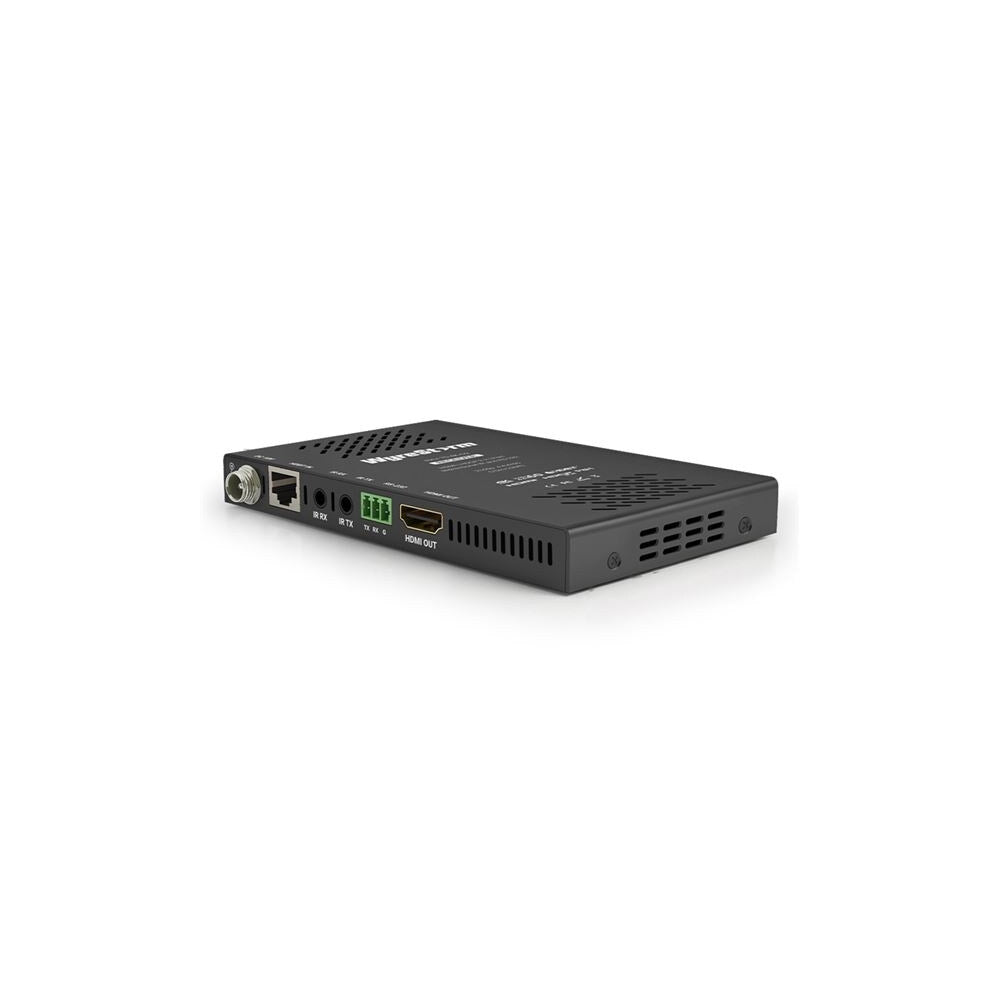

Slim by design the HDBaseT™ receiver from WyreStorm has a small footprint, so it can easily fit into the restrictive space between displays and the wall they are mounted to.

It also comes complete with all the accessories needed to help the integrator complete the install discreetly and efficiently.


Please note: For use only with Class A 6 x 6 and 8 x 8 MXV-H2A-70 range of matrix switchers

Specifications:

Features:

• WyreStorm's proprietary compression technology for without loss transmission of 4K HDR content, without latency
• Reliable HDBaseT™ HDMI conversion over distance using single Cat6 cable
• 4K UHD signals up to 70m / 230ft (2160p 4:4:4 60Hz 8 bit) and 2K signals up to 100m / 230ft (1200p 60Hz 16 bit)
• Supports HDMI2.0 video standard up to 18Gbps
• Compatible with HDR standards including HDR-10, HDR-10+, HLG and Dolby Vision™. Dolby Vision™ supported up to 30Hz
• Class A HDBaseT™ supporting the transmission of video, multichannel audio, bidirectional control and PoH
• Powered remotely via PoH from MXV matrix
• HDCP 2.2 compatibility

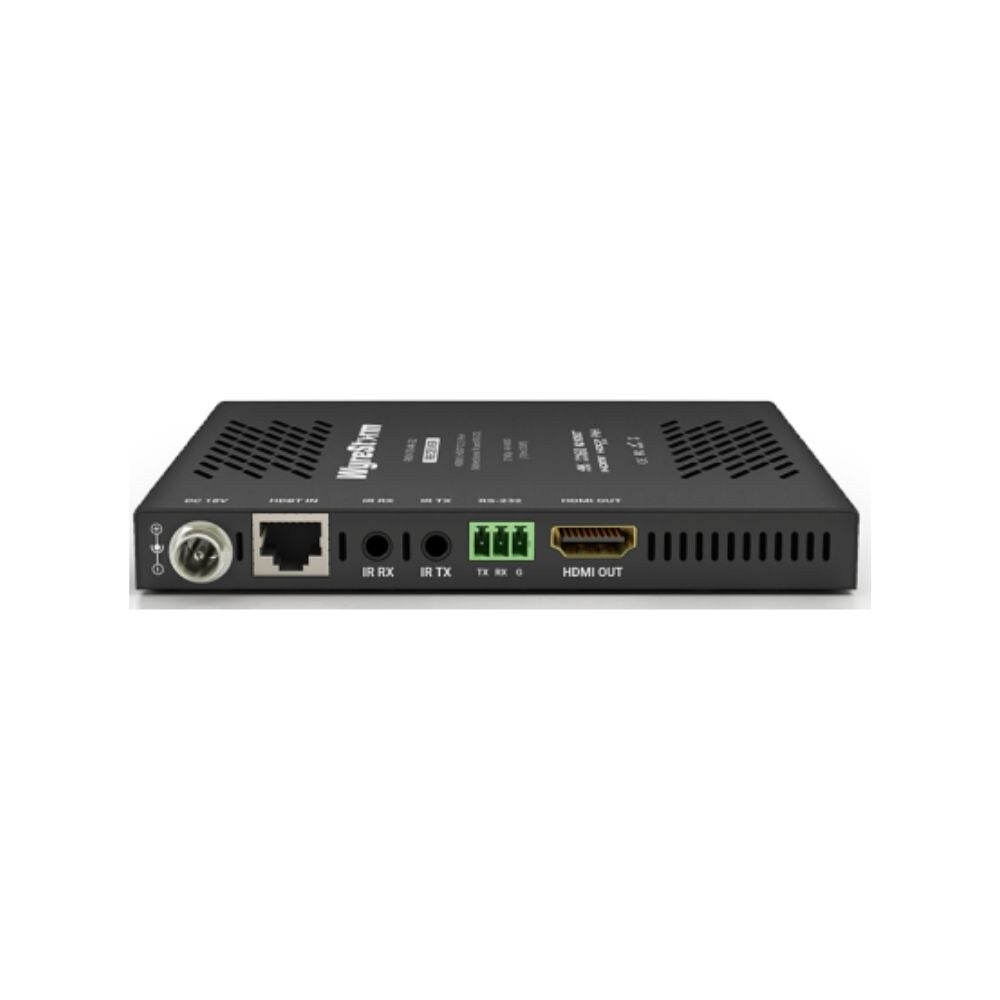

• Bidirectional IR supported with both IR TX and RX ports
• RS-232 port for routed 2 way serial communication
• LED indication for HDCP presence within signal and transmission link between devices
• Ventilated steel chassis
• Conforms to IEEE-568B standards
• Compact design for convenient and unobtrusive installation
• Wall mounting brackets and IR accessories included
