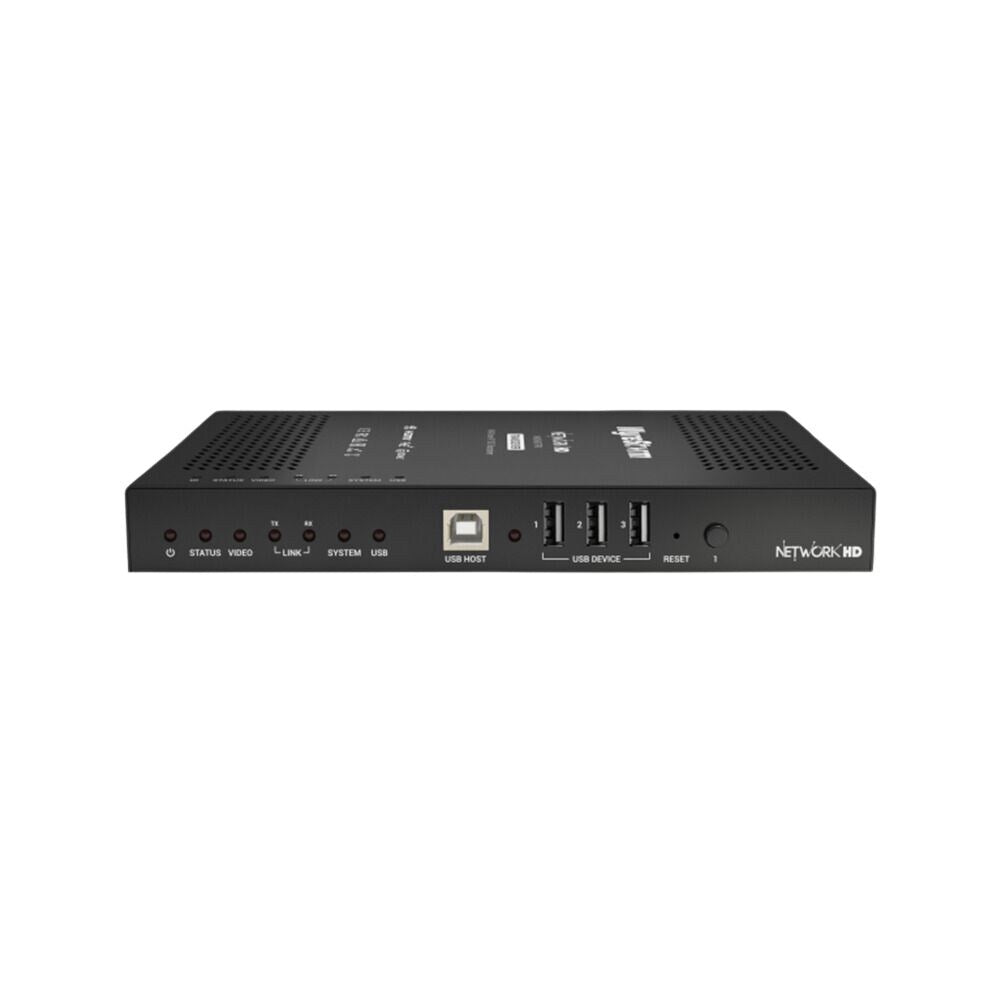

WyreStorm 4K60 444 10GbE SDVoE Transceiver With PoE+, Video Wall and Multiview Processing

The NHD-600-TRX from WyreStorm is an SDVoE transceiver capable of lossless and latency free 4K60 over a 10GbE network. This transceiver allows you to transmit and receive A/V simultaneously through a single device or be programmed to act as a dedicated TX or RX. Three USB HID ports allow extension for keyboard and mouse applications such as a corporate meeting room or an operating centre.

The NHD-600-TRX from WyreStorm is an SDVoE transceiver capable of lossless and latency free 4K60 over a 10GbE network. This transceiver allows you to transmit and receive A/V simultaneously through a single device or be programmed to act as a dedicated TX or RX.

Three USB HID ports allow extension for keyboard and mouse applications such as a corporate meeting room or an operating centre.

A cutting edge architecture provides an efficient, small footprint and support for PoE+.

As a transceiver, the TRX can transmit and receive up to 4K60 video simultaneously and additional settings also allow you to choose whether it is a TX, RX or TRX. It is equipped with three USB HID ports for the extension of a keyboard, mouse, or game controller. Genlock mode allows for a lag free experience.

This transceiver allows ugly and inconvenient DC power supplies to be a thing of the past. The TRX can power via 802.3at PoE+ from compatible network switches, making installation a breeze. Up to an 8x8 video wall can be processed with bezel and gap correction along with the ability to process multi view PiP up to 16 windows.

This WyreStorm Pro AV product comes with a 5 year Warranty

Specifications:

Features:

• Supports 4K UHD and DCI resolutions up to 60fps RGB or YUV 4:4:4
• Supports Dolby Vision, HDR10 and HLG HDR formats and ITU-R BT.2020 and BT.2100 colour spaces
• Capable of high bit rate multi channel audio passthrough, including Dolby Atmos™ and DTS:X
• HDCP 2.2 and HDCP 1. x support
• 802.3at PoE+ compliant
• Secure A/V transmissions using AES encryption methods
• 3 x USB 1.1 HID ports for extension and routing for keyboard and mouse applications
• Powerful video scaling can match a connected display to the video source, leaving the original source content unaltered
• Video resolution, frame rate and colour space conversion using SMPTE/ITU recommended methods
• Genlock scaler mode for zero end to end latency
• Supports seamless AV source switching via Fast Switch mode
• Secondary video stream with alternate scaling options can be used for multi view source content
• Fully featured multi view image compositing includes arbitrary source window placement, resizing, image duplication and image offset functions
• Video wall processing including display bezel compensation
• The balanced analogue audio port can be configured as an input or output for a discrete audio stream or HDMI de-embedding
• Bi directional IP to Infrared or RS-232 functionality via the API or 3rd party drivers
• Auxiliary 1GbE channel for network connectivity of attached source devices
• Powerful matrix functionality includes routing control of all audio, video, RS-232 and IR signals
• Compatible with NHD-000-RACK4 for easy rack mounting
