WyreStorm 8 Slot Rack Mount For NetworkHD 600 Series Devices, Black, 7U

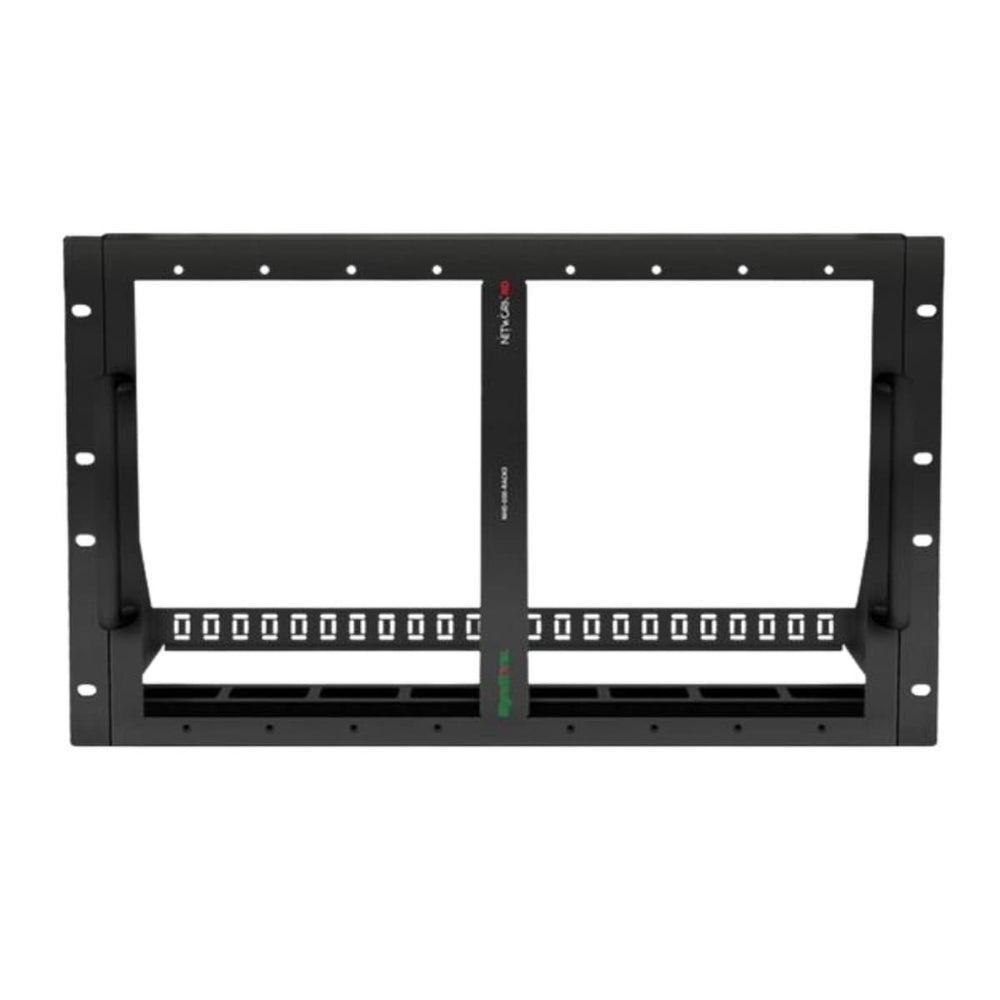

The NHD-000-RACK3 from WyreStorm is a 7U rack mount that provides a clean installation for up to 8 NetworkHD™ 600 series devices. Mounting brackets for all devices as well as the NHD-000-CTL NetworkHD™ controller are also included allowing all devices to be installed in a single location. The slimline and thermally optimised design helps keep your 600 Series NetworkHD™ devices perfectly organised.

The NHD-000-RACK3 from WyreStorm is a 7U rack mount that provides a clean installation for up to 8 NetworkHD™ 600 series devices. Mounting brackets for all devices as well as the NHD-000-CTL NetworkHD™ controller are also included allowing all devices to be installed in a single location. The slimline and thermally optimised design helps keep your 600 Series NetworkHD™ devices perfectly organised.

The WyreStorm 7U rack mount with vertical slot installation supports any combination of up to 8 NetworkHD™ 100, 200 and 400 Series devices, as well as the NHD-000-CTL providing ideal component heat dissipation and airflow management. A key factor in increasing reliability and product lifespan. All the mounting hardware, brackets, blanking plates, rails, lacing bar, handles and screws required already comes with NetworkHD™ encoder or decoder.

Featuring a strong steel construction, which keeps hardware secure and protected with units also secured via brackets, rails and front panel screws. This rack mount is specifically designed for organising NetworkHD™ components within the main rack location, whilst it declutters the rack, improving cable management, port identification, air flow management and unit access.

Please note: This rack mount does not include the NetworkHD™ devices

Specifications:

Features:

• 7U height and shallow depth allows for high component density in an AV or IT equipment rack
• 8 slots suitable for mounting a combination of NHD-600-TX, NHD-600-RX, NHD-000-CTL devices
• NetworkHD™ 600 Series encoders or decoders can be mounted with connections front or rear facing to suit alternative cable management designs
• The included removable rear cable management lacing bar helps route cabling at the correct point to optimise thermal efficiency
• The included removable front facing handles greatly improves manoeuvrability and convenience
• Provides optimal thermal dissipation in a passively or actively cooled rack design to maintain premium device performance and MTBF
• Enables systems to be pre-built into the rack kit prior to arriving on site to improve speed and efficiency of installation
• Sturdy steel design creates a solid structure for supporting NetworkHD™ 600 Series components
• Includes 8 x 600 Series mounting plates, 1x NHD-000-CTL mounting plate and 4x blanking plates
• Black finish

Please Note: This rack mount does not include the NetworkHD™ devices
