Description

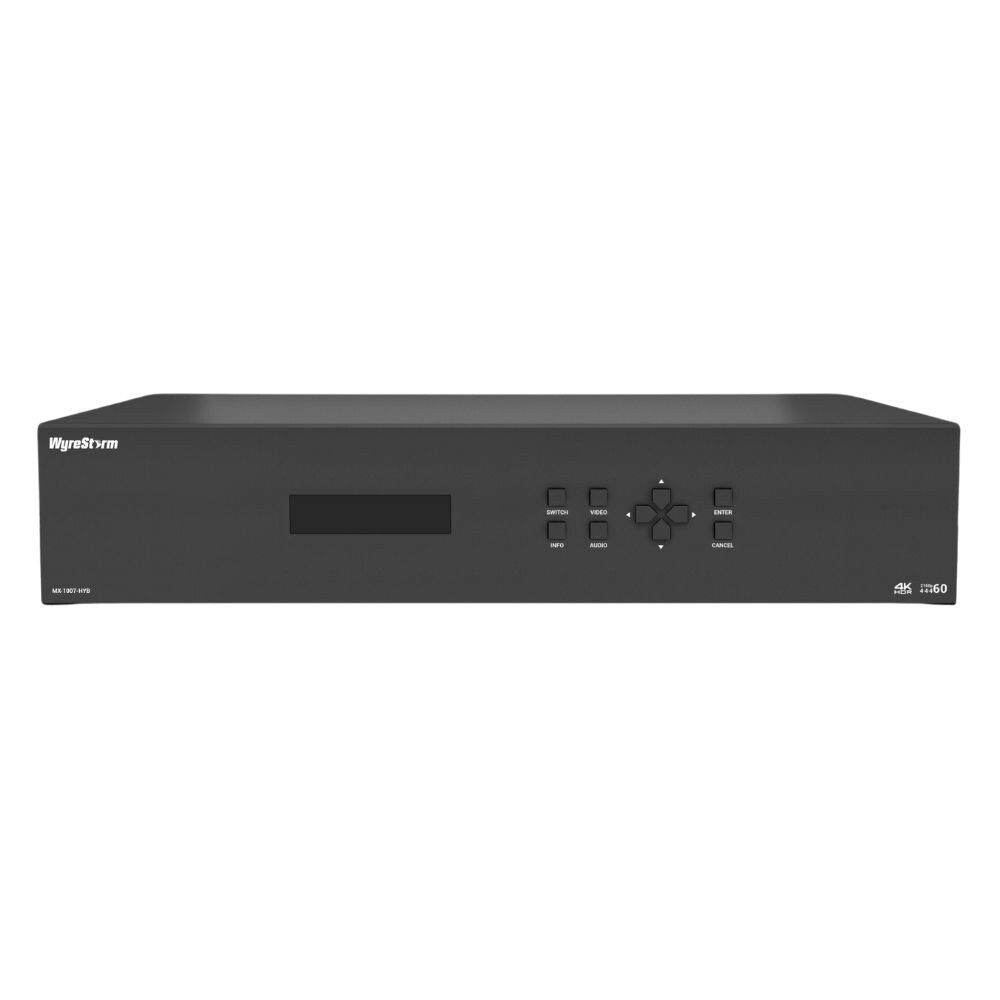

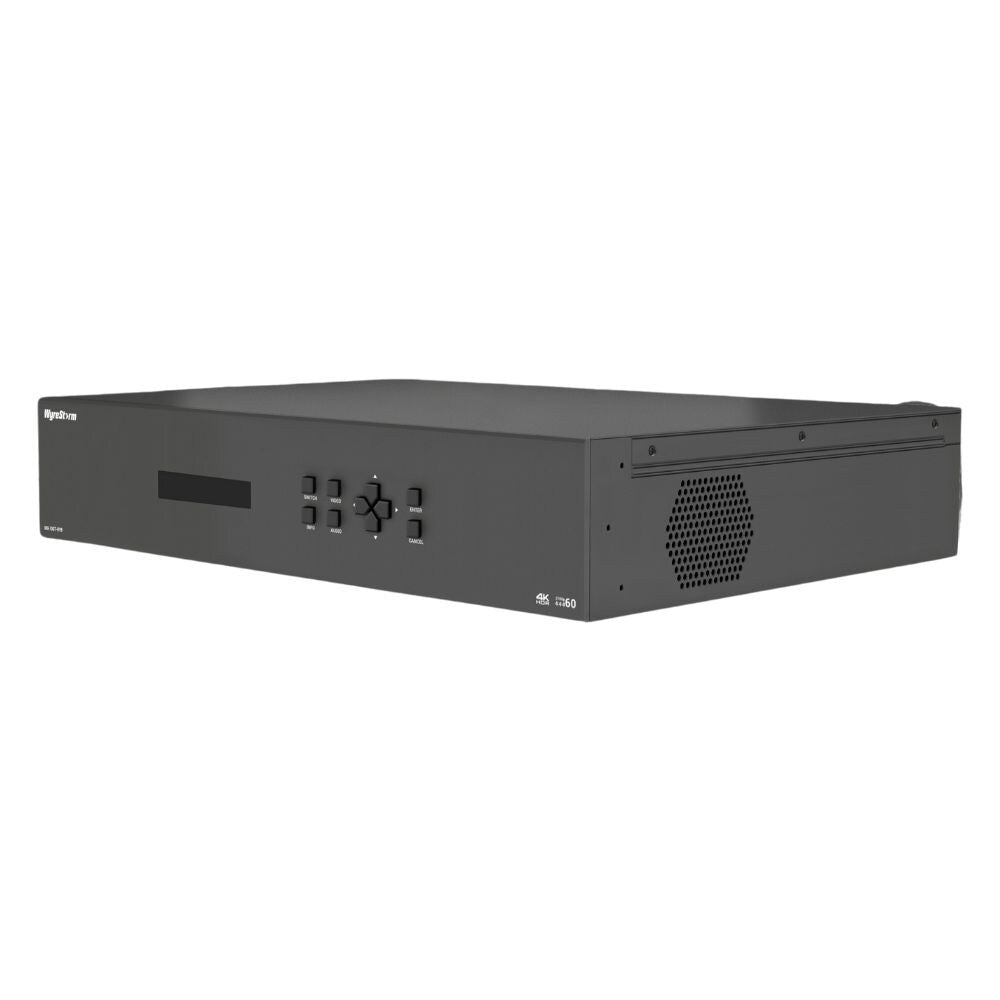

The WyreStorm MX-1007-HYB is the next generation of matrix switchers. Featuring seamless 4K60Hz switching for crystal clear visuals and uninterrupted enjoyment. This Matrix offers the best in AV distribution solutions for your education and high end corporate environments, with the versatile input compatibility, dynamic content switching and seamless presentations. Streamline and enhance your audio visual experience in any space.
The WyreStorm MX-1007-HYB is the next generation of matrix switchers, featuring seamless 4K60Hz switching for crystal clear visuals and uninterrupted enjoyment. Streamline and enhance your audio visual experience in any space.
The MX-1007-HYB offers the best in AV distribution solutions for your education and high end corporate environments, with the versatile input compatibility, dynamic content switching and seamless presentations. Streamline and enhance your audio visual experience in any space.
Simplify your setup with HDBT technology, offering long distance audio and video transmission over a single cable for a clutter free environment. Embrace scalability with NetworkHD 500 and elevate your audio with integrated Dante technology and a 100W amplifier with DSP ensuring a powerful and immersive auditory experience.
With 4K60Hz seamless streaming, effortless switch for crystal clear visuals and high resolution content. Enhanced the viewing experience with stunning detail and clarity for presentations, lectures and entertainment, without any interruptions during source transitions.
Long distance transmission of audio and video signals over a single cable with HDBT in/Out. Simplify your installation with reduced cable clutter and increased flexibility in setting up displays and sources.
Transmit audio and video signals over an 1G network for scalable and flexible distribution with NetworkHD 500 In/Out. Effortless integrate into larger audio visual systems, supporting the delivery of high quality content to multiple displays over existing network infrastructure. This is ideal for high end educational or corporate environments.
The MX-1007-HYB features a built in power amplifier capable of directly driving a pair of stereo speakers, 25W per channel @ 4′ or 8′. Streamlined audio setup with the ability to power stereo speakers directly from the matrix. The internal amplifier synergises seamlessly with the onboard DSP, ensuring optimal audio quality for a rich and immersive auditory experience.
The Sygma Cloud agent is built-in the MX-1007-HYB to facilitate monitoring and maintaining integrated
projects, providing effortless device control, remote firmware upgrades and online support with logs. Allowing you to stay connected 7/24/365 from everywhere.
Specifications:

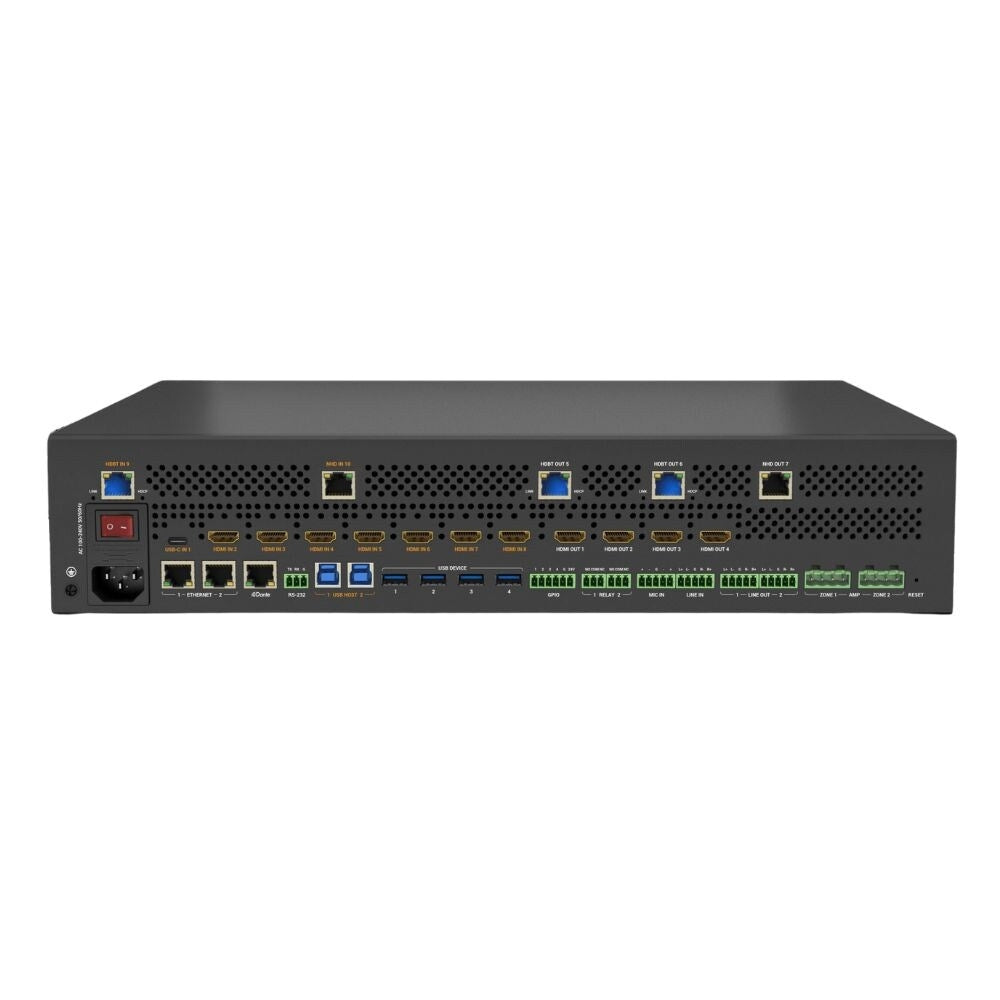

| Audio and Video | |
|
Inputs |
1x USB-C in with Alt-Mode 7x HDMI In: 19 pin type A 1x HDBT 3.0 In: RJ-45 female 1x NetworkHD 500 In: RJ-45 female 2x USB-B host |
| Outputs | 4x HDMI Out: 19-pin type A 2x HDBT 3.0 Out: RJ-45 female 1x NetworkHD 500 Out: RJ-45 female 4x USB-A device 4x GPIO Phoenix port 2x Relay Phoenix port |
| Output Video Encoding | HDBaseT, JPEG 2000 |
| Encoding Data Rate | 18Gbps |
| Audio Formats | PCM 2 channel analogue, Dante 4x4 |
| Video Resolution Max | 1920x1080p @60Hz 3840x2160p @60Hz 4:2:0 3840x2160 @60Hz 4:4:4 |
| Maximum Pixel Clock | 600MHz |
| Communication and Control | |
| HDMI | HDMI 2.0, HDCP 2.3, EDID, CEC |
| HDBaseT | HDMI 2.0, HDCP 2.3, EDID, USB 2.0, CEC, RS-232 and 1 way PoH |
| NetworkHD | HDMI 2.0, HDCP 2.3, EDID, USB2.0, RS-232 |
| Dante Ultimo 4x4 | 1 x 1GbE RJ-45 1 x RS-232: 3 pin Phoenix female, Matrix Control Routable RS-232 device control, Telnet commands supported |
| RS-232 | 1x RS-232: 3 pin Phoenix female and Matrix Control Routable RS-232 device control and Telnet commands supported |
| Ethernet | 2x LAN: 8pin RJ-45 female Matrix Control Ethernet (SYGMA) Web UI |
| Power Supply | 100 to 240V AC 50/60Hz |
| Operating Temperature | 0°C / 32°F to 45°C / 113°F Relative Humidity: 10% to 90%, non condensing |
| Rack Units or Wall Box | 2U |
| Dimensions | Height: 88mm / 3.46" Width: 440mm / 17.33" Depth: 362mm / 14.25" |
Features:
- Multi format video connections include USB-C, HDMI, HDBaseT and NetworkHD 500 Series, NetworkHD input and output supports spill over applications
- Fast up to 1 second switching across all video outputs
- 480p to 2160p built in scaling video outputs
- USB-C input supports 4K60 video, USB3.0 or USB2.0, 1G network and PD3.0 USB host charging up to 60W
- All HDBaseT outputs support HDBaseT 3.0 specification, which includes uncompressed A/V, RS-232, USB2.0 up to 300Mbps and PoE+ PSE transmission
- NetworkHD input and output supports a 4K60 scaler and seamless switching of audio visual, USB2.0 and RS-232 control signals up to 100m over a single CAT6a cable or longer via 1G network switch
- Supports USB host switching and device extension
- Switching USB hosts include 1x USB-C port, 2x local USB3.0 USB-B ports, 1x NHD input and 1x HDBT input related USB connection
- USB devices include 4 x local USB3.0 USB-A ports, 1 x NHD output and 2 x HDBT outputs related USB connections
- Supports 2x MIC inputs, 1x LINE input, Dante 4x4 optional and 2x 5 pin balanced audio outputs
- 4 channel 4 or 8ohm amplified speaker outputs
- GPIO and relay support for automation of screens and occupancy sensors etc
- Three separate audio mixers for analogue, digital and video de-embed
- HDCP 2.3 compliant and backward compatible for secure content transmission
- Supports HDR formats including HDR10, HDR10+, HLG and Dolby Vision Low Latency
- EDID management for efficient control and customisation of connected displays
