Description
Introducing WyreStorm's RX3-100, an uncompressed 18G HDBaseT 3.0 receiver that achieves signal transmission up to 100m at 4K@60Hz via CAT6A cable. With HDBaseT 3.0, experience USB data transfers of up to 300Mbps, nearly doubling HDBaseT 2.0's capability of 190Mbps.
Introducing WyreStorm's RX3-100, an uncompressed 18G HDBaseT 3.0 receiver that achieves signal transmission up to 100m at 4K@60Hz via CAT6A cable. With HDBaseT 3.0, experience USB data transfers of up to 300Mbps, nearly doubling HDBaseT 2.0's capability of 190Mbps.
This heightened capacity supports high speed connections to 4K webcams, whiteboards and data drives.
This receiver seamlessly pairs with any of WyreStorm's HDBaseT 3.0 transmitter options, such as the SW-120-TX3 and SW-120-TX3-UK for a powerful switching extender solution.
Delivering uncompressed signal transmission, HDBaseT 3.0 offers the very latest in high speed transmissions with the increased bandwidth from 10Gbps to an outstanding 18Gbps over a dedicated category cable.

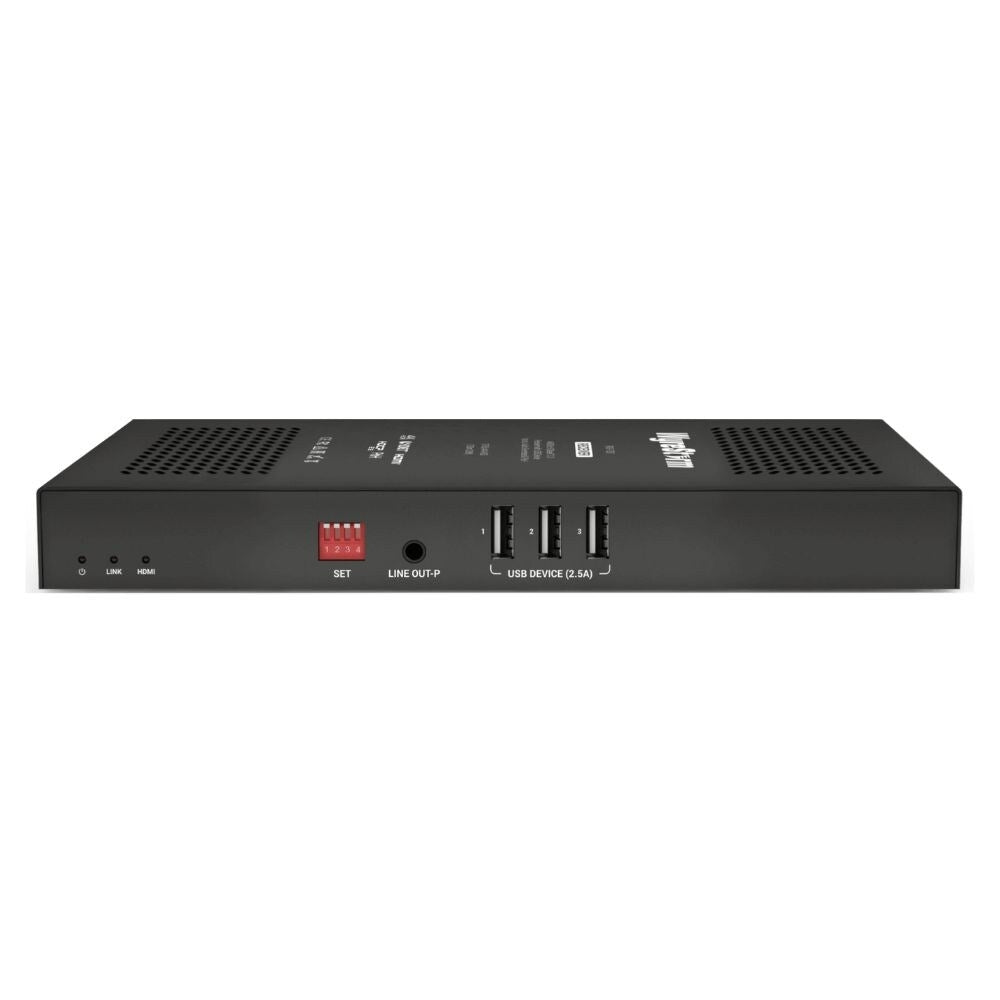

The main feature of the RX3-100 is the 3 device ports, which are capable of USB 2.0 pass through, which offers not only KVM functionality for extension of a keyboard, mouse or touchscreen, but also full data transfer capabilities of 300Mbps for 4K UHD webcams and high speed data drives.
This receiver offers both audio de-embed from the source HDMI and independent audio pass through lane from line in audio from the TX simultaneously.
Bi directional control and PoH is delivered by the RX-100. It boasts bidirectional PoH, which can power or be powered by a transmitters such as the SW-120-TX3-UK or SW-120-TX3, while also passing bidirectional RS-232 control to either the display or back to the head end. If RS-232 isn't an option, it also supports CEC signals from the transmitter.
Specifications:
| Audio and Video | |

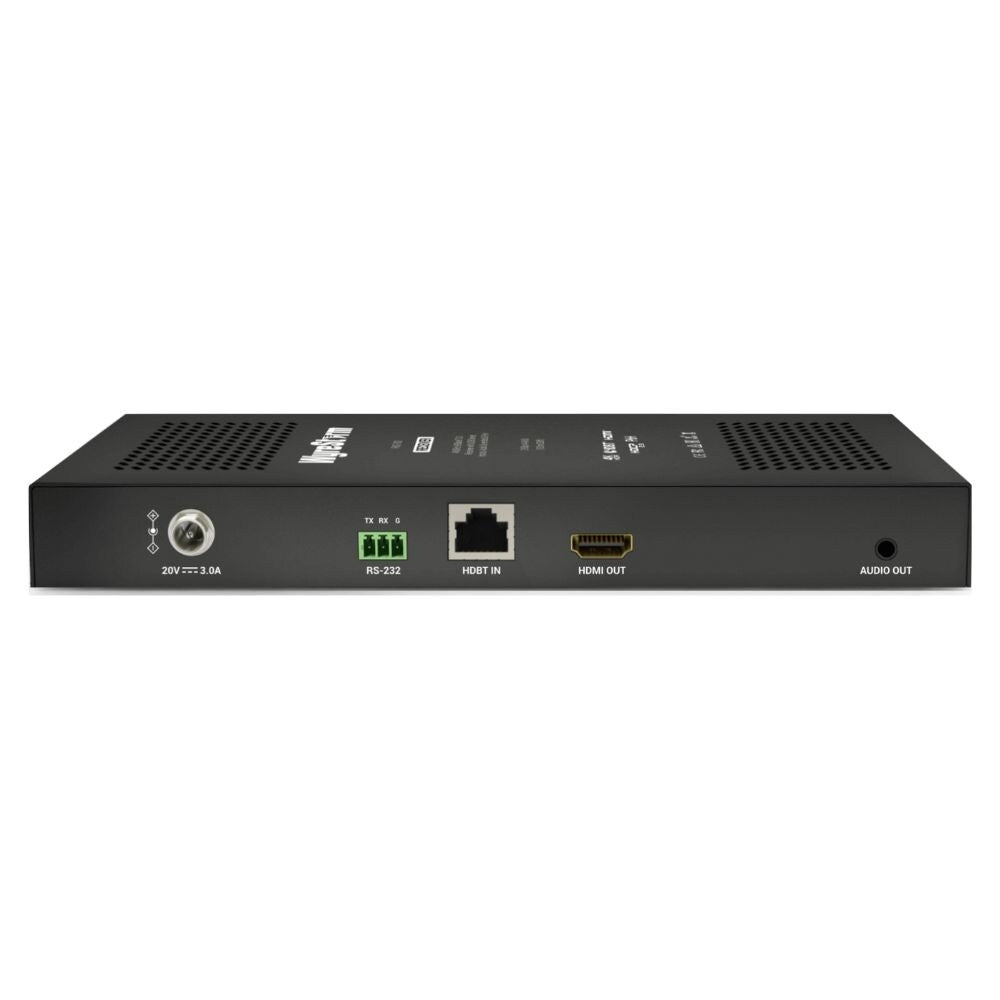

| Inputs | 1x HDBT In: 8 pin RJ45 3x Type A device 1x RS-232: 3 pin Phoenix |
| Outputs | 1x HDMI Out: 19 pin Type A female 1x Audio Out 3.5mm TRS Stereo 1x Line out 2 channel audio over HDBaseT 1 way from TX |
| Max Pixel Clock | 600MHz |
| Video Resolution Max | 1920x1080p @60Hz 12bit 3840x2160 @60Hz 4:4:4 8bit |
| Supported Standards | DCI, RGB, HDR10, Dolby Vision, HLG, BT.2020 and BT.2100 |
| Audio Formats | HDMI Out: 2 channel analogue or PCM Multichannel: LPCM up to DTS-X and Dolby Atmos Audio out or De-embed: 2 channel analogue or PCM |
| Communication and Control | |
| HDMI | HDMI, HDCP 2.3, EDID and CEC Pass through |
| HDBT | HDMI, USB, HDCP 2.3, EDID, 2 way PoH, Bidirectional RS-232, CEC |
| USB | 3x Type A device. Maximum uplink speed of 300Mbps |
| RS-232 | 1x RS-232: 3 pin Phoenix |
| Power Supply | 20V DC 3A |
| Max Power Consumption | 10.92W |
| Operating Temperature | 0°C / 32°F to 45°C / 113°F Relative Humidity: 10% to 90%, noncondensing |
| Dimensions | Height: 105.6mm / 4.16" Width: 36.3mm / 1.43" Length: 89mm / 3.5" |
| Weight | 0.36kg / 79lb |
| Included | 1 x 3 pin terminal block 4 x Wall mounting brackets 4 x Mounting screws 1 x 20V 3A PSU* *Does not support USB-C charging on TX |
Features:
- HDBaseT 3.0 receiver supports uncompressed content up to 4K@60Hz 4:4:4 8bit, HDCP 2.3 encryption technology ensuring compatibility with the latest 4K UHD content and sources
- HD Multichannel audio up to DTS:X and Dolby Atmos via HDMI
- Compatible with DVI-I and DP++ v1.3 signals from compatible devices
- USB 2.0 pass through offering 300Mbps transfer and HID extension
- This receiver features 3x USB device ports
- Supports independent lane analogue audio pass through from transmitter to receiver
- Supports analog audio de-embed from HDMI
- Backwards compatible with HDBaseT 1.0 transmission and receiving devices, where the lowest denominator takes priority
- Bidirectional RS-232 and CEC passthrough communication
- Bidirectional PoH
