WyreStorm MXV 4K HDR 4:4:4 60Hz HDBaseT 8 x 8 Matrix Switch With Zone Audio De-Embed

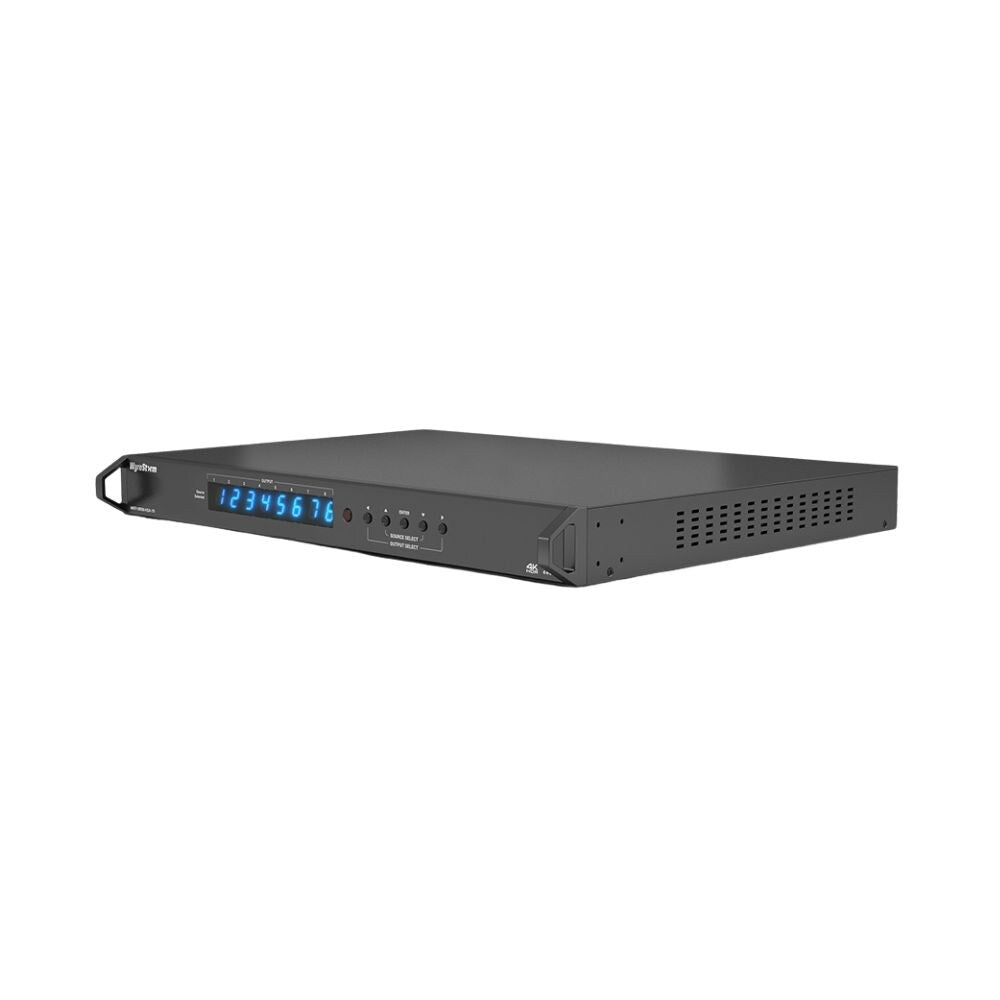

Offering transmission of 18Gbps HDMI content up to 70m/230ft by pairing Class A HDBaseT with WyreStorm's powerful lossless compression algorithm, the MXV-0808-H2A-70 brings the familiar power of the WyreStorm H2-series to a compact 1U chassis. With 8 Class A HDBaseT zone outputs and 4 mirrored HDMI outputs enhances the offering for the modern home or commercial installation.

Offering transmission of 18Gbps HDMI content up to 70m/230ft by pairing Class A HDBaseT with WyreStorm's powerful lossless compression algorithm, the MXV-0808-H2A-70 brings the familiar power of the WyreStorm H2-series to a compact 1U chassis.

Unlike competing compression methods such as CSC, which permanently remove colour data, WyreStorm's VLC uses a lossless compression technology to ensure signal integrity. With 8 Class A HDBaseT zone outputs and 4 mirrored HDMI outputs, which can be paired with WyreStorm's hybrid HDMI cables or any extender and CEC triggering for all 12 connected screens, this matrix switch enhances the offering for the modern home or commercial installation.

Bringing lossless compression technology from the flagship H2XC matrix platform, the 8x8 MXV-70 can handle both current and future video content technologies up to 4K/60 4:4:4 and high framerate HDR. The highest possible bandwidth that currently exists according to the HDMI 2.0 specification is no longer limited to short range copper HDMI cables. Aimed at larger footprint installations and in a significant step up from the other MXV models in the range, the MXV-0808-H2A-70 doubles the transmission range and can transmit high-framerate HDR or 4:4:4/60 content up to 70m/230ft using superior Class A HDBaseT paired with the latest in compression technology.

This matrix switch gives users many options to power displays on and off, RS-232 routing to discreet zones, as well as using automatic, API and custom generated triggered CEC commands.

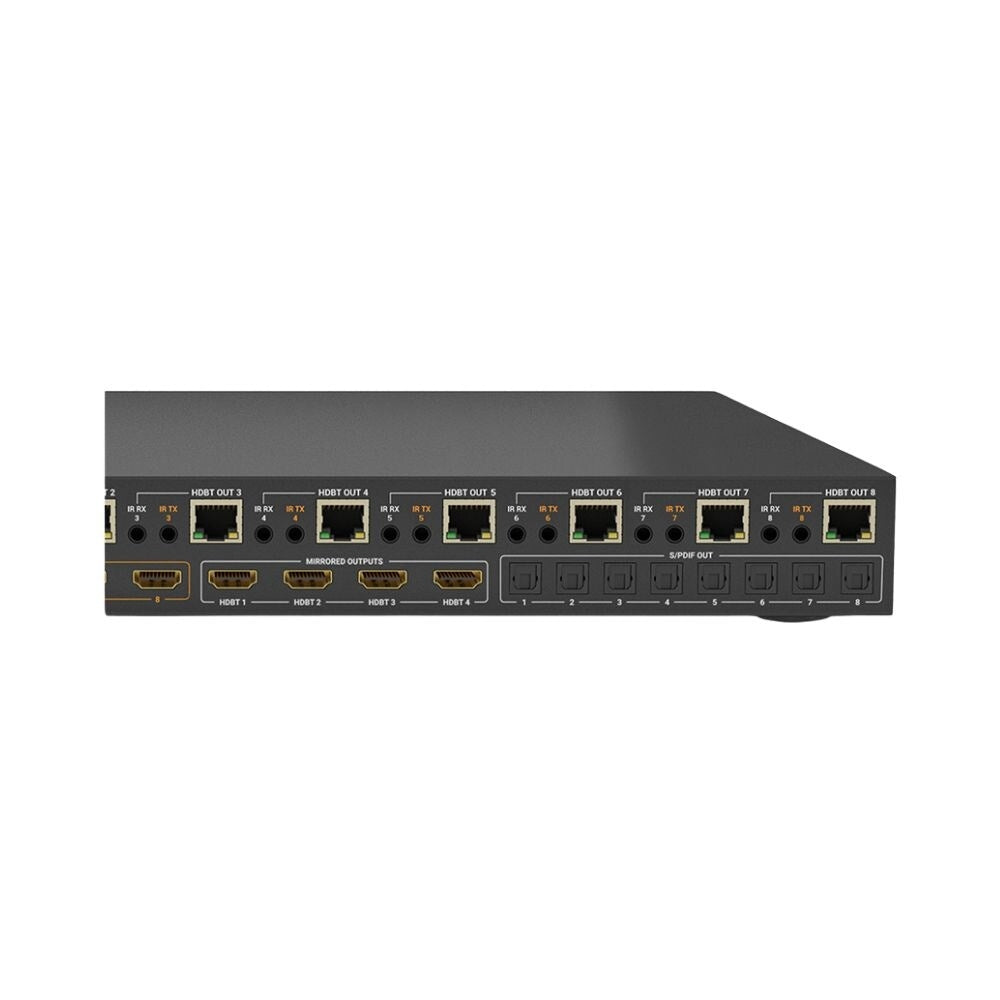

In addition to the audio breakout ports, the MXV-0808-H2A-70 v3 features four HDMI mirrored output ports which can be paired with any of WyreStorm's HAOC hybrid optical HDMI cables for transmission up to 50m/164ft or any extender for transmission of HDBaseT or OM3 fibre.

Specifications:

Features:

• 4K HDR HDBaseT 8x8 Matrix Switch, supporting:
• Content up to 4K/60 4:4:4 & RGB 8-bit
• The latest HDR standards, including 60Hz HDR-10 & HLG and Dolby Vision™ at 30Hz
• HDCP 2.2 encryption technology ensuring compatibility with the latest 4K UHD content and sources
• HD Multichannel audio up to DTS:X and Dolby Atmos™ to all outputs
• Proprietary compression algorithm enables 60Hz 4K UHD content (4:4:4 or HDR) to be sent over HDBaseT to 70m/230ft
• 4 HDMI outputs mirroring HDBaseT Outputs 1-4 for connecting additional slave screens, projectors or AVR's
• HDMI Inputs and HDMI outputs support bandwidths of up to 18Gbps
• Compatible with DVI-I and DP++ v1.3 signals from compatible devices
• 8 Assignable audio outputs allow audio to be independently de-embedded from sources or outputs via TosLink optical
• A/V Mute mode allows the routing of a signal to an output to be deactivated
• API controlled standby mode allows the matrix to enter a low power state when not in use, cutting power consumption by up to 34%
• Automatic (signal sensing) or manual (API operated) CEC power triggering of all connected screens or projectors (CEC compatibility required)
• A/V Mute function gives complete distribution control to a user allowing the signal to any zone to be independently switched off
• Simple switching matrix remote control included, which can be learned into a universal remote handset to allow the control of multiple devices from one handset
• Capable of transmitting content to 50m/164ft using WyreStorm HAOC range of hybrid optical HDMI cables
• The ability to send custom CEC commands when standard CEC commands aren't compatible

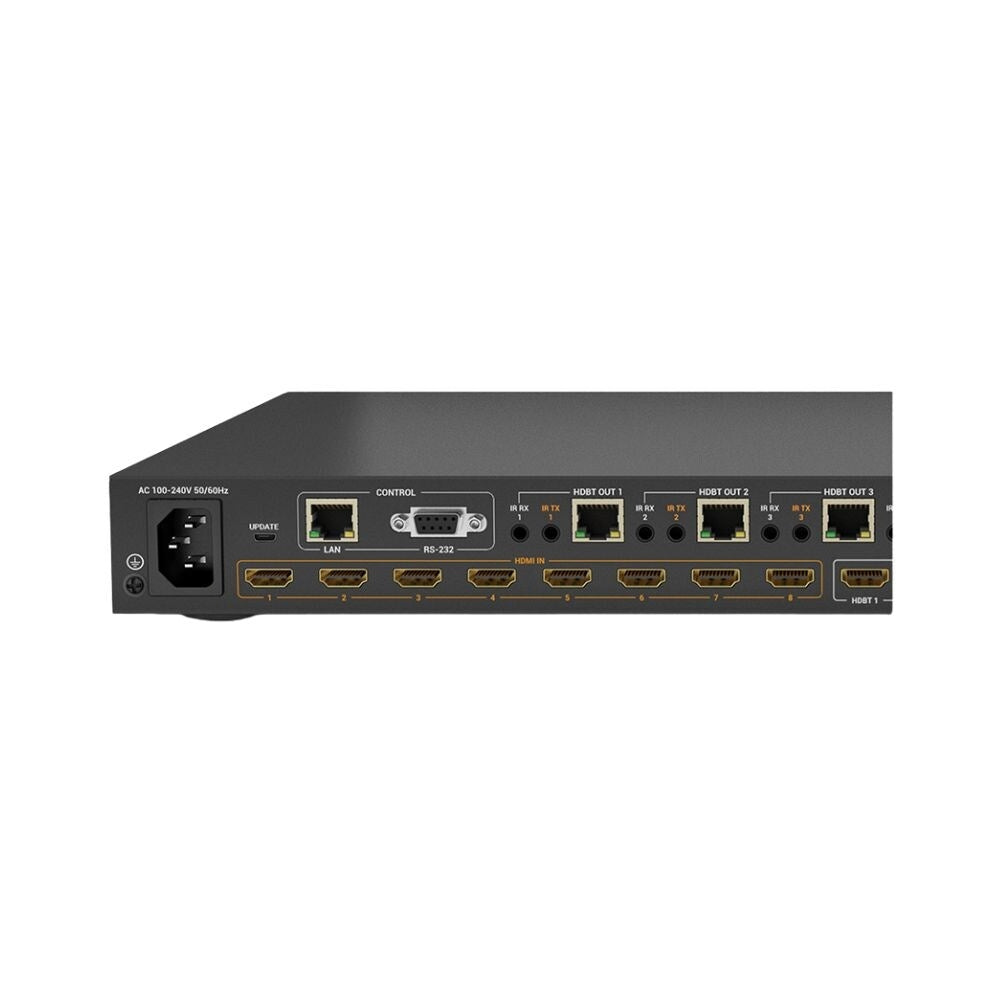

• RS-232 routing over HDBaseT allows discrete control of all connected display devices
