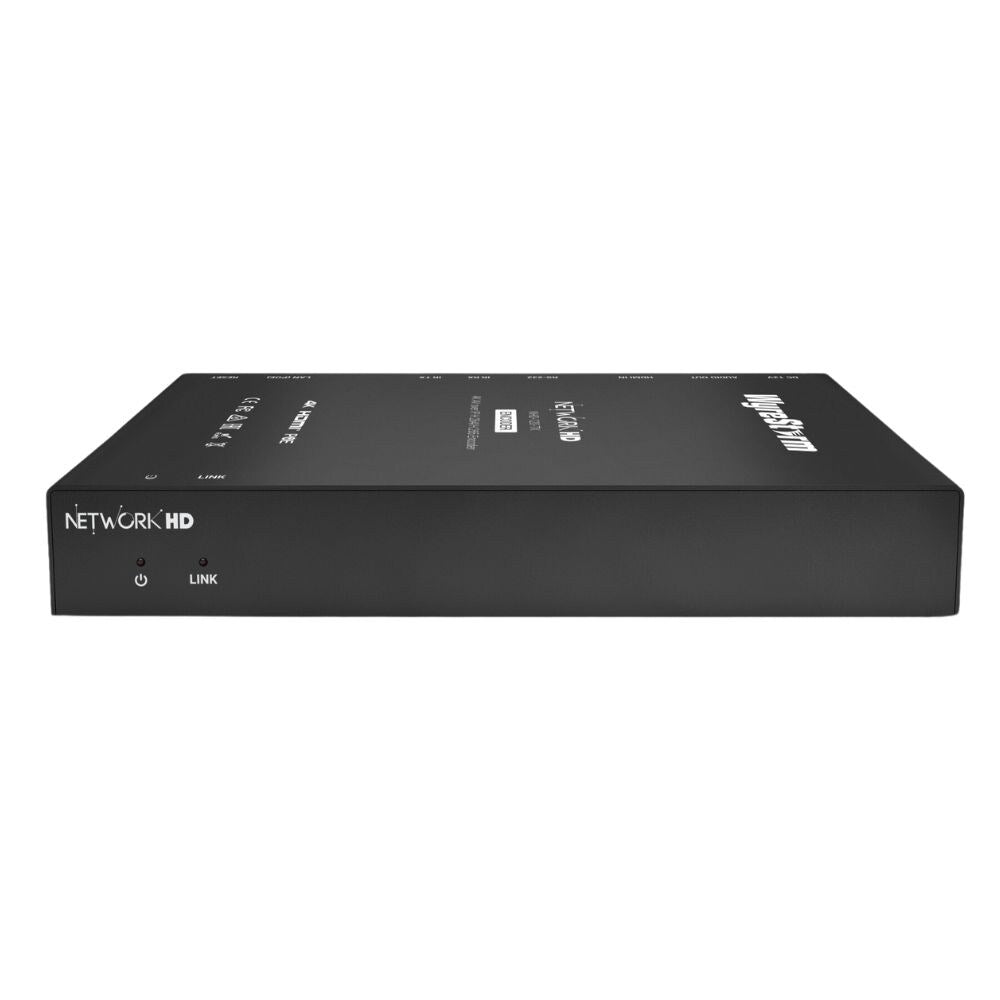

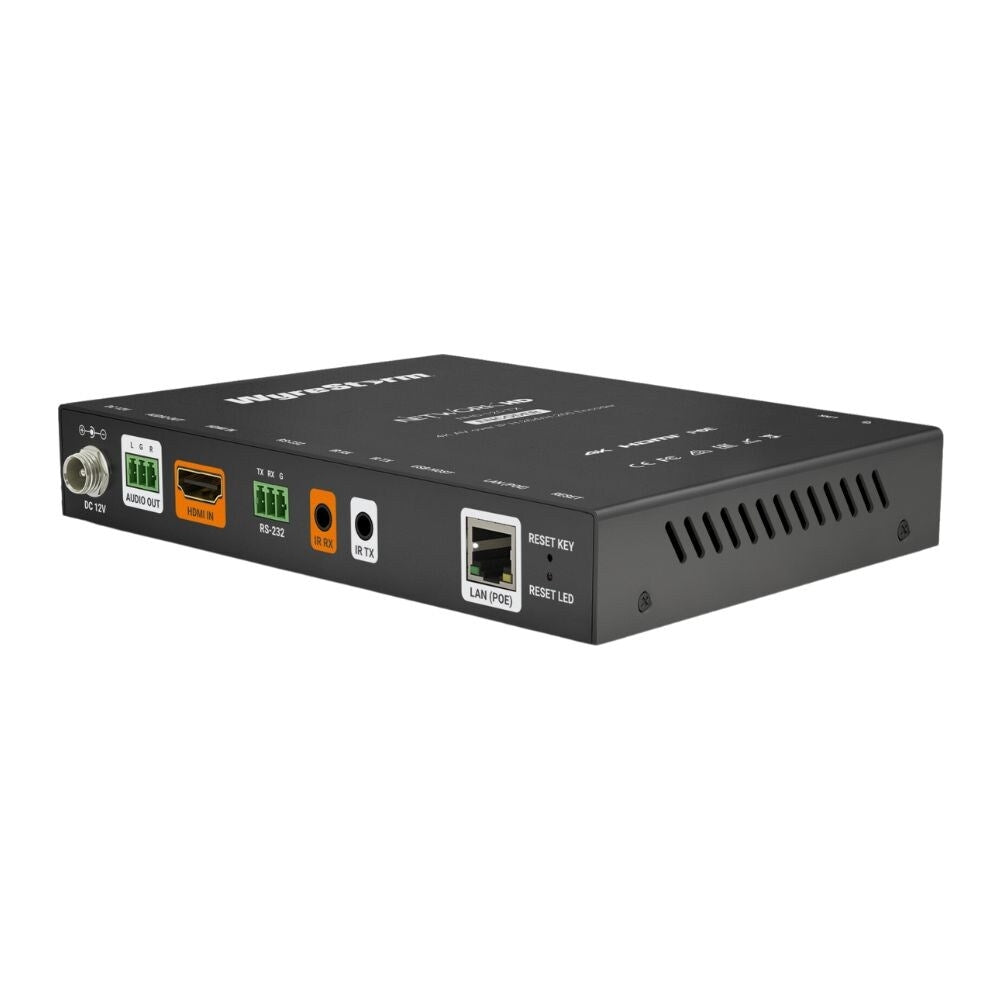

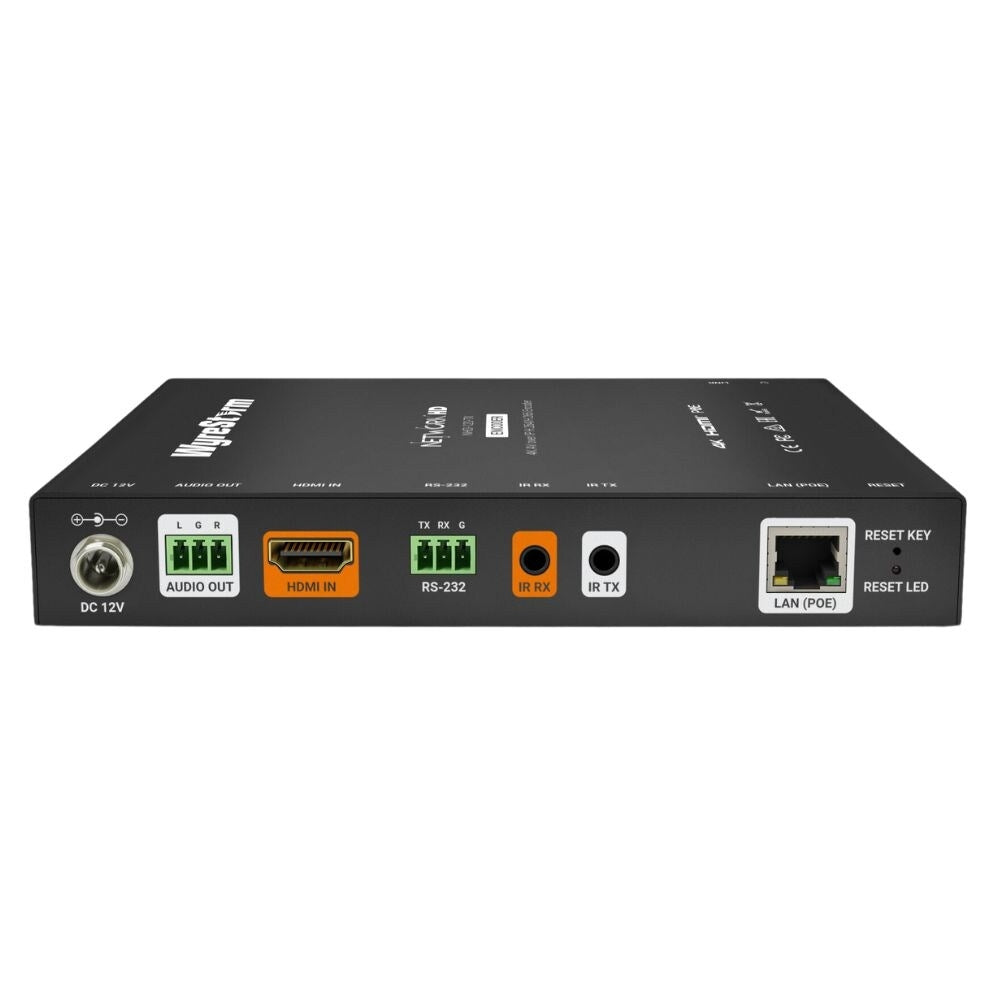

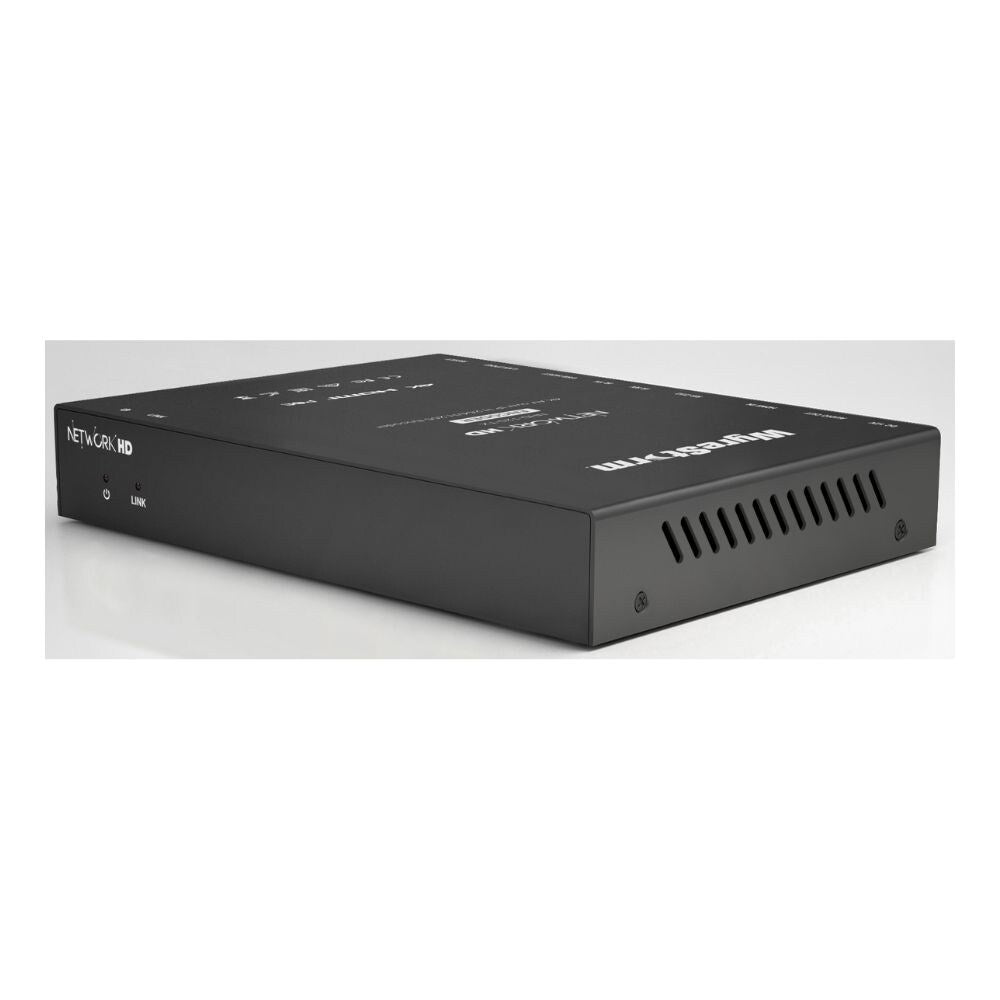

WyreStorm Network HD 4K30 4:2:0, H.264 or H.265 AV over IP Encoder

The Network HD NHD-120-TX encoder takes the award winning 100 series and elevates to a new level. The components support both video encoding or decoding. With 4K resolution, video transmissions look better than ever and use up to 6 times less bandwidth. Network HD provides the most flexibility and can be perfectly tailored to your application requirements.

The Network HD NHD-120-TX encoder takes the award winning 100 series and elevates to a new level. The components support both video encoding or decoding. With 4K resolution, video transmissions look better than ever and use up to 6 times less bandwidth.

Using H.264 or H.265 encoding the NHD-120-TX transmits AV streams up to 4K 30Hz. AV streams are fully secure over the network using AES 128 bit encryption methods. Data sent from an NHD-120-TX is encapsulated using advanced methods to ensure that sensitive or private data cannot be accessed by 3rd parties.

This series would not be complete without retaining the powerful video wall and Multiview processing. This encoder does one better by adding screen rotation and mosaic video wall ability.

The NHD-120-TX can encode AV signal using low bandwidth compression technology. Using this technology provides incredibly efficient video streams and is now supporting 4K content that ensures compatibility with the HDMI v1.4 HDCP 2.2 video source. While a built in scaler ensures hassle-free mixing of the latest 4K displays and 1080p screens within an installation.

Providing a powerful routing engine the NHD-120-TX can discretely deliver audio, infrared and RS-232 streams separate to the video via a modular IP network. True signal breakaway can create custom assignments.

Compatible with the Network HD Touch and Companion Control apps to control source, matrix and video wall switching with preview streams of each encoder.

Network HD provides the most flexibility and can be perfectly tailored to your application requirements.

Specifications:

Features:

• Compatible with the Network HD Touch and Companion Control apps to control source, matrix and video wall switching with preview streams of each encoder
• Supports up to 4K @ 30Hz video content
• Support all SD and HD formats including interlaced content
• Low bandwidth or high quality transmission methods. Low latency ~ 80ms. High quality ~250ms
• Analogue audio de-embed for easy connection to external audio DSP or amplifier
• Image scaling use mixed resolution displays throughout an installation
• Seamless video switching allows no black screens or freeze frames
• Hugely scalable I/O, utilising multicast technology
• Flexible IP address settings: AutoIP, Static or DHCP
• Customisable CEC, IR or RS-232 control of connected devices
• Up to 16x16 video walls with image scaling, bezel compensation and rotation
• Mosaic video walls for custom screen orientation.
• Custom "No Source" idle image upload for branded down time
• Breakaway, independent routing of all video, audio, IR and RS-232 streams
• Infrared signal generation via API supports Hex Global Cache format
• Batch firmware update and batch settings functions offers a massive reduction on installation times
• HDCP 2.2 compliant
• IEEE 802.3af PoE compliant PD
• Includes Wall and Rack mounting brackets
