Description

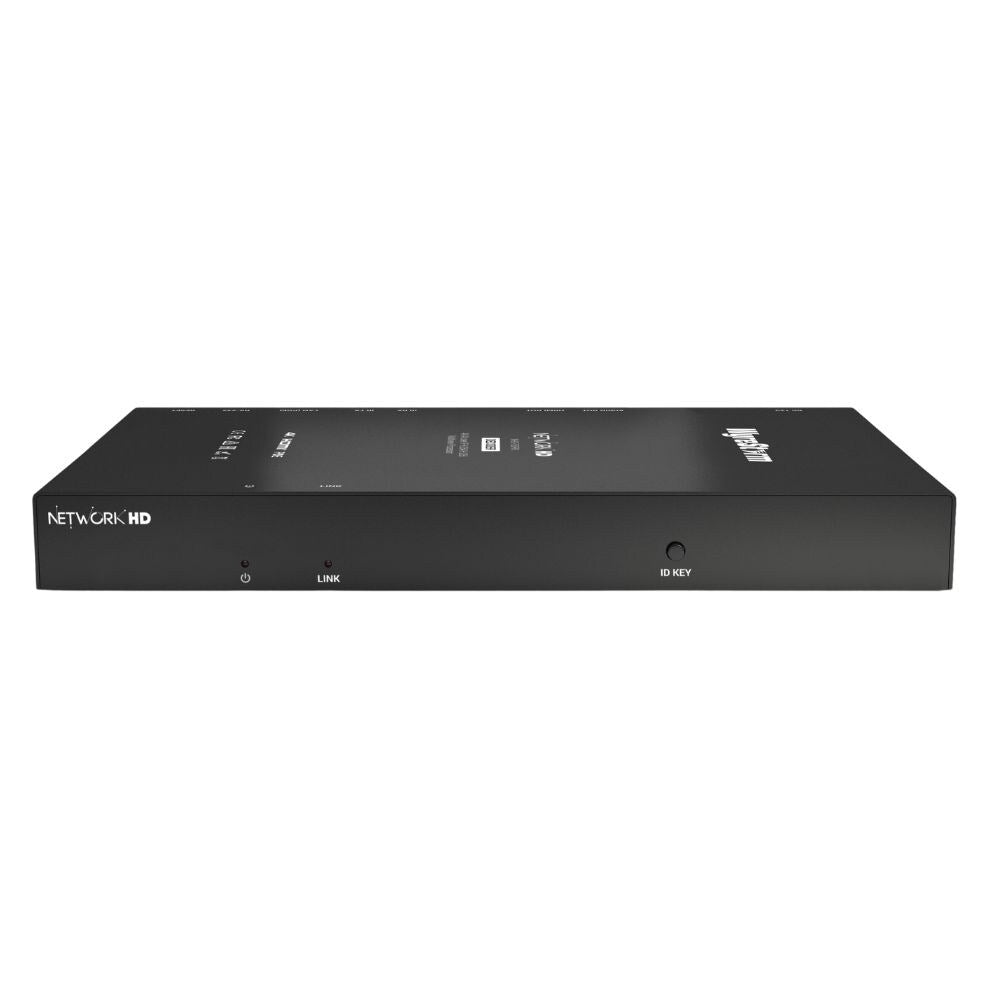

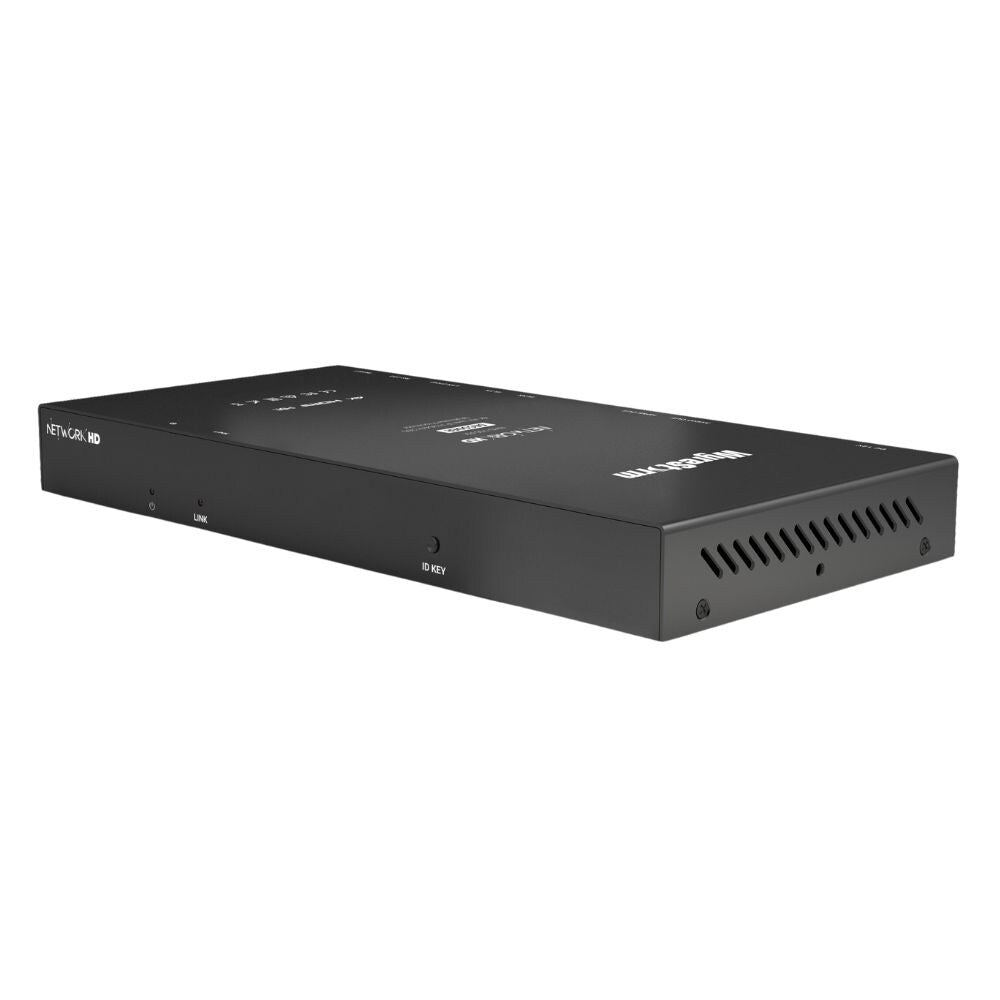

The NHD-150-RX from WyreStorm is an enhanced MultiView display decoder compatible with the NetworkHD 120 Series, an ultra low bandwidth AV over IP solution for distribution of point to point, one to many and many to many over a managed network. This decoder is intended for use with 120 Series encoders, sold separately, to provide a complete end to end video distribution system. When used in conjunction with the NHD-CTL-PRO system controller complete control integration is simple.
The NHD-150-RX from WyreStorm is an enhanced MultiView display decoder compatible with the NetworkHD 120 Series, an ultra low bandwidth AV over IP solution for distribution of point to point, one to many and many to many over a managed network.
This decoder is intended for use with 120 Series encoders, sold separately, to provide a complete end to end video distribution system. When used in conjunction with the NHD-CTL-PRO system controller complete control integration is simple.
The NHD-150-RX MultiView processor is capable of displaying up to eight simultaneous video feeds on a single 4K display, with users able to select between many different layouts.
This unit can decode AV signal using low bandwidth compression technology and using this technology provides incredibly efficient video streams.
In addition to HDMI streaming over an IP Network, the NHD-150-RX sends RS-232 control signals to a source or display and CEC control commands to a display device for single control signal deployment without the need for additional equipment.
Security is key in today's world and the NetworkHD decoder supports AES 128-bit AV encryption over the network. Data sent to an NHD-150-RX is encapsulated using advanced methods to ensure that sensitive or private data cannot be accessed by 3rd parties.
Compatible with the Network HD Touch and Companion Control apps to control source, matrix and video wall switching with preview streams of each encoder.
NetworkHD provides the most flexibility and can be perfectly tailored to your application requirements.
Specifications:
| Compatible With | Intended use with 120 Series encoders NetworkHD 120 Series, an ultra low bandwidth AV over IP solution and for use with NetworkHD Touch or a custom control UI NHD-CTL-PRO system controller and NHD-000-RACK4 rack mounting kit |

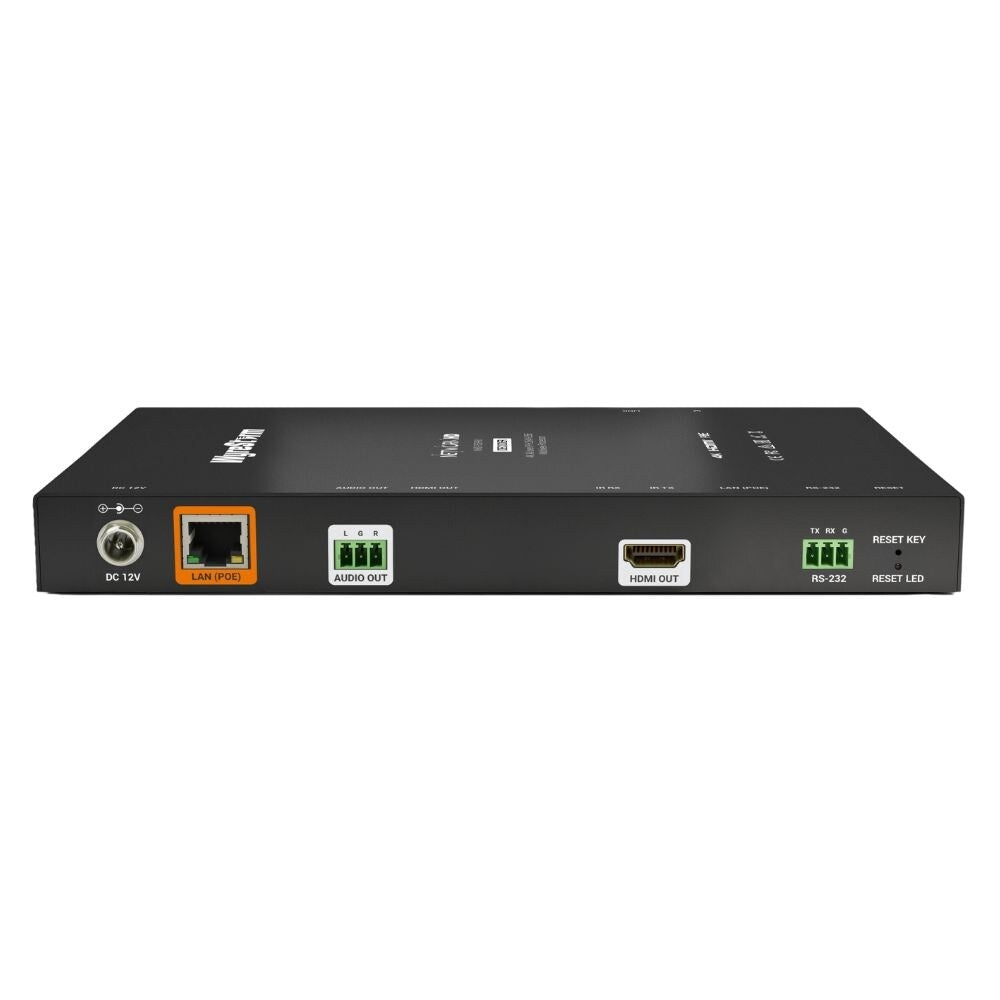

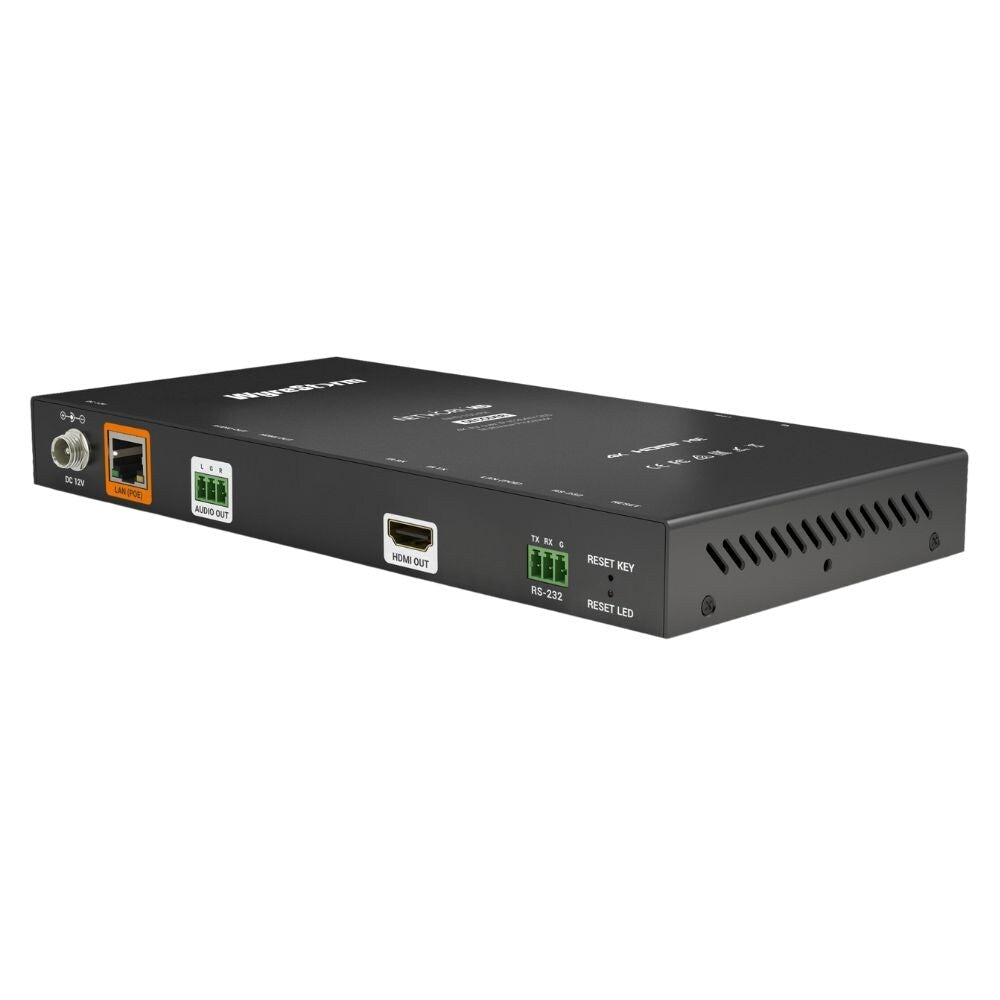

| Input | 1x 1GbE 8 pin RJ45 |
| Outputs | 1x HDMI 1x Audio out 3.5mm |
| Audio formats | LPCM/MPEG4 AAC stereo, 48KHz |
| Output Video Encoding | H.264/H.265 Max. configurable up to 30Mbps |
| Decoding Date Rate | Max: 30Mb/s per stream |
| End to End Latency (max) | 1080p: High Quality Mode: ~250ms 1080p: Low Latency Mode: ~80ms 4K: High Quality Mode: ~400ms 4K: Low Latency Mode: ~150ms |
| Maximum Pixel Clock | 297 MHz |
| Communication and Control | |
| HDMI | HDMI 1.4 HDCP 2.2 EDID CEC (configurable) |
| Ethernet | 1 x 8 pin RJ-45 Female 10/100BaseT PoE 802 1af |
| RS232 | 1 x RS232 4 pin Phoenix Connector |
| Power Supply | 12V DC PoE 15.4W at PSE |
| Dimensions | Height: 25mm / 0.99" Width: 220mm / 8.66" Depth: 130mm / 5.2" |
| Weight | 0.78kg / 1.72lb |
| Includes | Wall and rack mounting brackets |
Features:
- Provides 4K @ 60Hz MultiView video content
- Flexible encoding using low bandwidth encoding
- Encoding is configurable between a constant bitrate or variable bitrate
- Low bandwidth or high quality transmission methods. Low latency ~ 150ms. High-quality ~400ms
- Analogue audio de-embed for easy connection to external audio DSP or amplifier
- Supports arbitrary display of up to 9 windows (networking incoming video resolution <=1080P) or 8 windows (network incoming video resolution > 1080p)
- Hugely scalable I/O, utilising multicast technology
- Live video preview streams for use with NetworkHD Touch or a custom control UI
- Flexible IP address settings: Auto IP, Static or DHCP
- Customisable RS-232 and CEC control of connected display
- Infrared signal generation via API supports Hex Global Cache format. Batch firmware update and batch settings functions offers a massive reduction on installation times
- Custom EDID management with import/export
- HDCP 2.2 compliant
- Supports AES-128 for audio/video decryption
- Supports HTTPS/SSH/LDAP/802.1X
- IEEE 802.3af PoE compliant PD
- Includes Wall and Rack mounting brackets
- Compatible with NHD-000-RACK4 rack mounting kit
