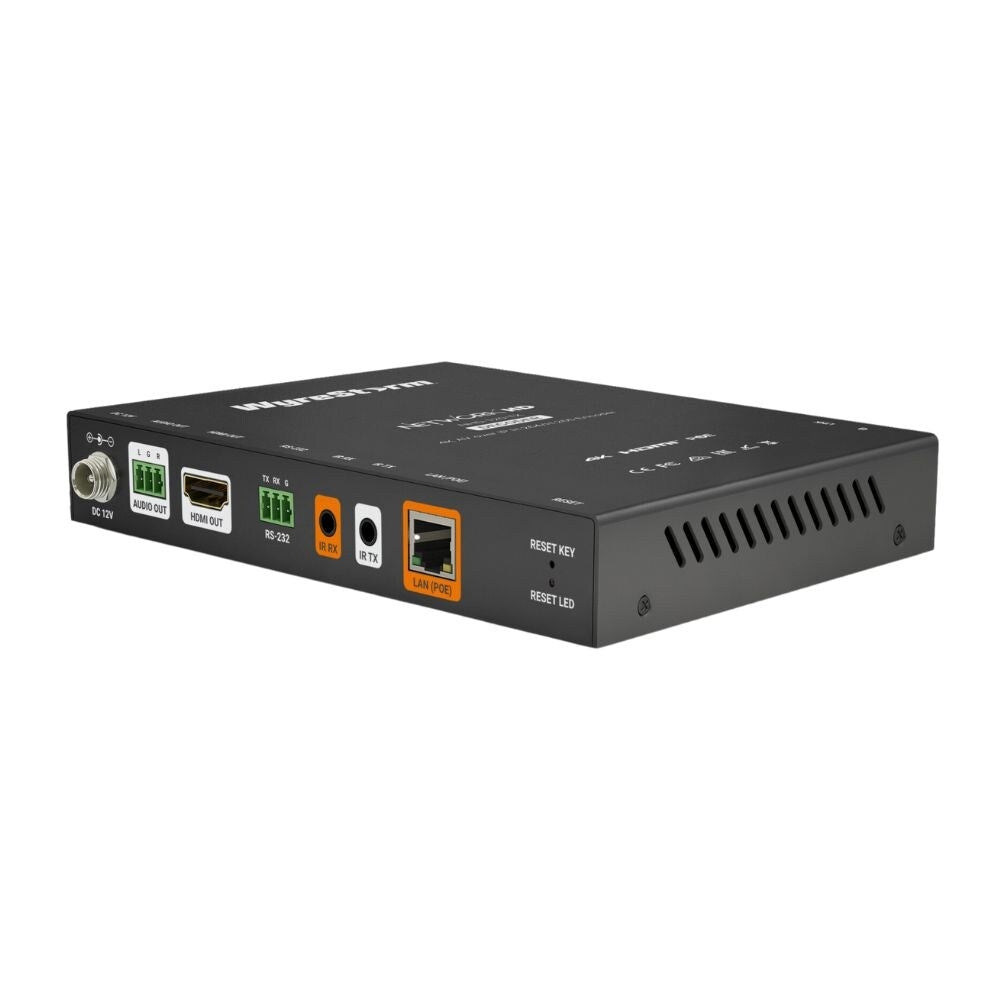

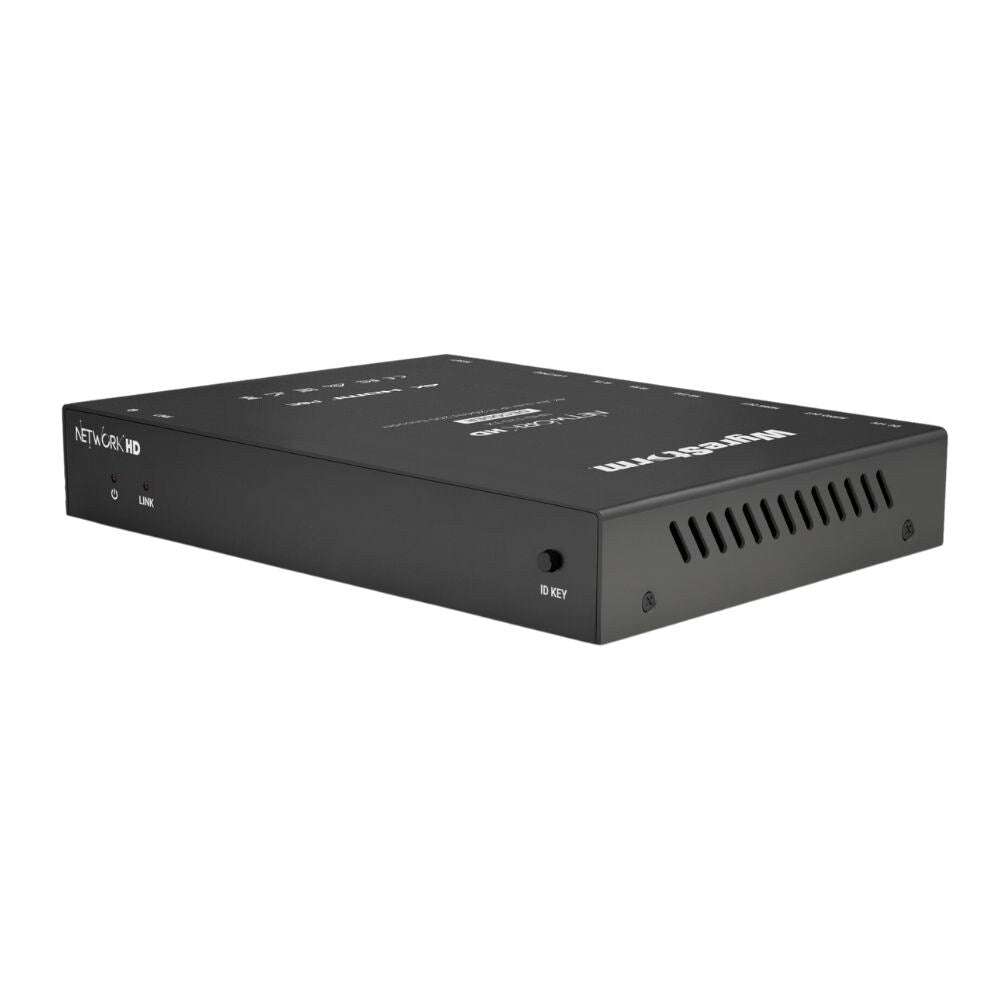

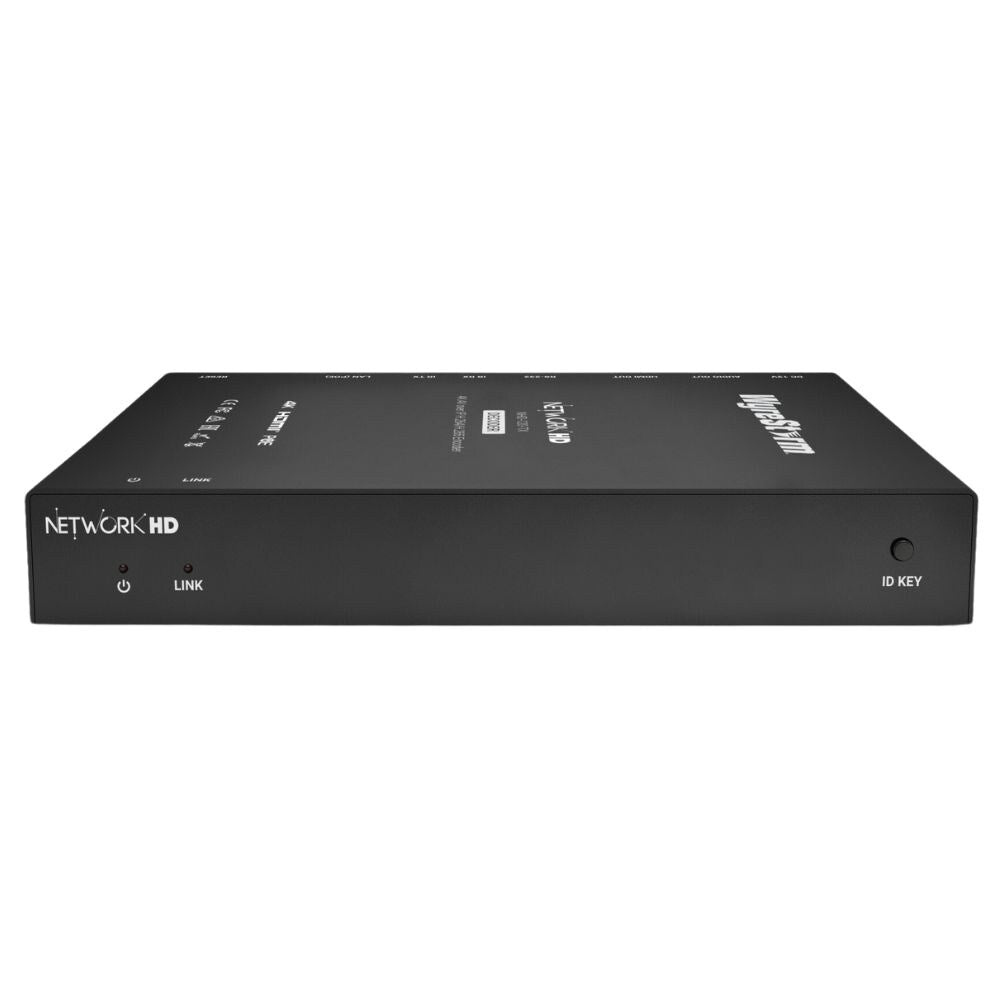

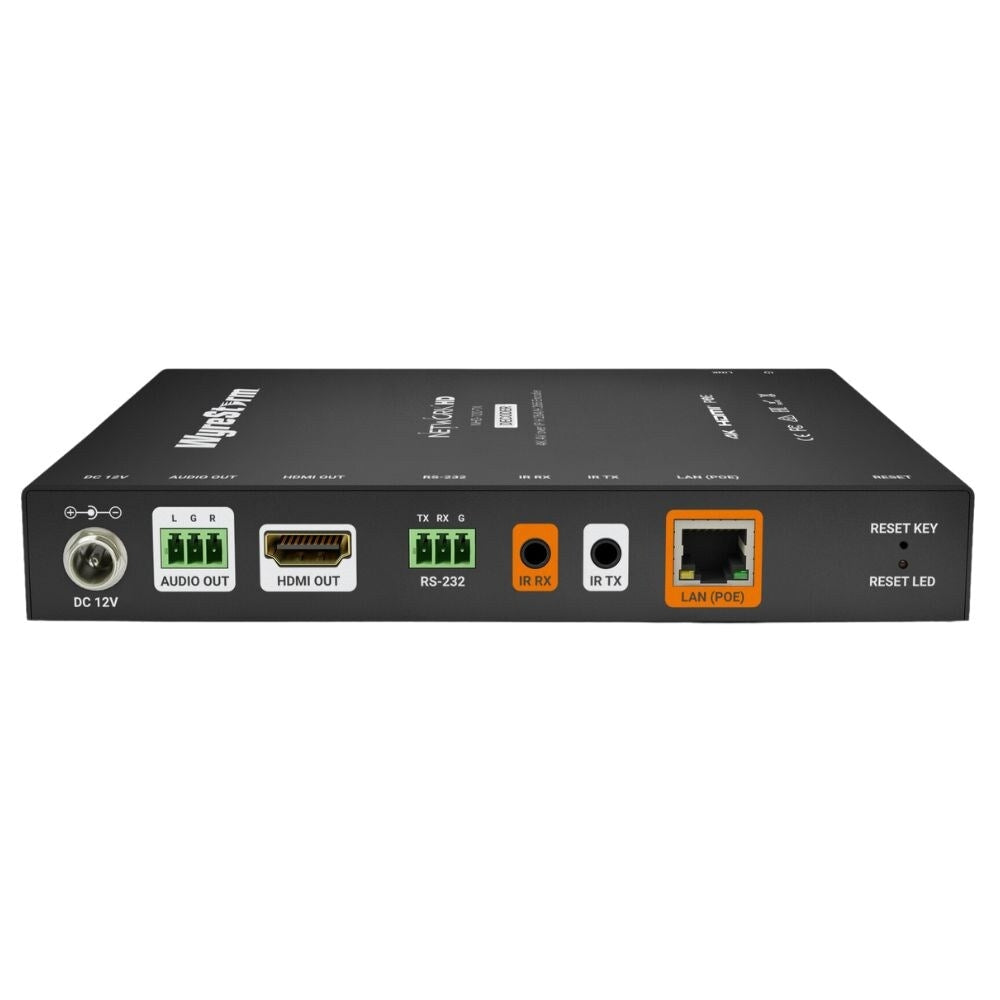

WyreStorm NetworkHD 4K30 4:2:0, H.264/H.265 AV over IP Decoder

The Network HD 120 series from WyreStorm takes the award winning 100 series and elevates to a new level. The NHD-120-RX components support both video encoding or decoding. With 4K resolution, video transmissions look better than ever and use up to 6x less bandwidth. NetworkHD provides the most flexibility and can be perfectly tailored to your application requirements.

The Network HD 120 series from WyreStorm takes the award winning 100 series and elevates to a new level. The NHD-120-RX components support both video encoding or decoding. With 4K resolution, video transmissions look better than ever and use up to 6x less bandwidth.

AV streams are fully secure over the network using AES 128 bit encryption methods and the data sent from an NHD-120-RX is encapsulated using advanced methods to ensure that sensitive or private data cannot be accessed by 3rd parties.

The NHD-120-RX can decode AV signal using low bandwidth compression technology. Using this technology provides incredibly efficient video streams. This decoder would not be complete without retaining the powerful video wall and Multiview processing. This unit does one better by adding screen rotation and mosaic video wall ability.

Now supporting 4K content that ensures compatibility with the HDMI v1.4 HDCP 2.2 video source, while a built-in scaler ensures hassle-free mixing of the latest 4K displays and 1080p screens within an installation.

Providing a powerful routing engine the 120 series can discretely deliver audio, infrared, and RS-232 streams separate to the video via a modular IP network. True signal breakaway can create custom assignments.

Compatible with the Network HD Touch and Companion Control apps to control source, matrix and video wall switching with preview streams of each encoder.

NetworkHD provides the most flexibility and can be perfectly tailored to your application requirements.

Specifications:

Features:

• Compatible with the Network HD Touch and Companion Control apps to control source, matrix and video wall switching with preview streams of each encoder
• Supports up to 4K @ 30Hz video content
• Support all SD and HD formats, including interlaced content
• Low bandwidth or high quality transmission methods. Low latency ~ 80ms. High-quality ~250ms
• Analogue audio de-embed for easy connection to external audio DSP or amplifier
• Image scaling for use with mixed resolution displays throughout an installation
• Seamless video switching meaning no black screens or freeze frames
• Hugely scalable I/O, utilising multicast technology
• Flexible IP address settings: AutoIP/Static/DHCP
• Customisable CEC, IR or RS-232 control of connected devices
• Up to 16x16 video walls with image scaling, bezel compensation and rotation
• Mosaic video walls for custom screen orientation.
• Custom "No Source" idle image upload for branded down time
• Breakaway, independent routing of all video, audio, IR, and RS-232 streams
• Infrared signal generation via API, supports Hex Global Cache format
• Batch firmware update and batch settings functions offers a massive reduction on installation times
• HDCP 2.2 compliant
• IEEE 802.3af PoE compliant PD
• Includes wall and rack mounting brackets
• NetworkHD provides the most flexibility and can be perfectly tailored to your application requirements.
