Description
The NHD-600-TRXF from WyreStorm is a SDVoE fibre transceiver capable of lossless and latency free 4K60 over a 10Gb network. This transceiver allows the user to transmit and receive AV simultaneously through a single device or be programmed to act as a dedicated TX or RX. The SFP+ connector supports up to 300m 10Gbps transmission distance for extremely long reach commercial applications.
The NHD-600-TRXF from WyreStorm is a SDVoE fibre transceiver capable of lossless and latency free 4K60 over a 10Gb network. This transceiver allows the user to transmit and receive AV simultaneously through a single device or be programmed to act as a dedicated TX or RX.
The SFP+ connector supports up to 300m 10Gbps transmission distance for extremely long reach commercial applications.

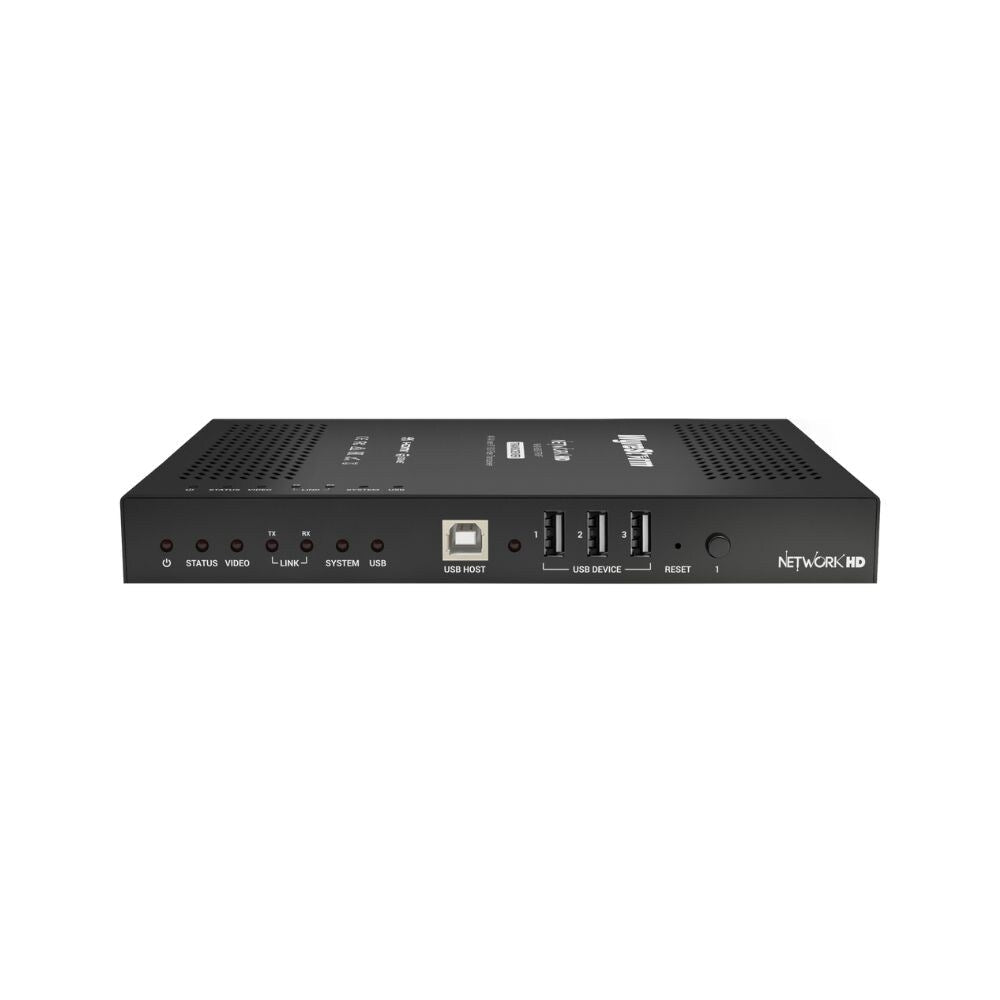

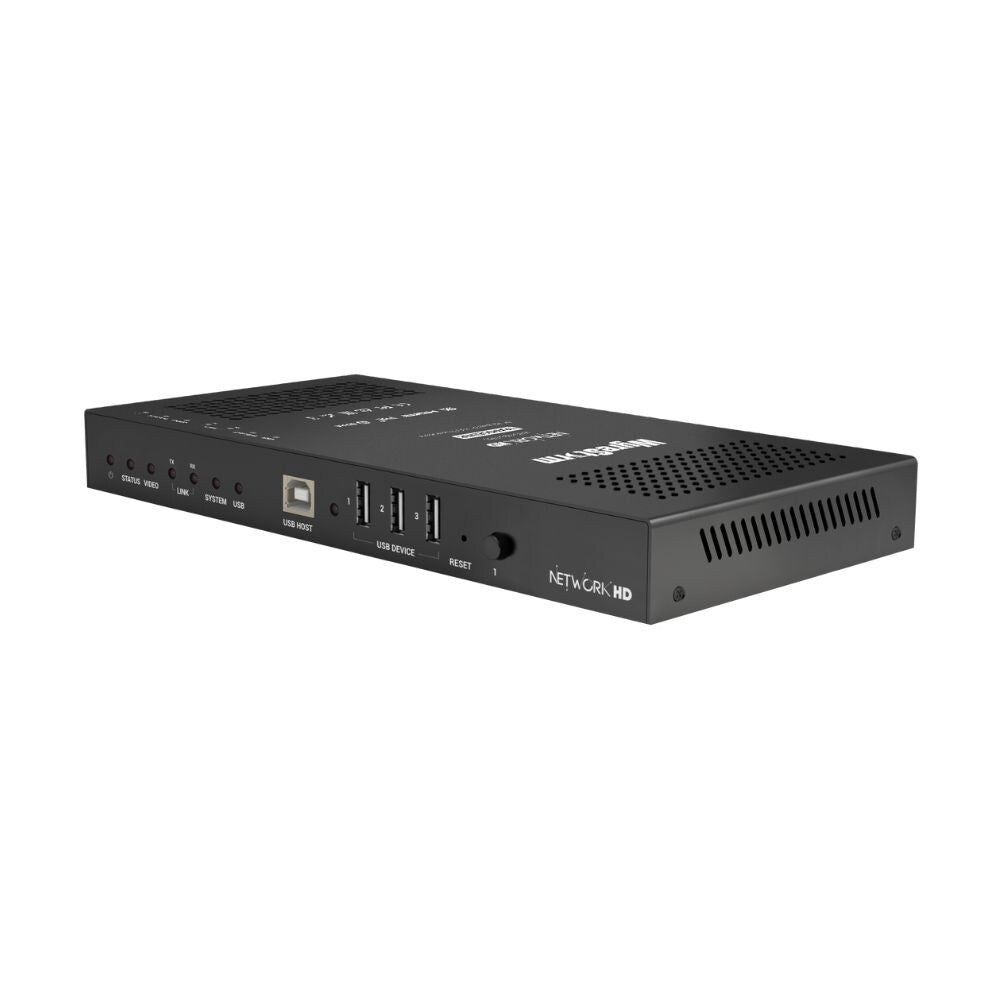

Three high speed USB 2.0 ports allow extension for keyboard and mouse applications and offers compatibility with webcams, touch screens and media storage.
As a transceiver, the NHD-600-TRXF transmits and receives up to 4K60 video simultaneously. Additional settings also allow the choice of whether it is a TX, RX or TRX.
Genlock mode delivers a lag free experience. Equipped with an SFP+ connector, this transceiver transmits or receives 4K 60 video up to 300m with zero latency and lossless video using multimode fibre.
Up to an 8x8 video wall can be processed with bezel and gap correction along with the ability to process Multiview PiP up to 16 windows.
This WyreStorm Pro AV product comes with a 5 Year Warranty
Specifications:
| Compatible With | Webcams, touch screens and media storage NHD-000-RACK4 for easy rack mounting |
| Audio and Video | |

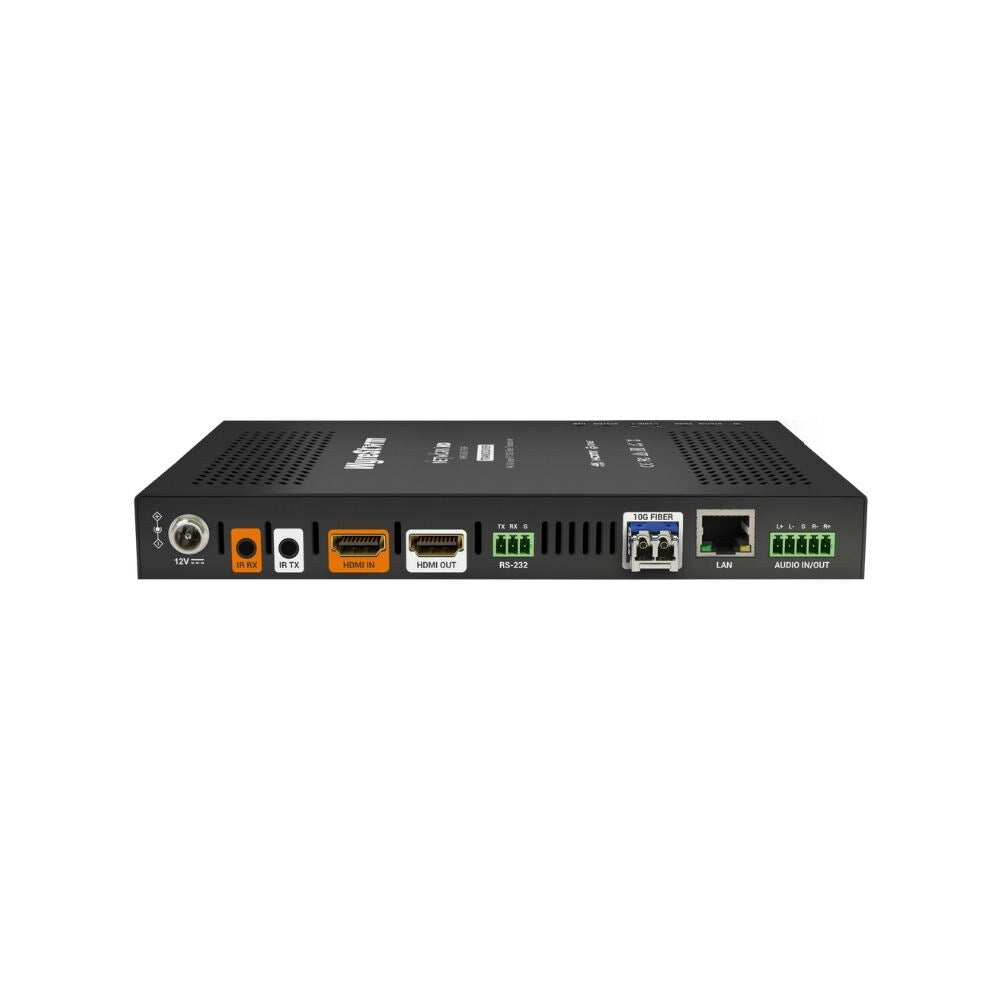

| Input and Outputs | 1 x HDMI 2.0 input 1 x HDMI 2.0 output 1 x 5 pin balanced analogue audio in or out 1 x 10Gb/s SFP+ GBIC 10GBASE-SR: 300m using OM3 Multimode 10GBASE-LR: 10km using OM3 Single Mode |
| Output Video Encoding | SDVoE Pixel Pipeline |
| Encoding Data Rate | 1080p@60Hz 8bit 3.4Gbps 4K UHD@30Hz 4:4:4 8bit 6.4Gbps 4K UHD@60Hz 4:4:4 8bit 8.7Gbps with light compression |
| Max End to End Latency | Genlock Mode: Uncompressed = 30us, compressed <120us Fast Switch Mode: 1~2 video frames = min between 16.7 - 33.4ms @ 60fps |
| Max Video Resolution | 4096x2160p @ 60Hz 8bit 4:4:4 or RGB 3840x2160p @ 60Hz 12bit 4:2:2 Dolby Vision 3840x 2160p @ 60Hz 10bit 4:2:2 HDR10/HLG 1920x1080p @ 60Hz 12bit |
| Supported Standards | RGB, DCI |
| Maximum Pixel Clock | 600MHz |
| 3D | HDMI 1.4b 3D: TnB, SbS, F.P |
| Communication and Control | |
| HDMI | HDCP 2.2 and 1.x compliant |
| Ethernet | 1 x 1GbE LAN 8 pin RJ45 |
| RS-232 | 1 x 3 pin Phoenix connector, 2 way, broadcast, routed and API programmable |
| Infrared | 1 x IR TX 3.5mm TS mono jack and API programmable 1 x IR RX 3.5mm TRS stereo jack and API programmable |
| USB | 3 x USB 2.0 Type A 1 x USB 2.0 Type B host USB Bandwidth: 480Mbps |
| Power | Power Supply: 12V 2A DC PSU Max Power Consumption: 24W |
| Operating Temperature | 0°C / 32°F to 45°C / 104°F Relative Humidity: 10% to 90% non condensing |
| Maximum BTU | 34 BTU/hr |
| Dimensions | Height: 25mm / 0.98" Width: 215mm / 8.47" Depth: 140mm / 5.51" |
| Weight | 0.8g / 1.75lb |
| Certifications | CE, FCC, RoHS, RCM and EAC |
| Included | 1 x Pair wall brackets 1 x Pair NHD-000-RACK4 brackets 1 x 12V 2A DC power supply for US, UK, EU, AU 1 x 3 pin Phoenix connector for RS-232 1 x 5 pin Phoenix connector for analogue audio |
Features:
- Compatible with webcams, touch screens and media storage
- Compatible with NHD-000-RACK4 for easy rack mounting
- Supports 4K UHD and DCI resolutions up to 60fps RGB or YUV 4:4:4
- Supports Dolby Vision, HDR10 and HLG HDR formats and ITU-R BT.2020 and BT.2100 colour spaces
- Equipped with an SFP+ connector, transmit or receive 4K60 video up to 300m with zero latency and lossless video using multi mode fibre
- Capable of high bitrate multichannel audio passthrough, including Dolby Atmos and DTS:X
- Supports HDCP 2.2 and HDCP 1. x
- Three USB 2.0 ports for extension of keyboard or mouse, webcams, touchscreens and media storage
- Powerful video scaling can match a connected display to the video source, leaving the original source content unaltered
- Video resolution, framerate and colour space conversion using SMPTE/ITU recommended methods
- Genlock scaler mode for zero end to end latency
- Supports seamless AV source switching via Fast Switch mode
- Secondary video stream with alternate scaling options can be used for Multiview source content
- Fully featured Multi View image compositing includes arbitrary source window placement, resizing, image duplication and image offset functions
- Video wall processing including display bezel compensation
- Balanced analogue audio port can be configured as an input or output for a discrete audio stream or HDMI de-embedding
- Bidirectional IP to Infrared or RS-232 functionality via the API or 3rd party drivers
- Auxiliary 1GbE channel for network connectivity of attached source devices
- Powerful matrix functionality includes routing control of all audio, video, RS-232 and IR signals
- Secure A V transmissions using AES encryption methods
- Comes with a 5 Year Warranty
Please Note: *Preview streams not supported
