WyreStorm's NetworkHD 610-TX-V2 encoder expands the functionality of the powerful SDVoE 600 series product line. The 610-TX retains many of the capabilities found on the other models, such as full HDMI 2.0 encoding, zero latency transmissions, video wall and multi view processing. This encoder packs an extra punch by incorporating a Dante/AES67 output, allowing audio from the HDMI or analogue audio input to transmit to Dante/AES67 enabled amplifiers, DSP or mixers. It is also equipped with a full speed USB 1.1 HID chipset, maximising compatibility with thousands of USB peripherals for extension over the network, such as a keyboard or mouse, webcams, touchscreens or just simple data transfers.

WyreStorm's NetworkHD 610-TX-V2 encoder expands the functionality of the powerful SDVoE 600 series product line. The 610-TX retains many of the capabilities found on the other models, such as full HDMI 2.0 encoding, zero latency transmissions, video wall and multi view processing. This encoder packs an extra punch by incorporating a Dante/AES67 output, allowing audio from the HDMI or analogue audio input to transmit to Dante/AES67 enabled amplifiers, DSP or mixers. It is also equipped with a full speed USB 1.1 HID chipset, maximising compatibility with thousands of USB peripherals for extension over the network, such as a keyboard or mouse, webcams, touchscreens or just simple data transfers.

The NetworkHD 610 encoder provides clarity and performance for those environments requiring detail and responsiveness. Whether monitoring mission critical AV feeds from a control room, immersed in the competitive E Sports environment, or requiring crystal clear visuals in the medical field, this AV over IP distribution solution exceeds with no limitations.

This encoder is equipped with a 2CH Dante audio transmitter. Audio from either the HDMI or analogue audio input can be sent over the network using Dante protocols for a latency free and lossless delivery to compatible audio equipment. We've also made sure AES67 is supported to expand compatibility with even more audio receivers.

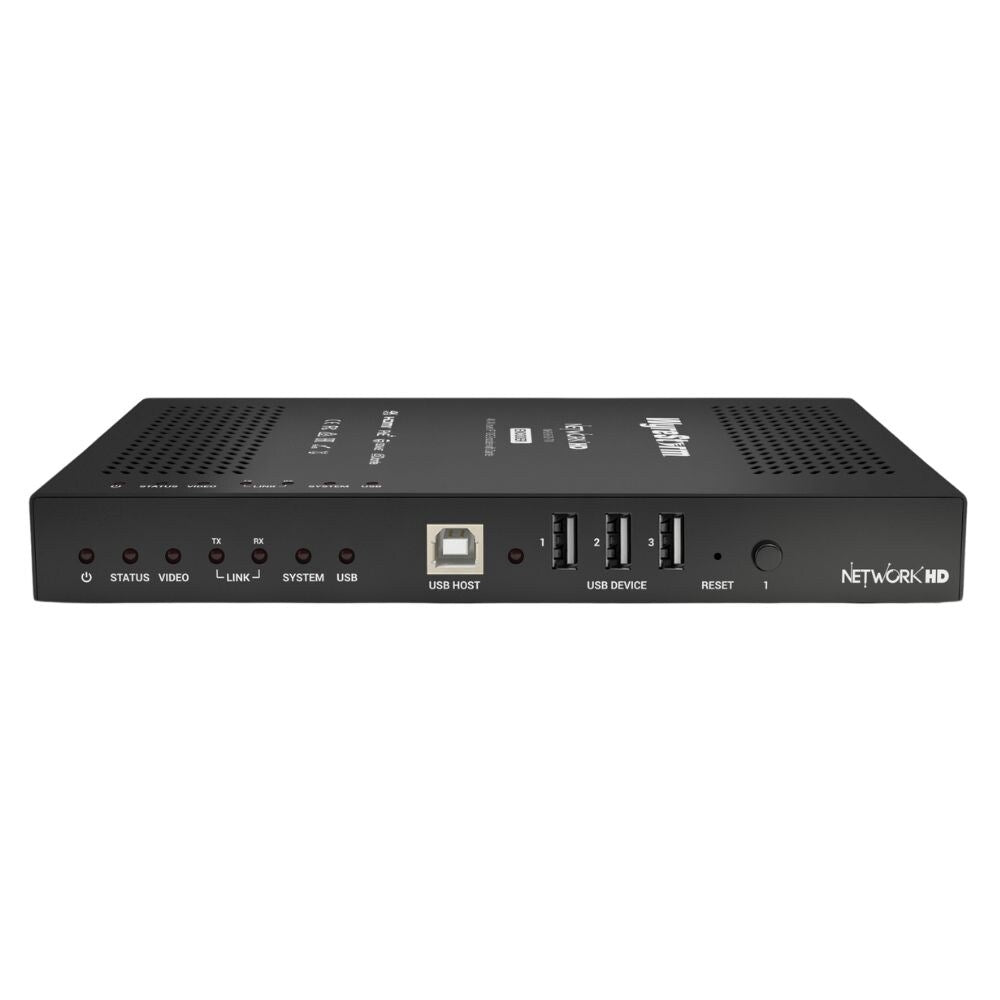

The NHD-610-TX-V2 has 3x USB HID ports for extension and routing of a keyboard, mouse or game controllers . This makes it fully compatible with NHD-600-TRX. Using Genlock mode it will allow a lag-free experience.

All 600 series components support encoding full HDMI 2.0 content. This includes 4K60 4:4:4 8bit and high dynamic range formats such as Dolby Vision, HDR10 and HLG. Most HDMI content is transmitted completely uncompressed and delivered over the network latency free using genlock synchronisation.

Compatible with the 802.3at PoE+ protocol, the NHD-610-TX-V2 can power from a compatible network switch removing the need to use cumbersome DC power supplies.

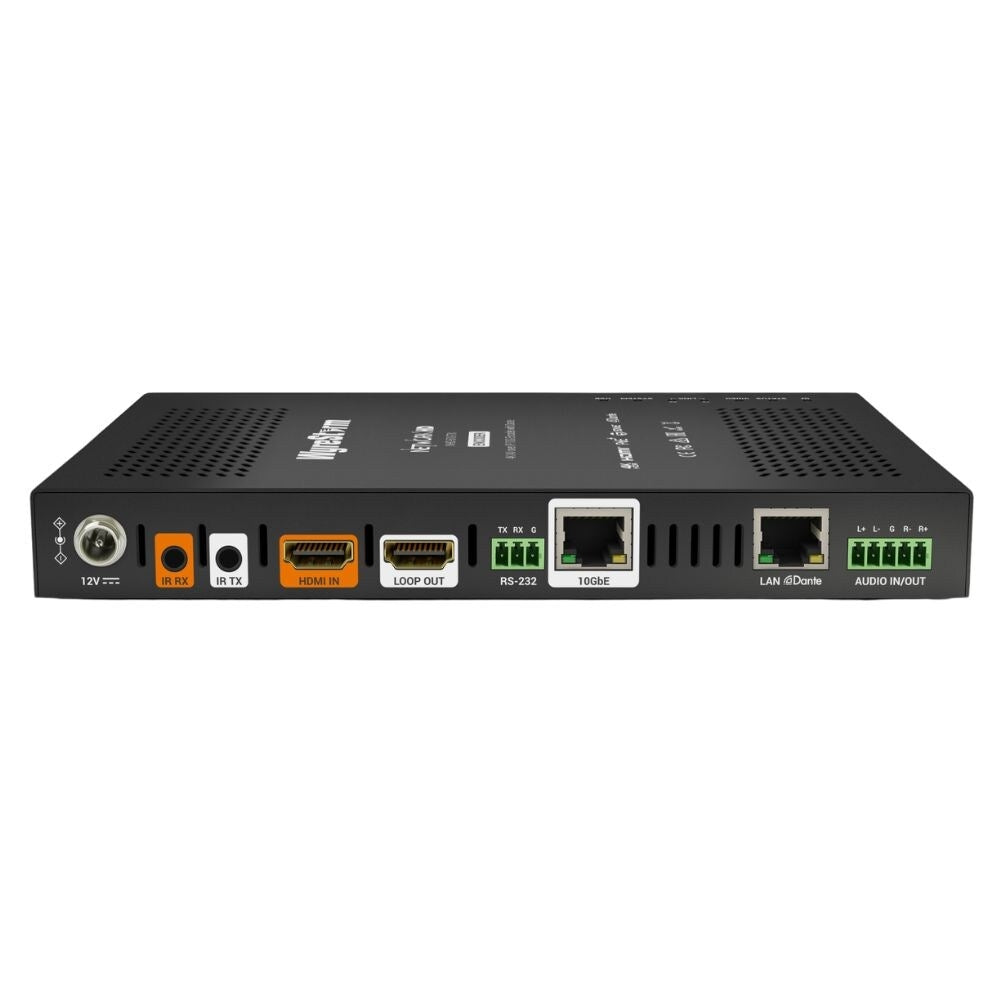

An auxiliary 1GbE LAN port provides a bridged connection to the main 10G port for connecting peripherals. It can also be setup to isolate Dante audio to a separate network.

The dual purpose balanced analogue audio port can be configured to de-embed audio from the HDMI input or be used as a discrete audio input.

Specifications:

Features:

• Capable of high bit rate multichannel audio passthrough, including Dolby Atmos™ and DTS:X
• Powerful video scaling can match a connected display to the video source, leaving the original source content unaltered
• Video resolution, framerate and colour space conversion using SMPTE/ITU recommended methods
• Genlock scaler mode for zero end to end latency
• Supports seamless AV source switching via Fast Switch mode
• Bi directional IP to Infrared / RS-232 functionality via the API or 3rd party drivers
• Powerful matrix functionality includes routing control of all audio, video, RS-232 and IR signals
• Compatible with WYR-NHD-000-RACK-4 for easy rack mounting
• Secure A/V transmissions using AES encryption method
