Description

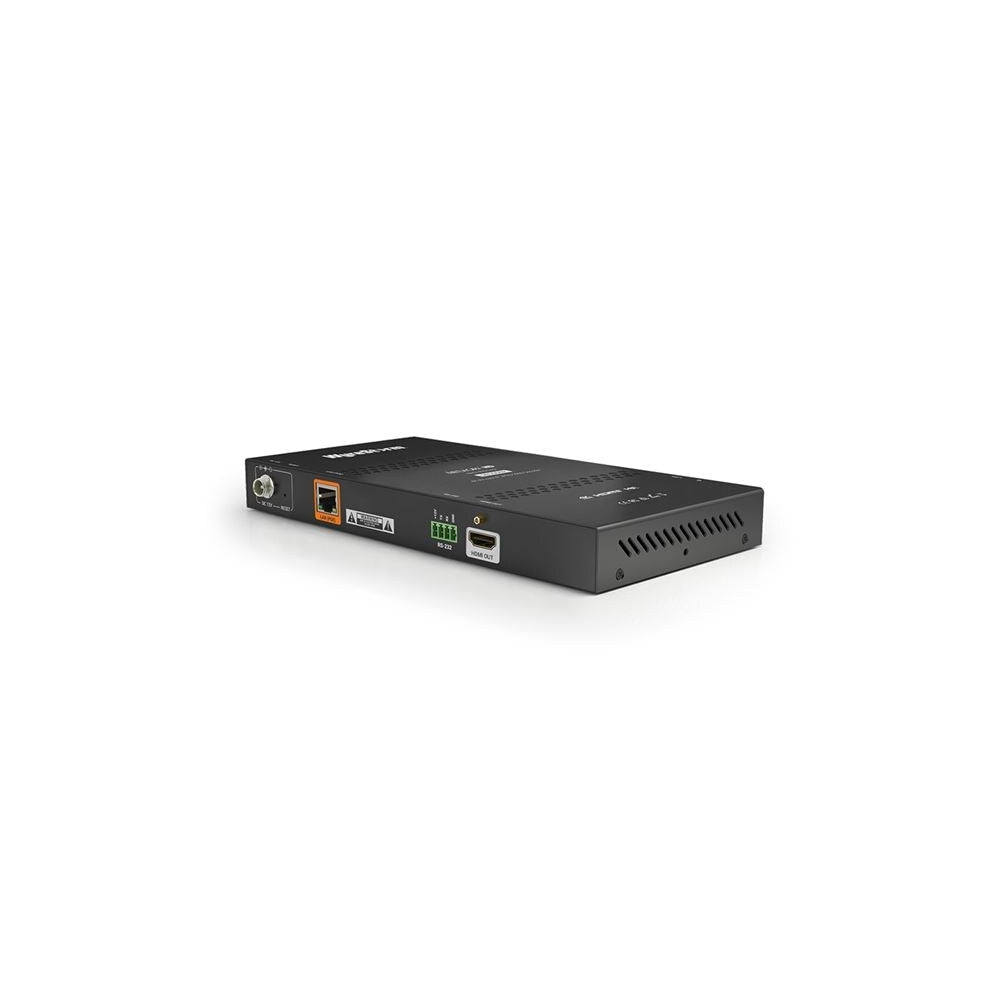

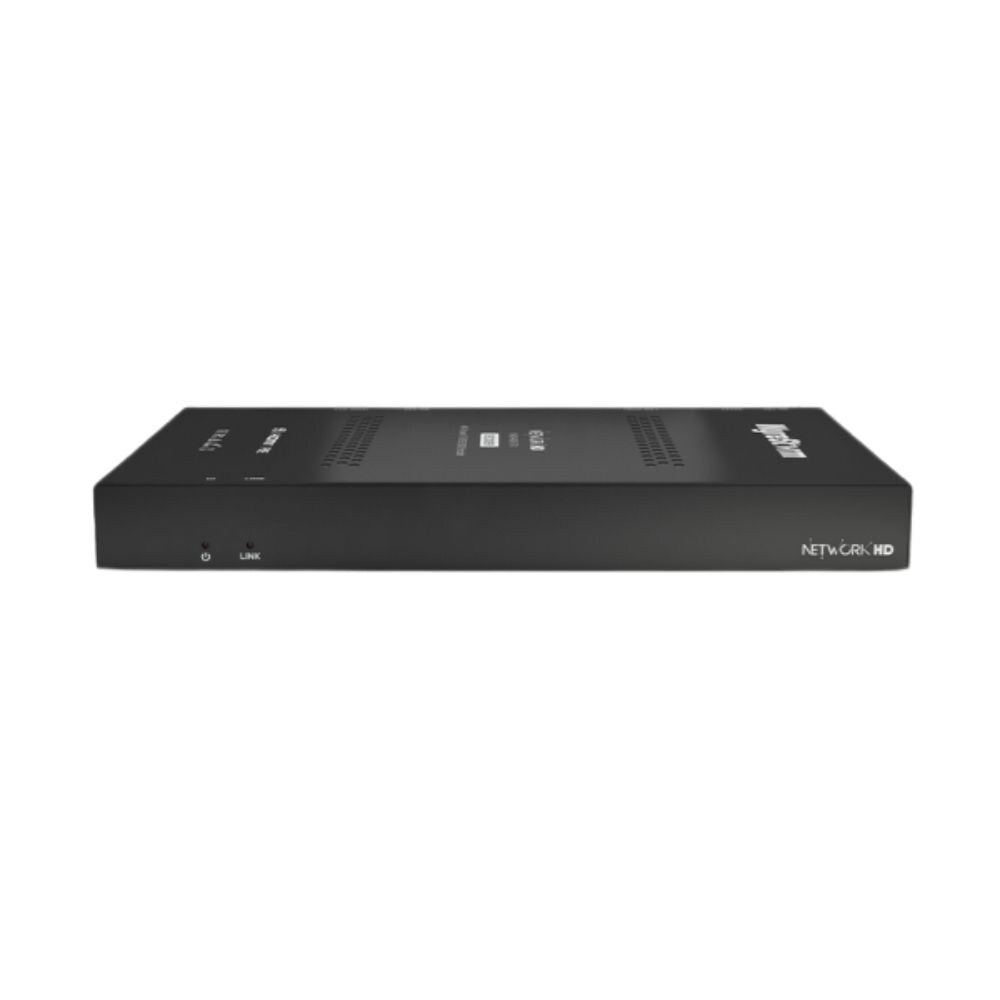

WyreStorm brings stunning 4K HDR video, video resolution scaling, multi channel audio and audio matrixing to IP with the NetworkHD™ NHD-400-E-RX AVoIP decoder. Used in conjunction with any 400 Series encoder, this decoder seamlessly handles mixed resolution sources, content and display devices for matrix and video wall functionality up to 16 x 16 with image rotation and bezel compensation. This is the perfect AV over IP solution for systems where high quality and low latency are key, making it perfect for both residential and commercial applications.
WyreStorm brings stunning 4K HDR video, video resolution scaling, multi channel audio and audio matrixing to IP with the NetworkHD™ NHD-400-E-RX AVoIP decoder. Used in conjunction with any 400 Series encoder, this decoder seamlessly handles mixed resolution sources, content and display devices for matrix and video wall functionality up to 16 x 16 with image rotation and bezel compensation.
This is the perfect AV over IP solution for systems where high quality and low latency are key, making it perfect for both residential and commercial applications.
The cost effective Type E version removes some control ports but retains the 400 Series core features. Delivering without loss 4K UHD content with HDR and HDCP 2.2 support ensures compatibility with the latest UHD video sources, while a built in scaler at the decoder ensures trouble free mixing of the latest 4K displays and 1080p screens within an installation.
Supporting traditional video walls, including customisable mosaic video wall styles, the NetworkHD™ Lite decoder is ideal for digital signage and modern digital menus.
It ensures distribution integrity and video latency of less than a single frame suitable for live environments, such as seminars and conferences, where presenting must be in sync with a video or audio systems.
Please note: This product requires a compatible switch
Specifications:
| Inputs | 1 x LAN (PoE) |

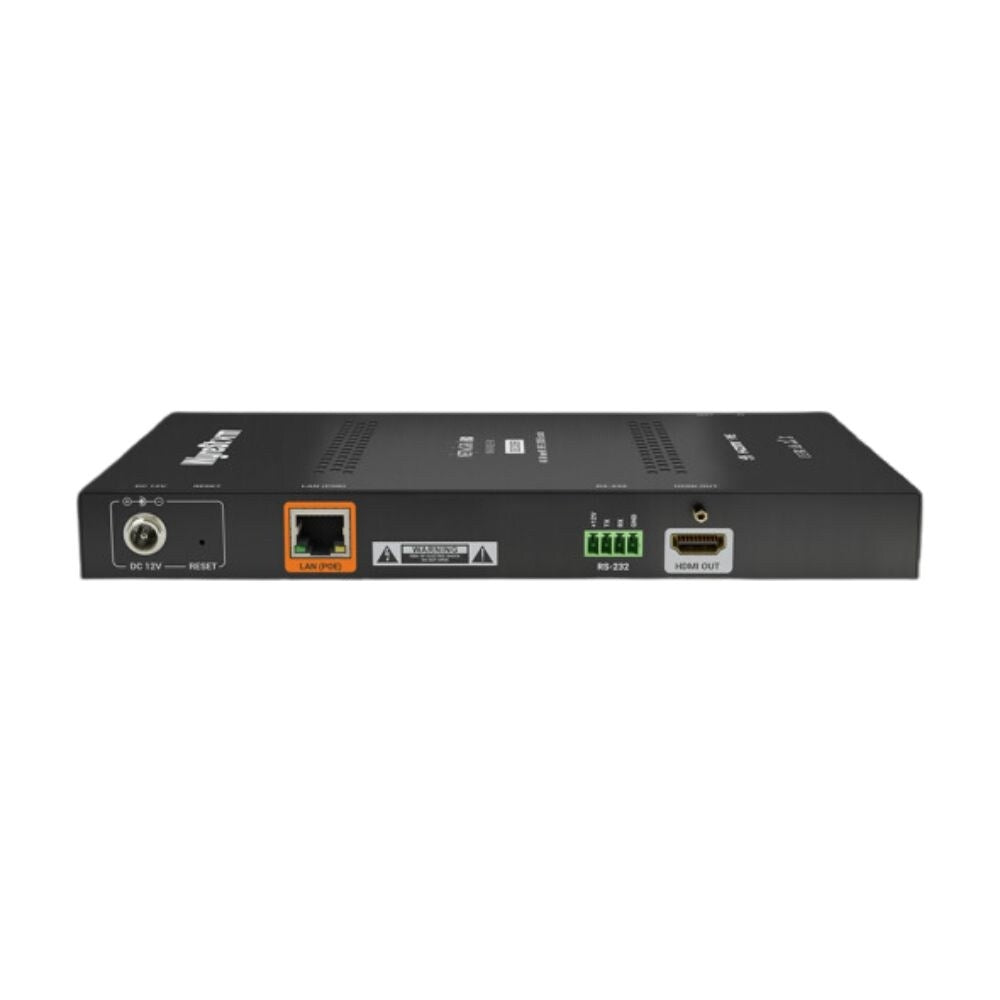

| Outputs | 1x HDMI 1x RS232 (phoenix) |
| Transmission Encoding | JPEG2000 |
| End to End Latency | With RX, 1 video frame (Passthrough mode) 2 video frames (scaling/video wall) e.g. 16ms @ 60Hz |
| Max Transmission Bit Rate | 850Mb/s |
| HDMI | 300MHz Max TMDS Clock |
| Maximum Data Rate | 8.91Gb/s HDMI |
| Video resolutions (max) | 3840x2160 @30 12bit 4:2:2 |
| Supported Standards | HDR10 HLG BT.2020 BT.709 3d Video |
| Audio Formats | PCM up to 8 channel Bit stream audio formats including Dolby Atmos and DTS:X |
| Ethernet | IEEE 802.1ab 1000BASE-T |
| HDCP | HDCP 2.2 | 1.x |
| Power | 12v 1a DC 15.4w PoE) |
| BTU | 51.18 BTU/hr |
| Dimensions | Height: 25mm Width: 220mm Depth:130mm |
| Weight | 0.75kg |
Features:
- Stunning visually, without loss, 4K UHD HDMI video with HDR over 1GbE / IP networks
- Ultra low end to end latency. Only a single video frame (16ms at 60fps)
- Multi channel audio including DTS:X Dolby ATMOS™ supported over HDMI to decoder
- Image scaling with 400 Series decoders, use a mix of display resolutions throughout an installation
- Easy network set up using standard Layer 2 or Layer 3 managed switches
- Hugely scalable I/O utilising multicast technology
- Live video unicast preview streams for use with NetworkHD™ Touch or a custom control UI
- Powerful audio matrix functionality; route audio separately from video to any decoder
- CEC One Touch Play and Standby, IR or RS-232 control of connected devices using 400 Series decoder
- 400 Series supports up to 16 x16 video walls with image scaling, bezel compensation and rotation
- 400 Series supports custom "No Source" idle image upload for branded down time
- Supports all SD, HD and UHD video formats, including interlaced content
- Batch firmware update and batch settings functions offers a massive reduction on installation times
- Custom EDID management with import and export
- HDCP 2.2 Compliant
- IEEE 802.3af PoE compliant PD
- Compatible with NHD-000-RACK4 rack mounting kit. The brackets are included with the decoder
Please note:This product requires a compatible switch
