Description

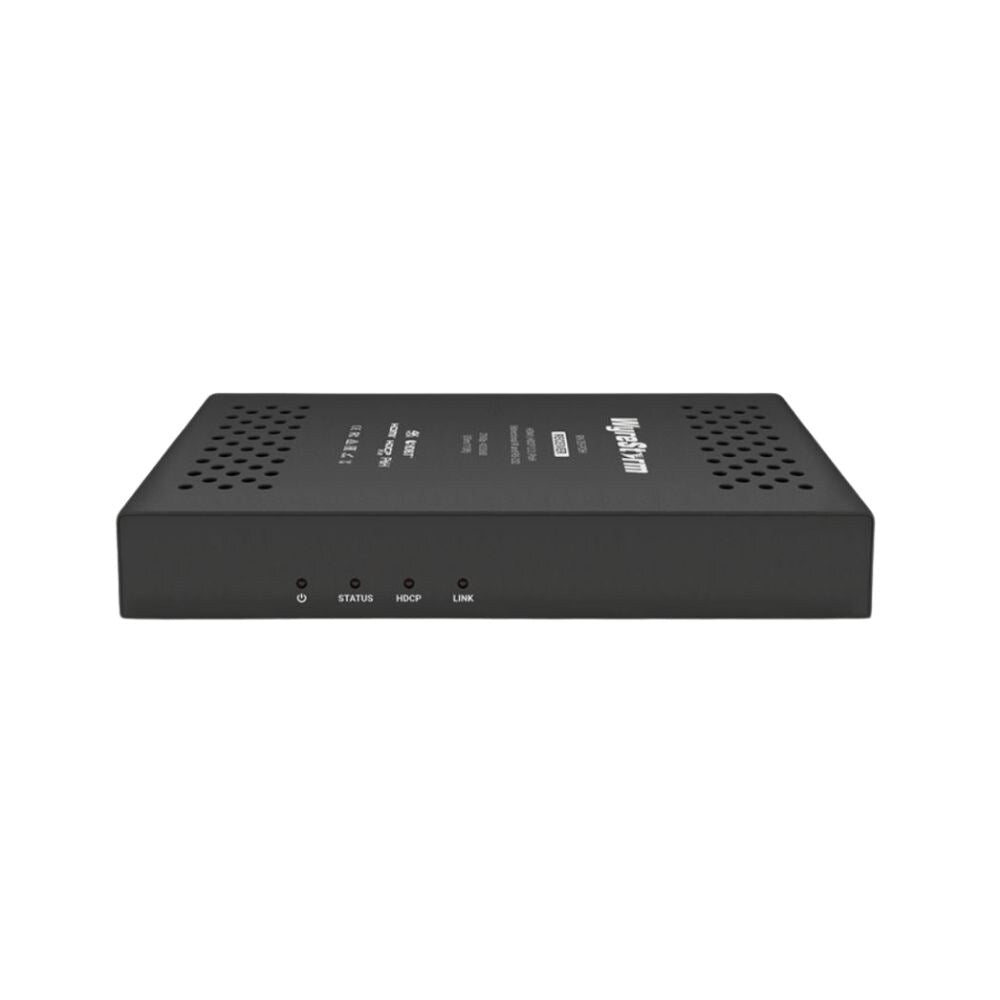

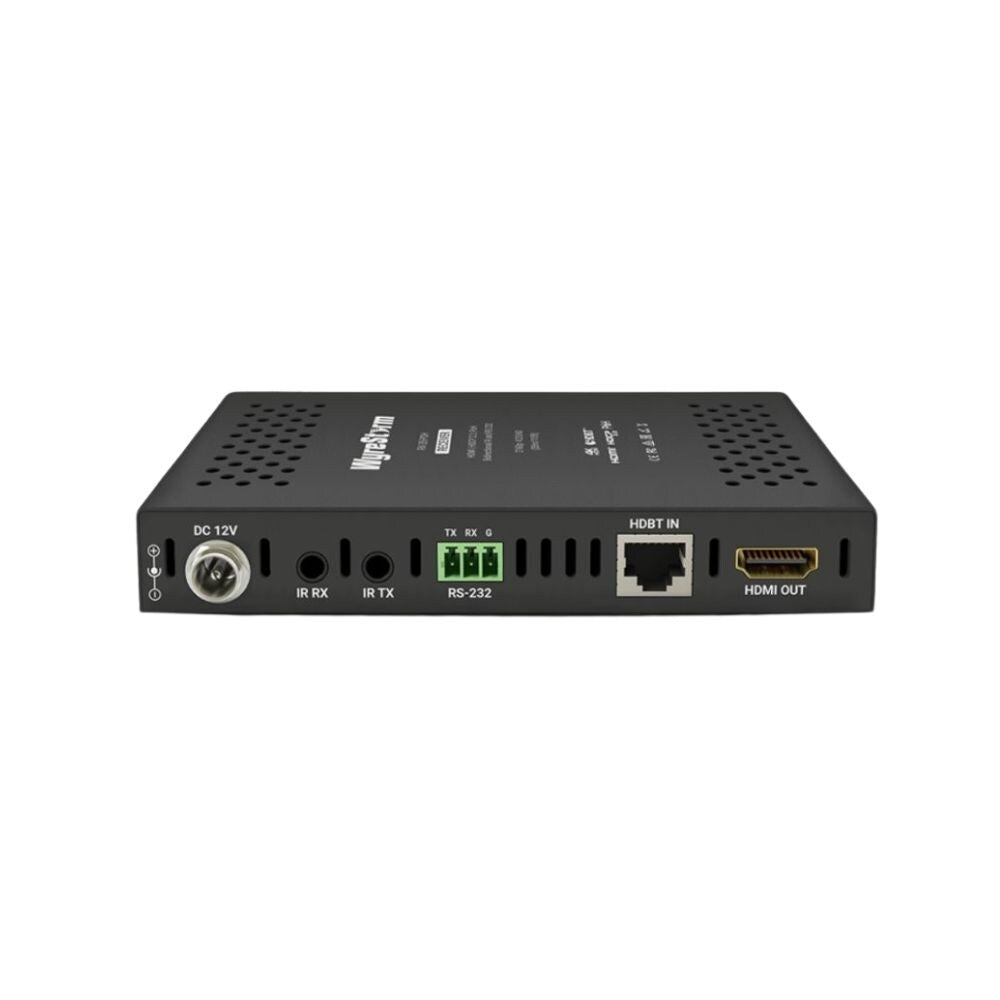

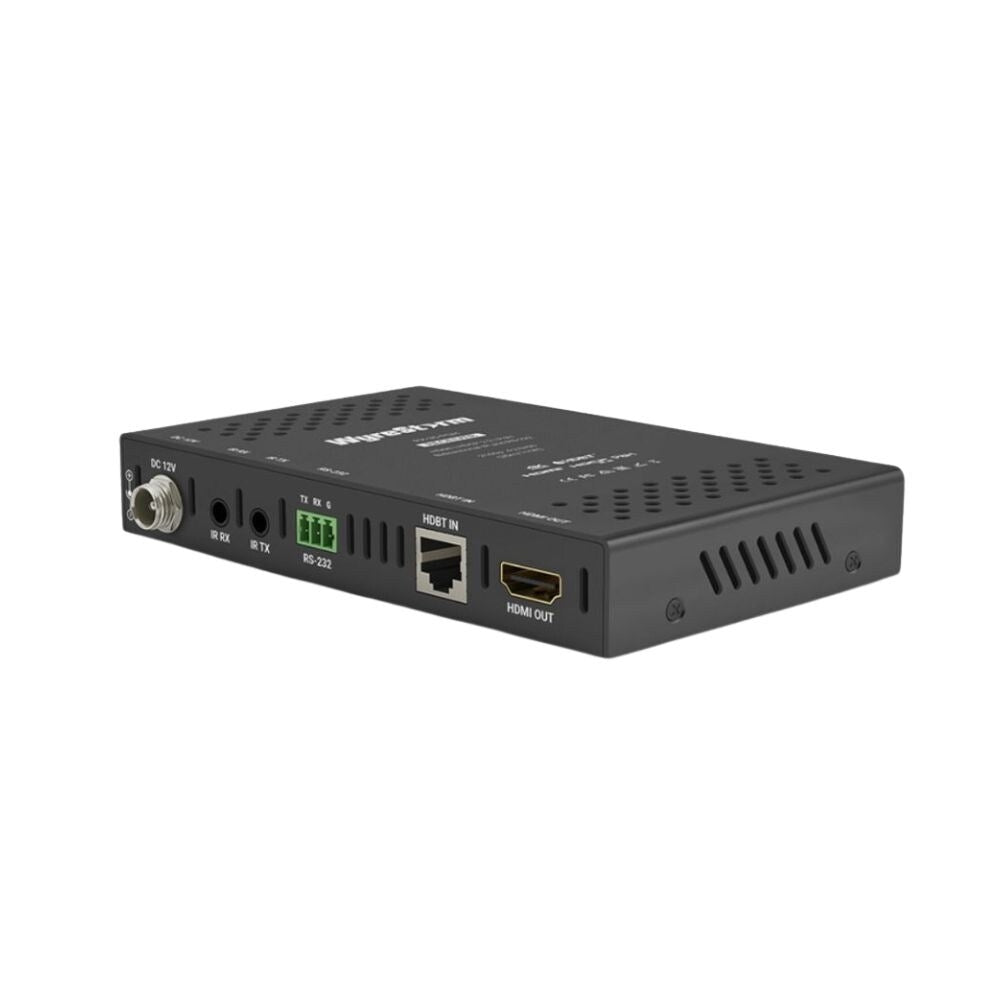

The HDBaseT™ 4K UHD Receiver with bi-directional IR, RS-232 and PoH from WyreStorm supports 4K HDR transmissions up to 35 metres from a compatible HDBaseT matrix or presentation switcher. 2 way PoH allows the RX-35-POH to power over category cable from a PoH matrix or switcher and also allows for the receiver to power in wall HDBaseT transmitters.
The HDBaseT™ 4K UHD Receiver with bi-directional IR, RS-232 and PoH from WyreStorm supports 4K HDR transmissions up to 35 metres from a compatible HDBaseT matrix or presentation switcher. 2 way PoH allows the RX-35-POH to power over category cable from a PoH matrix or switcher and also allows for the receiver to power in wall HDBaseT transmitters.
Small in size but not in the specification, the RX-35-POH is no different to the modern H2 family of products, supporting pixel perfect 4K UHD 4:2:0 10-bit @24Hz at distances up to 35m/115ft or 1080p to 35m/115ft.
The RX-35-POH supports 3 methods of control pass through. Being a pure HDBaseT™ device, it can handle bi directional IR, RS-232 and even CEC routing when used as part of a compatible WyreStorm matrix or extender system. The RX-35-POH can be powered by a PoH compatible matrix or presentation switcher meaning one less thing to think about when specifying and installing a WyreStorm system.
This is receiver is fully compliant with HDCP 2.2 encryption. As with all of WyreStorm's HDBaseT Receivers, remaining relevant and legal is key to their operation. The RX-35-POH is compliant with the strict anti piracy algorithms that prevent the unauthorised distribution of content, meaning a trouble free installation.
Specifications:
Inputs | 1x HDBaseT in 8 pin RJ45 Female |
Output | 1x HDMI 19 pin Type A |
Output Video Encoding | HDBaseT Class B |
Encoding Data Rate | 9.2Gbps |
Audio Formats | 2 channel PCM Up to DTS-x and Dolby Atmos® |
Video resolutions | 1920x1080p @60Hz 16 bit 3840x2160 @60Hz 10 bit 4:2:0 HDR |
Power Supply | 12V Dc (optional) |
POH | 2 way |
Max power Consumption | 7.2W |
Maximum BTU | 24.6 BTU/hr |
Dimensions | Height: 21mm Width: 140mm Depth: 80mm |
Weight | 0.29kg |
Features:
- Receives 4K UHD HDBaseT transmissions up to 35m/115ft
- Compatible with 4K HDR source content
- Compatible with HDCP 2.2 protected content
- 2 way PoH enabled for convenient PSU free installation
- RS-232 and IR passthrough for control of peripheral equipment
