The James JAM-QX530 2 way dual 5.25" LCR in wall speaker features a sleek modern appearance with a borderless aluminium white grille. James' quad tweeter array in a 22.5° offset array delivers wide dispersion, high power handling and low distortion to deliver audiophile quality sound where it counts.Whether you are looking for an integrated home cinema system, a simple stereo system, a distributed audio system, or something entirely different James' has an in wall solution that will work for your requirements.

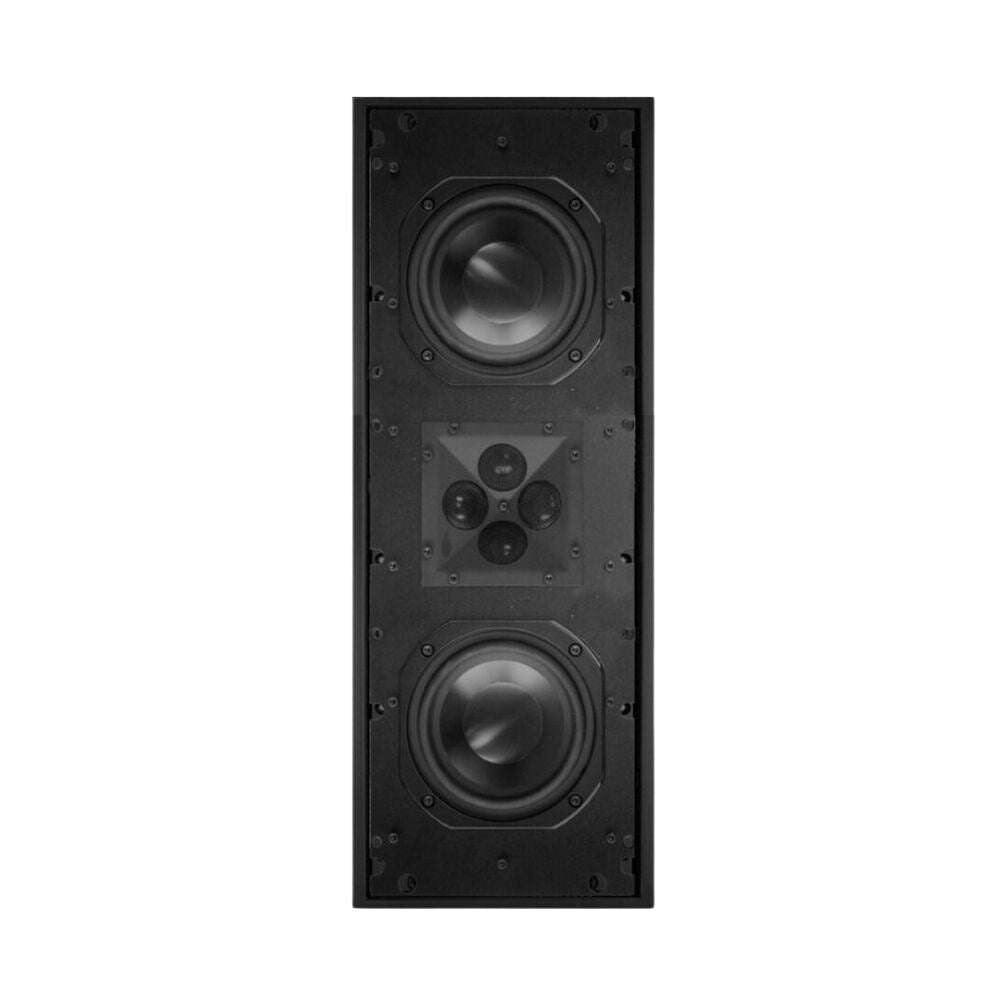

The James JAM-QX530 2 way dual 5.25" LCR in wall speaker features a sleek modern appearance with a borderless aluminium white grille, which sits less than 5mm / 3/16" from the wall. James' quad tweeter array, with four 19mm / 0.75" aluminium dome tweeters in a 22.5° offset array for wide dispersion provides high power handling and low distortion to deliver audiophile quality sound where it counts. Combined with two 133mm / 5.25" high excursion aluminium woofers, this speaker has an impressive 89dB sensitivity delivering bass down to 68Hz. A multi element network blends the highs and lows into a smooth and wide response.
The sealed cabinet is constructed of aircraft aluminium for strength, sonic performance and suitability for outdoor and marine applications.

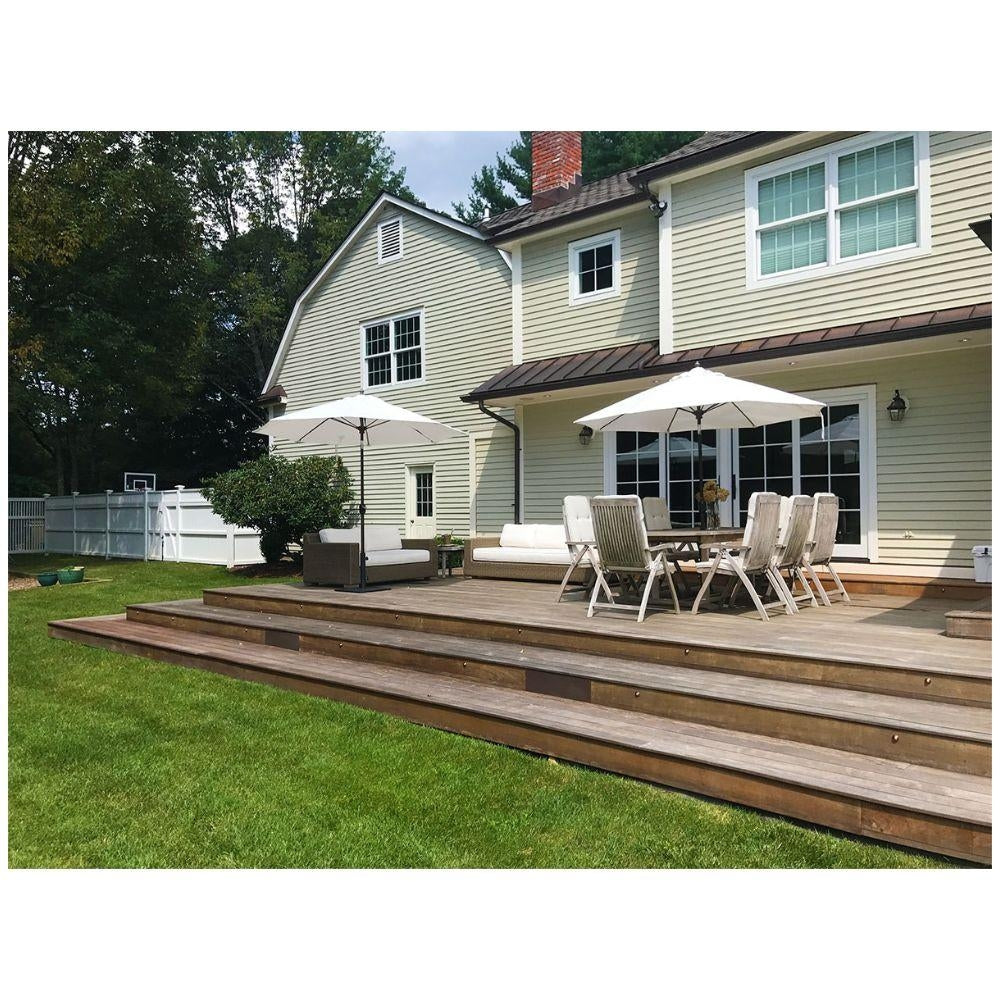

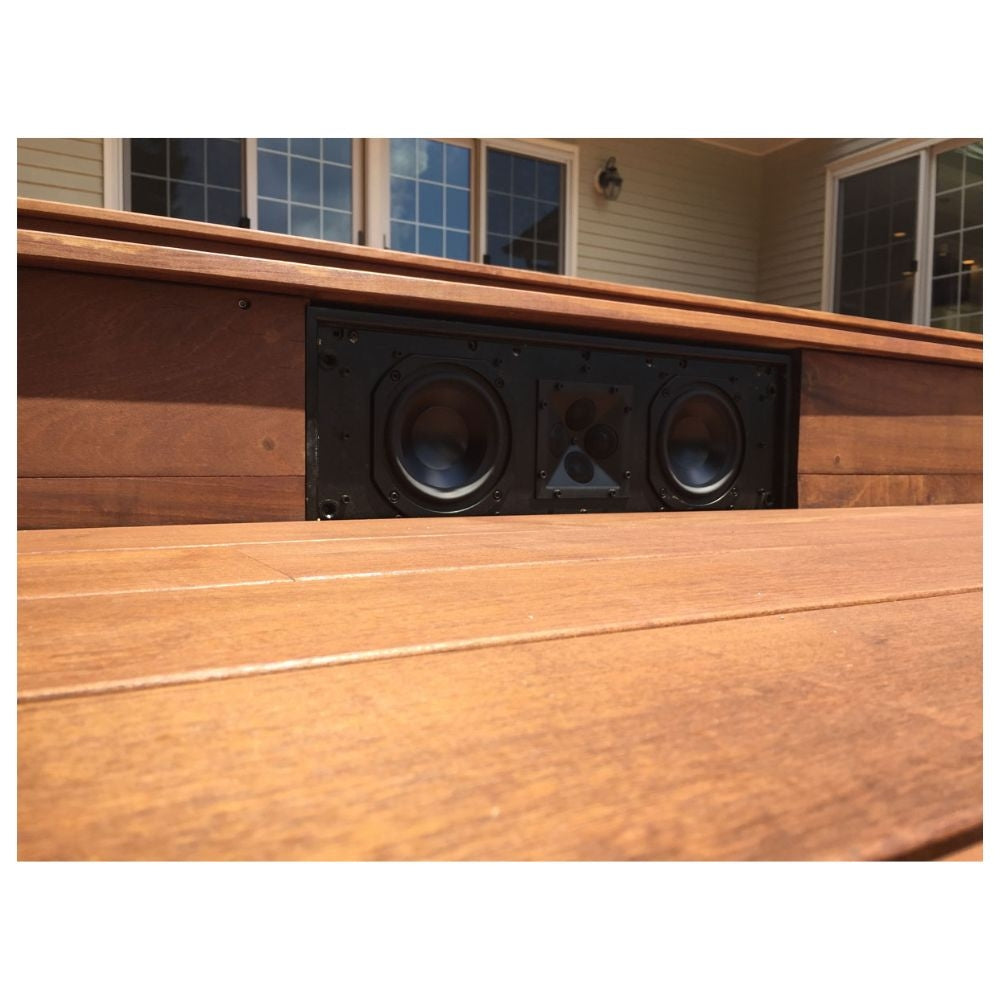

For marine and outdoor applications, order the JAM-QX530-M IP65 rated speaker.
For 70 Volt Line systems please order JAM-QX530-M-70.

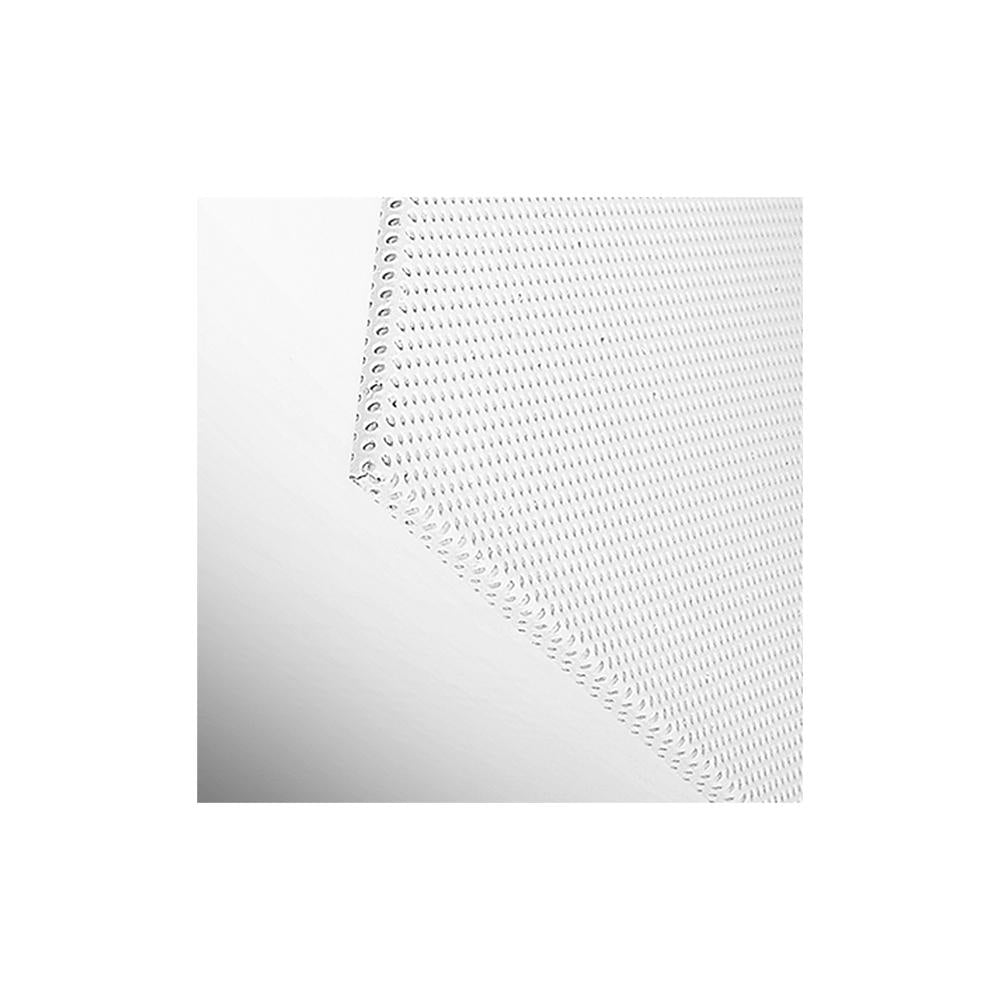

A stainless steel grille provides protection to the components whilst still having a subdued visual effect, designed to be as unobtrusive as possible
The QX Series in wall loudspeakers combine elegant, modern styling with James Loudspeaker's legendary audio performance. The series borderless aluminium grilles give these speakers a clean, streamlined appearance that seamlessly integrates into any designed space. The grilles attach via grille cups for simple and quick installation.
James delivers uncompromising solutions for all your audio needs. Great sound has never looked so good.
Specification
JAM-QX530 2 Way Dual 5.25" LCR In Wall Speaker | JAM-QX530-M-70 2 Way Dual 5.25" LCR In Wall Speaker: Marine Grade 70V Line | |
Tweeter | 4 x 19mm / 0.75" aluminium dome | 4 x 19mm / 0.75" aluminium dome |
Woofer | 2 x 133mm / 5.25" high excursion aluminium | 2 x 133mm / 5.25" high excursion aluminium |
Enclosure | Aircraft marine grade aluminium | Aircraft marine grade aluminium |
Finish | White grille | White grille |
Frequency Response | 68Hz to 24kHz +/-3dB | 68Hz to 24kHz +/-3dB |
Nominal Impedance | 8Ω | 70V |
Sensitivity | 89dB 2.83V/1m | 89dB 2.83V/1m |
Recommended Power Range | 50W to 200W | 50W to 200W |
Protection Rating | - | IP65 |
Required Mounting Depth | 98.42mm / 3.875" | 98.42mm / 3.875" |
Dimensions | Height: 541.65mm / 21.33" Width: 196.85mm / 7.75" Depth: 104.77 / 4.13" |
Height: 541.65mm / 21.33" Width: 196.85mm / 7.75" Depth: 104.77 / 4.13" |
Grille Dimensions | Height: 541.65mm / 21.33" Width: 196.85mm / 7.75" |
Height: 541.65mm / 21.33" Width: 196.85mm / 7.75" |
Cut Out | 180.47mm / 7.105" x 525.27mm / 20.68" | 180.47mm / 7.105" x 525.27mm / 20.68" |
