James Small Aperture Offset to Left 3 Way In-Ceiling Full Range Speaker With White or Custom Grille Colour: EACH

The SA63-7-L is part of the Small Aperture® series of in ceiling speaker from James Loudspeaker that provide high volume levels, deep bass and wide coverage from a small 3" seamless and flush round or square opening The James Loudspeaker JAM-SA63-7-L with a port 2.5" / 63.5mm offset from centre, is virtually hidden and yet provides the complete musical experience. Ideal for installations such as stud wall (plaster board), solid surfaces or retrofits and also comes with custom powder coat colour options for the grilles.

The SA63-7-L is part of the Small Aperture® series of in ceiling speaker systems that provide high volume levels, deep bass and wide coverage from a small 3" seamless and flush round or square opening The James Loudspeaker JAM-SA63-7-L with a port 2.5" / 63.5mm offset from centre, is virtually hidden and yet provides the complete musical experience. Ideal for installations such as stud wall (plaster board), solid surfaces or retrofits and also comes with custom powder coat colour options for the grilles.

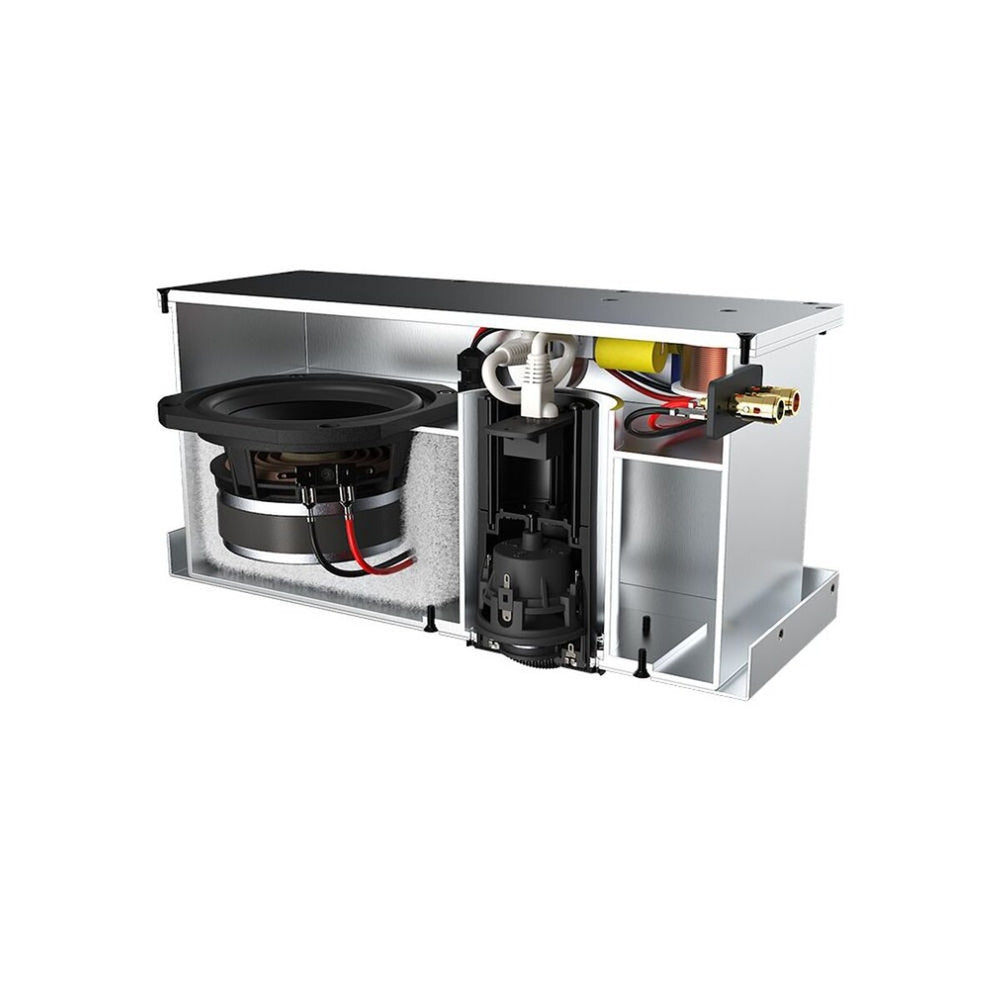

Each system is a true full range 3 way design with a 0.75" / (19mm aluminium dome tweeter, 2" (50mm) aluminium midrange driver and a 6.5" (165mm) aluminium mini PowerPipe subwoofer, all concentrically mounted. Designed for whole house audio installations, the SA63-7-L is especially suited for high end homes where critical listening is paramount and aesthetics are equally as vital.

The point source mid/high module provides an excellent off axis response, and the hidden mini PowerPipe woofer generates bass down to 38Hz for a truly full range music experience, yet the user only sees a 3" or 4" round or square seamless flush opening. Now available with 3" Microperf grille. The grille configuration also accepts industry standard mounting and fits high end lighting trim kits to allow the speaker to match lighting fixtures in the same installation. The SA63-7-L includes an left offset port, being 63.5mm / 2.5" offset from centre, which allows the speaker port to be positioned close to the ceiling joists where applicable. This port is necessary to place the speaker grille in line with light fixtures located near the joists.

The SA63-7-L options available are:

Stud wall / ceiling plasterboard offering a flush finish.
JAM-SA63-7-L-R-3-SR (Round)
JAM-SA63-7-L-S-3-SR (Square)
Are designed to be installed directly into the stud wall/plaster board (sheetrock) of a ceiling. The specially designed mud ring allows you to apply sheetrock mudding material and evenly distribute. The SA63-7-L in ceiling speaker will integrate well with any industry standard lighting trim kits. Available with square and round 3" grilles.

Solid surface offering a flush finish.
JAM-SA63-7-L-R-3-SS (Round)
JAM-SA63-7-L-S-3-SS (Square)

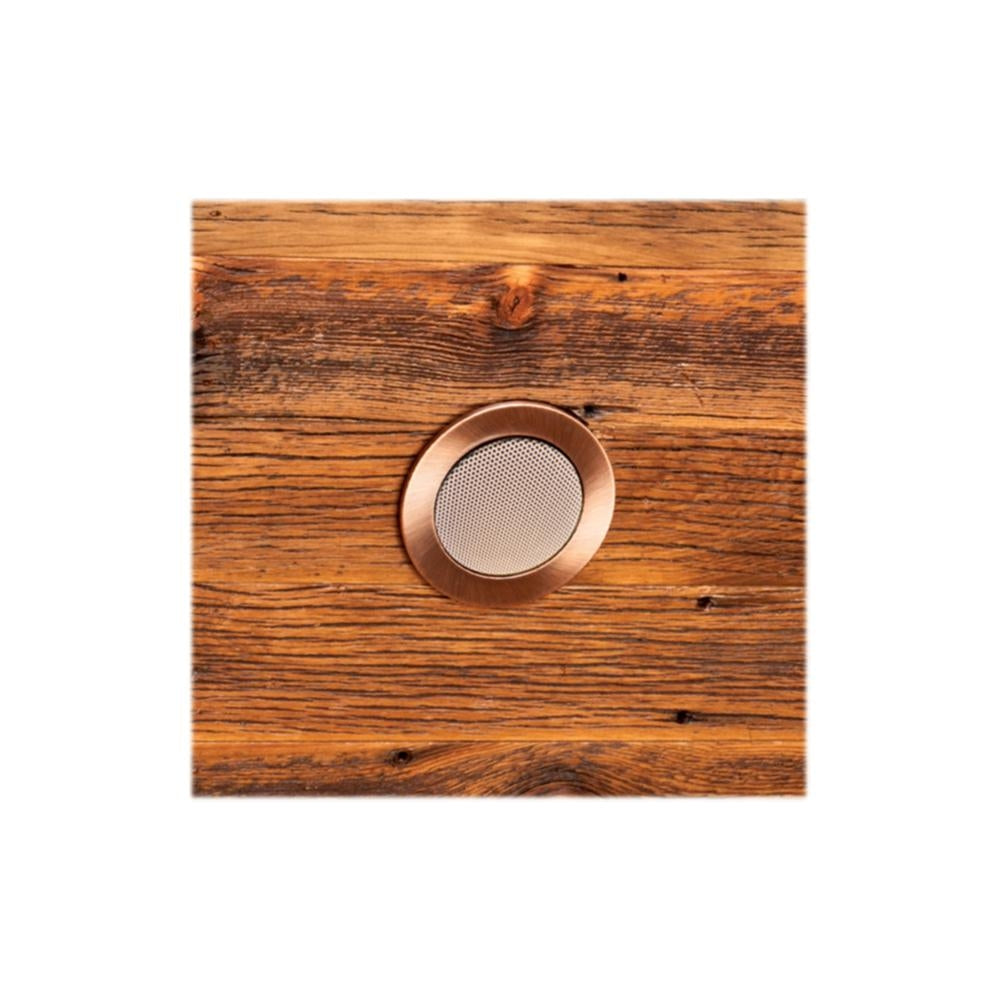

Are ideal solutions for any hard material surface, such as marble, wood, etc. These speakers will integrate well with any industry standard lighting trim kits. Available with square and round 3" grilles.

Retrofit with a bezel around the grille
JAM-SA63-7-L-R-3-RF (Round)
JAM-SA63-7-L-S-3-RF (Square)
Are designed to solve two installation needs. Firstly, when installing a SA series speaker in a dropped ceiling, these items provides a 9.53mm / 3/8" edge to cover the edge of the ceiling board, covering any rough cut issues. Secondly, these items can be used to cover any errors made in a solid surface cut out where a wood ceiling panel was not cut exactly or there are tear outs and the visual would not be appealing. Available with square and round 3" grilles.

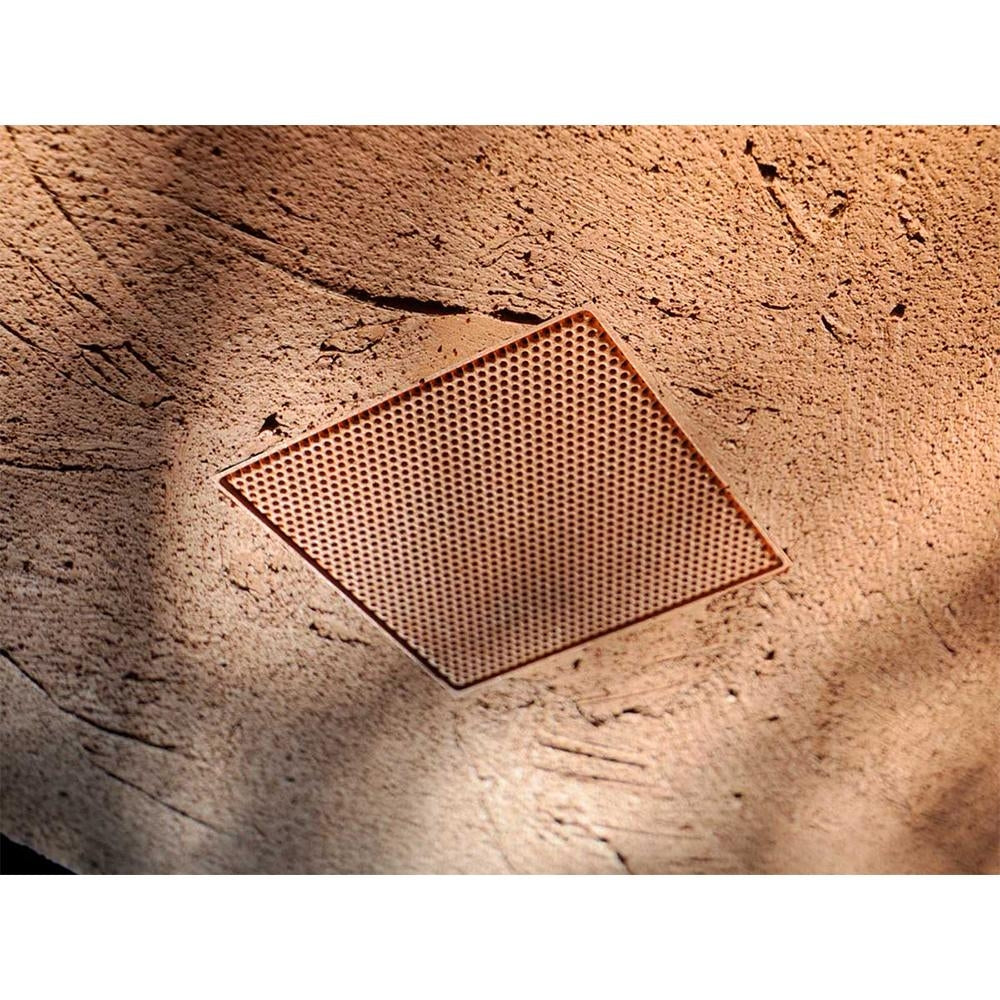

Custom Colour Grille Options

These Small Aperture® in ceiling speakers offer custom power coated coloured grilles. Custom grille colours bring that element of personalisation and uniqueness to your audio system, by matching and co-ordinating with other elements in the room or space.
NB For associated spacer rings please see the related items section

Specification

Features

• A shallow depth audio solution that installs into walls and ceilings
• The SA design also accommodates a wide range of ceiling or wall material thickness, from 1/2" sheetrock and greater
• By using spacing rings, the trim kit can be spaced further and further from the cabinet body
• The design of the tuning system keeps the sub section tuned to the same frequency for consistent bass response
• Engineered to produce high levels of clarity and wide off axis performance
• The mid/high frequency module is constructed from robust and durable die cast aluminium, meaning the module is rugged and dimensional precise
• SA speakers to perfectly match lights in the room
• Built with aircraft grade aluminium and employs a modular design
• Incorporates protection circuitry to help ensure the speaker's long term performance and reliability
• All of James transducers are unique in their design, allowing all performance parameters to be optimised to the specific system and application
• Optimising performance for unique applications
• Utilise the speaker for whole house audio and home cinemas without compromising system performance

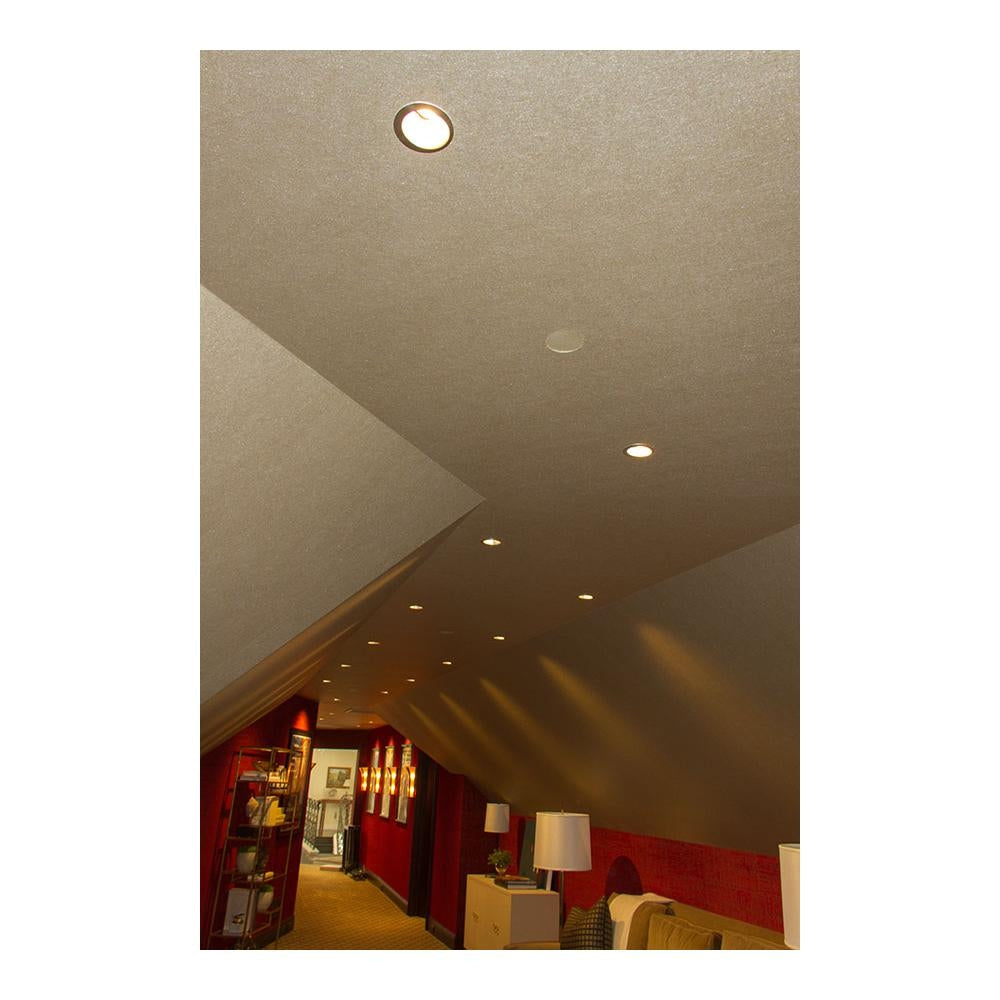

• Ability to blend the speakers into a variety of room environments mimicking the look of lighting fixtures
• More affordable solution without sacrificing performance or custom flexibility
• Custom colour grille options available
