Description
Description:

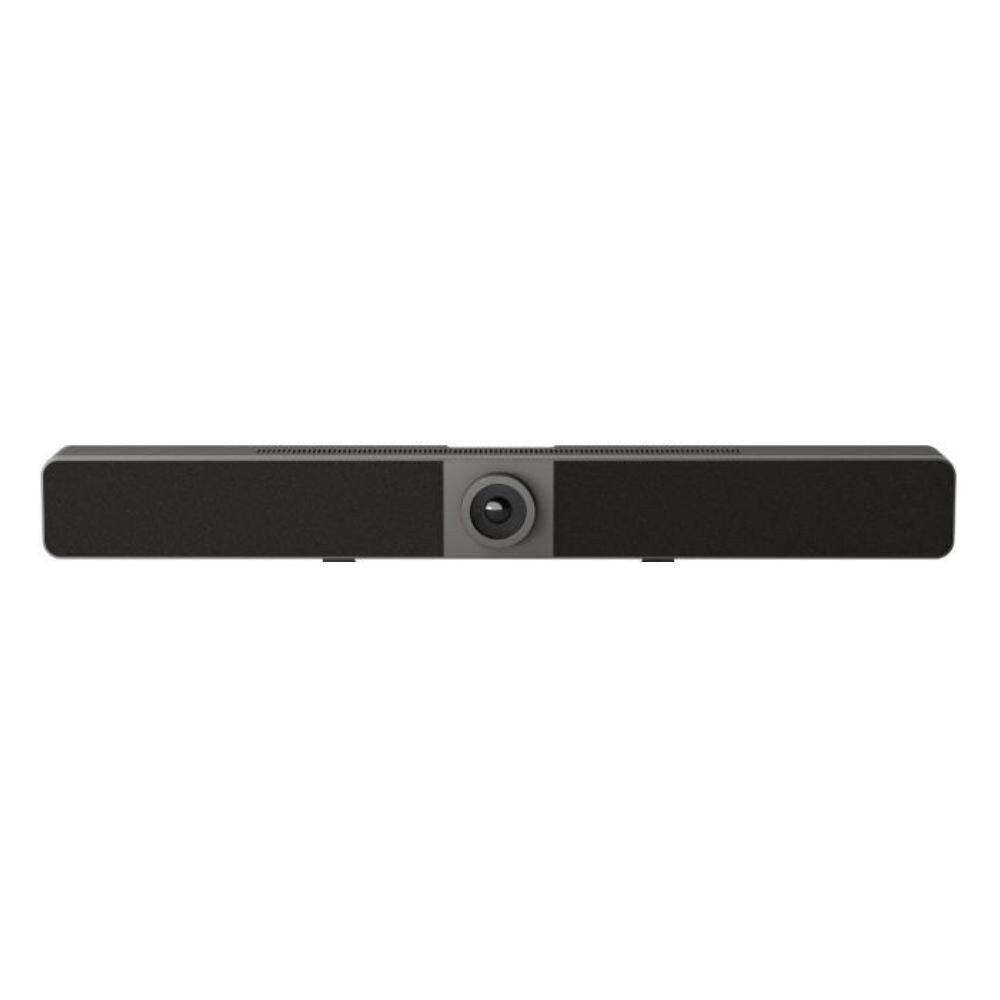

RTI's UC-IVB-50 4K intelligent video bar features 4K video, a linear beam forming microphone array, a 120° field of view AI tracking camera and amplified speakers with bass radiators.
This video bar collaborate clearly in 4K UHD with RTI's UC-IVB-50 4K intelligent video bar and capture every voice with linear beam forming microphone array.
Hear everything through two full range 8W speakers with bass radiators and focus on what is important with the Intelligent 4K camera, featuring 120° field of view (FoV) and AI tracking.
Connectivity App ready and works with Zoom, Microsoft Teams, WebEx and more.
This video bar is full featured API for infinite integration options and has wall and table top mount included. TV mount available separately.
Features:
- Collaborate clearly in 4K UHD with RTI's UC-IVB-50 4K intelligent video bar
- Capture every voice with linear beam forming microphone array
- Hear everything through two full range 8W speakers with bass radiators
- Focus on what is important with the Intelligent 4K camera, featuring 120° field of view (FoV) and AI tracking
- Connectivity App ready and works with Zoom, Microsoft Teams, WebEx and more
- Wired BYOM Connectivity with 4K UHD HDMI™ input and USB 3.0 or USB-C
- Wireless BYOD Connectivity: Media Xchange™, AirPlay® and Miracast®.
- Media Xchange™: Wireless transmitter for click-and-go sharing
- Native RTI integration enables full room control
- Use standalone with integrated web interface and remote control
- Full featured API for infinite integration options
- Wall and table top mount included. TV mount available separately.
Specifications:
| Video | |

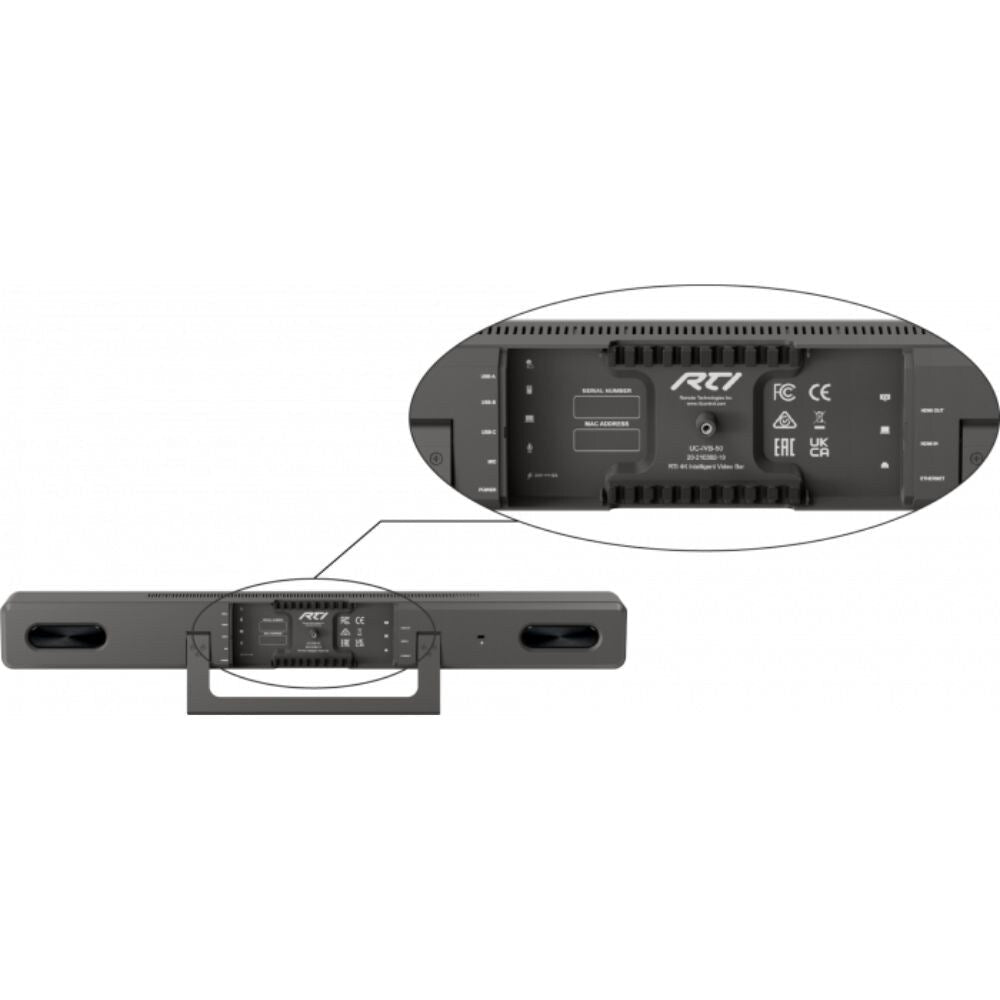

| Interface | One, HDMI in, One, HDMI out, One, USB-C, One, USB-B, One, USB-A, One, Mic, One, GbE, One, DC |
| Supported Video Resolutions | Up to 4K @ 30Hz |
| Output Video Encoding | MJPEG, YUY2, NV12, H.264, H.265, UVC 1.1 |
| Camera and Sensor | |

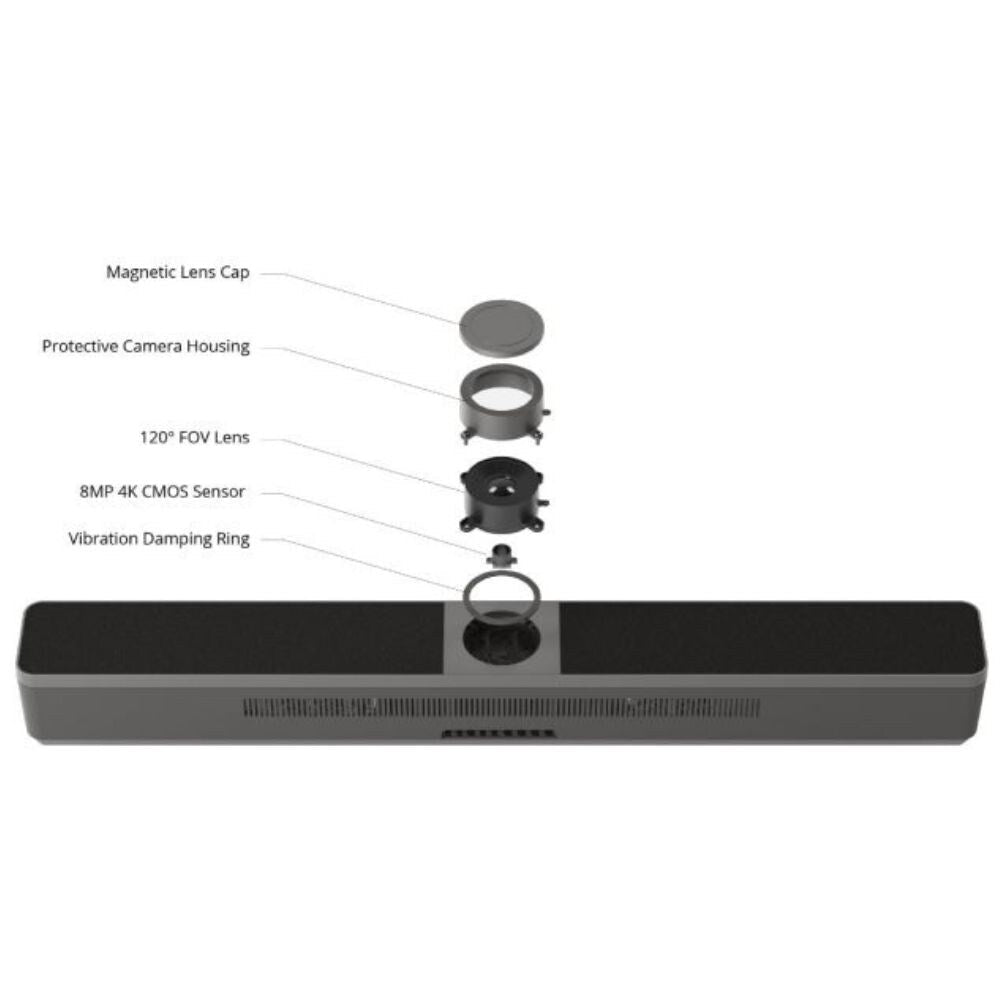

| Sensor | 8MP CMOS |
| Viewing Angle | 120° FOV (Field of View) |
| ePTZ | 5x digital zoom supported |
| HDR | Supported |
| Tracking Mode | Auto Framing, Speaker Tracking, Presenter Tracking |
| Audio | |
| Microphone |
Four, MEMs linear (180°) microphone arrays Pick up range: 5m to 8m |
| DSP |
ANS (Automatic Noise Suppression) AEC (Automatic Echo Cancellation) AGC (Automatic Gain Control) |
| Speakers | Two, 8W with bass radiators |
| Communication and Control | |
| HDMI | HDMI 1.4, HDCP 2.2 |
| USB-C | USB 3.0 host with DP In and PD (60W max charging) |
| USB-A | USB 3.0 Device |
| USB-B | USB 3.0 Host |
| Micro USB-B | Custom 10 pin for UC-IVB-EXM |
| USB Protocol | UAC, UVC, USB HID |
| Ethernet | IEEE 802.3a / 1000BaseT (1GbE), RJ45 |
| Wi-Fi | IEEE 802.11 a/b/g/n/ac |
| BYOD | Media Xchange™, Airplay®, Miracast® |
| Compatible OS | Windows 10 or above, Mac OS 10.15 or above |
| Control Method |
RTI Integration, Web UI, Bluetooth Remote Controller, or TCP/IP API |
| Mounting |

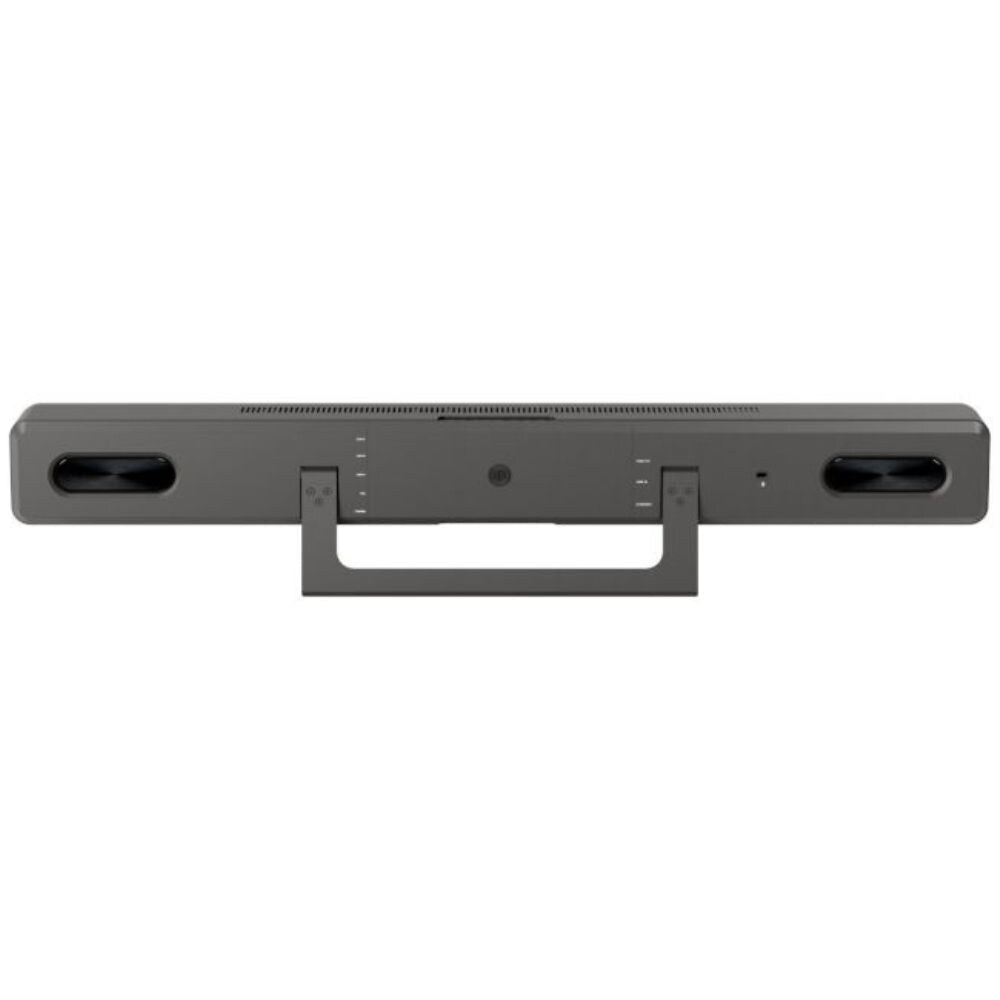

Wall mount with included bracket or free standing TV mount available separately (UC-IVB-TM) |
| Remote Control | Requires 2x AAA batteries (not included) |
| Operating Temperature | 0°C / 32°F to 40°C / 104°F |
| Operating Humidity | 5% to 95% non condensing |
| Dimensions |
Height: 78mm / 3.07" Width: 697mm / 27.44" Depth: 80mm / 3.15" |
| Weight | 2.42kg / 5.34lb |
| Warranty | 3 years parts and labour RTB |
User guides
Download User Guides:
Data Sheet UC-IVB-50
RTI Brochure
Simplify Your Life Guide
Commercial Performance Guide
