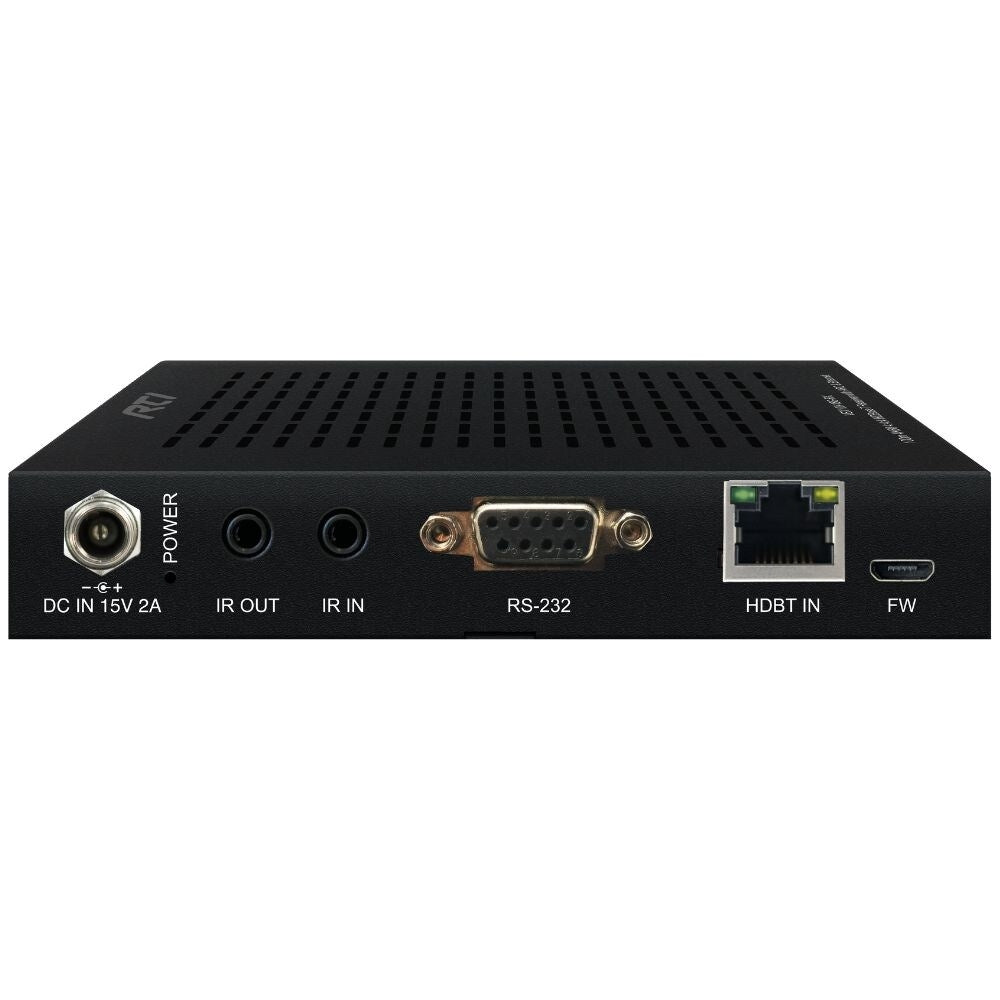

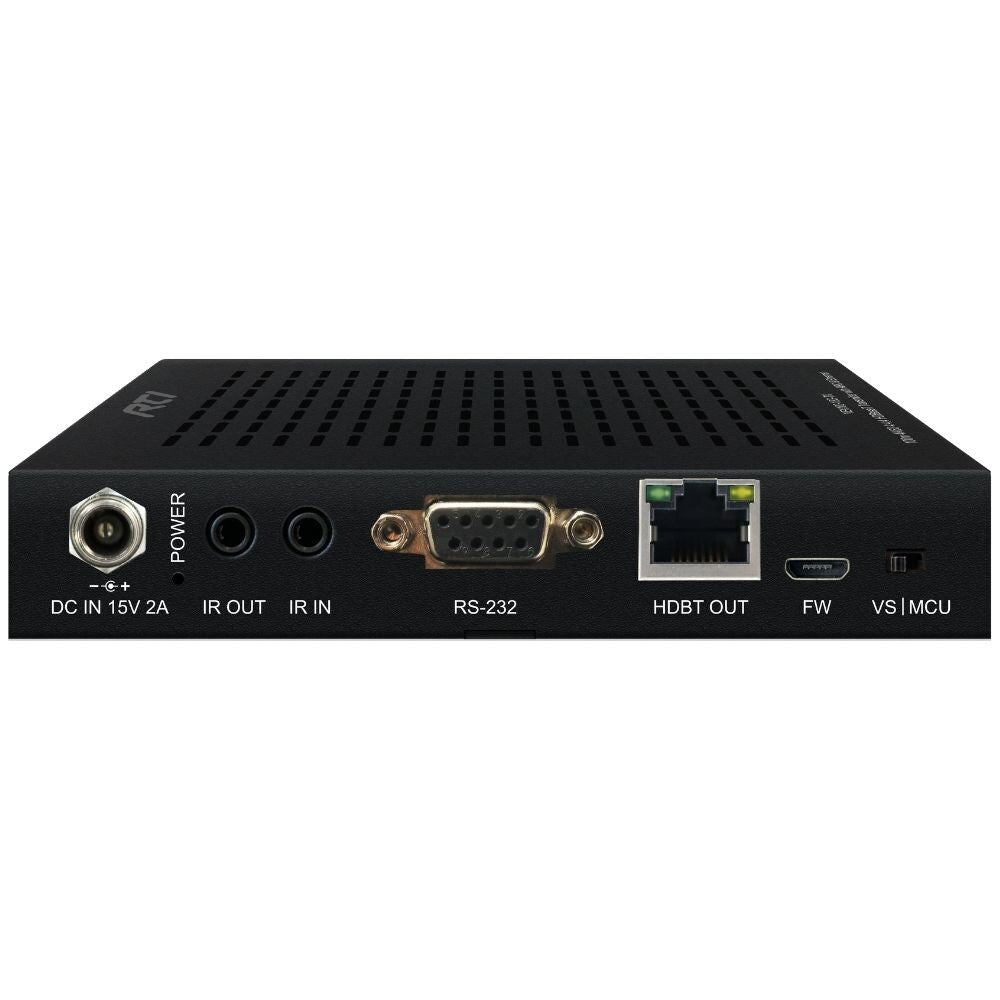

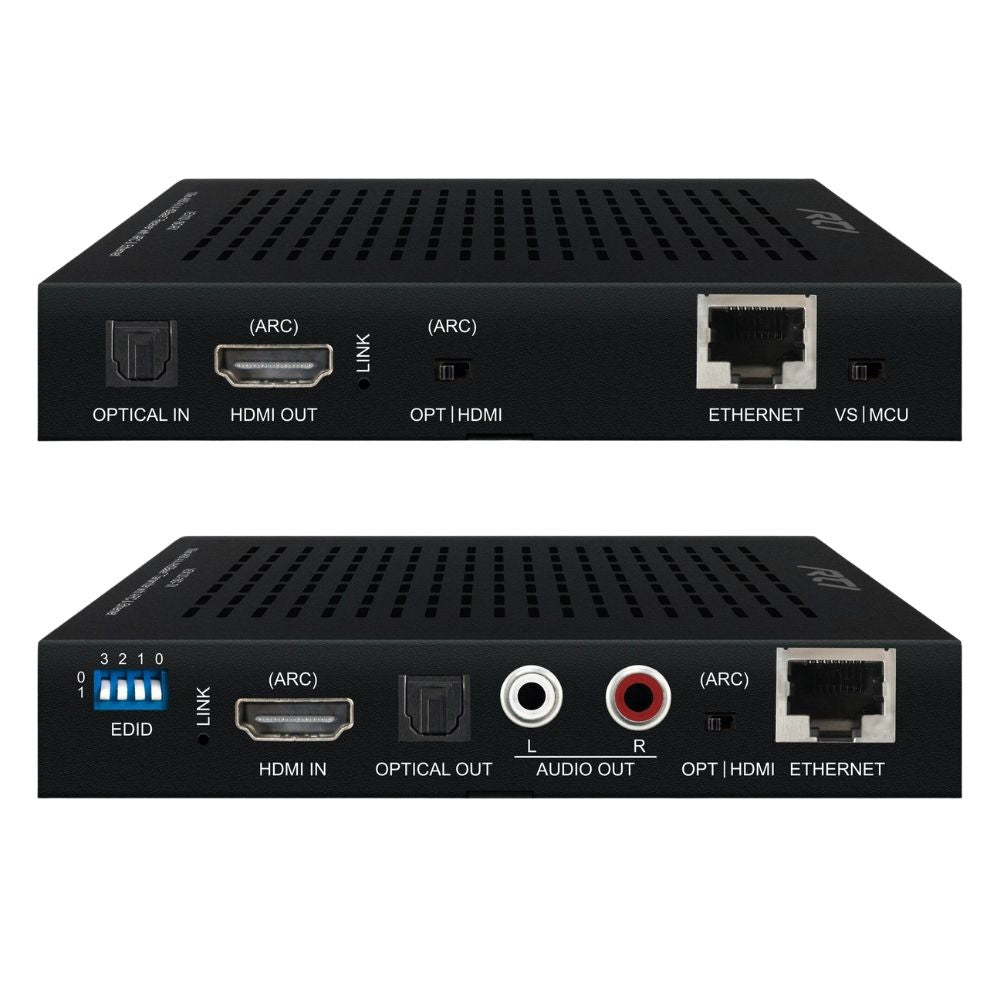

RTI VEX100-18G-KIT HDMI 4K 60Hz 4:4:4 HDBaseT™ Extender Set With ARC and Ethernet Over100m: SET

Description:

RTI's VEX100-18G-KIT HDMI 4K 60Hz 4:4:4 HDBaseT™ extender set with ARC and Ethernet is a 4K HDBaseT™ solution delivering ultra high resolution HDMI® video with HDCP 2.2 support, bidirectional IR, RS232 and PoH (Power over HDBaseT) up to lengths of 100m over a single CAT5e or higher cable.

The VEX100-18G-KIT gives integrators the ability to extend the control network without the need for additional cables. Extends 4K UHD video to the display, with audio sent from the display to the audio distribution system, AD-4x/8x (RTI-AD Series) platform using ARC.

This extender set supports bidirectional IR from all input and output locations and bidirectional RS-232 pass through and also supports all known HDMI audio formats including Dolby TrueHD®, Dolby Atmos®, Dolby Digital Plus® and DTS-HD Master Audio® transmission. It also offers bidirectional PoH (Power over HDBaseT™) to power extender from either the transmitter or receiver end.

Extend your control network with an integrated Ethernet port (LAN serving).

Features:

• Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
• Supports 4K UHD video up to 70m (full 3840 x 2160 @ 50/60Hz 4:4:4 resolution) and 1080P up to a distance of 100m over single CAT cable
• Supports ARC (Audio Return Channel) from connected display via HDMI® or optical digital inputs
• Supports bidirectional IR from all input and output locations and bidirectional RS-232 pass through
• Supports all known HDMI audio formats including Dolby TrueHD®, Dolby Atmos®, Dolby Digital Plus® and DTS-HD Master Audio® transmission
• Extend your control network with an integrated Ethernet port (LAN serving)
• Supports bidirectional PoH (Power over HDBaseT™) to power extender from either the transmitter or receiver end
• HDCP 2.2 support

Specifications:
