The James QX520X 5.25" LCR in wall speaker features a sleek modern appearance with a borderless white aluminium grille, which sits less than 5mm from the wall. James' quad tweeters, in a 22.5° offset array, delivers wide dispersion, high power handling and low distortion to deliver audiophile quality sound where it counts.
Whether you are looking for an integrated home cinema system, a simple stereo system, a distributed audio system or something entirely different James' has an in wall solution that will work for your requirements.

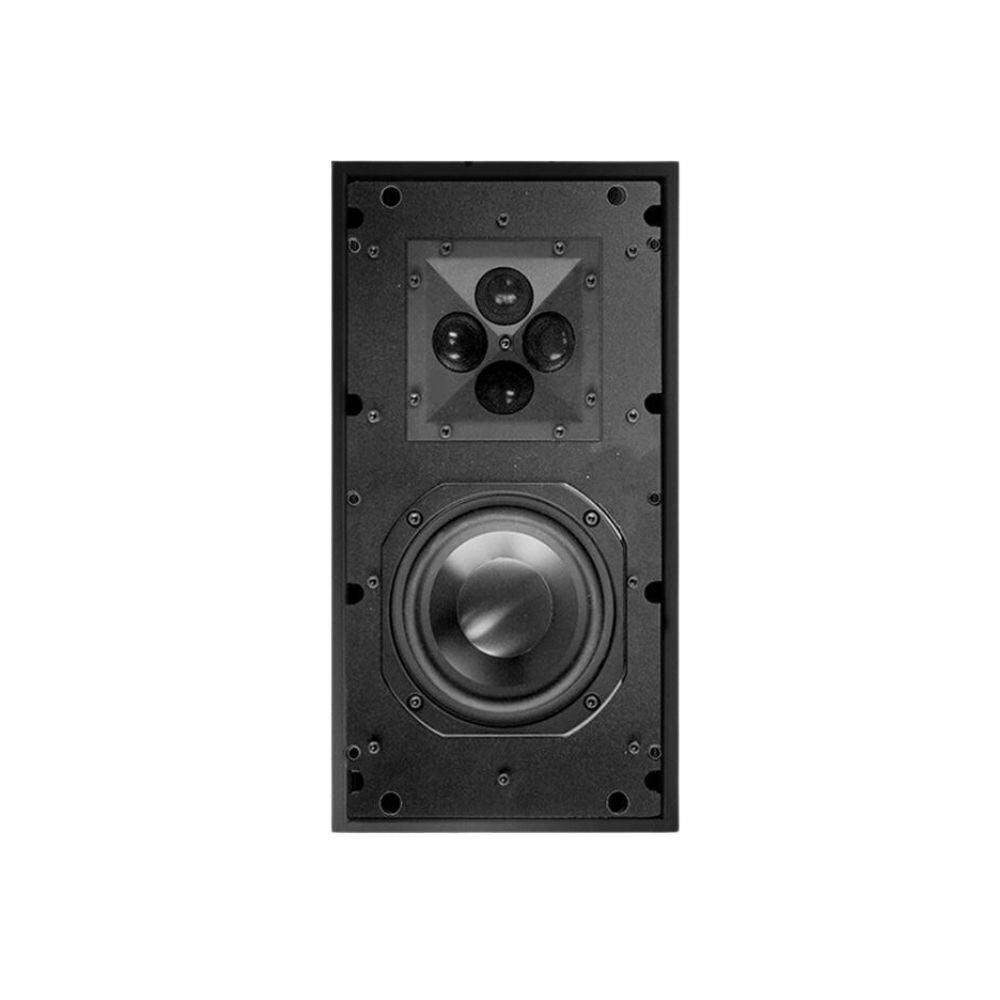

The James QX520X 5.25" LCR in wall speaker features a sleek modern appearance with a borderless white aluminium grille, which sits less than 5mm from the wall. James' quad tweeter array, with four 0.75" aluminium dome tweeters in a 22.5° offset array for wide dispersion provides high power handling and low distortion to deliver audiophile quality sound where it counts. Combined with a 5.25" high output aluminium cone woofer, the QX520X has an impressive 88dB sensitivity with bass down to below 70Hz. A multi element network blends the highs and lows into a smooth and wide response.
The sealed cabinet is constructed of aircraft aluminium construction for strength, sonic performance.

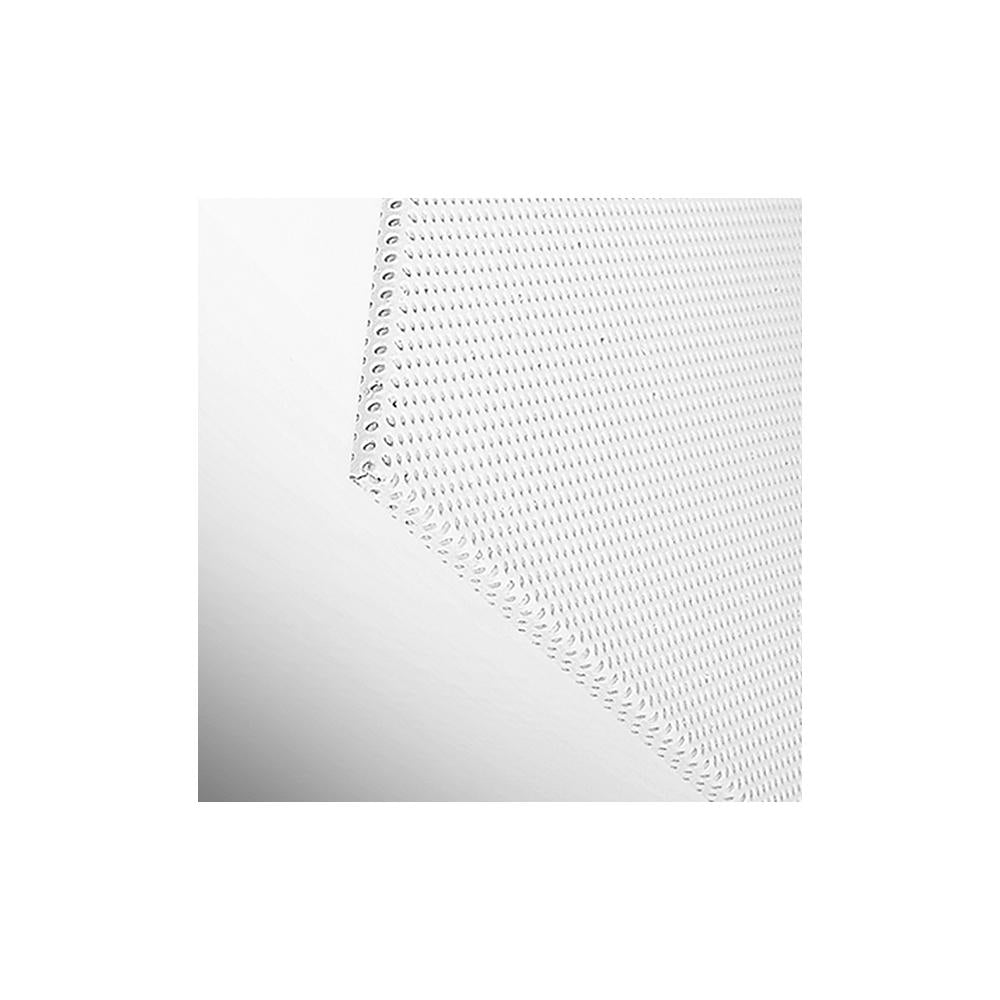

A stainless steel grille provides protection to the components whilst still has a subdued visual effect, designed to be as unobtrusive as possible
The QX Series in wall loudspeakers combine elegant and modern styling with James Loudspeaker's legendary audio performance. The series borderless aluminium grilles give these speakers a clean, streamlined appearance that seamlessly integrates into any designed space. The grilles attach via grille cups for simple and quick installation.
James delivers uncompromising solutions for all your audio needs. Great sound has never looked so good.
For the pre construction brackets and masonry back box please refer to QX520-ACC in the related items section.
Tweeter | 4 x 19mm / 0.75" aluminium dome |
Woofer | 1 x 133mm / 5.25" aluminium |
Enclosure | Aircraft marine grade aluminium |
Finish | White grille |
Frequency Response | 70Hz to 24kHz +/-3dB |
Nominal Impedance | 8Ω |
Sensitivity | 88dB 2.83V/1m |
Recommended Power Range | 50W to 100W |
Required Mounting Depth | 98.42mm / 3.88" |
Dimensions | Height: 371.86mm / 14.64" Width: 196.85mm / 7.75" Depth: 104.14mm / 4.1" |
Grille Dimensions | Height: 371.86mm / 14.64" Width: 196.85mm / 7.75" |
Cut Out | 180.98mm / 7.13" x 355.6mm / 14" |
