Description

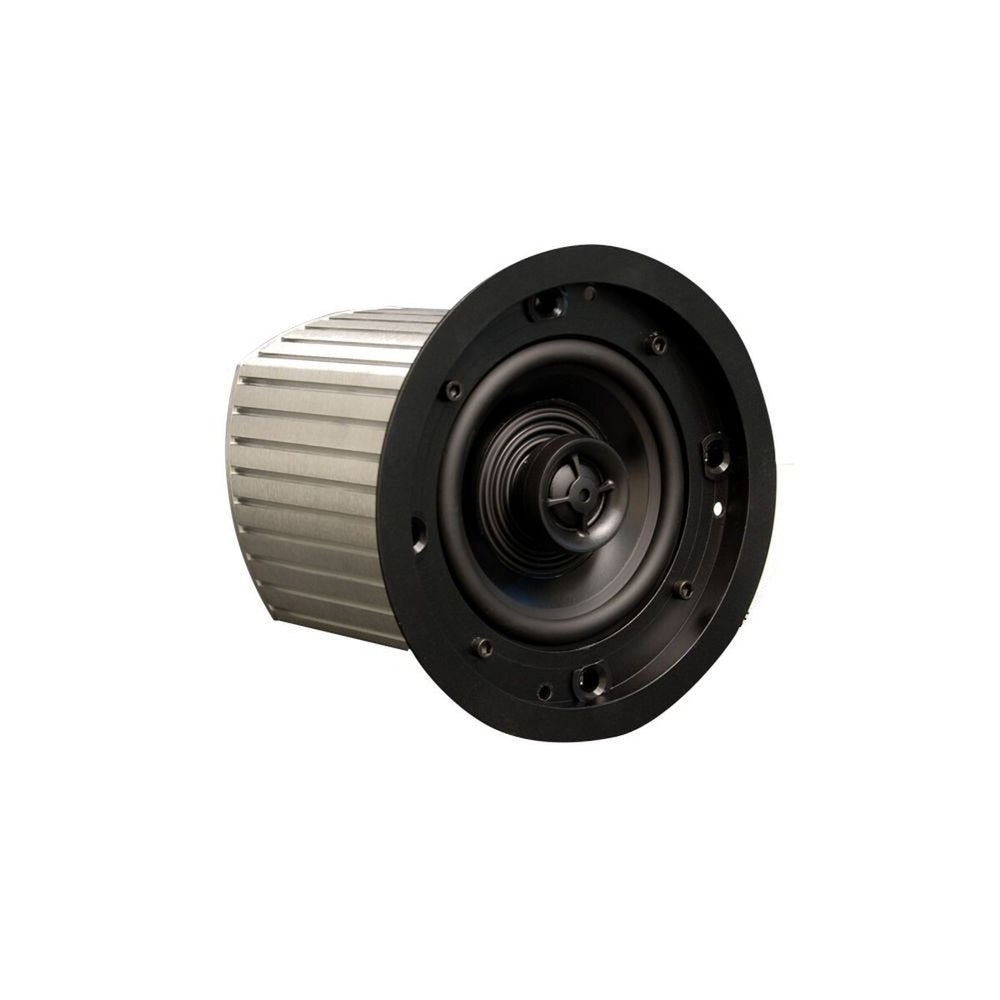

The JAM-SXC420X small format 2 way 4.5" in ceiling speaker with white grille feature a coaxially mounted 19mm / 0.75" aluminium dome tweeter design over a proprietary high excursion 101mm / 4" woofer. Round and square grilles are available for indoor and marine/outdoor applications.Whether you're looking for an integrated home cinema system, a simple stereo system, a distributed audio system, or something entirely different James have an in ceiling solution that will work for your requirements.
The JAM-SXC420X small format 2 way 4.5" in ceiling speaker with white grille feature a coaxially mounted 19mm / 0.75" aluminium dome tweeter design over a proprietary high excursion 101mm / 4" woofer. Intended for smaller spaces like kitchens, bathrooms and hallways, these speakers offer a clean, streamlined appearance that seamlessly integrates into these smaller spaces.
Round and square grilles are available for indoor and marine applications.

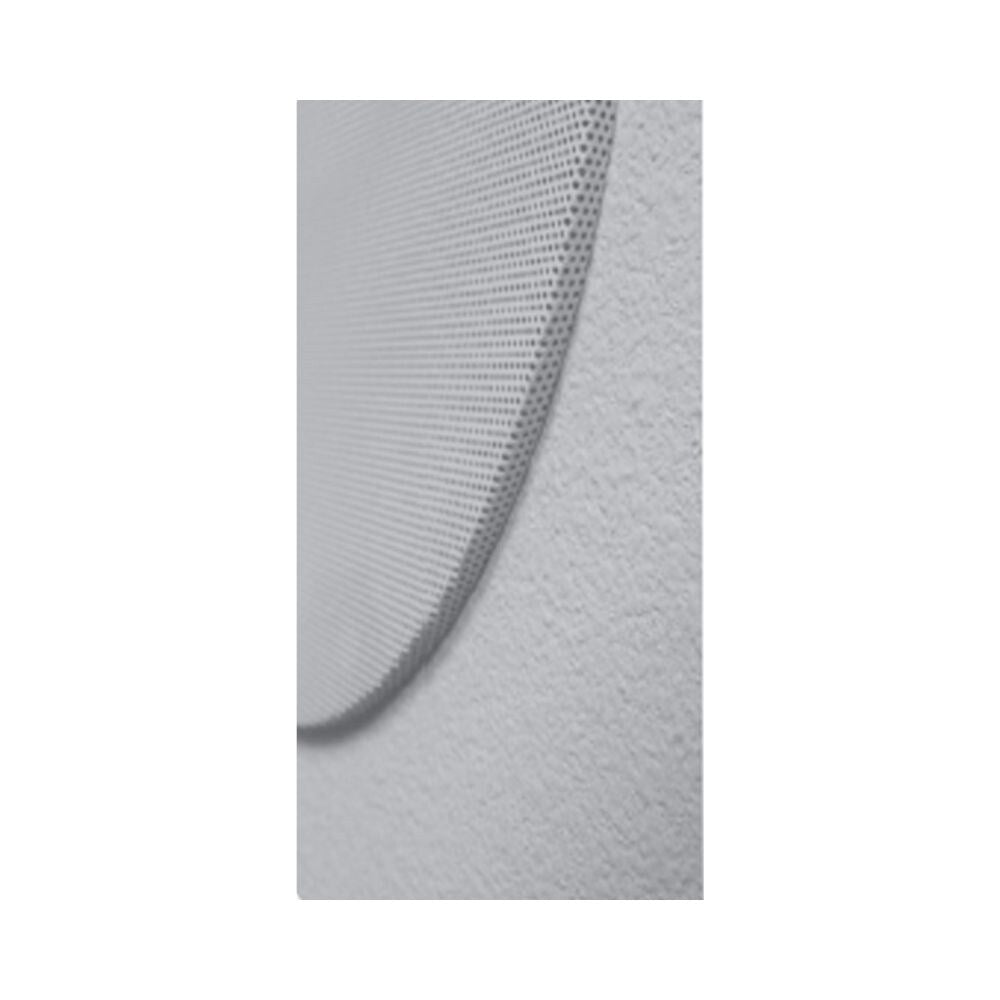

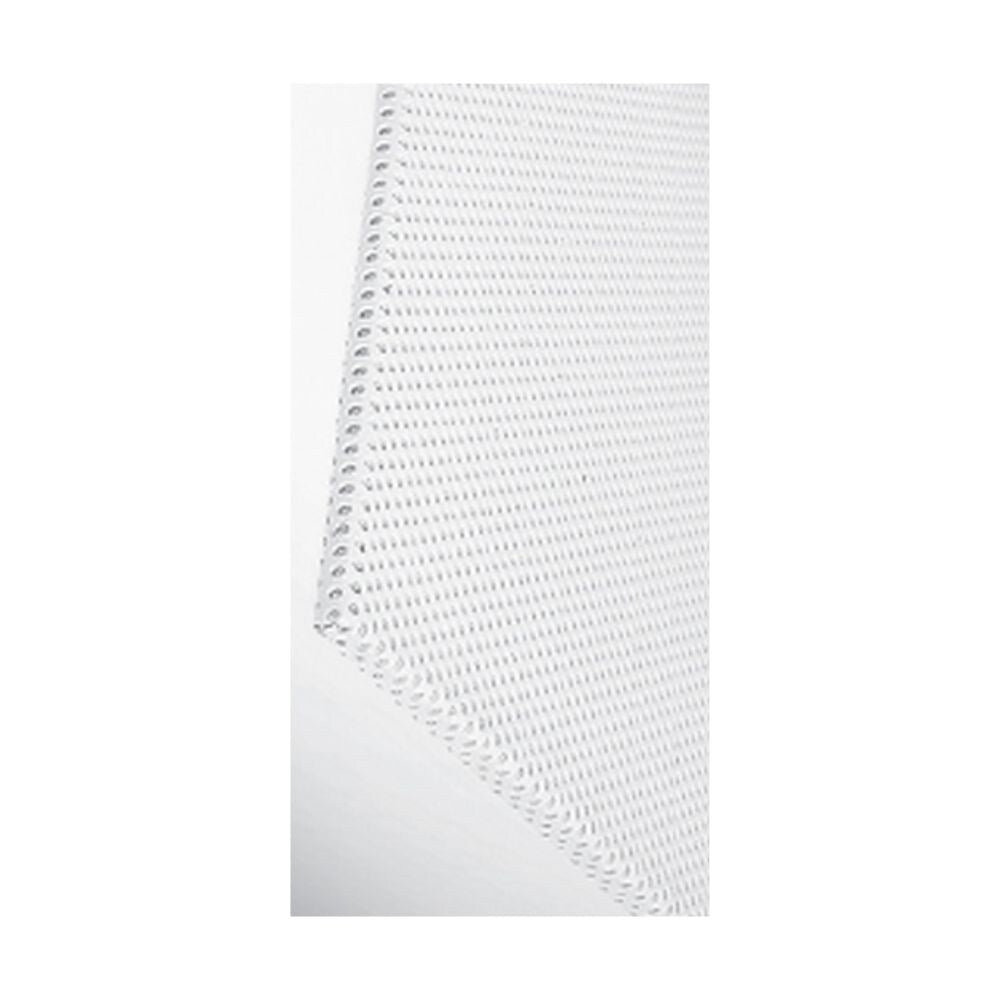

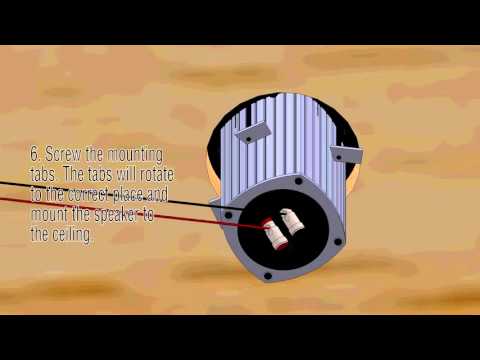

The borderless aluminium grille sits less than 5mm / 3/16" from the ceiling. The grilles attach via grille cups, for simple, quick installation. Installation could not be easier for either retro-fit or new construction projects.
All enclosures are constructed from aircraft grade aluminium, making these speakers a perfect choice for any vessel or outdoor environment. For IP65 rated outdoor or marine speakers please select JAM-SXC420-R-M or JAM-SXC420-S-M
These speakers combine elegant and a modern styling with James legendary audio performance. They are also enhanced when paired with a James subwoofer.
James strive to offer uncompromising solutions for all your audio needs, so great sound has never looked so good.
Specification
| JAM-SXC420-R & JAM-SXC420-S 2 Way 4.5" In-Ceiling Speaker | JAM-SXC420-R-M & JAM-SXC420-S-M 2 Way 4.5" In-Ceiling Speaker: Marine Grade | |
| Tweeter | 1 x 19mm / 0.75" aluminium | 1 x 19mm / 0.75" aluminium |
| Woofer | 4 x 101mm / 4" aluminium | 4 x 101mm / 4" aluminium |
| Enclosure | Aircraft marine grade Aluminium | Aircraft marine grade aluminium |
| Finish | White grille | White grille |
| Grille Shape |
Round - JAM-SXC420-R Square - JAM-SXC420-S |
Round - JAM-SXC420-R-M Square - JAM-SXC420-S-M |
| Frequency Response | 80Hz to 20kHz +/-3dB | 80Hz to 20kHz +/-3dB |
| Nominal Impedance | 4Ω | 4Ω |
| Sensitivity | 88dB 2.83V/1m | 88dB 2.83V/1m |
| Recommended Power Range | 25W to 100W | 25W to 100W |
| Protection Rating | - | IP65 |
| Cut Out Diameter | ∅ 147mm / 5.77" | ∅ 147mm / 5.77" |
| Dimensions |
Round: Width diameter: 165mm / 6.5" Depth: 159mm / 6.26" Depth with grille: 163.17mm / 6.42" Square Height: 165mm / 6.5" Width: 165mm / 6.5" Depth: 159mm / 6.26" Depth with grille: 163.17mm / 6.42" |
Round: Width diameter: 165mm / 6.5" Depth: 159mm / 6.26" Depth with grille: 163.17mm / 6.42" Square Height: 165mm / 6.5" Width: 165mm / 6.5" Depth: 159mm / 6.26" Depth with grille: 163.17mm / 6.42" |
Features

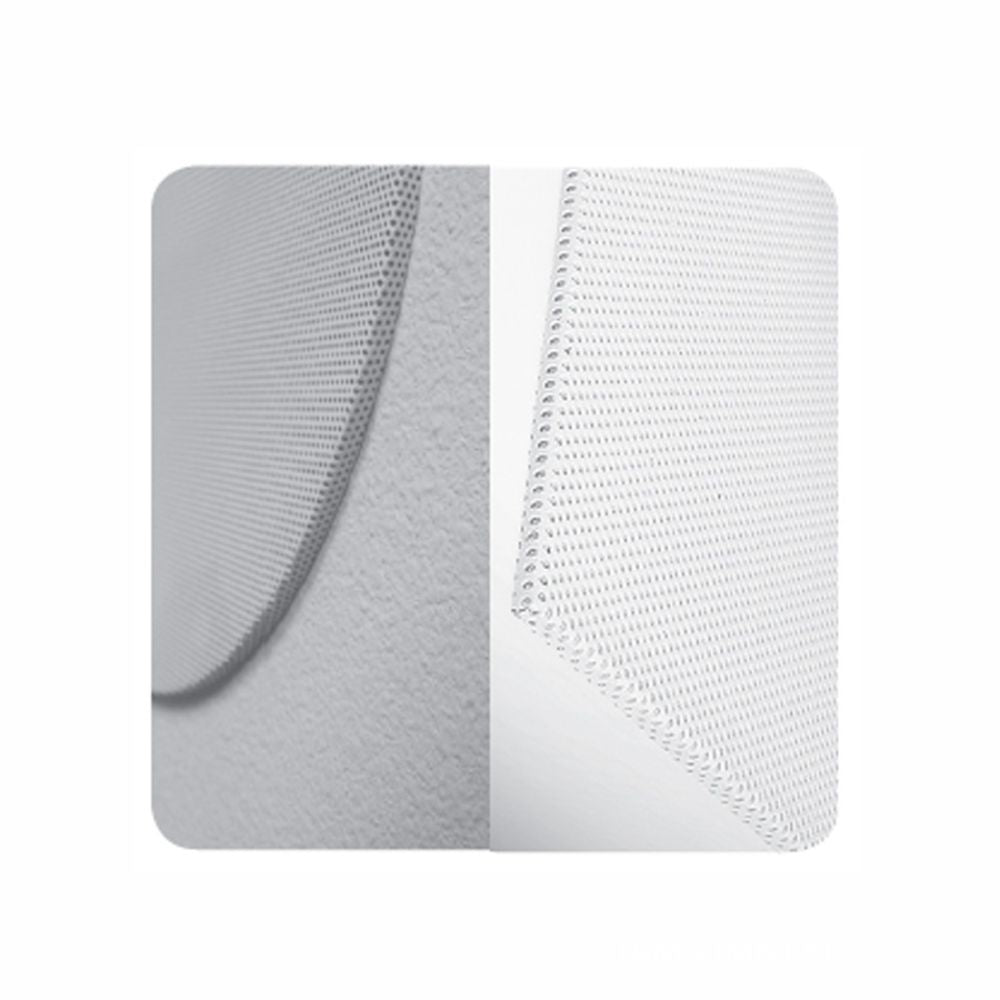

- Round or square borderless aluminium grilles available for both indoor and outdoor/marine use
- Small format 2 way 4.5" in ceiling speaker with white grille feature a coaxially mounted 0.75" aluminium dome tweeter
- The borderless aluminium grille sits less than 5mm / 3/16" from the ceiling
- The grilles attach via grille cups, for simple, quick installation
- All enclosures are constructed from aircraft grade aluminium making them robust and durable
- IP65 rated outdoor or marine versions available
