The JAM-QX630X 2 way dual 6.5" LCR in wall speaker from James Loudspeaker features a sleek modern appearance with a borderless aluminium grille that sits less than 5mm / 3/16" from the wall. James' quad tweeters in a 22.5° offset array offer wide dispersion, high power handling and low distortion to deliver audiophile quality sound where it counts.Whether you are looking for an integrated home cinema system, a simple stereo system, a distributed audio system, or something entirely different James' has an in wall solution that will work for your requirements.

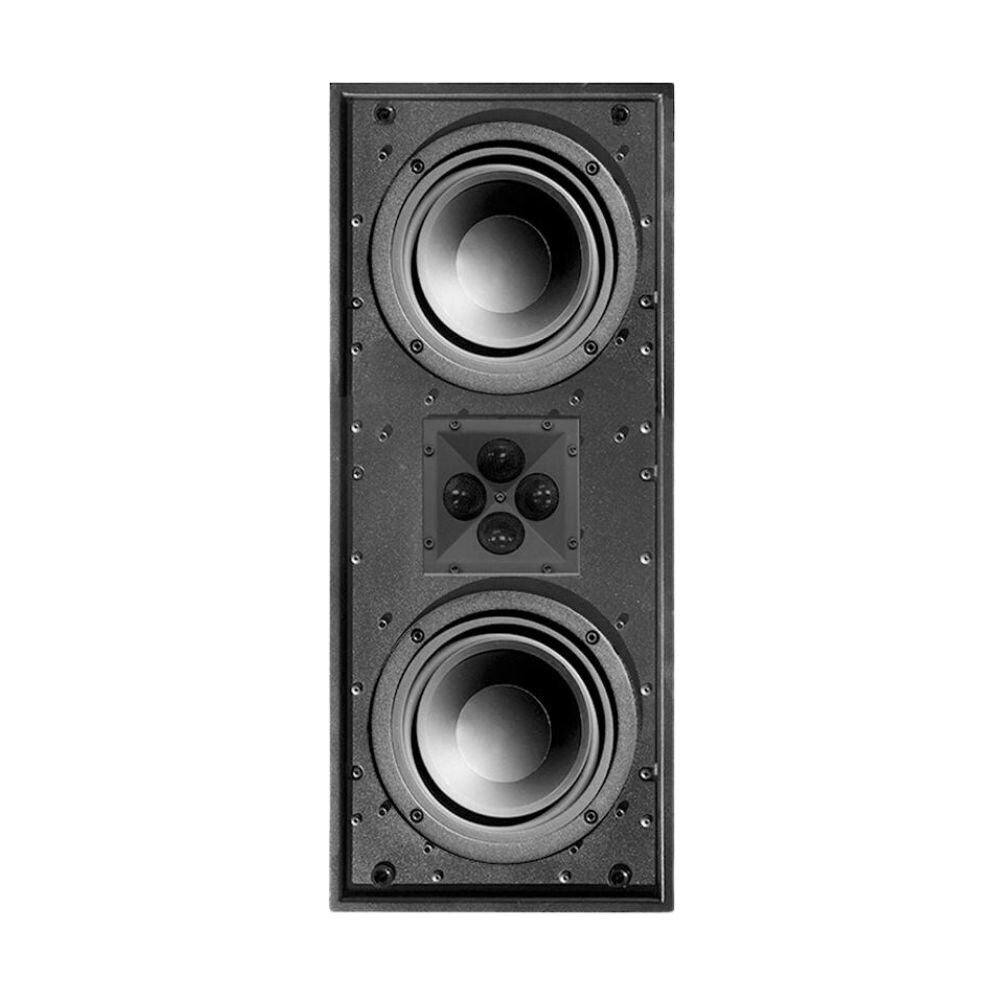

The JAM-QX630X 2 way dual 6.5" LCR in wall speaker from James Loudspeaker features a sleek modern appearance with a borderless aluminium grille that sits less than 5mm / 3/16" from the wall. James' quad tweeter array, with four 19mm / 0.75" aluminium dome tweeters in a 22.5° offset array offer wide dispersion, high power handling and low distortion to deliver audiophile quality sound where it counts. Combined with two 165mm / 6.5" high output aluminium cone woofers, this speaker has an impressive 94dB sensitivity with bass down to below 65Hz. A multi element network blends the highs and lows into a smooth and wide response.
The sealed cabinet is constructed of aircraft aluminium construction for strength, sonic performance and suitability for outdoor or marine applications. For marine vessel or outdoor applications, please order the JAM-QX630-M marine grade IP65 rated speaker.

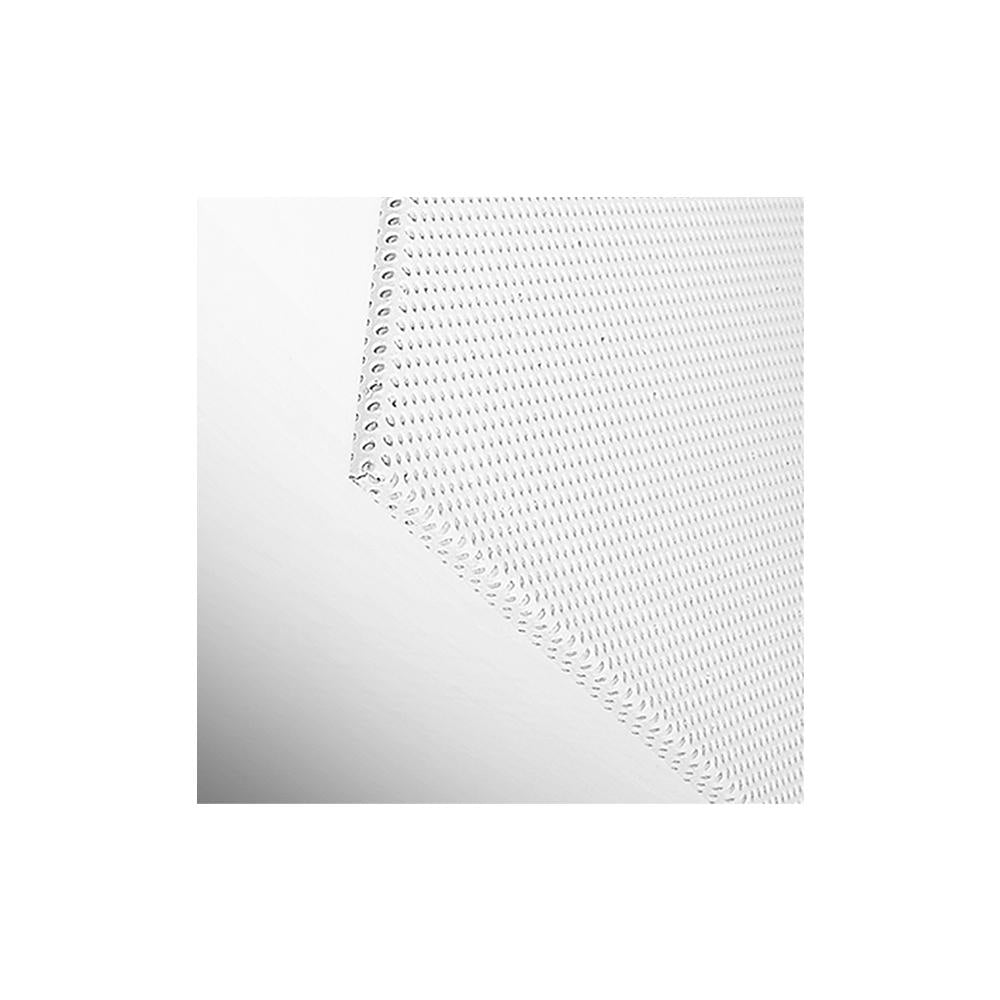

A stainless steel grille provides protection to the components, whilst having a subdued visual effect, designed to be as unobtrusive as possible. The grilles attach via grille cups, for simple, quick installation.
The QX Series in wall loudspeakers combine elegant, modern styling with James Loudspeaker's legendary audio performance. QX series borderless aluminium grilles have less than 5mm of trim, providing a clean and streamlined appearance that seamlessly integrates into any designed space. QX Series speakers tweeter arrays deliver wide dispersion and reference quality sound, designed to provide superb off axis stereo performance, even in rooms with speakers mounted in less than perfect locations.
QX Series enclosures are constructed of aircraft marine grade aluminium, making these speakers a perfect choice for any marine vessel or outdoor environment.
James Loudspeaker is dedicated to finding the appropriate solution for any application and the wide variety of in wall style speakers and the custom options available ensure that no matter what your needs are, there is an in wall speaker that meets your specific project requirements.
Great sound has never looked so good.
For the pre construction brackets and masonry back box please refer to JAM-QX630-ACC.
JAM-QX630 2 Way Dual 6.5" LCR In Wall Speaker: Indoor | JAM-QX630-M 2 Way 6" LCR In Wall Speaker: : Marine Grade | |
Tweeter | 4 x 19mm / 0.75" aluminium dome | 4 x 19mm / 0.75" aluminium dome |
Woofer | 2 x 165mm / 6.5" aluminium cone with Santoprene™ rubber surrounds | 2 x 165mm / 6.5" aluminium cone with Santoprene™ rubber surrounds |
Enclosure | Aircraft marine grade aluminium | Aircraft marine grade aluminium |
Finish | White grille | White grille |
Frequency Response | 65Hz to 24kHz +/-3dB | 65Hz to 24kHz +/-3dB |
Nominal Impedance | 4Ω | 4Ω |
Sensitivity | 94dB 2.83V/1m | 94dB 2.83V/1m |
Crossover | 2 Way | 2 Way |
Recommended Power Range | 50W to 200W | 50W to 200W |
Protection Rating | - | IP65 |
Required Mounting Depth | 98.42mm / 3.88" | 98.42mm / 3.88" |
Dimensions | Height: 563.88mm / 22.2" Width: 244.09mm / 9.61" Depth: 104.77 / 4.13" |
Height: 563.88mm / 22.2" Width: 244.09mm / 9.61" Depth: 104.77 / 4.13" |
Grille Dimensions | Height: 563.88mm / 22.2" Width: 244.09mm / 9.61" |
Height: 563.88mm / 22.2" Width: 244.09mm / 9.61" |
Cut Out | 225.55mm / 8.88" x 546.1 / 21.5" | 225.55mm / 8.88" x 546.1 / 21.5" |
