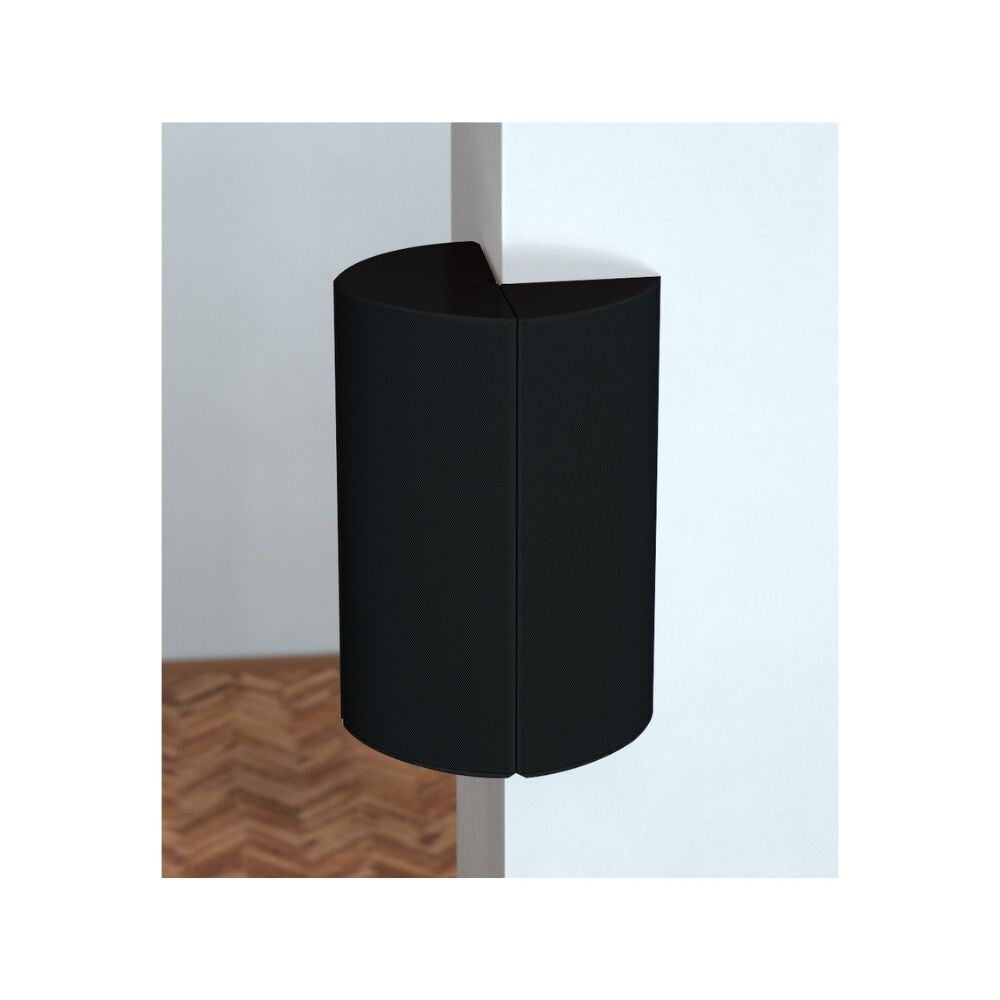

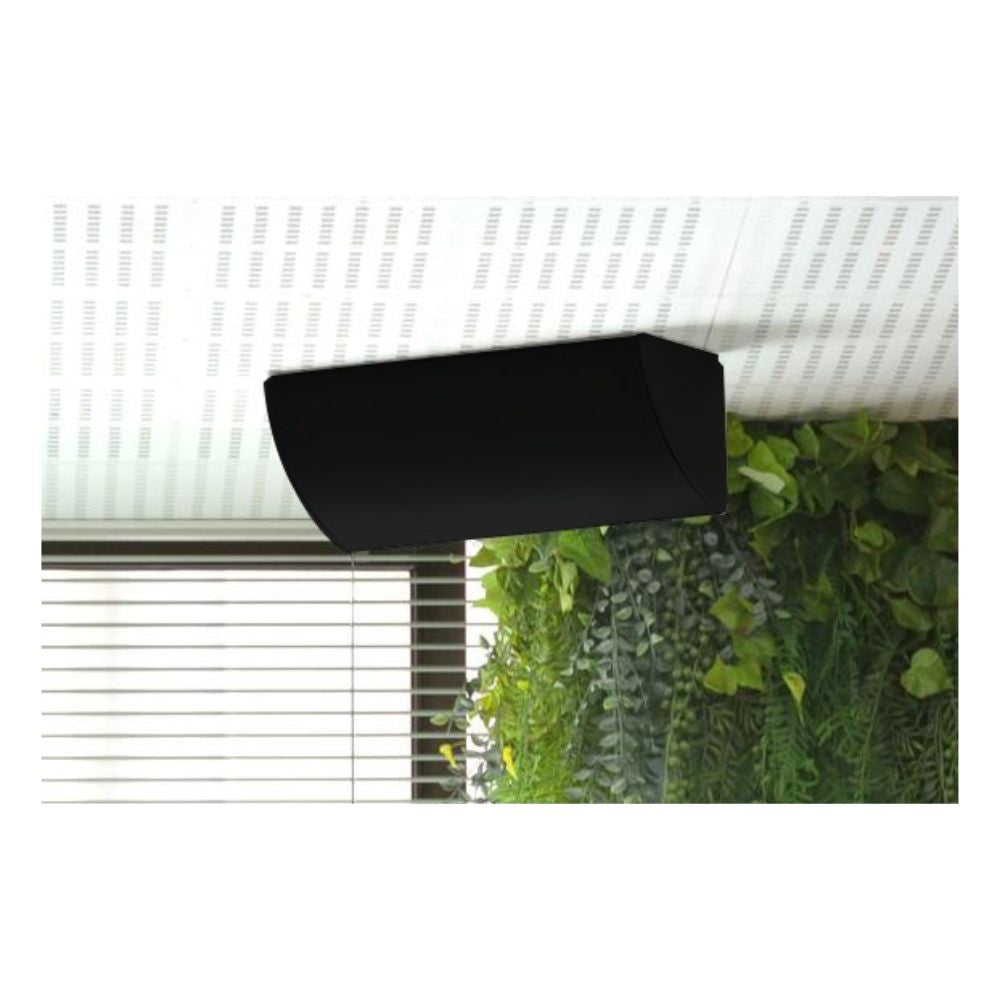

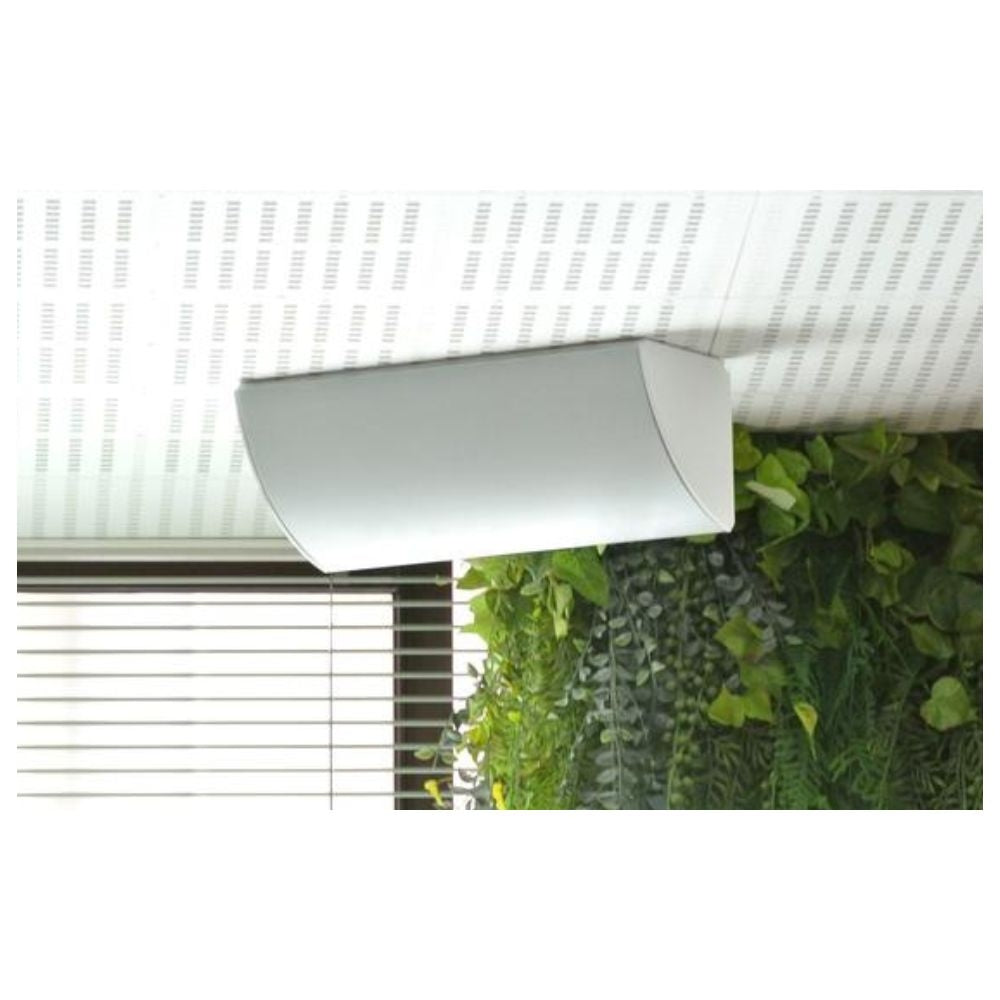

The Blaze Ci5 is a very versatile and compact 2 way ful range speaker with strong output and solid bass performance. The patented triangular design and sliders ensures fast and easy installation, flush in corners or onto walls and ceilings without brackets.
The Blaze Ci5 is a very versatile and compact 2 way ful range speaker with strong output and solid bass performance. The patented triangular design and sliders ensures fast and easy installation, flush in corners or onto walls and ceilings without brackets.

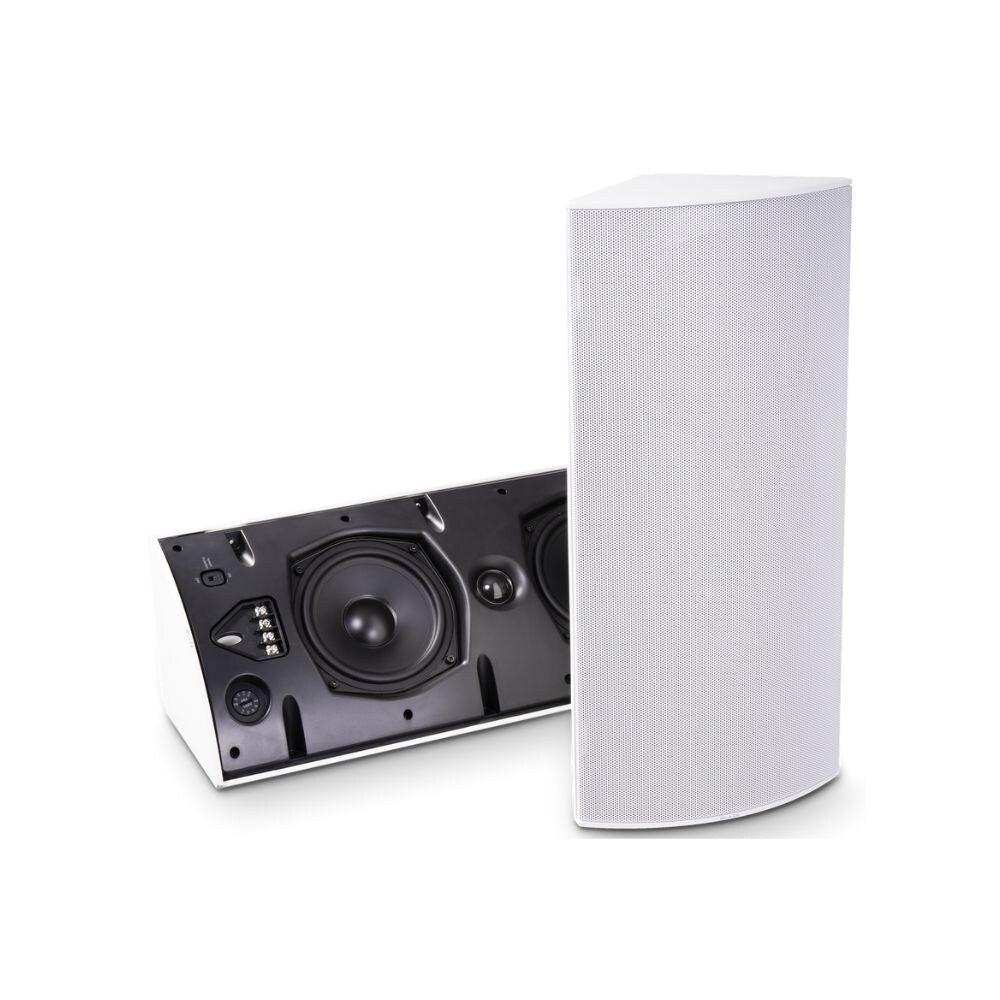

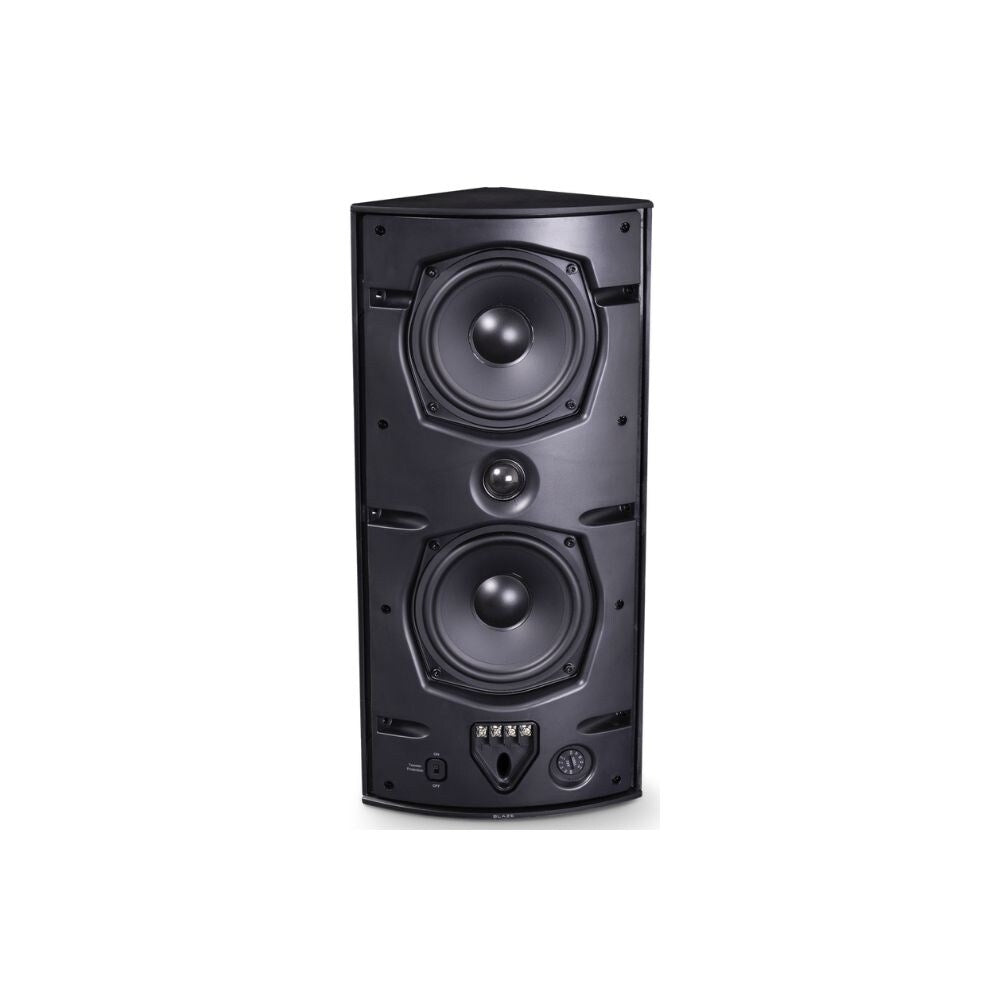

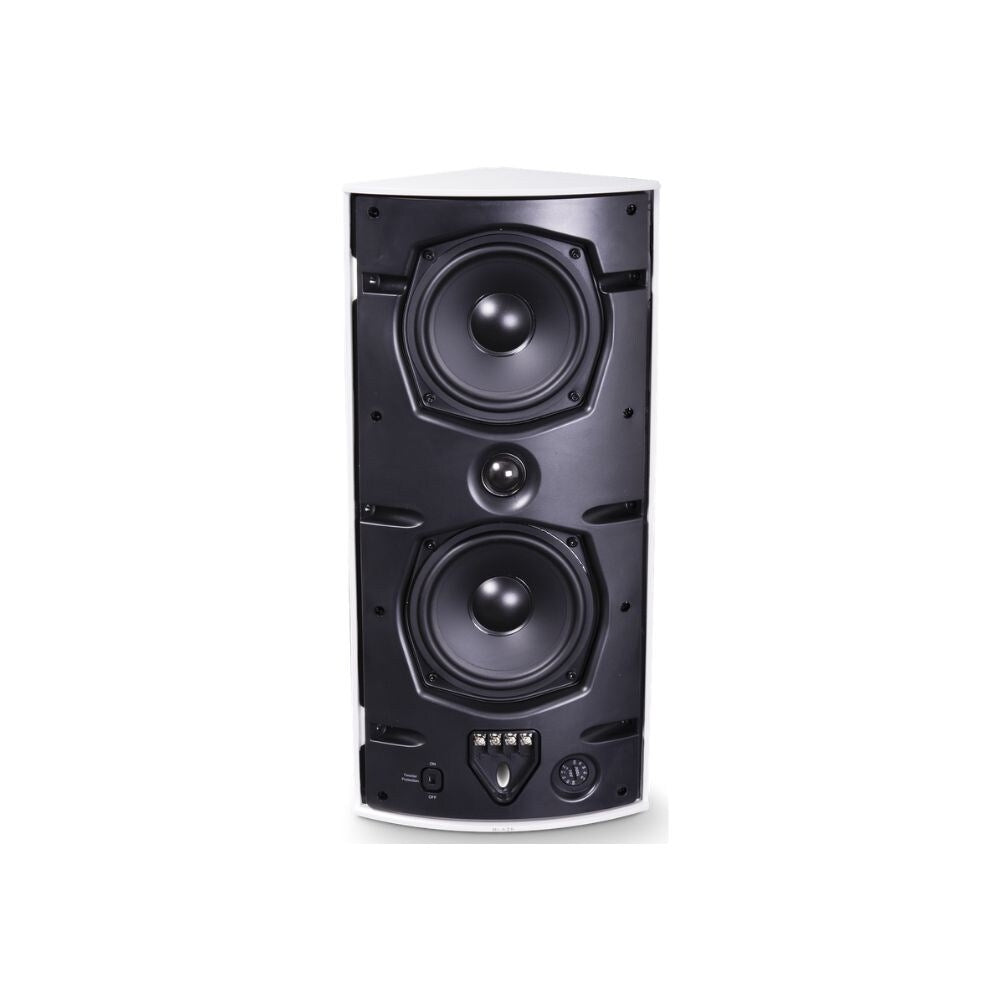

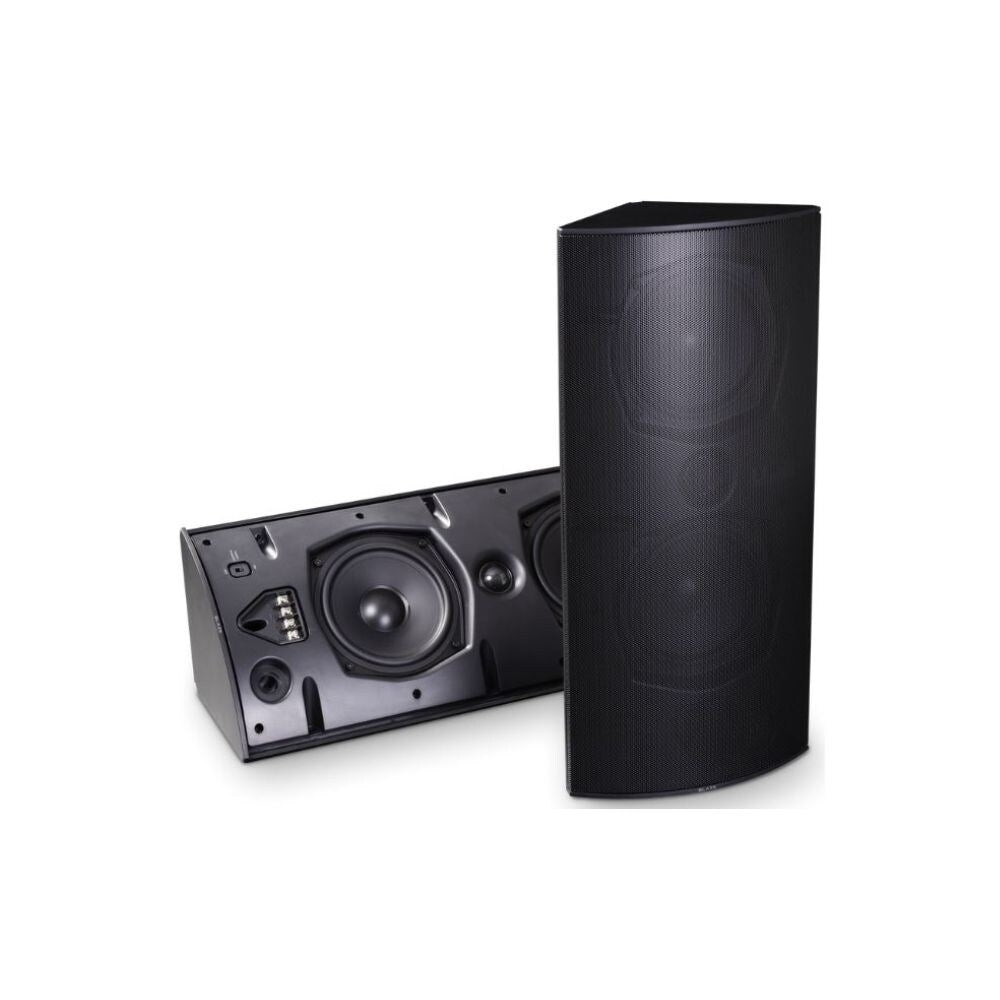

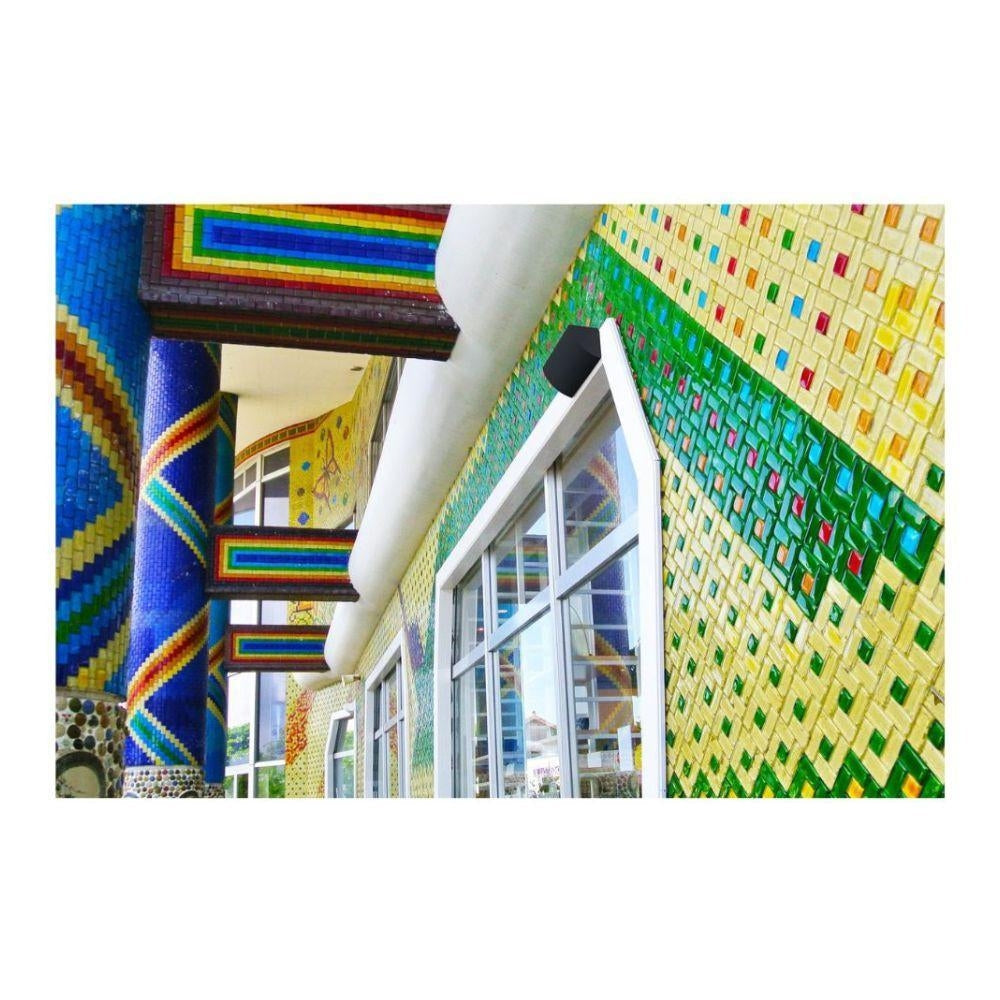

Theis speaker system consists of a 5.25" woofer, a 5.25" passive radiator for extended bass performance and a 1" tweeter coupled to a wave guide with an even dispersion of nominal 100 by 100 degrees. With a wide and uniform dispersion, full coverage can be achieved by installing relatively few speakers, which makes the Ci5-V especially suited for indoor and outdoor commercial installations. Ci5-V is the perfect elegant loudspeaker solution for commercial installations in entertainment venues, shopping malls, hotels and meeting rooms.

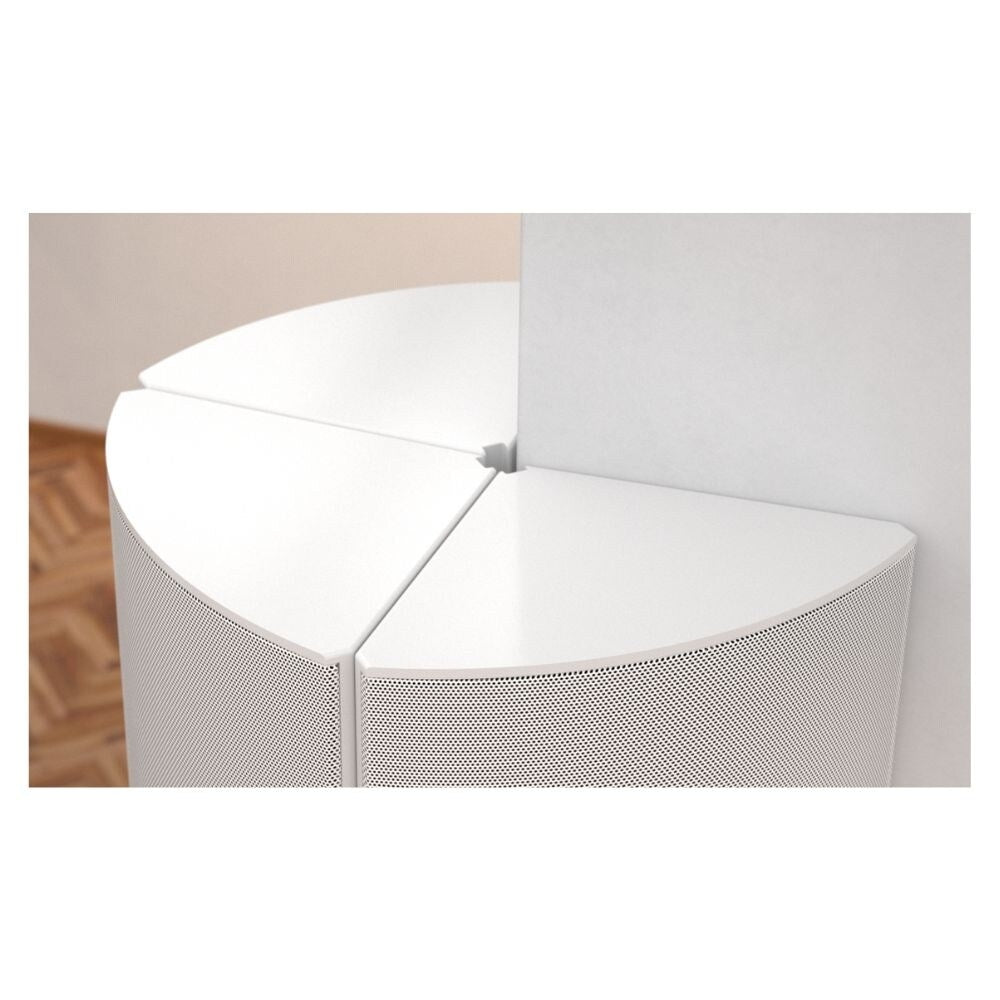

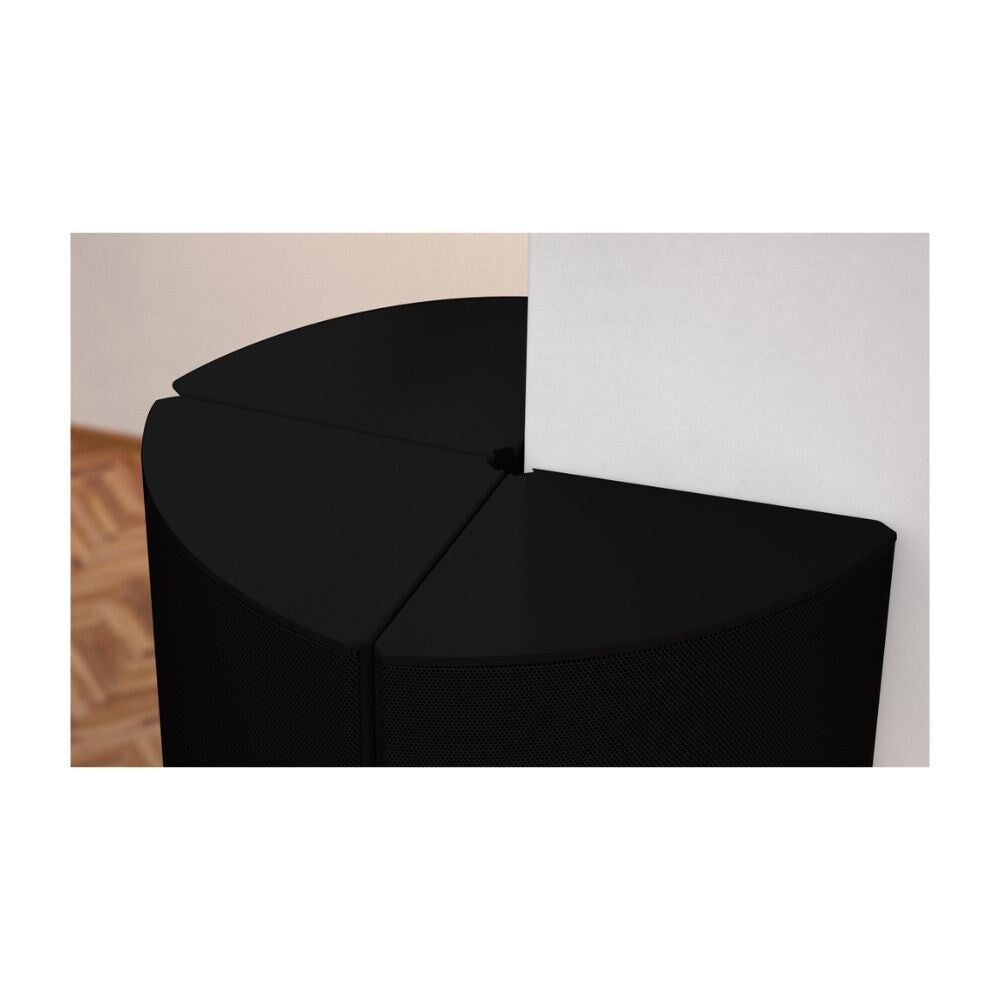

Cabinets can be coupled together to increase coverage to 180° or 270° degree.
The cable terminal is hidden making the cable connection invisible both in vertical and horizontal applications.
The tweeter features a switchable protection circuit for added safety and the Ci5-V model can be run in either 8 ohm or 70/100 volt. In high impedance mode, tap settings for 3.5 - 7.5 - 15 or 30 watt output is conveniently located on the front baffle.
For enhanced bass performance, the Ci5-V can be teamed indoors with our C8S and C12S subwoofers.
Compatible With | C8S and C12S subwoofers |
Frequency Response | 55Hz to 20kHz ±3dB |
Nominal impedance | 8Ω |
Dispersion | 100° vertical 100° horizontal |
Sensitivity | 88dB SPL (1W @ 1m) |
Maximum SPL | 107dB 113dB Peak |
Recommended Amplifier | 45 to 90W |
Switchable Transformer Taps | 70V: 3.75, 7.5, 15, 30 W 100V: 7.5, 15, 30 W 8Ω |
Protection Rating | IP65 |

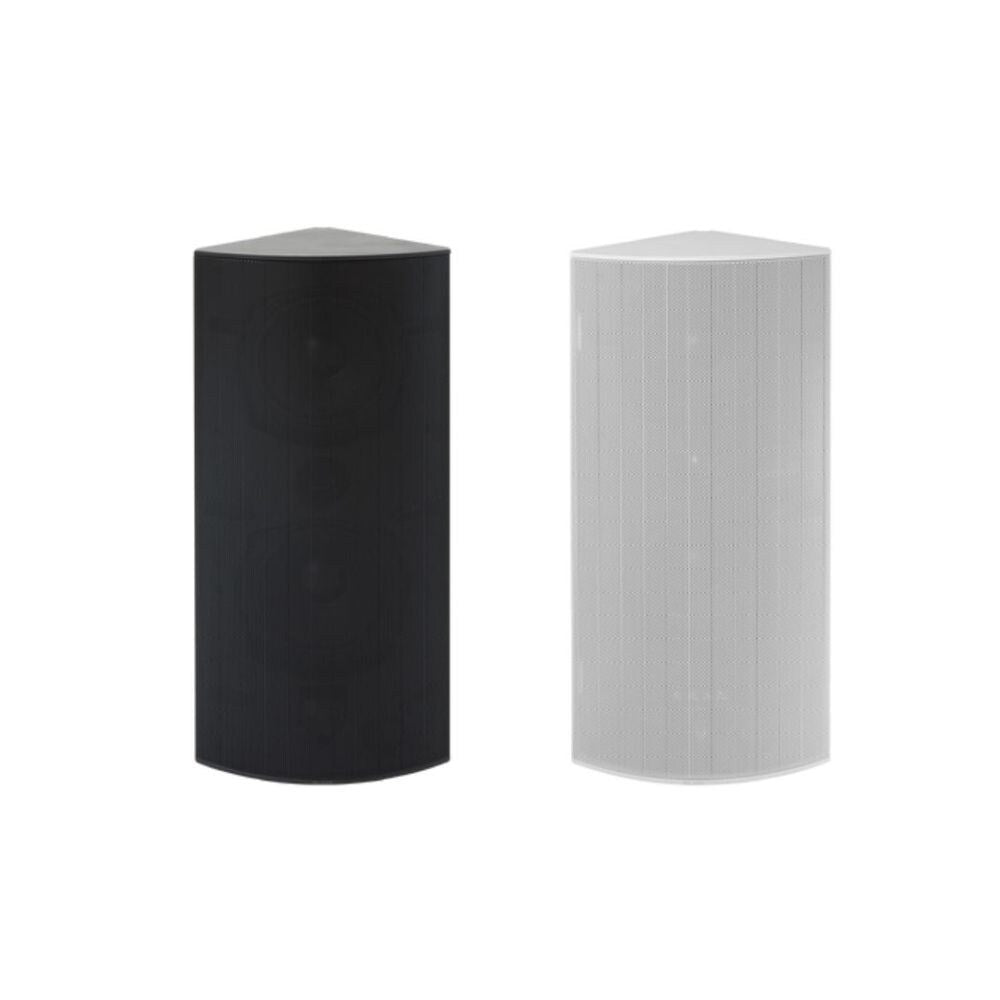

Colour | White: RAL9010 Black: RAL9005 |
Dimensions | Height: 450mm / 17.72" Width: 209mm / 8.23" Depth: 150mm / 5.91" Depth Into Corner: 139mm / 5.472" |
Weight | 3.45kg / 7.61lb |
