Description

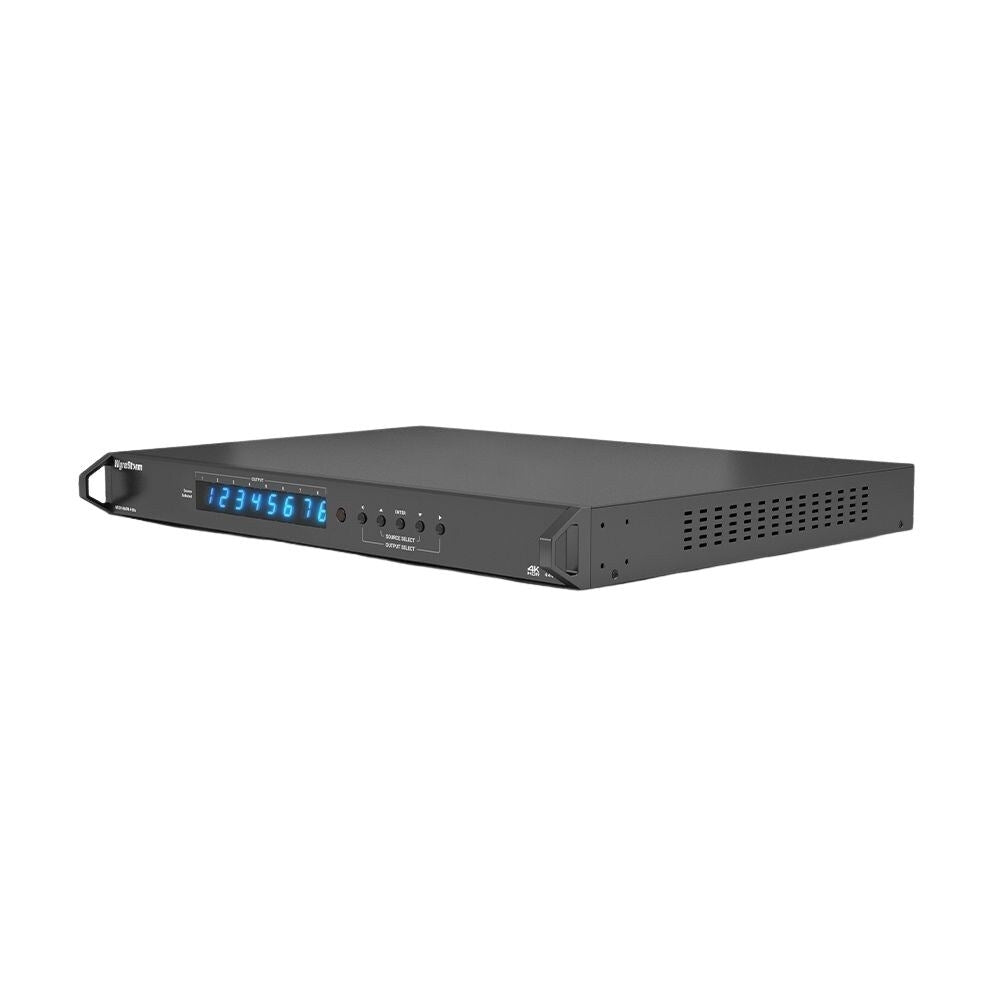

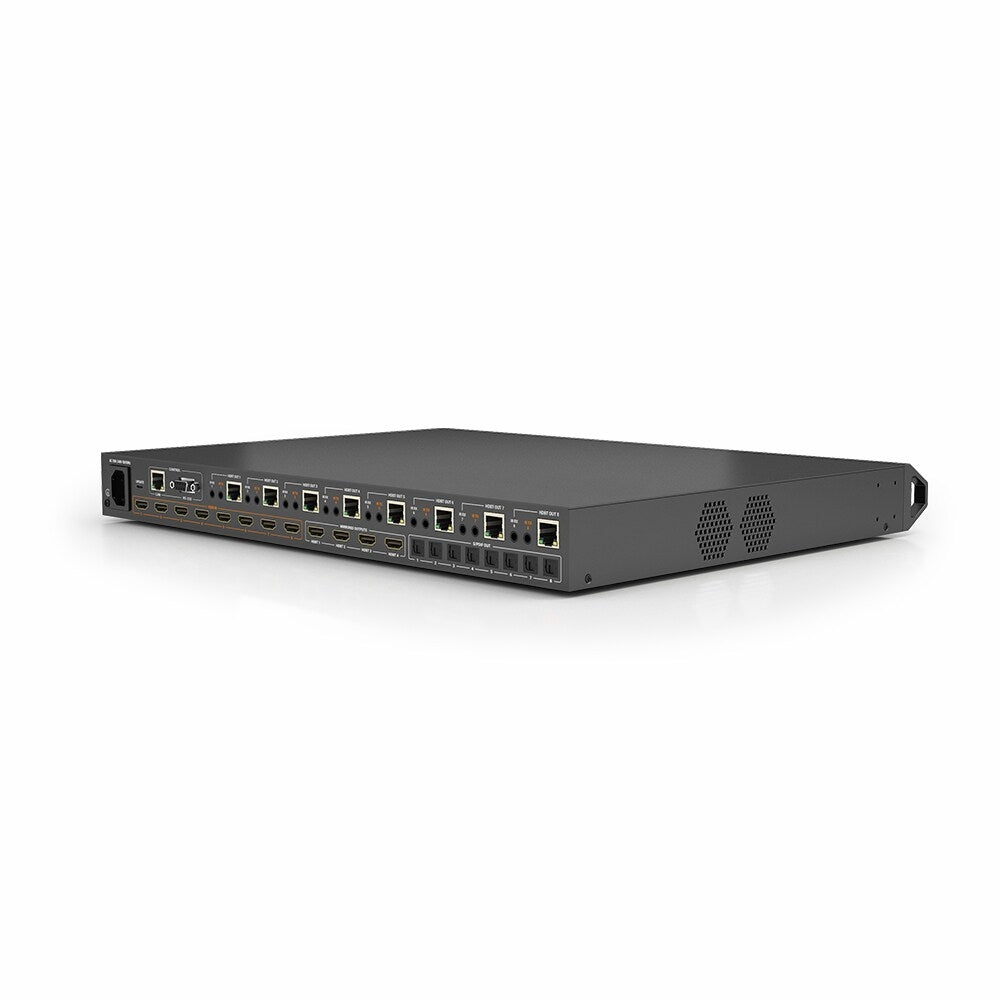

WyreStorm's 4K HDR 4:4:4 60Hz HDBaseT™ 8x8 Matrix Switch offers transmission of 18Gbps HDMI content up to 35m/115ft by pairing HDBaseT with WyreStorm's powerful lossless compression algorithm. This matrix comes in a compact 1U chassis.
WyreStorm's 4K HDR 4:4:4 60Hz HDBaseT™ 8x8 Matrix Switch offers transmission of 18Gbps HDMI content up to 35m/115ft by pairing HDBaseT with WyreStorm's powerful lossless compression algorithm. This matrix comes in a compact 1U chassis.
Bringing WyreStorm lossless compression technology from the flagship H2XC matrix platform, the MXV-0808-H2A v3 handles both current and future video content technologies up to 4K/60 4:4:4 and high frame rate HDR. The highest possible bandwidth that currently exists according to the HDMI 2.0 specification can be sent to its 6 HDBaseT zones using the latest in lossless compression technology. It has HDCP 2.2 encryption technology ensuring compatibility with the latest 4K UHD content and sources and HD multichannel audio up to DTS:X and Dolby Atmos™ to all outputs
With audio functionality to match its video capability, the MXV 8x8 has the ability to extract audio signals from either source devices or from the output, following the zone. Having S/PDIF connectivity means having the flexibility to send multi-channel 5.1 audio to local AVR's or downmix to stereo using the EXP-CON-DAC-D.
Specific to the version 3 model, the MXV-0808-H2A v3 gives users many options to power displays on and off. These options include RS-232 routing to discreet zones, as well as using automatic, API and custom generated triggered CEC commands.
This MXV Series matrix switch provides 4 HDMI outputs mirroring HDBaseT Outputs 1-4 for connecting additional duplicate screens, projectors or AVRs, bringing the total number of connected displays to 12. whilst HDMI inputs and HDMI outputs support bandwidths of up to 18Gbps. 8 assignable audio outputs allow audio to be independently de-embedded from sources or outputs via Toslink optical.
API controlled standby mode allows the matrix to enter a low power state when not in use, cutting power consumption by up to 34%. SmartEDID™ features also dynamically detects display/source capabilities and automatically outputs the highest possible resolution. Additional EDID management through DIP switches for global setting or via WebUI for independent management of EDID per source
In addition to the audio breakout ports, this matrix switch features four HDMI mirrored output ports which can be paired with any of WyreStorm's HAOC hybrid optical HDMI cables for transmission up to 50m/164ft or any extender for transmission of HDBaseT or OM3 fibre.
Please Note: The ability to send custom CEC commands when standard CEC commands aren't compatible. RS-232 routing over HDBaseT allows discrete control of all connected display devices.
Specifications:

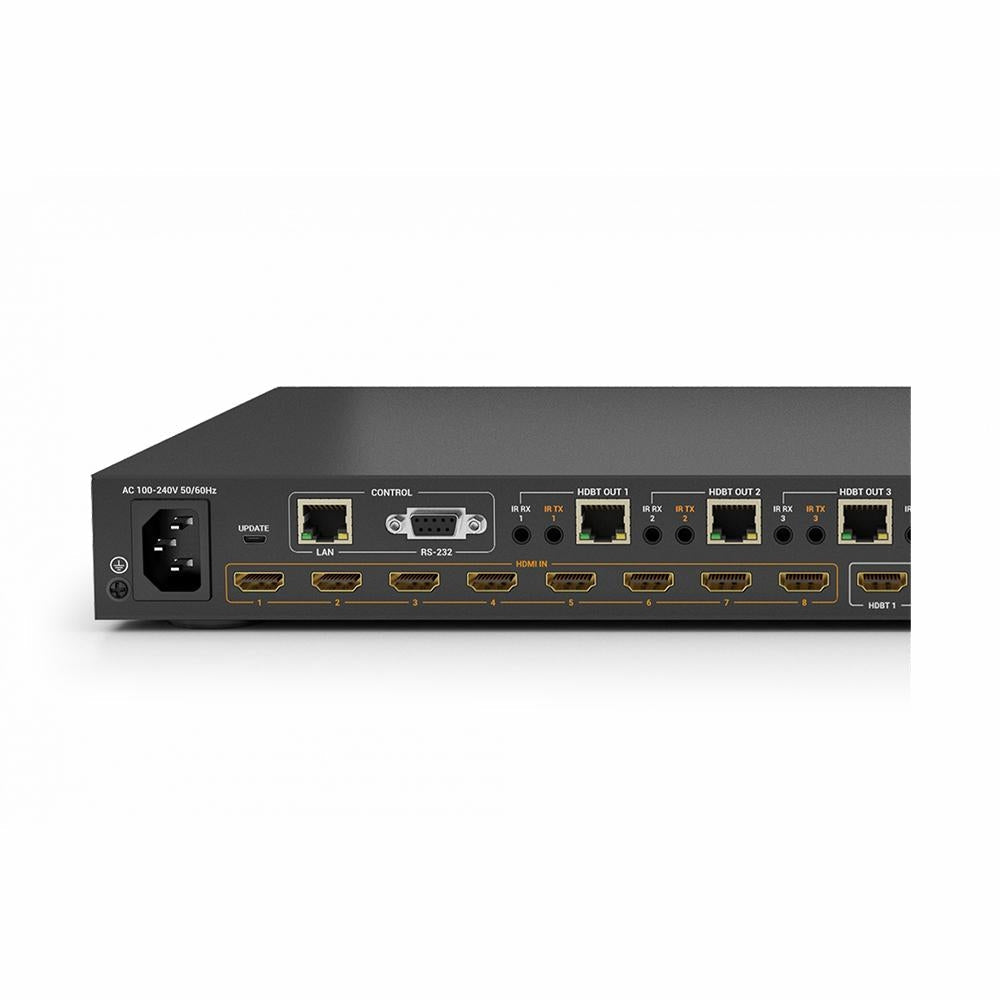

| Inputs | 8 x HDMI:19 pin Type A |

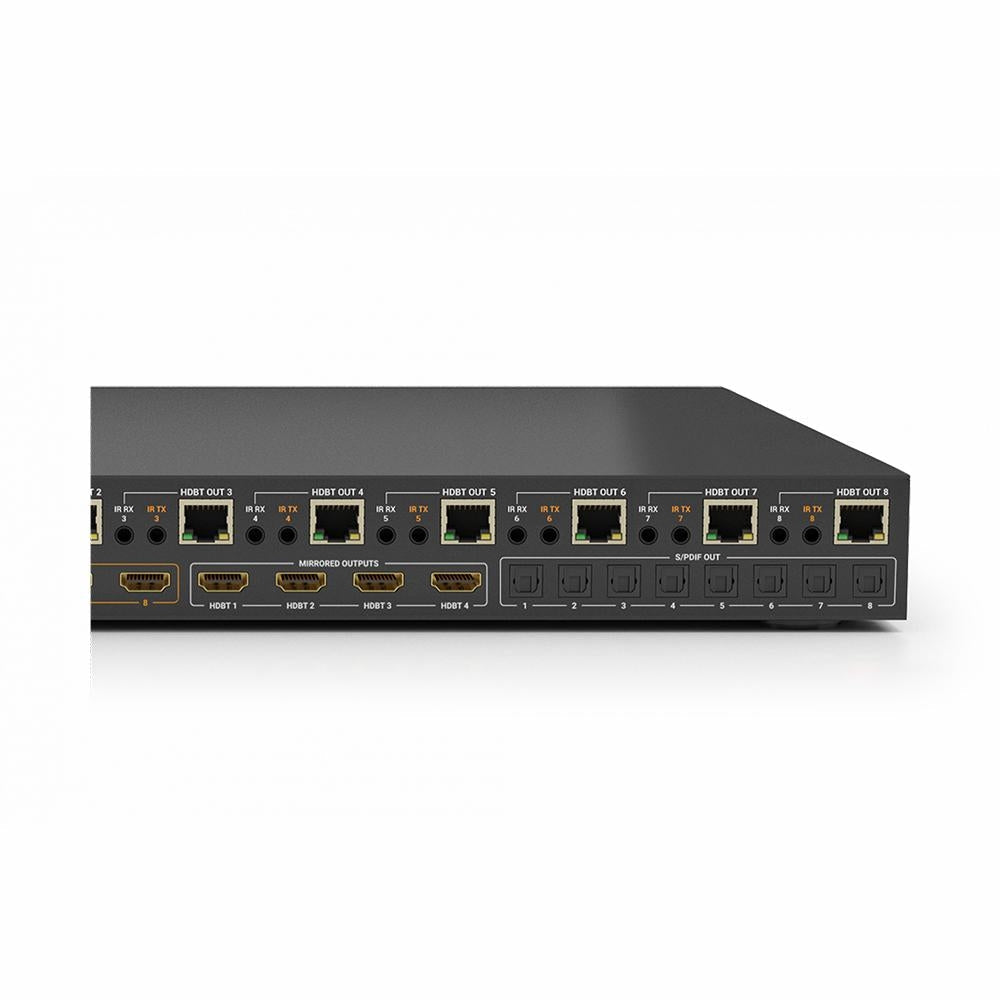

| Outputs | 8 x HDBT Out : 8 pin RJ-45 Female 8 x S/PDIF Out : TOSLINK (Digital Optical) 4 x HDMI Out : 19 pin Type A |
| Outputs Video Encoding | HDBaseT Class B |
| Encoding Date Rate | 9.2Gbps |
| Audio Formats | Analogue: 2 channel analogue S/PDIF: 2 channel LPCM | Dolby Digital/DTS up to 5.1 channel HDMI: 2 channel LPCM | Multichannel Up to Dolby Atmos and DTS-X |
| Video Resolutions (Max) | 1920x1080p @60Hz 12bit to 4069x2160p @ 60Hz 8bit 4:4:4* |
| Supported Standards | DCI RGB HDR HDR10 Dolby Vision (up to 30Hz) HLG BT.2020 BT.2100 |
| Maximum Pixel Clock | HDMI: 600MHz | HDBaseT:297MHz |
| HDMI | HDMI 2.0 HDCP 2.2 EDID CEC DVI/D supported with adapter (not included) |
| HDBT | HDMI 2.0 HDCP 2.2 EDID 1 way POH Bidirectional IR |
| CEC | Custom and standard CEC power Triggering via API Requires CEC compatibility HDMI outputs only |
| IR | 8 x IR RX: 3.5mm TRS Stereo 8 x IR TX: 3.5mm TS Mono Bidirectional over HDBaseT |
| RS-232 | 1 x RS-232: 9 pin DB9 Female Routable RS-232 Device Control |
| Ethernet | 1 x LAN: 8 pin RJ45 Female |
| Maximum BTU | 574 BTU/hr |
| Rack Units | 1U |
| Dimensions | Height: 43.5mm / 1.71" Width: 440mm / 17.32 Depth: 330mm / 13" |
| Weight | 4.95kg / 10.91lb |
Features:
- 4K HDR HDBaseT 8x8 Matrix Switch, supporting content up to 4K/60 4:4:4 & RGB 8-bit
- Latest HDR standards, including 60Hz HDR-10 & HLG and Dolby Vision™ at 30Hz
- HDCP 2.2 encryption technology ensuring compatibility with the latest 4K UHD content and sources
- HD Multichannel audio up to DTS:X and Dolby Atmos™ to all outputs
- Proprietary compression algorithm enables 60Hz 4K UHD content (4:4:4 or HDR) to be sent over HDBaseT to 35m/115ft
- 4 HDMI outputs mirroring HDBaseT Outputs 1-4 for connecting additional duplicate screens, projectors or AVRs, bringing the total number of connected displays to 12
- HDMI inputs and HDMI outputs support bandwidths of up to 18Gbps
- 8 Assignable audio outputs allow audio to be independently de-embedded from sources or outputs via Toslink optical
- A/V Mute mode allows the routing of a signal to an output to be deactivated
- API controlled standby mode allows the matrix to enter a low power state when not in use, cutting power consumption by up to 34%

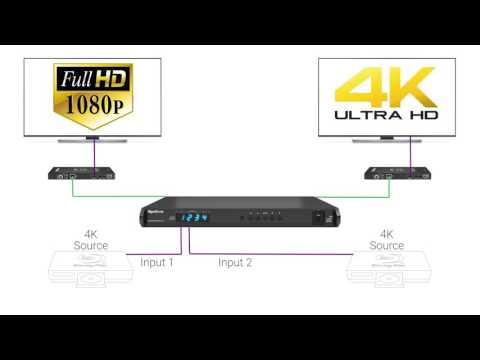

- SmartEDID™ feature also dynamically detects display/source capabilities and automatically outputs the highest possible resolution
- Additional EDID management through DIP switches for global setting or via WebUI for independent management of EDID per source
- Simple switching matrix remote control included, which can be learned into a universal remote handset to allow the control of multiple devices from one handset
- Capable of transmitting content to 50m/164ft using WyreStorm HAOC range of hybrid optical HDMI cables
- Automatic or API triggered CEC power triggers for all compatible connected screens or projectors
Please Note: The ability to send custom CEC commands when standard CEC commands aren't compatible. RS-232 routing over HDBaseT allows discrete control of all connected display devices.
User guides
Download User Guides:
Data Sheet
WyreStorm Product Guide
WyreStorm Essentials Range
Quick Start Guide
Matrix Switchers APIs
Hex Codes
