Building upon StormAudio's robust and high performance MK1 generation, the PA MK2 range shines with its new refined and classier appearance. The result of a close collaboration with Danish company Pascal Audio, the Class D technology embedded reflects the StormAudio's philosophy of reliable, controllable and impressive sounding products.
Building upon StormAudio's robust and high performance MK1 generation, the PA16 MK2 range shines with its new refined and classier appearance. The result of a close collaboration with Danish company Pascal Audio, the Class D technology embedded reflects the StormAudio's philosophy of reliable, controllable and impressive sounding products.

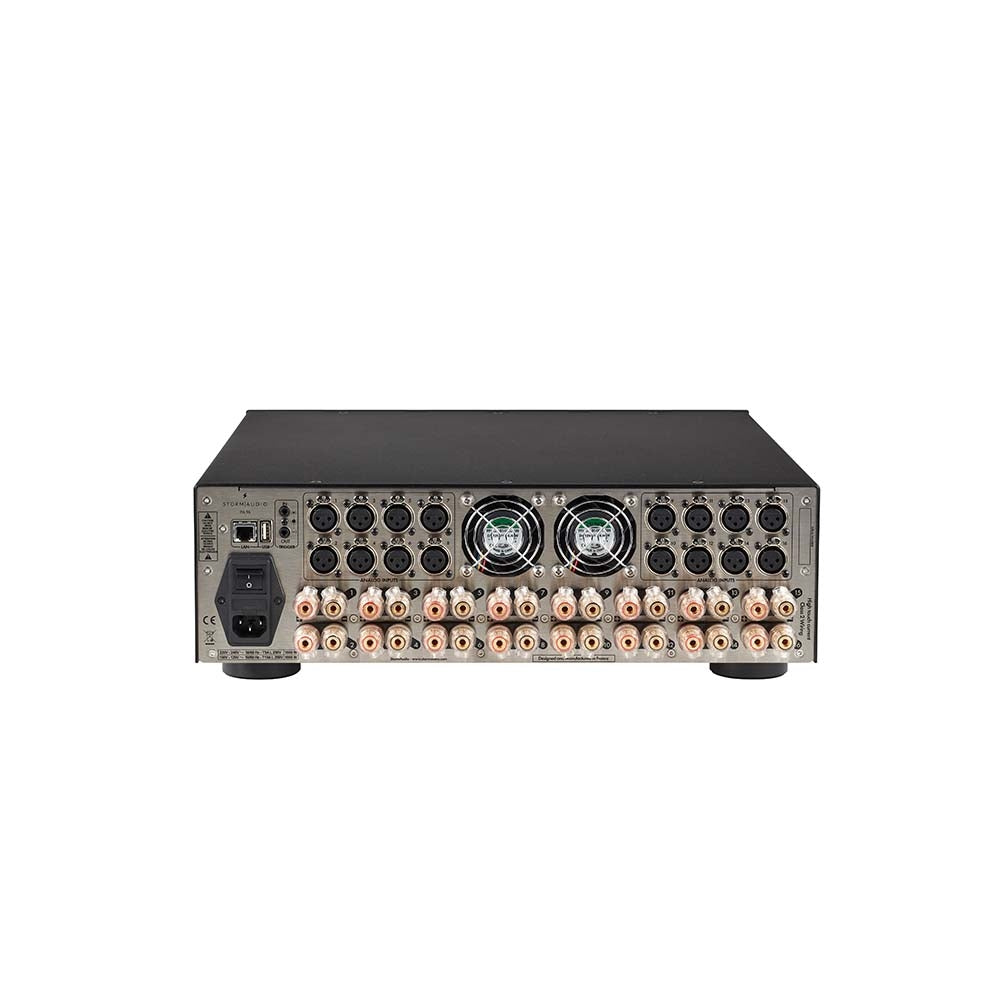

With its UMACTM Class D technology, this PA16 power amplifier demonstrates audiophile performance with high efficiency, high dynamic range and very low distortion. With four individual URECTM technology based power supplies, each unit offers up to 3kW of power capacity, 200W per channel, with instantaneous response, adapting in real time to the demanding dynamic of cinema soundtrack reproduction.
If high channel count is required in an installation, the solution will be found in this amplifier with its 16 XLR channels input.
When partnered with StormAudio's ISP products, all status information becomes accessible to the installer within the ISP WebUI interface thanks to Storm Monitoring technology, allowing for a total visibility of the installation, whether locally or remotely.
All in all, this PA16 channel power amp delivers without compromise, providing power to any installation.
Specification
| Configuration |
16 channel single ended
Class D |
| General Information |
0.1% THD, all channels driven
SNR (p rated) : 115dB
THD+N (1W) : <0.03%
16 channel SE, 26dB gain
200W RMS @ 8 ohm
225W RMS @ 4 ohm |
| Inputs |
16 channel XLR |
| Outputs |
3 way binding post
4mm wire |
| Control |
Ethernet monitoring
Trigger IN and Trigger OUT |
| Rack Size |
3RU |
| Dimensions |
Feet and connectors included:
Height: 150mm / 5.91"
Width: 435mm / 17.13"
Depth: 490mm / 19.29" |
Features
- 16 channel power amplifier Single Ended
- 200W per channel
- Up to 3kW total power capacity
- High efficiency Class D technology
- Pascal Audio UMACTM and URECTM onboard
- Storm Monitoring enabled
