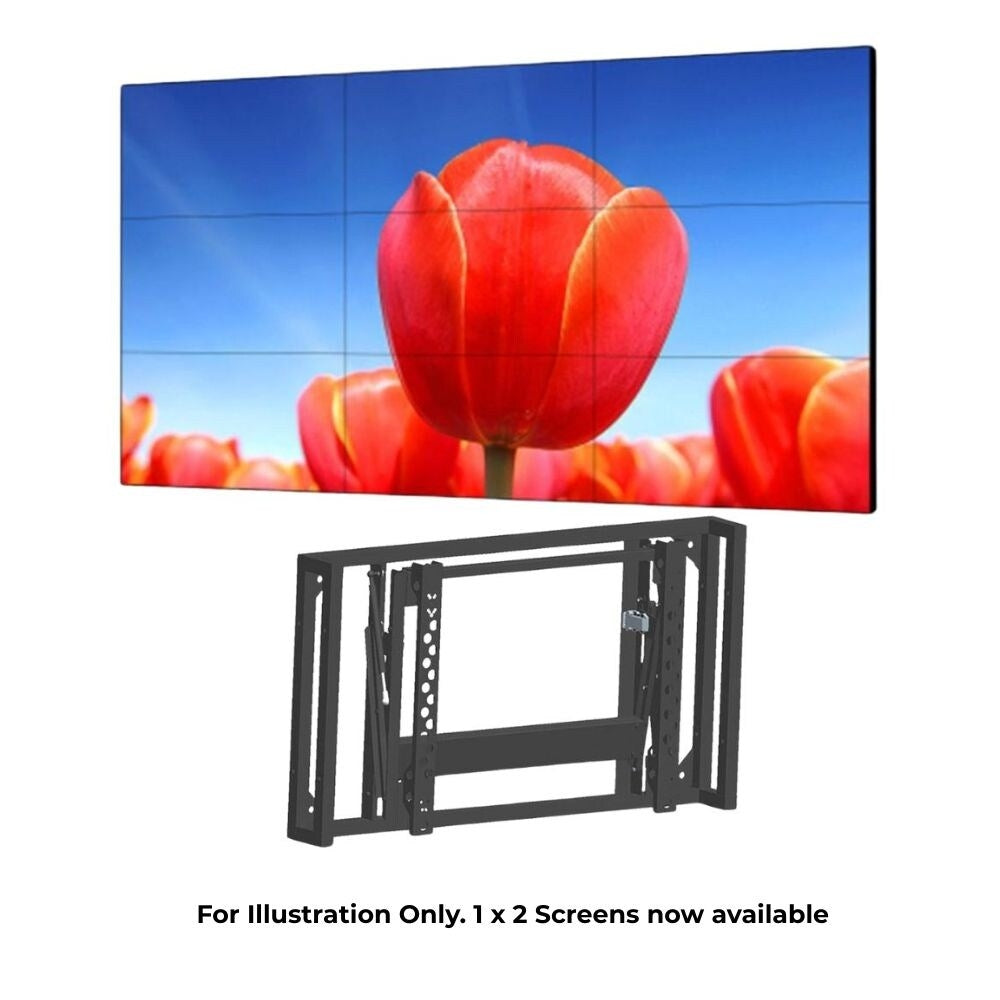

Habitech offers the 110-VIDEOWALL-PLUS2 Bundle, which includes the Dahua 1 x 2 Video wall, with 110" diagonal image, plus 2x remote 55" HD displays and Dahua's front maintenance pop out wall bracket for 55" video wall displays.
Habitech offers the 110-VIDEOWALL-PLUS2 Bundle, which includes the Dahua 1 x 2 Video wall, with 110" diagonal image, plus 2x remote 55" HD displays and Dahua's front maintenance pop out wall bracket for 55" video wall displays.
Configuration based 2 x Dahua LS550UCM-EF, 55" displays to create a 110" diagonal image with 2 additional Dahua 55" displays for other areas or to keep as replacements.
These videowalls' low profile design incorporates an ultra narrow 3.5mm bezel design, suitable for 24/7 applications.
They features built in 3D comb filter and 3D noise reduction with abundant connectivity including HDMI, DVI, VGA, BNC and USB, with IR and RS-232 serial control. Incorporates high fidelity digital processing and high contrast to display vivid HD video content.
Specifications:
| DAH-LS550UCM-EF Dahua 55" Video Wall Display | |
| Screen Technology | LCD ADS |
| Backlight | Direct LED |
| Screen Size | 110" diagonal 1 x 2 Videowall plus 2 x 55" displays |
| Resolution | 1920 x 1080 (FHD) |
| Bezel Width | 2.3mm (U/L), 1.2mm (R/B) |
| Standard Brightness or Luminance | 500 cd/m² |
| Contrast | 1400:1 |
| Pixel Density | 40dpi |
| Viewing Angle | H178°, V178° |
| Response Time | 8ms |
| Display Colour | 8bit (16.7M) |
| Colour Temperature | 10,000K |
| MTBF | 50,000h |
| Connectivity Inputs | HDMI x1 DVI-D x1 VGA (D-Sub) x1 CVBS (BNC) x RS-232 (RJ45) x1 USB x2 Audio in x1 IR x1 |
| Connectivity Output | HDMI x2 CVBS x1 RS-232 (RJ45) x1 VGA x1 |
| VESA | 600 x 400mm |
| Control Signal | Infrared, RS232 serial control |
| Power Supply | AC90~264V (+/-5%), 50/60 Hz |
| Consumption | Standard: 150W Standby: ≤0.5W |
| Operating Temperature | 0°C / 32°F to +50°C / 122°F Humidity: 20% to 90% |
| Dimensions | Per Display: Height: 684.5mm / 26.95" Width: 1213.7mm / 47.78" Depth: 106.5mm / 4.20" |
| Weight | 38.5kg / 84.88lb |
| DAH-HI-LS550-WS Front Maintenance Pop Out Wall Bracket | |
| Style | Free bracket which allows front maintenance of screen |
| Size of Screen | 55" |
| Weight | 18kg / 39.7lb |
Features:
DAH-LS550UCM-EF Dahua 55" Video Wall Display
DAH-HI-LS550-WS Bracket
Download User Guides:
Data Sheet Video Wall Display

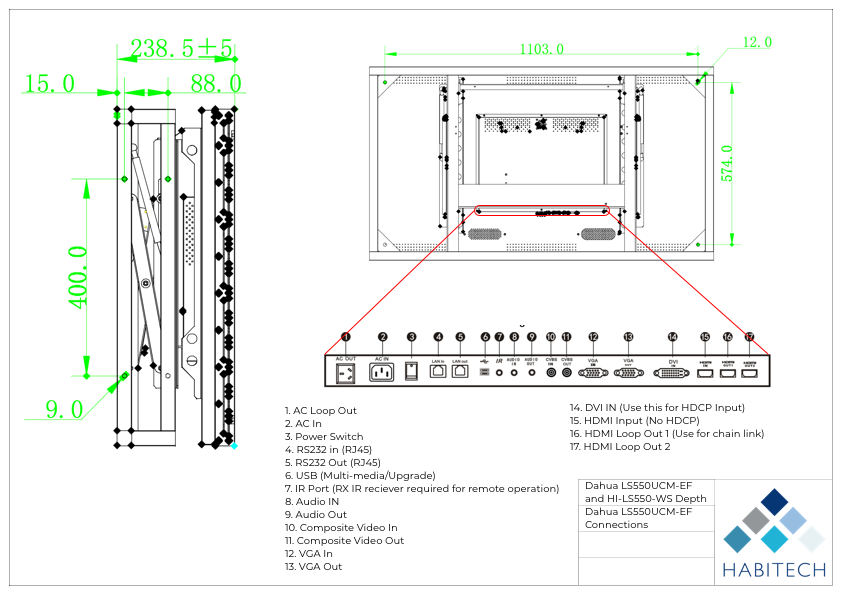

Technical Drawing Video Wall Display
Video Wall Users Manual
Video Wall RS232 Control Document
