Description

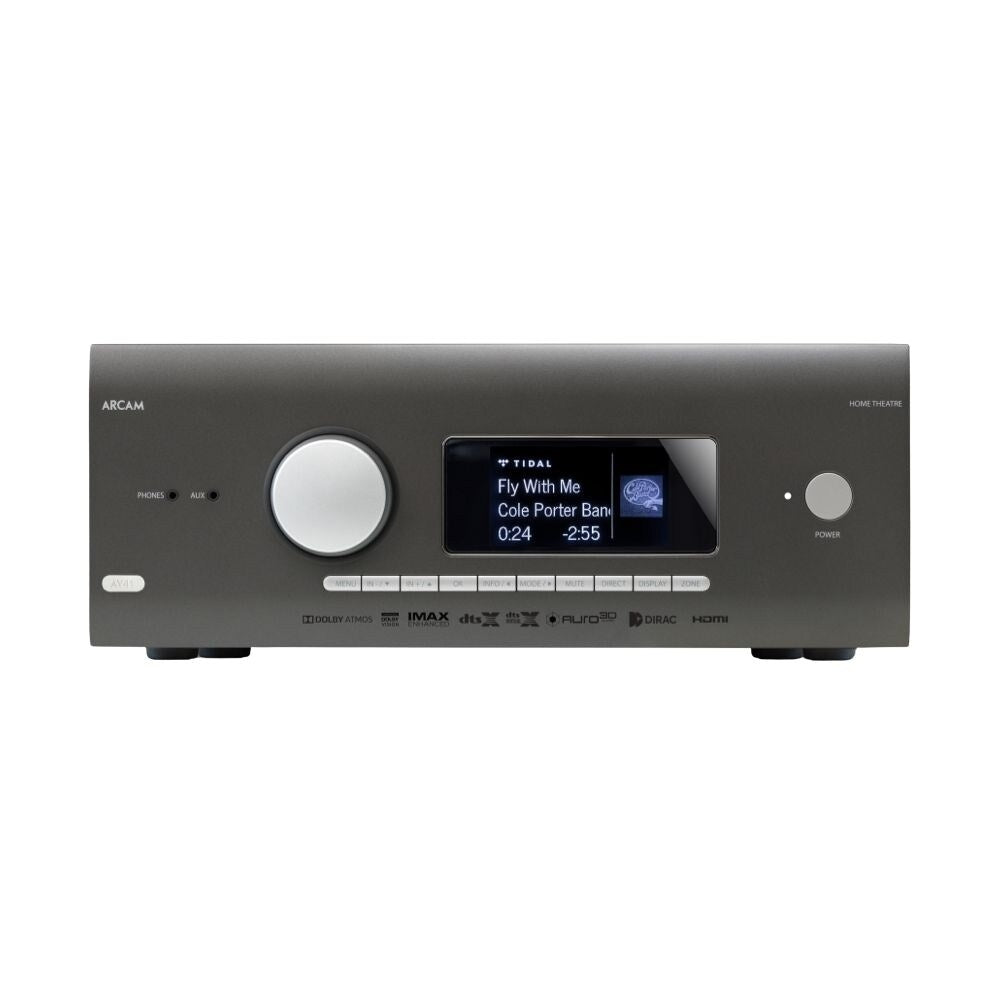

The AV41 AV processor from Arcam is a high performance, audio visual processor that delivers stunning realism for the ultimate home cinema experience. With native 16 channel decoding of immersive audio from Dolby Atmos, DTS:X and Auro-3D, this AV41 can deliver incredible cinema experiences in partnership with Arcam power amplifiers.
The AV41 AV processor from Arcam is a high performance, audio visual processor that delivers stunning realism for the ultimate home cinema experience.
With native 16 channel decoding of immersive audio from Dolby Atmos, DTS:X and Auro-3D, this AV41 can deliver incredible cinema experiences in partnership with Arcam power amplifiers.

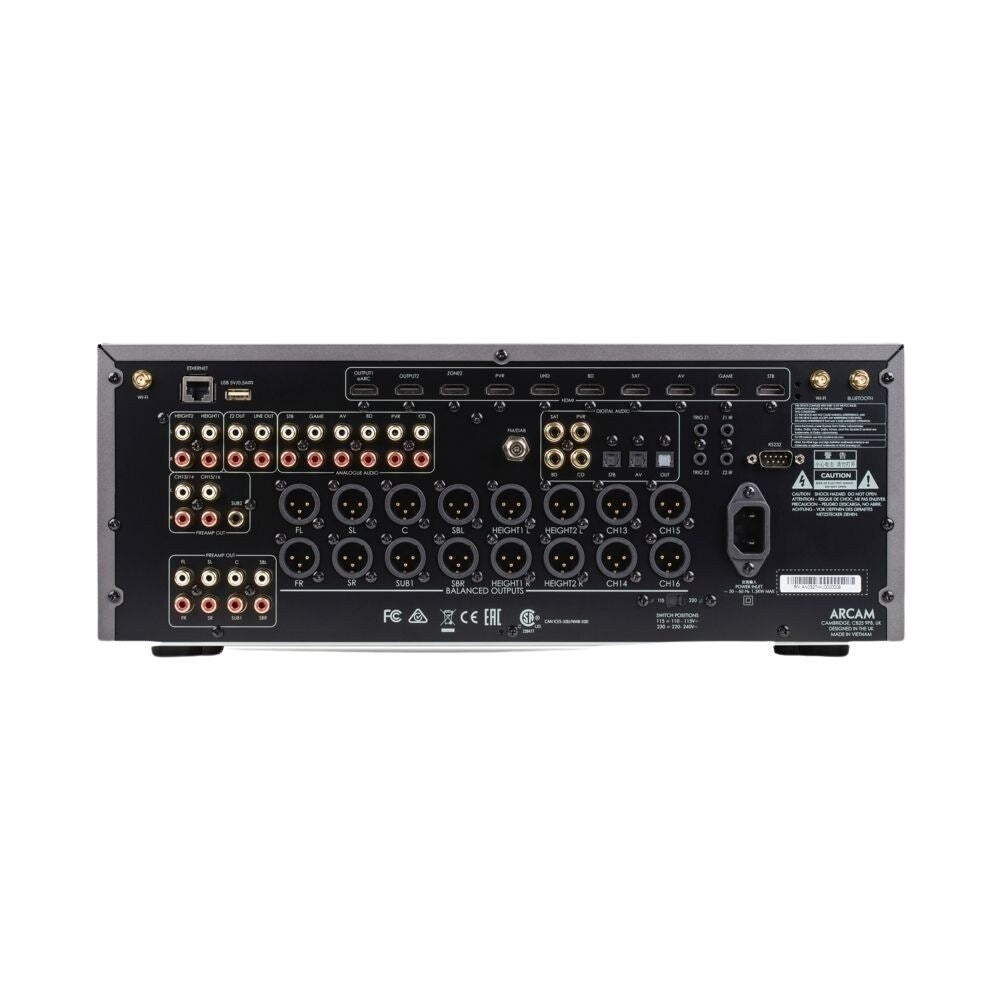

This AV processor is designed with a passion for music and movies, bringing both to life with high fidelity and dynamics. The AV41 boasts XLR balanced outputs for all 16 channels to deliver the highest quality analogue connection to power amplifiers.
The performance and musicality can be assured with Dirac Live® room optimisation included and accessed instantly with integrated streaming using Apple®Airplay2, Google Chromecast®, Bluetooth with aptX® HD, Spotify Connect, Tidal Connect and UPnP with the MusicLife app.
Dirac Live® Bass Control aggregates measurement and location data from each subwoofer as well as the main speakers to determine how a system's bass is distributed throughout the room.
Specification
| Maximum Stereo Line Inputs | 4.5Vrms |
| Nominal Sensitivity | 1V, 2V, 4V (user adjustable) |
| Input Impedance | 47kΩ |
| Signal/Noise Ratio (A-wtd ref 100W) Normal/Stereo Direct | 100dB / 110dB |
| Frequency Response | 20Hz to 20kHz ± 0.2dB |
| Preamplifier Outputs | |
| Nominal Output Level | 1V RMS (max. 5V RMS |
| Output Impedance | 560Ω |
| THD+N (20Hz to 20kHz) | -100dB |
| Headphone Output | |
| Maximum Output Level into 32Ω | 5Vrms |
| Output Impedance | <100Ω |
| Mains Voltage | 110V to 120V or 220V to 240V 50Hz to 60Hz |
| Power Consumption Maximum | 50W (Thermal dissipation approx. 170BTU/hour) |
| Power Consumption Idle, Typical | 40W (Thermal dissipation approx. 170 BTU/hour) |
| Power consumption Standby | <0.5W |
| Dimensions | Height Including Feet: 171mm / 6.73" Width: 433mm / 17.05" Depth Including Speak Terminals: 425mm / 16.73" |
| Weight | 10.6kg / 23.37lb |
| Included | Mains lead Remote control with 2 x AAA batteries DAB/FM aerial 3 x Wi Fi / Bluetooth antennas USB cable |
Features
- 16 Channels of Dolby Atmos, DTS:X and AURO-3D decoding
- 7 HDMI inputs, 3 HDMI outputs including zone 2, eARC compatible
- HDMI 2.1 with HDCP2.3
- All inputs support 8K@60fps and 4K@120fps
- Supports Dolby Vision, HDR10+, HDR10 and HLG
- Includes Dirac Live® room correction
- Ready for Dirac Live Bass Control*
- Pairs with PA240, PA720 and PA410 power amplifiers
- Wi-Fi or Ethernet, RS232 and IR control
- Google Cast/UPnP capability for streaming audio
- Apple® Airplay2
- Bluetooth
- Roon Ready and supports MQA
User guides
Download User Guides:
Data Sheet
