Description

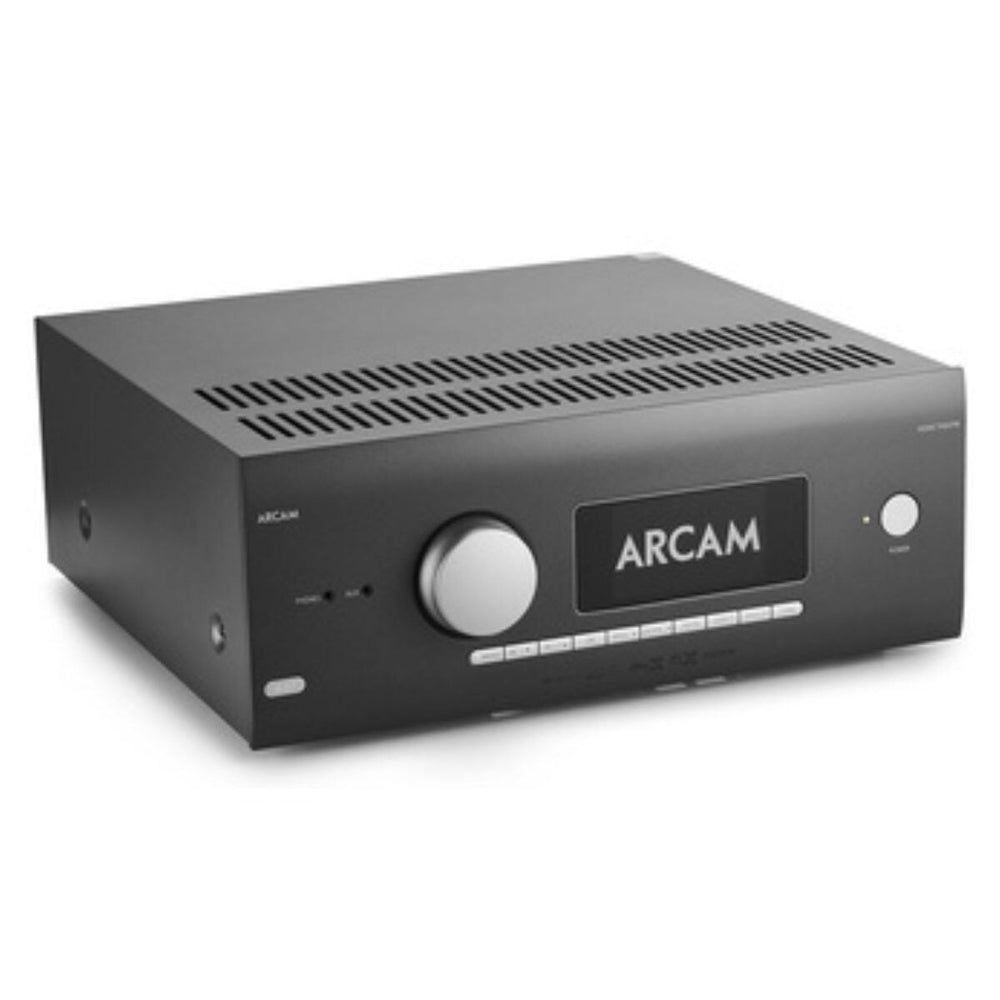

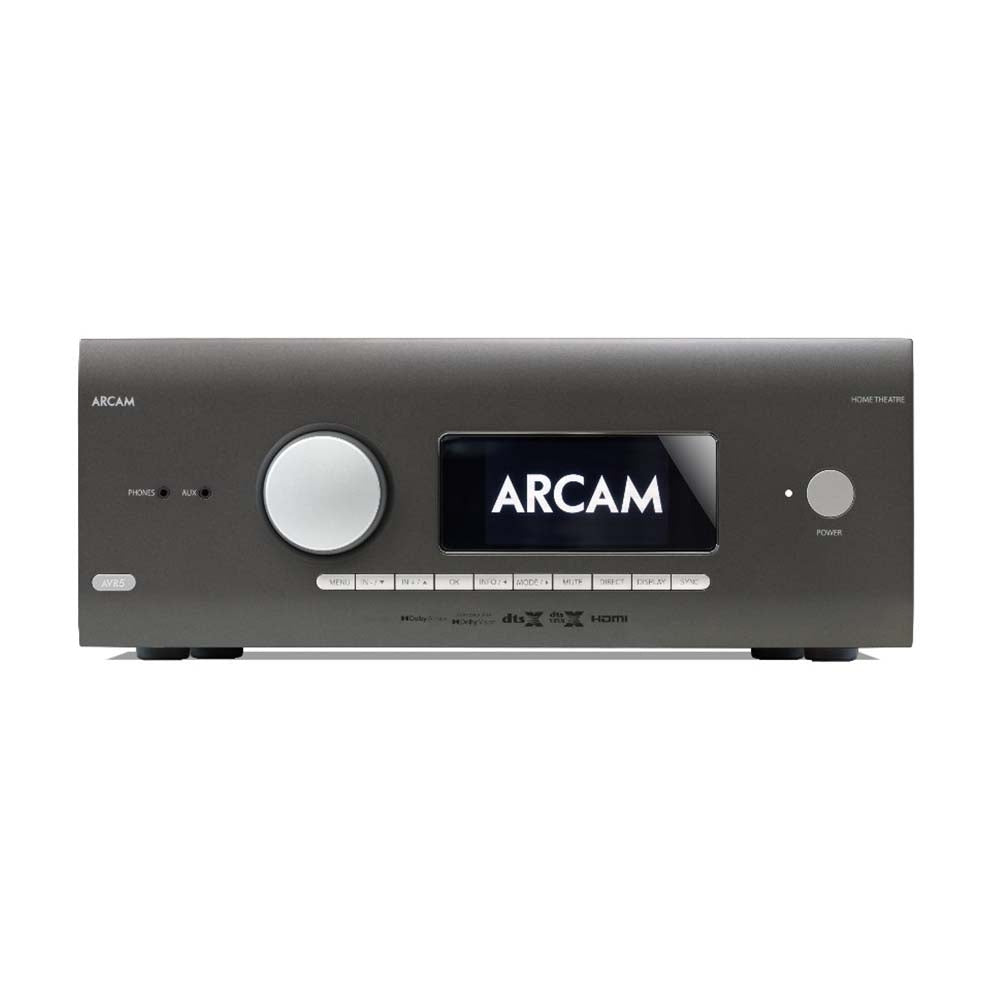

The AVR5 Dolby Atmos AV Receiver from Arcam is a high performance audio and visual receiver that delivers stunning realism for the ultimate home cinema experience. With an impressive 12 channel surround solution and featuring all the latest CODECs from Dolby and DTS, the AVR5 exemplifies sound quality and engineering excellence.
The AVR5 Dolby Atmos AV Receiver from Arcam is a high performance audio and visual receiver that delivers stunning realism for the ultimate home cinema experience. With an impressive 12 channel surround solution and featuring all the latest CODECs from Dolby and DTS, the AVR5 exemplifies sound quality and engineering excellence.
The AVR5 features the efficient class AB amplification for a level of transparency that delivers the most captivating sound. As well as simple streaming with a mobile device using the native app of choice via Apple Airplay2 or Google Chromecast,
The design of the HDA range draws upon all of Arcam's experience as one of the UK's most respected audio companies. It has produced the best performing range of audio products, using the best quality components and engineering practices. The HDA range is designed and built to give you years of listening enjoyment.
It offers truly exceptional power and immersive sound.
Please Note: Dirac Live® room correction upgrade is only available subject to purchase of the DIRAC licence
Specification
| Continuous Power Output, Per Channel | 8Ω/4Ω |
| 2 Channels Driven, 20Hz to 20kHz, <0.02% THD | 80W/100W |
| 2 Channels Driven, 1kHz, 0.2% THD | 85W / 120W |
| 7 Channels Driven, 1kHz, 0.2% THD | 60W / 85W |
| Residual Noise and Hum (A-Wtd) | <0.15mV |
| Stereo Line Inputs | |
| Maximum Input | 4.5Vrms |
| Nominal Sensitivity | 1V, 2V, 4V (user adjustable) |
| Input Impedance | 47kΩ |
| Signal to Noise Ratio (A-Wtd Ref 100W) Normal/Stereo Direct | 100dB / 110dB |
| Frequency Response | 20Hz to 20kHz ± 0.2dB |
| Pre Amplifier Outputs | |
| Nominal Output Level | 1Vrms (max. 5Vrms) |
| Output Impedance | 560Ω |
| THD+N (20Hz to 20kHz) | -100dB |
| Headphone Output | |
| Maximum Output Level into 32Ω | 5Vrms |
| Output Impedance | <100Ω |
| Mains voltage | 110V to 120V or 220V to 240V 50 to 60Hz |
| Dimensions | Height Including Feet: 171mm / 6.73" Width: 433mm / 17.04" Depth: 425mm / 16.73" Both width and depth include speaker terminals |
| Weight | 16.5kg / 36.38" |
| Included | Mains lead Remote control with 2 x AAA batteries DAB/FM aerial 3 x Wi Fi/Bluetooth antennas Calibration microphone USB cable |
Features
- Upgradable with Dirac Live® room correction. Licence required
- Dolby Atmos and DTS:X 7.1.4 decoding
- 4K (UHD) HDMI2.0b with HDCP2.2

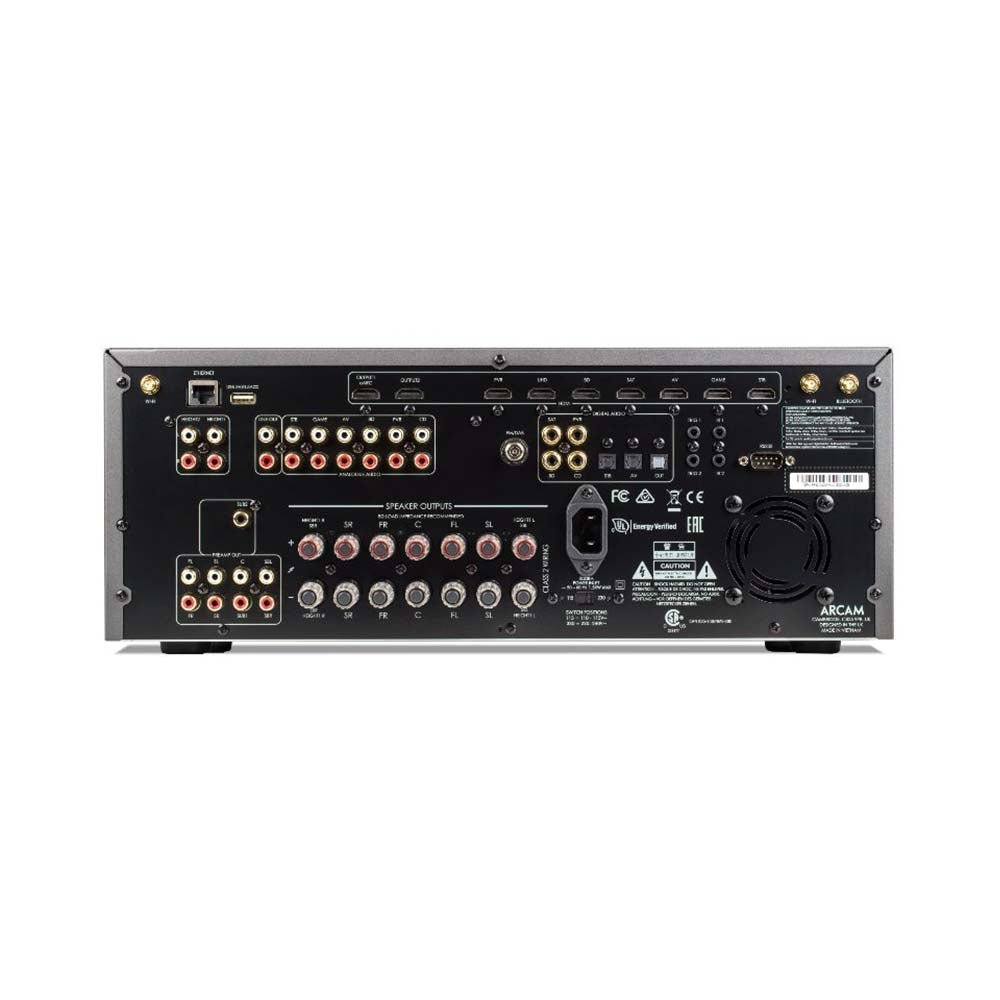

- 7 HDMI inputs, 2 HDMI outputs, eARC compatible
- ESS 9026PRO audiophile DAC
- Class AB power amplification
- Uses frame type transformer
- Wi-Fi or Ethernet, RS232 and IR control
- Google Cast/UPnP capability for streaming audio
- Bluetooth
- Free MusicLife iOS and Android UPnP and control app
Please Note: Dirac Live® room correction upgrade is only available subject to purchase of the DIRAC licence
User guides
Download User Guides:
Data Sheet
