Description

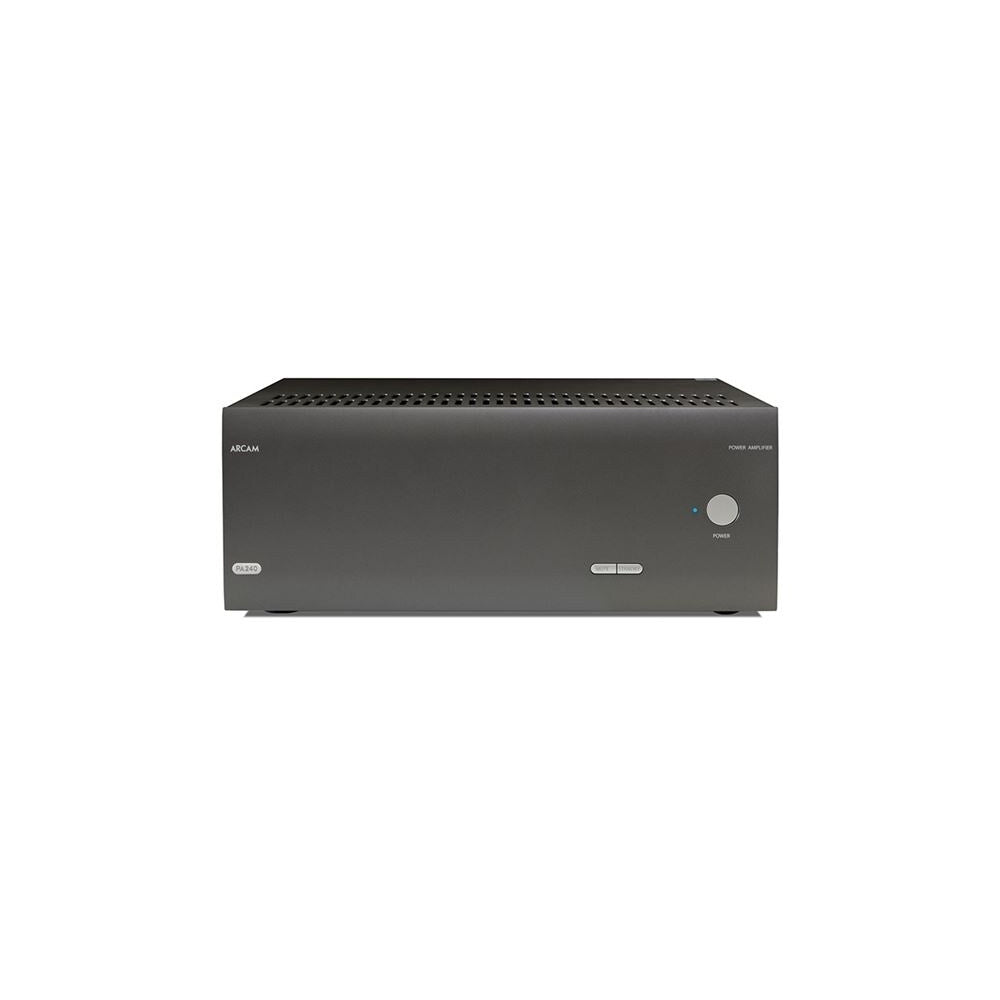

The PA240 Power Amp from Arcam is a high performance power amplifier that delivers 2 channels of efficient Class G amplification, with an impressive 380W per channel. The PA240 is designed to offer the greatest flexibility and power without compromising on control. The PA240 Power Amp from Arcam is a high performance power amplifier that delivers 2 channels of efficient Class G amplification, with an impressive 380W per channel. The PA240 is designed to offer the greatest flexibility and power without compromising on control.
Featuring the best in class components including a toroidal based power supply, acoustically damped chassis, paralleled transistor output stages and exceptionally low levels of distortion, this Power Amp masters the reproduction of music with all its originality and detail for an unmatched level of sound quality and clarity.
The design of this unit draws upon all of Arcam's experience as one of the UK's most respected audio companies, to produce their best performing range of audio products yet. Using the best quality components and engineering practices, this range is designed and built to give you years of listening enjoyment.
It offers truly exceptional power and immersive sound.
Specification
| Power Output | Continuous power output at 0.2% THD per channel |
| Two Channels Driven | 4Ω / 8Ω 20Hz to 20kHz 380W/225W |
| One Channels Driven: 80% Power | 8Ω bridged mode. 20Hz to 20kHz 790W |
| Harmonic Distortion | 80% power 8Ω at 1kHz - 0.001% |
| Input Sensitivity | 200W / 8Ω : RCA Type: 1.15Vrms XLR Type: 2.3Vrms |
| Signal to Noise Ratio (A-wtd) 50W / 8Ω | 110dB |
| Input Impedance | 10kΩ |
| Frequency Response | 20Hz to 20kHz +/-0.05dB |
| Mains Voltage | 110V to 120V or 220V to 240V 50Hz to 60Hz |
| Power Consumption (Maximum) | 1.5kW |
| Power Consumption (Idle, Typical) | 90W (Thermal dissipation approx. 340 BTU/hour) |
| Power Consumption (Standby) | <0.5W |
| Dimensions | Including Feet, Control Knob and Speaker Terminals: Height: 177mm / 6.97" Width: 433mm / 17.05" Depth: 425mm / 16.73" |
| Weight | 18kg / 39.68lb |
Features
- 2 channel power amplifier
- 2 x 380W Class G amplification
- 1 x 790W Class G bridged mode
- Class G amplification with 50W of class A operation
- Toroidal transformer

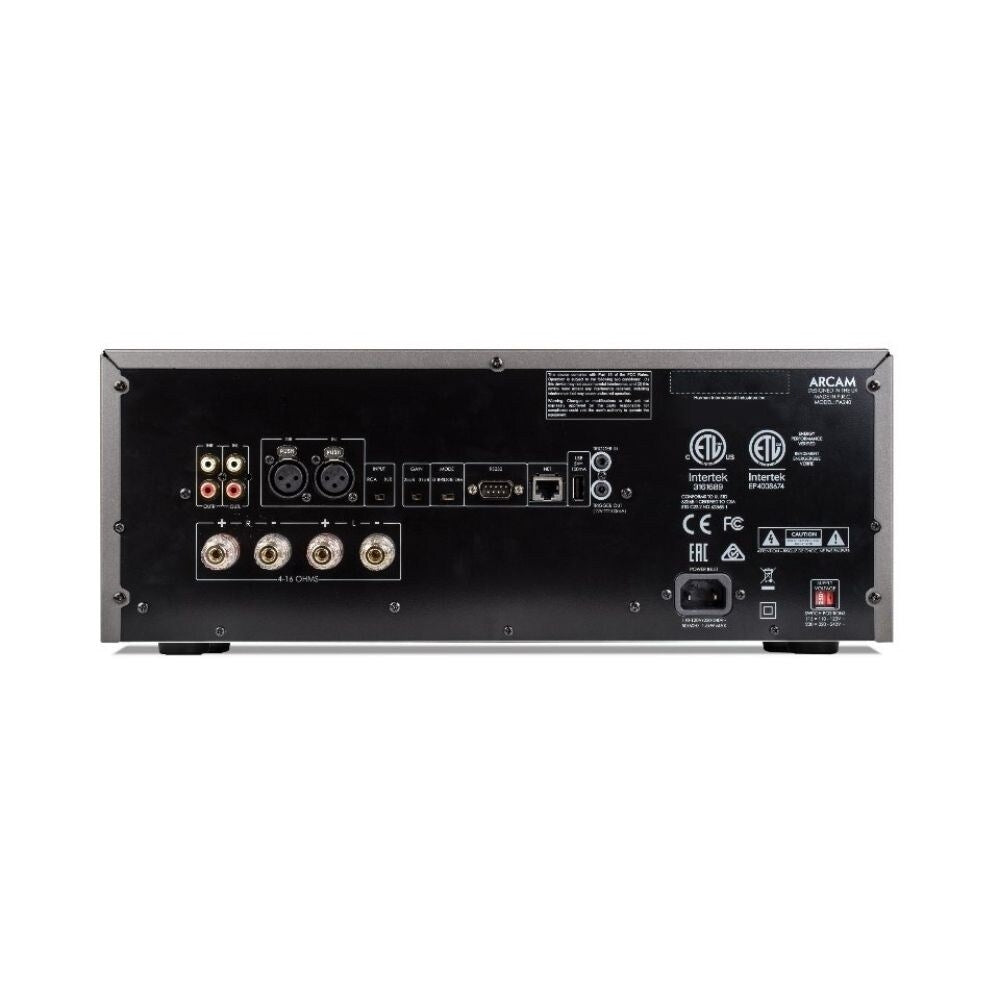

- Stereo, Dual Mono or Bridged operation
- Ethernet and RS232 control
- Switchable RCA or balanced XLR inputs
