Description
The Arcam SA45 is the all in one streaming system for the dedicated music lover. It includes advanced technologies for preserving the most delicate sounds and reproducing music with all its subtleties, nuances and excitement intact. Expertly crafted in Cambridge UK, it is born of Arcam's best ever amplifier, the ARCAM A49, with fully balanced digital and analogue audio paths. Pre Order today for delivery early 2025.
The SA45 is currently available for pre orders only. Delivery is expected for early January 2025. You can order today and yet the exact delivery dates are still to be confirmed.
The Arcam SA45 is the all in one streaming system for the dedicated music lover. It includes advanced technologies for preserving the most delicate sounds and reproducing music with all its subtleties, nuances and excitement intact.
The SA45 is currently available f0or pre orders only. Delivery is expect early January 2025. You can order today and yet the the exact delivery sate are yet to be confirmed
Expertly crafted in Cambridge UK, it is born of Arcam's best ever amplifier, the ARCAM A49, with fully balanced digital and analogue audio paths.
Exquisite sound quality has been achieved through thoughtful engineering of a new 6 layer digital audio and streaming platform which includes a ground plane through the entire board to keep noise and interference away from the sensitive audio components. These components include the latest Hyperstream iV DAC topology from ESS, in a balanced configuration with advanced Jitter elimination. Sound quality is enhanced further with a new linear toroidal transformer power supply design that drives the entirety of the internal operation with lower noise.
This SA45 is the ultimate high resolution audio solution. With outputs for subwoofers, along with Dirac Live Room correction, it has the flexibility to deliver exceptional sound, in any room, with your choice of speakers.
Arcam's 5th generation Class G amplifier design is meticulously crafted so you can expect the best sound quality and dynamics from what has always been a better sounding, and more efficient Class of amplifier. New components and materials have been painstakingly analysed and reviewed to ensure uncompromising sound performance.

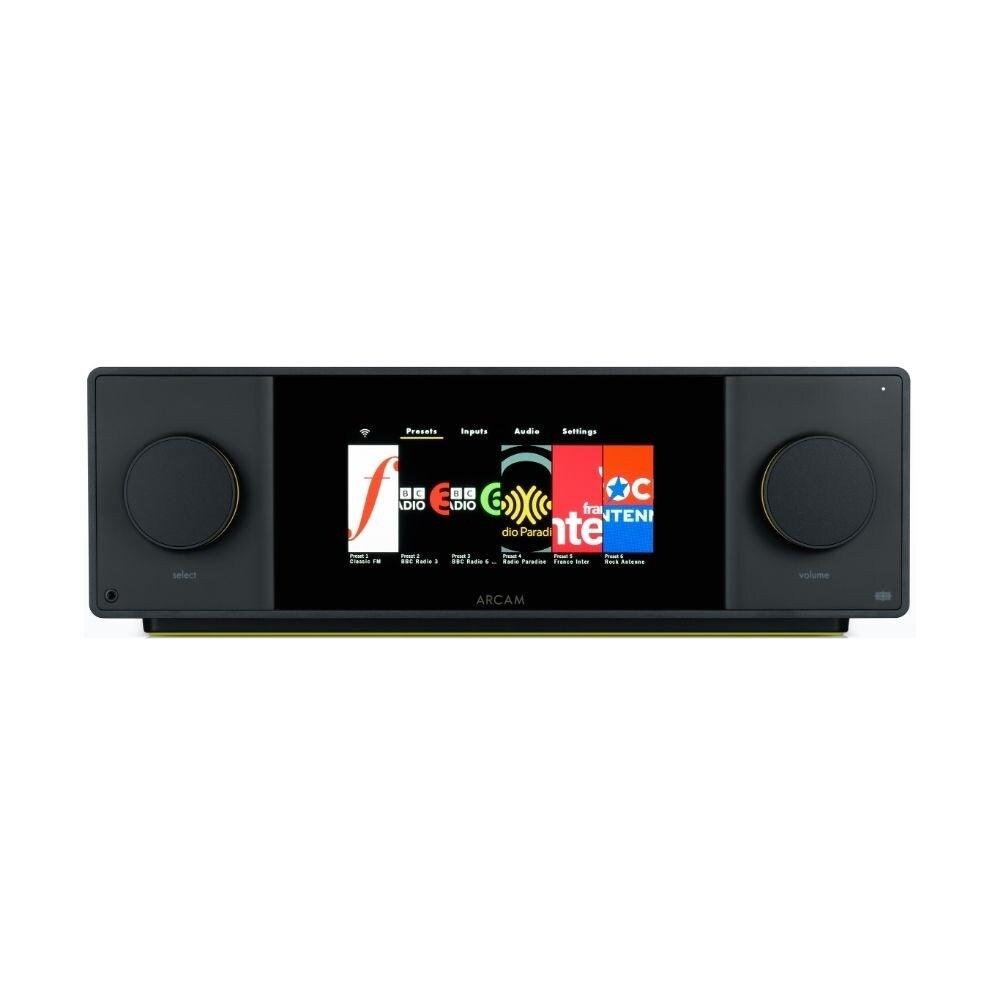

Up front, the SA45 features a large bonded 8.8" high resolution display to show album artwork and metadata.
Connecting this streaming amplifier to your home network with Wi-Fi is quick and straightforward with the Arcam Radia App. Once connected, enjoy instant playback using Apple Airplay, Chromecast, Spotify Connect, Tidal Connect and Roon.
Specification
| Continuous Power Output (0.5% THD), Per Channel | 180W: 2 channels driven, 20Hz to 20kHz, 8Ω 300W: 2 channels driven, 1kHz, 4Ω |
| Harmonic Distortion, 80% Power, 8Ω at 1kHz | 0.002% |
| Frequency Response | 20Hz to 20kHz ±0.05dB filter 1 |
| Supported Streaming Media | FLAC, WAV (LPCM), AAC, ALAC, AIFF, DSD up to 1024 , MP3, MP4, OGG, WMA |
| Supported Streaming Bit Depth | 16, 24 and 32 |
| Supported Streaming Sample Rates (kHz) | Up to 768 kHz |
| Analogue Inputs | 3 x RCA pairs (MM And MC) and 1 XLR pair |
| Digital Inputs | 1 x HDMI ARC, 2 x Coaxial (RCA) and 2 x Optical (Toslink) |
| Supported Digital input Bit depth | 16, 24 |
| Supported Digital input sample rates (kHz) | Up to 192 kHz |
| Bluetooth Profile | 5.2; A2DP Sink/Source, AVRCP, BLE, aptX, aptX HD, aptX Adaptive, AAC |
| Bluetooth Transmitter Frequency and Power | 2,402 MHz to 2,480 MHz: <13dBm |
| Wi-Fi Network | 2.4GHz and 5GHz: IEEE 8002.11 a/b/g/n/ac/ax |
| 2.4G Wi-Fi Transmitter Frequency Range and Power | 2400 to 2483.5 MHz USA 11 Channels, Europe and Others 13 Channels: <20dBm16 |
| 5G Wi-Fi Transmitter Frequency Range and Power | 5150-5250 MHz <23dBm 5250-5350 MHz and 5470-5725 MHz <20dBm 5725 to 5850 MHz <14dBm |
| Power Consumption | Max: 1500W Standby: <0.5W |
| Dimensions | Including Feet and Speaker Terminals: Height: 143mm / 4.63" Width: 431mm / 16.97" Depth: 344mm / 13.54" |
| Weight | 17kg / 37.48lb |
| Included | Mains lead Remote control with 2 x AAA batteries Measurement Microphone 5m USB Cable |
Features
- Ultra high resolution streaming platform delivers exceptional sound quality and user experience
- ARCAM Class G amplification with 2 x 180W of ultra low distortion power
- Balanced analogue and digital audio paths
- MM and MC Phono inputs
- HDMI eARC input
- Dual subwoofer outputs
- Dirac Live Room correction
- High resolution display for clearly visible album artwork and metadata
- Supports Apple Airplay, Chromecast, Spotify Connect and Tidal Connect
- Setup with Arcam Radia App for pre-sets, internet radio and podcasts
- Supports up to 32 bit or 768 kHz hi res audio
- Roon ready, after launch
- Crafted in Cambridge, UK
Please Note: The SA45 is currently available for pre orders only. Delivery is expected for early January 2025. You can order today and yet the exact delivery dates are still to be confirmed.
