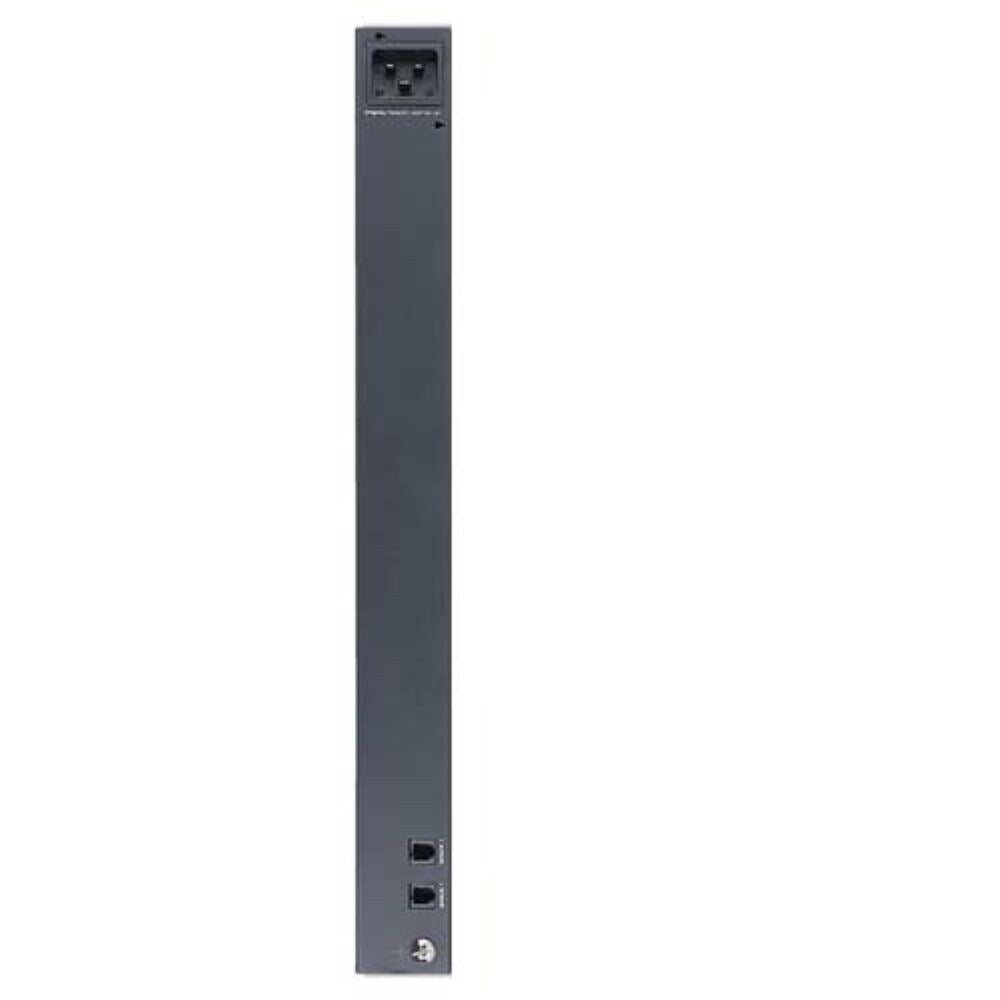

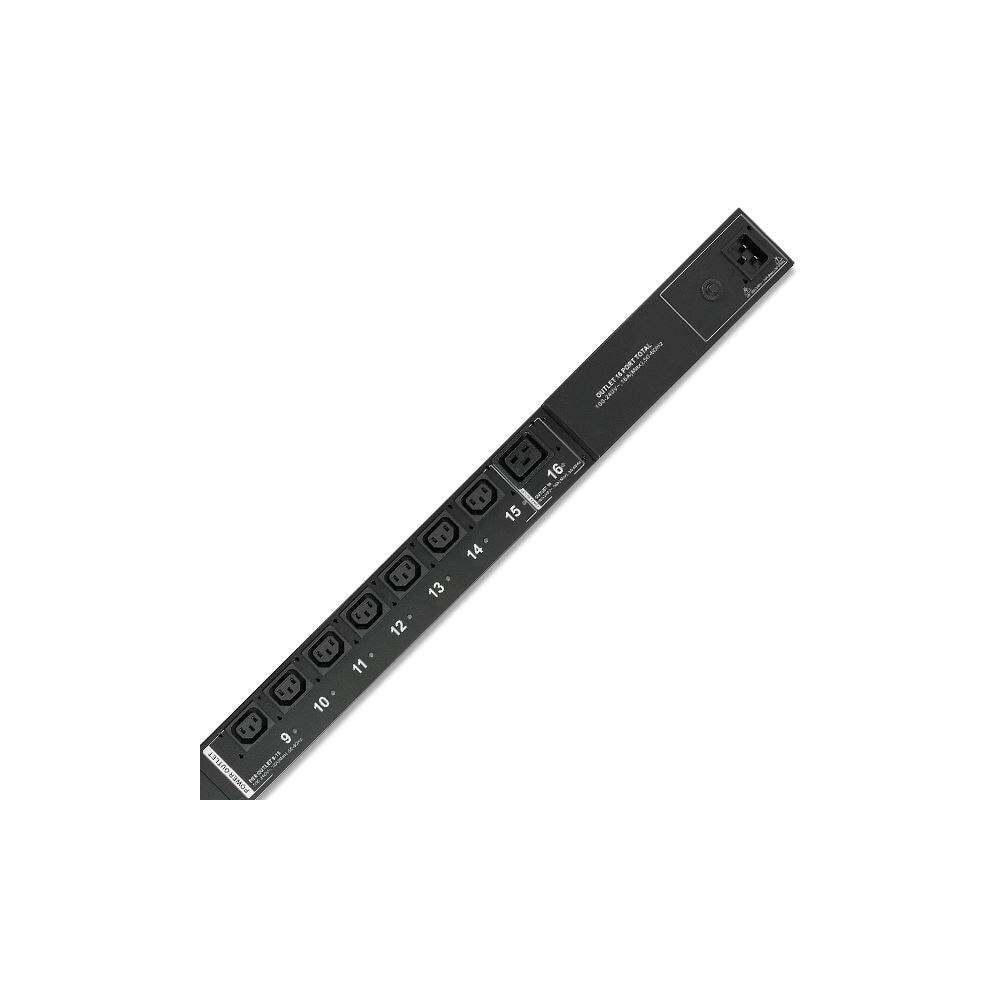

Aten 16 Way 16A Vertical Intelligent Eco Power Distribution Unit, Vertical, 0U

Description:

Aten has developed a new generation of green energy power distribution units to effectively increase the efficiency of data centre power usage. The PE6216G is an intelligent eco PDU that contains 16 AC outlets and is available in various IEC or NEMA socket configurations. It provides secure, centralised and intelligent power management of a data centre IT's equipment in the most efficient and cost effective way possible.

It provides secure, centralised, intelligent and power management (power on, off, cycle) of a data centre's IT equipment (servers, storage systems, KVM switches, network devices, serial data devices, etc.) as well as the ability to monitor the centre's health environment via sensors*.

The PE6216G is switched and metered, allowing the user to remotely monitor load level with a built in meter and avoid any potential overloads. With its advanced security features and ease of operation, this PDU is the most convenient, most reliable and most cost effective way to remotely manage power access for multiple computer installations and allocate power resources in the most efficient way possible.

With its advanced security features and ease of operation, the eco PDU is the most convenient, most reliable, and most cost effective way to remotely manage power access for multiple computer installations and allocate power resources in the most efficient way possible.

The PE6216 eco PDU offers remote power control combined with real time power measurement. This allows the user to control and monitor the power status of devices attached to the PDUs, from practically any location via a TCP/IP connection, either at the PDU device or outlet level.

The power status of each outlet can be set individually, allowing users to switch each device On/Off. The eco PDU also offers comprehensive power analysis reports which, provide precise measurements of current, voltage, power and watt-hour in a real time display.

NRGence eco PDU supports any 3rd party v1, v2 & v3 SNMP Manager Software and ATEN eco Sensors (eco PDU Manager Software). Eco Sensors provides you with an easy method for managing multiple devices, offering an intuitive and user friendly Graphical User Interface that allows you to configure a PDU device and monitor power status of the equipment connected to it.

With its advanced security features and ease of operation, the eco PDU is the most convenient, most reliable, and most cost effective way to remotely manage power access for multiple computer installations and allocate power resources in the most efficient way possible.

* Sensors are optional accessories. A sensor enabled installation is required to generate a more complete energy efficient data and chart.

Features:

Power Distribution

• Space saving rack mount design with rear mounting
• IEC or NEMA outlet models
• 3 x 7 segment front panel LED shows Current, IP Address for PDU, Bank
• Remote users can monitor PDU or Bank status via web pages on their browsers
• Safe shutdown support
• Separate power for the unit's own power and its power outlets
• The user interface is still accessible even when an overload condition trips the devices' circuit breaker

Remote Access

• Remote power control via TCP/IP and a built in 10/100 Ethernet port
• Network Protocols: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, auto sense, Ping
• eco PDU Power Management software
• Supports SNMP Manager V1, V2 & V3

Operation

• Local and remote power outlet control (On, Off, Power Cycle) by individual outlets
• Supports multiple power control methods such as Wake on LAN, System After AC Back, Kill the Power
• The power on sequence and delay can be set for each port to allow equipment to be turned on in the proper order
• Easy setup and operation via a browser based user interface
• Multi browser support (IE, Mozilla, Firefox, Chrome, Safari, Opera, Netscape)
• RTC support to keep the timer running during times of no power
• Up to 8 user accounts and 1 administrator account

Management

• Power status measurement at the PDU/Bank level
• LED indicators for current and IP address at the PDU device and/or Bank levels
• Real time aggregate current, voltage, and power and power dissipation displayed in a browser based UI for monitoring at the PDU level
• Environment monitoring. Supports external temperature, humidity and differential pressure sensors for rack environment monitoring
• Current and voltage threshold setting
• Naming support for outlets
• User outlet access assignment on an outlet by outlet basis
• Event logging and syslog support
• Upgradeable firmware
• Multilanguage support available

Security

• Two level password security
• Strong security features include strong password protection and advanced encryption technologies of 128 bit SSL
• Remote authentication support: RADIUS

eco Sensors Energy Management Software*

• Automatic discovery of all PE devices within the same intranet
• Remote real time power measurement and monitoring
• Remote real time environment sensor monitoring
• Plotting/monitoring of all PE devices
• Exceed threshold alert through SMTP and System log
• Power analysis report

*eco Sensors is designed to work with NRGence™ PDUs, and is bundled with all PE series packages

Specifications:
