Description

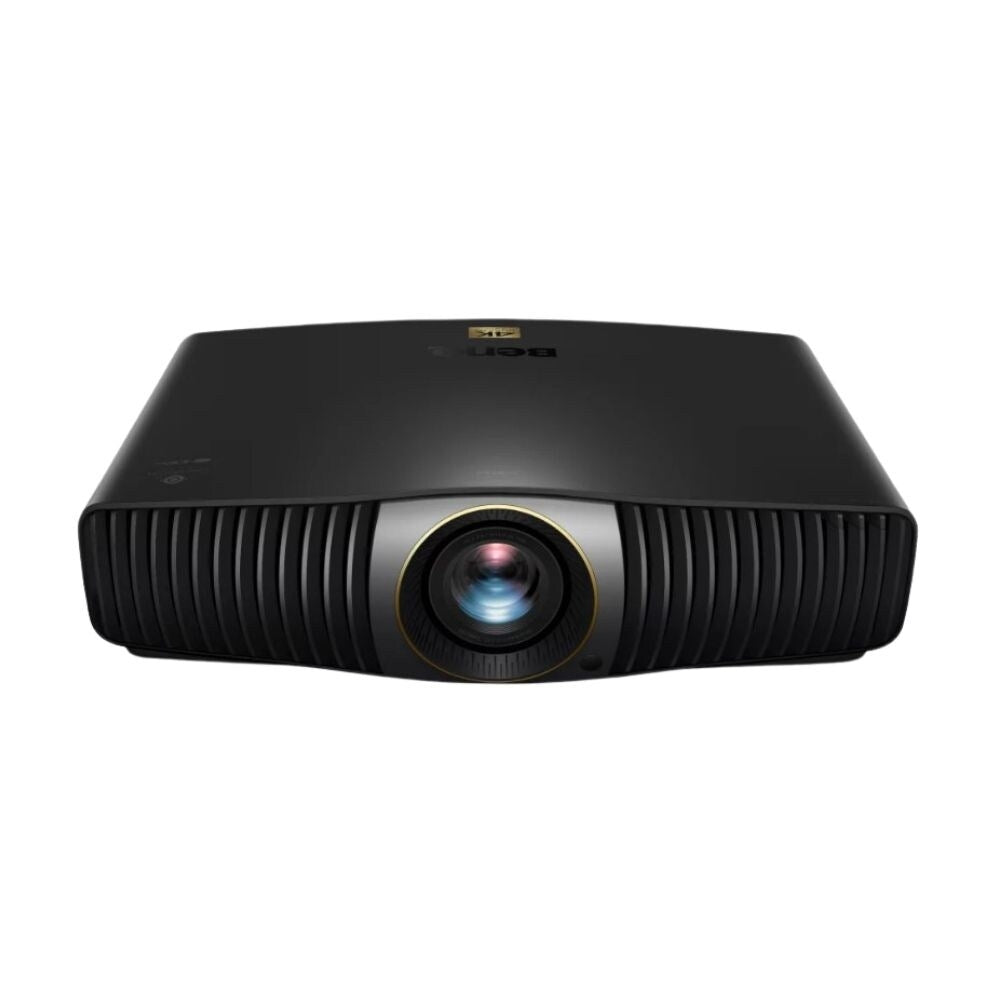

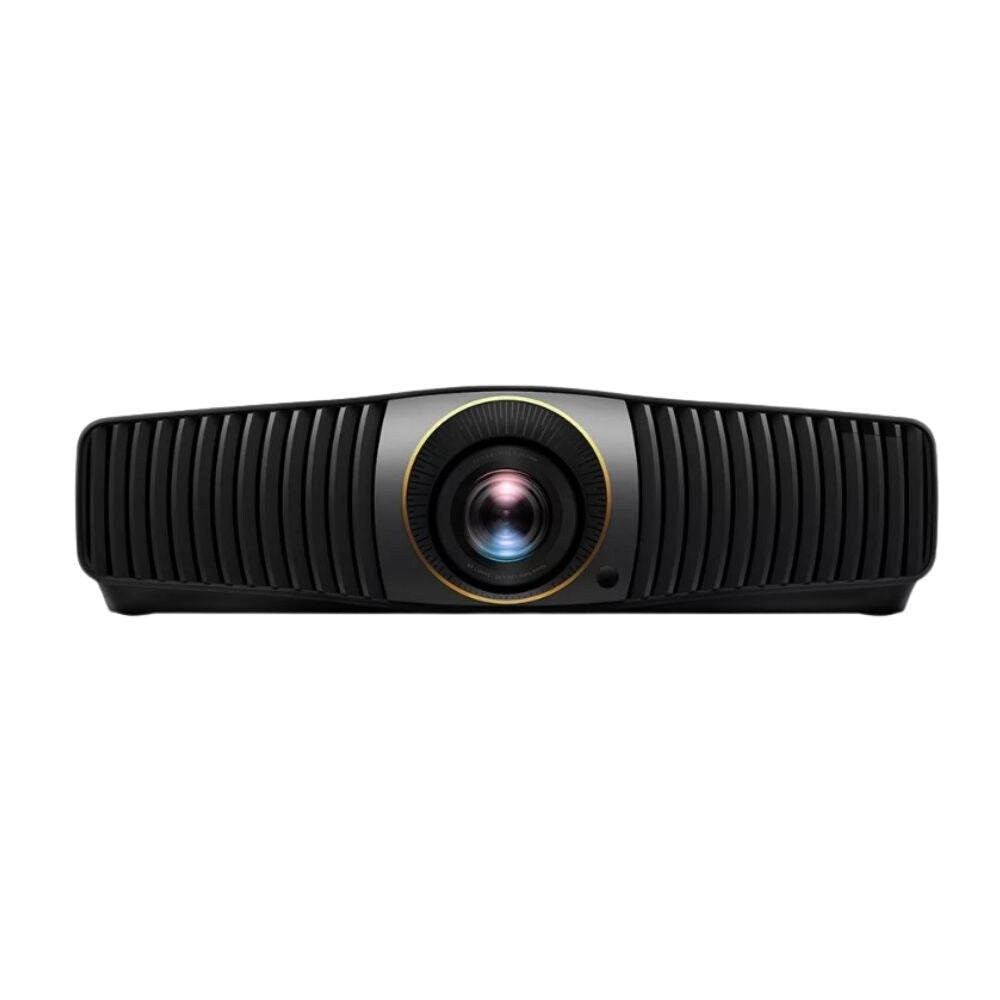

The W5800 Home Cinema Projector from BenQ features a ground breaking laser array light source, presenting a breath taking 4K image with an impressive brightness of 2,600 lumens for vivid colour and clarity.
The W5800 Home Cinema Projector from BenQ features a ground breaking laser array light source, presenting a breath taking 4K image with an impressive brightness of 2,600 lumens for vivid colour and clarity. Experience a 200" screen with laser sharp clarity. Precision calibrated for 100% DCI-P3 colour coverage and Delta E <1 colour accuracy, the W5800's installation features allows easy upgrade of your entertainment.
Faithfully reproduce images the way the artist intended, this Home Cinema Projectors with CinematicColor super wide 100% DCI-P3 and 100% Rec.709 colour space delivers precise colours to perfectly preserve what the directors envisioned. Individual factory calibration reports assure 100% Rec.709 Delta E<1 and the entire grayscale tracking Delta E<2 which optimized DCI-P3 colour table for true Hollywood colours.
Acclaimed ISFccc® calibration customises image and colour performance for any space, along with pre-set day/night light balance modes.
BenQ's high end cinema projectors provide advanced colour temperature tuning with leading 11 levels of white balance controls between high to low brightness, enabling content fans to adjust to the most accurate colours in mid-tone colours.
Most movies are shot at 24 frames per second (fps). In order to display movies exactly as the director intended, the W5800 supports 24P playback that accepts high definition sources at 24 fps without judder in HDR mode to preserve the purity of the original image.
Utilising an all glass lens system featuring 14 element 7 group coated with low dispersion materials, the projector has superior transparency to greatly reduce colour difference, fully displaying 4K image clarity. Applying the industry leading Local Contrast Enhancer (LCE) algorithm to divide images into 1,000+ zones, LCE analyses each segment's brightness and adjusts gamma independently for greater dark and bright detail definition and enriched image depth.
The 1.6x optical motorized zoom enables effortless adjustment of the projector's throw ratio for flexible screen placement. Unlike digital zoom, the optical zoom preserves image quality without pixel decay and latency. The W5800 employs 2D lens shift (±50% vertical and ±21% horizontal) to provide perfectly straight edged images without loss of resolution, allowing more flexible installation and placement options.
Specifications:
| Projection System | DLP | |
| DMD Type | 0.47" | 0.65" |
| Native Resolution | 4K UHD (3840 x 2160) | |
| Brightness | 2600 ANSI Lumens | |
| Contrast Ratio (FOFO) | 2,000,000:1 (w/ Lightsource Dimming), | |
| Display Colour | 30 Bits (1.07 billion colours) | |
| Aspect Ratio | Native 16:9 (4 aspect ratio selectable) | |
| Light Source | Laser Life: Normal 20,000 hrs Economic 25,000 hrs |
|
| Throw Ratio | 1.52 to 2.45 100" @ 1.8m~2.2m | |
| Zoom Ratio | 1.6X | |
| Lens | F/# 2.1 ~ 3.0 , f 16.0 (Wide) ~25.7 (Tele) mm | |
| Keystone Correction | 2D, Manual Vertical & Horizontal ± 35 degree | |
| Lens Shift | Vertical ±50%, Horizontal ±21% (Motorized with rectangular shape) | |
| Projection Size (Clear Focus / Maximum) | 60" to 200" / 300" | |
| Picture Mode | ISF Disabled: Bright / Bright Cinema / Cinema / FILMMAKER MODE / 3D / User / HDR10 / HDR10+ / HLG ISF Enabled: Bright / Bright Cinema / Cinema / FILMMAKER MODE / ISF Night / ISF Day |
|
| HDR10 | Yes | |
| HLG | Yes | |
| ISF | Yes | |
| LAN control | Yes | |
| Resolution Support | VGA (640 x 480) to 4K UHD (3840 x 2160) | |
| Horizontal Frequency | 15K to 135KHz | |
| Vertical Scan Rate | 23 to 240Hz | |

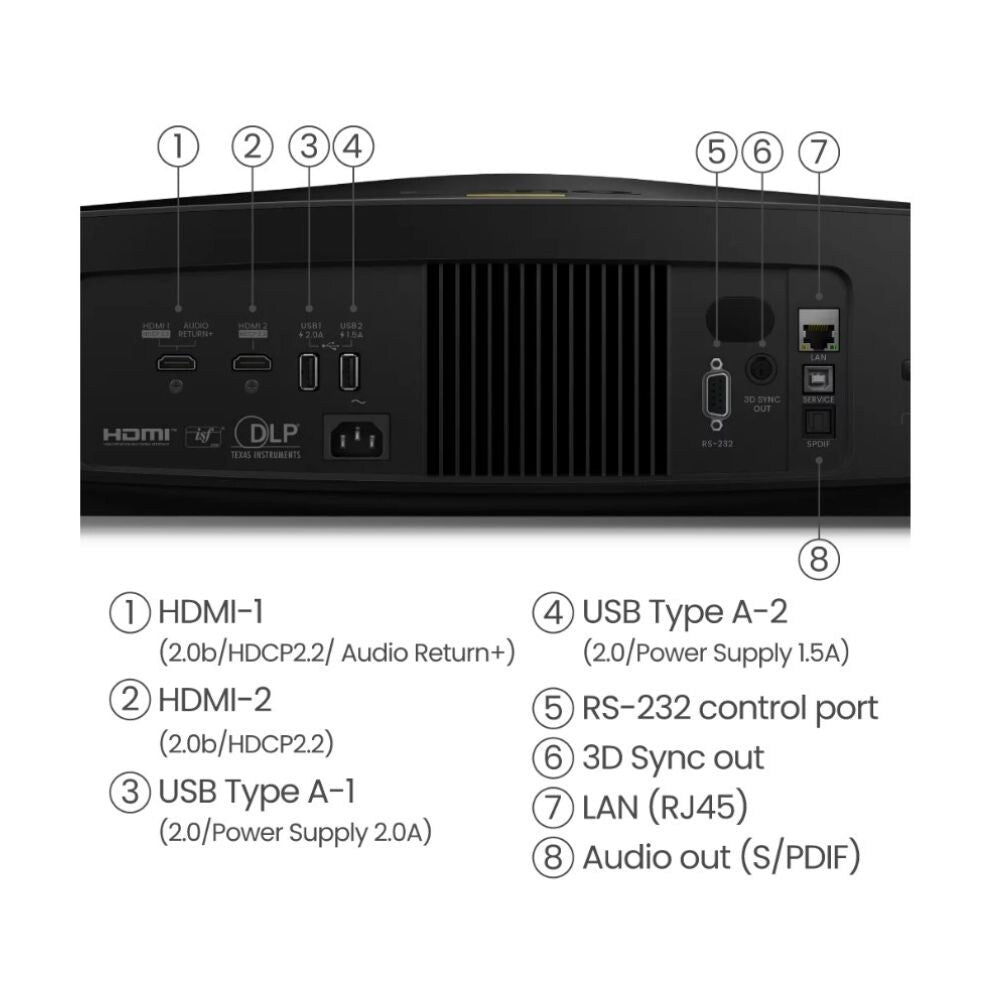

| HDMI 2.0b HDCP2.2 | x 2 | |
| USB 2.0 Type A Port Media Reader | x2 | |
| USB Type B Port Firmware Upgrade | x1 | |
| RS232 In D Sub 9 Pin, Male | x1 | |
| Audio Out SPDIF | x1 | |
| Noise Level | Normal: 30dBA Eco: 27dBA |
|
| Power Supply | VAC 100 to 240 (50/60Hz) | |
| Power Consumption | Max: 450W Normal: 380W Eco:240W Standby: 0.5W Max at 100 to 240VAC Network: <2W |
|
| Security Updates | W5800 Guaranteed product security updates until 31.12.2027 | |
| Dimensions | Height: 145.7mm / 5.73" Width: 525.2mm / 20.67" Depth: 392.2mm / 15.44" |
|
| Weight | 10.5kg / 123.14lb |
Features:
- Laser precision for unmatched visuals
- Easy upgrade to a 200" 4K home cinema
- CinematicColor DCi-P3 for colours as directors envisioned
- Out of Box colour accuracy and ISFccc® certified
- Exclusive colour temperature tuning
- Filmmaker Mode with 24 fps support
- 4K clarity through all glass Lens
- HDR Tone Mapping
- Locally enhanced shadows and highlights
- 1.6x motorised zoom and 2D lens shift
User guides
Download User Guides:
Data Sheet
Technical Drawing
BenQ Solutions Brochure
User Manual
Ceiling Mount Fixing Points
