Description

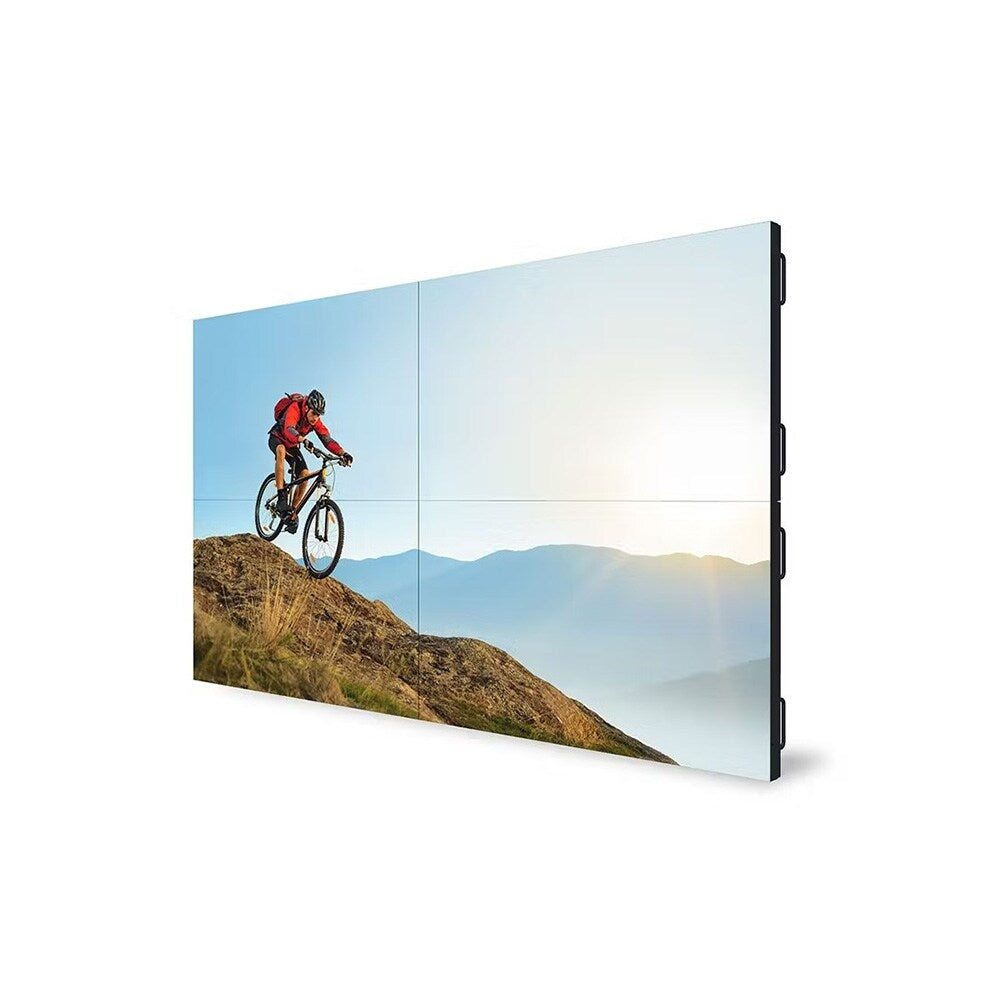

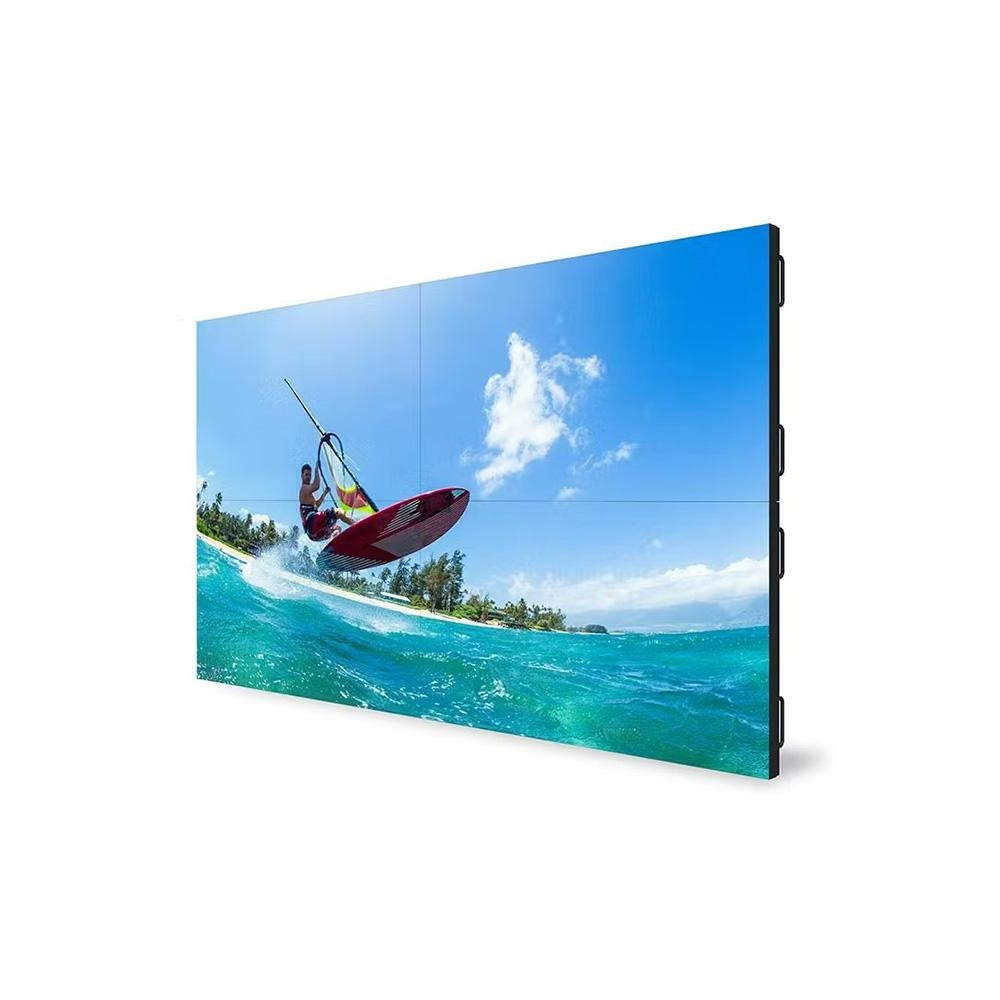

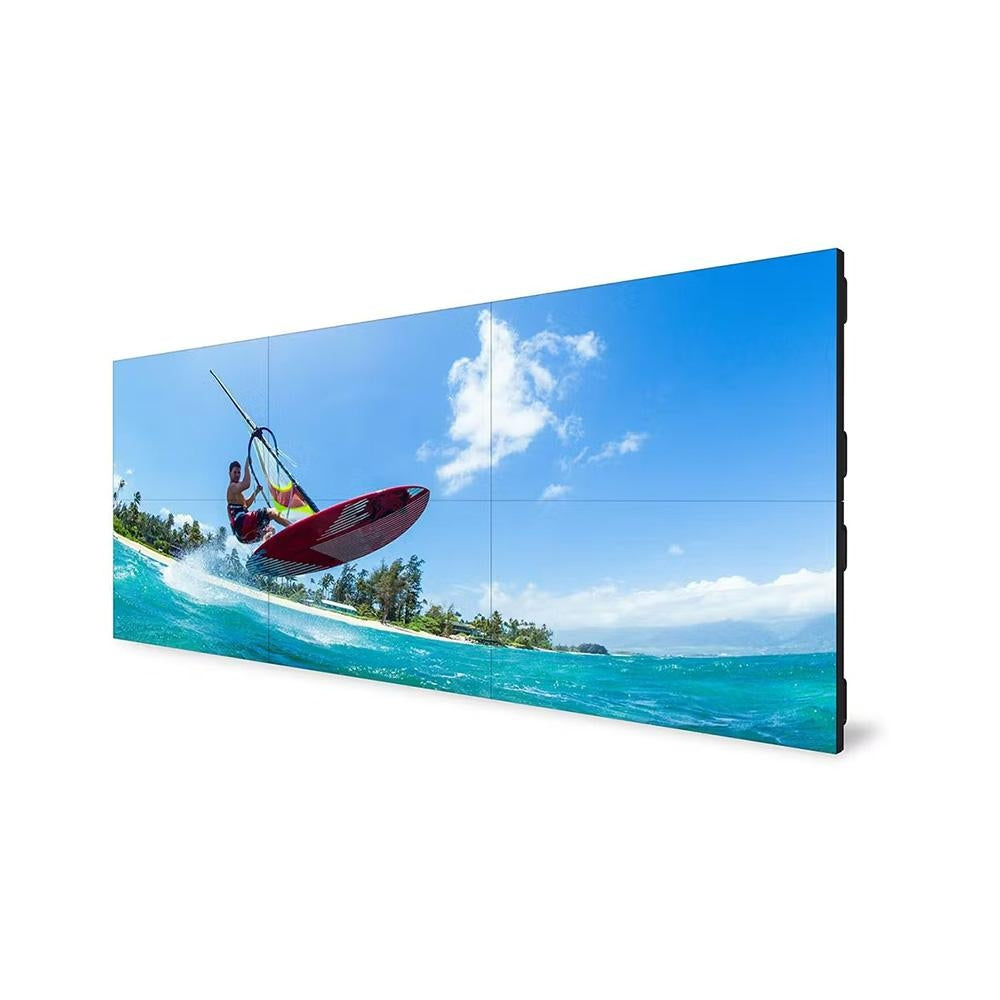

With the latest technology, advanced performance and intelligent design Christie's FHD554-XZH has an extremely narrow bezel width of 0.44mm or 0.88mm combined, that results in a near seamless display that doesn't interfere with viewing ability. Therefore your video wall will always look stunning.
With the latest technology, advanced performance and intelligent design Christie's FHD554-XZH has an extremely narrow bezel width of 0.44mm, or 0.88mm combined, that results in a near seamless display that doesn't interfere with viewing ability.
Featuring an OPS slot, these panels accept a variety of embedded processing modules, such as Christie Phoenix® EP, for a complete video wall solution perfect for critical viewing environments.
Additional built in processing includes video wall scaling, bezel compensation, staggered power up and more.
Christie's latest platform supports 4K UHD signals at 60Hz on large tiled video walls.
Each panel is factory calibrated and matched to ensure image uniformity across the entire video wall for fast and easy installation and setup.
This panels deliver commercial grade LCD with LED backlight and high bandwidth input supports 4K UHD resolution at 60Hz for less flicker and better video quality. It provides HDMI 2.0 and DisplayPort 1.2 inputs with HDCP 2.2 compliance enable streaming of 4K content and DisplayPort 1.2 output allows for 4K UHD at 60Hz sources to be daisy chained up to 25 panels. There is built in scaling supports 4K signals across video walls up to 10x10 configurations
Therefore your video wall will always look stunning.
Specifications:
Screen Size | 55" |
Ratio | 16:9 |
Native Resolution | 1920x1080 |
Backlight | Direct lit LED |
Bezel Size | 0.88mm combined |
Brightness | 700 nits (cd/m2) |
Display Orientation | Portrait and landscape |
Runtime | 24/7 |
VESA Fixing | 400 x 400mm M8 |
Signal Inputs | 2 x HDMI (Ver 2 HDCP 2.2) 2 x DisplayPort (Ver 1.2, HDCP 2.2) |
Signal Outputs | DisplayPort: Daisy chains DisplayPort, HDM and DVI inputs up to 25 panels from one source |
Control Inputs | RS-232 via D-Sub9 Ethernet via RJ45 Keypad IR window IR wire extender |
Power Consumption | 205W typical 280W maximum <= 0.5W standby |
Dimensions | Without handle: Height: 684.4mm / 26.9 " Width: 1213.6mm / 47.8" Depth: 98.7mm / 3.9" |
Weight | 28kg / 62lb |
Features:
- 700 nit brightness and 24/7 operation
- Ultra narrow 0.88mm combined bezel width
- Portrait or landscape orientation
- Commercial grade LCD with LED backlight
- High bandwidth input supports 4K UHD resolution at 60Hz for less flicker and better video quality
- HDMI 2.0 and DisplayPort 1.2 inputs with HDCP 2.2 compliance enable streaming of 4K content
- DisplayPort 1.2 output allows for 4K UHD at 60Hz sources to be daisy chained up to 25 panels
- Built in scaling supports 4K signals across video walls up to 10x10 configurations
- OPS slot for flexible integration of various sources
