Description
Description:

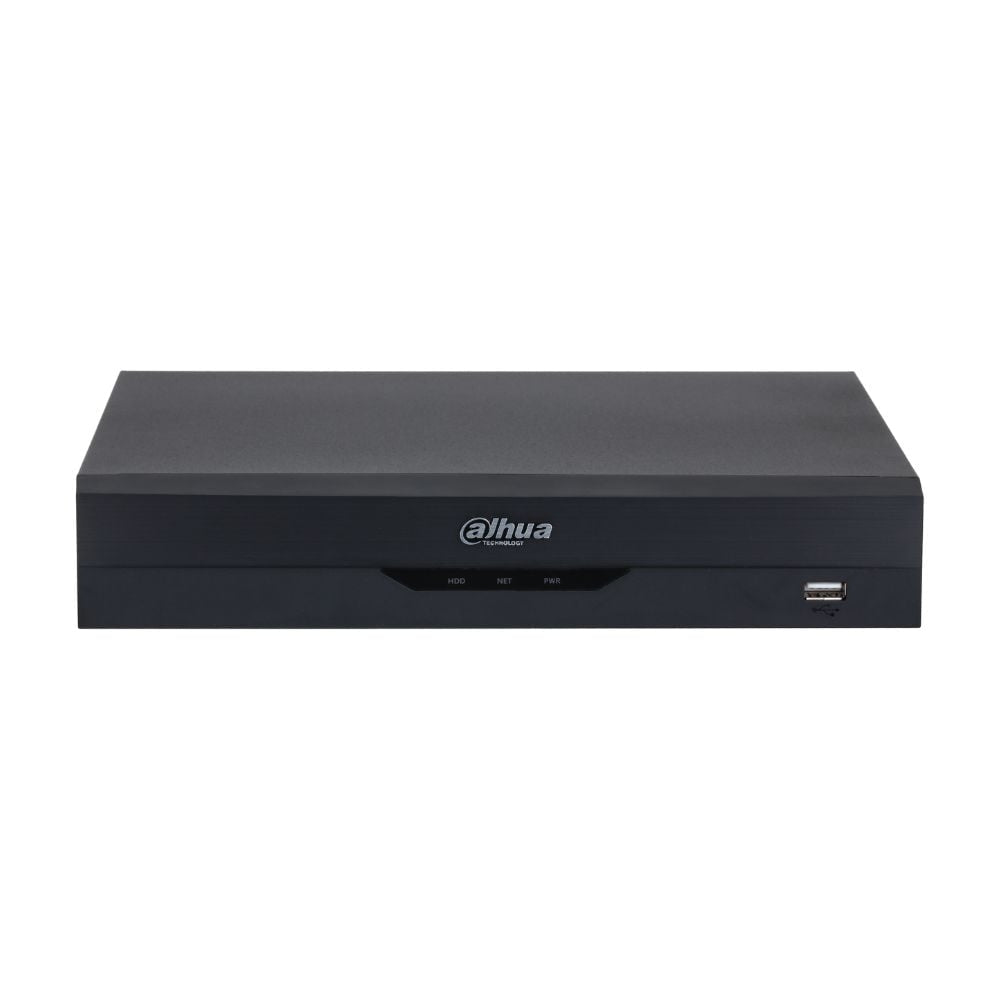

The Dahua NVR4104-HS-P-EI offers outstanding performance and high grade recording technology that make it ideal for IP video surveillance applications. It has a powerful processor, that offers high access and forwarding bandwidth and strong decoding capabilities that together produce unimpeded streams. Thanks to its built in AI chip and Dahua's advanced deep learning algorithms, the NVR supports a variety of AI functions, such as high precision face recognition and perimeter protection.
Dahua Smart Motion Detection technology can categorise the targets that trigger motion detection and filter the motion detection alarm triggered by non concerned targets to realise effective and accurate alarm.
With AI functions including Perimeter Protection, automatically filtering out false alarms caused by animals, rustling leaves and bright lights, etc. this enables the system to perform secondary recognition for the targets, hence improving alarm accuracy.
Face detection is there to detect if there are any human faces appearing in the video. This technology adopts a deep learning algorithm to support face detection, tracking, optimisation and capturing and then output the best face snapshot. With Face Recognition technology this NVR extracts the features of captured faces and compares them with those in a face database to recognise a persons identity.
With SMD Plus, Dahua Smart Motion Detection technology can categorise the targets that trigger motion detection and filter the motion detection alarm triggered by non concerned targets to realise effective and accurate alarm.
Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions ideal for IP video surveillance applications.
Features:
- Smart H.265+, H.265, Smart H.264+, H.264, MJPEG decoding format
- Access, storage or forwarding at 80 Mbps
- Max. decoding capability of 16 x 1080p@30 fps. Supports adaptive decoding
- AI by NVR with 1 channel face detection and recognition, 2 channel perimeter protection, up to 10 face databases and 20,000 face images. 4 channel SMD Plus
- AI by Camera with face detection and recognition, perimeter protection
- SMD Plus people counting; Stereo analysis and heat map
Specifications:
| Channels | 4 |
| Hard Drives | 1 SATA ports. Each Disk can contain up to 16TB Limit depends on environment temperature. |
| Network | |
| Interface | 1 RJ-45 ports (10/100/1000Mbps) |
| PoE | 4 ports (IEEE802.3af/at) |
| Network Bandwidth | 80 Mbps incoming 80 Mbps recording 80 Mbps outgoing |
| Interoperability | ONVIF 22.06 (Profile T; Profile S; Profile G); CGI; SDK |
| Auxiliary Interface | 2 USB (1 front USB 2.0 port, 1 rear USB 2.0 port) , RS232 and RS485 |
| Video Output | Interface: 1 HDMI, 1 VGA HDMI: 3840 x 2160 , 1920 x 1080 , 1280 x 1024, 1280 x 720 VGA: 1920 x 1080 , 1280 x 1024, 1280 x 720 |
| Camera Compatible Resolution | 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 1080p; 720p; D1; CIF; QCIF |
| Decoding Capability |
AI disabled: 2 channel 16 MP@30 fps; 2 channel 30MP@30 fps; 4 channel 8 MP@30 fps; AI enabled: 1 channel 16 MP@30 fps; 2 channel 12 MP@30 fps; 3 channel 8MP@30 fps; 4 channel 5 MP@30 fps; |
| Recording Bandwidth | Bit rate: 16Kbps to 20Mbps per channel Compression: Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Power | 53 VDC 1.226A Consumption: NVR: <10W without HDD PoE: Max 25.5W for single port 36W total rated power |
| Dimensions | Height: 47.6mm / 1.87" Width: 260mm / 10.24" Depth: 232.7mm / 9.16" 1U |
| Weight | 0.86kg / 1.9lb without HDD |
| Certifications | FCC: 47 CFR FCC Part15, Sub part B, Class A CE-EMC: EN 55032: 2015+A1: 2020; EN IEC 61000-3-2: 2019+A1: 2021; EN 61000-3-3:2013+A1: 2019+A2: 2021; EN 55035: 2017+A11: 2020; EN 50130-4: 2011+A1: 2014 CE-LVD: EN 62368-1: 2014 |
| Hard Drives | |||||
| Digital Storage Capacity | 2TB | 4TB | 6TB | 8TB | 10TB |
| Hard Disk Interface | SATA 6 Gb/s | SATA 6 Gb/s | SATA 6 Gb/s | SATA 6 Gb/s | SATA 6 Gb/s |
| Hard Disk Form Factor | 3.5" | 3.5" | 3.5" | 3.5" | 3.5" |
| Installation Type | Internal hard drive | Internal hard drive | Internal hard drive | Internal hard drive | Internal hard drive |
| Cache | 256Mb | 256Mb | 256Mb | 256Mb | 256Mb |
| MPN | ST2000VX015 | ST4000VX016 | ST6000VX009 | ST8000VE001 | ST10000VE001 |
