Description
Description:

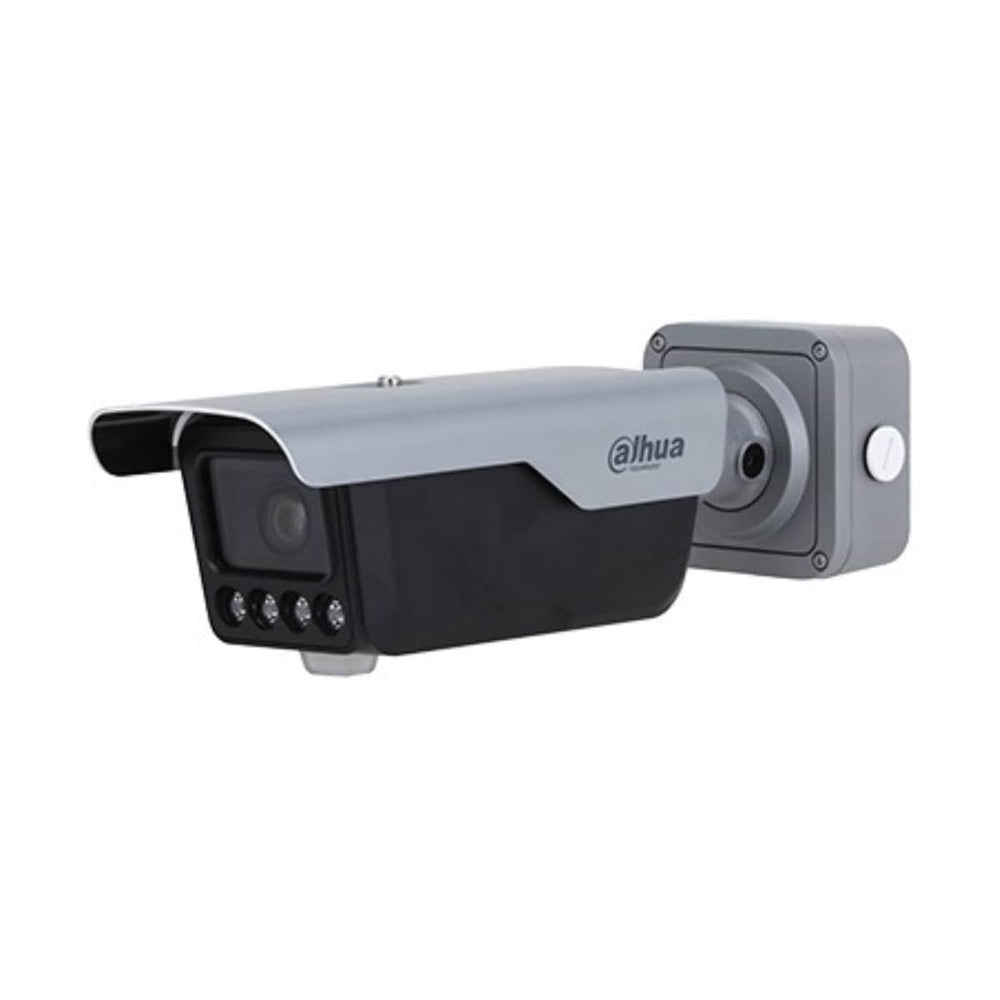

The ITC413-PW4D-IZ1 Smart ANPR Camera from Dahua can recognise vehicles, license plates, vehicle brands and vehicle colours. It can be used in scenarios that require vehicle detection and recognition. It also uses IVS to detect events and triggers sound and light alarms. The camera can perform various functions without being connected to other devices, which not only greatly improves the security of your home or secure areas, but also simplifies the installation process.
With its intuitive CMOS image sensor, the camera has WDR, a high signal to noise ratio and is highly sensitive to producing vivid images 24/7, making it ideal for use in the traffic industry. This camera recognises 147 vehicle logos and 10 vehicle types. Ideal for scenarios where license plate recognition is needed, the camera is capable of capturing more than ten different types of traffic violations, and supports traffic information collection and event detection. It is suitable for road scenarios.
Its impressive performance with the high performance CPU processor extracts and analyses information on motor and non motor vehicles in real time, providing valuable information on their features. This information is useful for effective decision making.
Resilient and versatile, the ITC413-PW4D-IZ1 is uniquely designed with an illuminator, junction box and more integrated into its structure. It is IP67 rated and has low power consumption, making it suitable for harsh environments.
Features:
- High performance CMOS image sensor and processor that supports continuously extracting metadata 24/7
- Adopts intelligent deep learning algorithms and supports recognition of unlicensed vehicles and the type, brand and colour of vehicles
- Built in signal port, data port, communication port and remote controllers assist in controlling external devices such as entry and exit barriers
- Built in LED for simplified installation and commissioning
- All in one structure with junction box and bracket, and it is also low power consumption
- IP67 and IK10 rated
- Supports intrusion and loitering detection and triggers light and voice alarms when perimeter events occur to actively deter targets
- Custom audios can also be imported and edited
- Easily adapts to scenarios through its motorised varifocal lens
Specifications:
| Image Sensor | 1/1.8" CMOS |
| Effective Pixels | 2688(H) x 1520(V) 4MP |
| Min. Illumination | 0.001 Lux@F1.4 (Colour, 30 IRE) 0.0002 Lux@F1.4 (B/W, 30 IRE) |
| IR Distance | ANPR 10m / video monitoring 30m |
| Lens Type | 2.7mm to 12mm motorised Vari -Focal |
| Field of View | H: 92° (W)-46.1° (T) V: 49° (W)-26.0° (T) D: 109° (W)-52.8° (T) |
| Max Detection Speed | 80 km/h 49mph |
| Focal Length | 2.7mm to 12mm |
| DORI Distance - T | Detect: 128.7m Observe: 51.5m Recognise: 25.7m Identify: 12.9m |
| DORI Distance - W | Detect: 60.4m Observe: 24.2m Recognise: 12.1m Identify: 6.0m |
| Video Compression | H.264H, H.264B, H.264M by Default ;H.265, MJPEG and H.264M |
| Stream Capability | 3 |
| Finish | Grey |
| PoE | 12V DC/PoE (802.3at) |
| Power | Basic: 6W Max.: 20W |
| Operating Conditions | -40°C / -40°F to +70°C / 158°F |
| Protection Rating | IP67 |
| Dimensions |
Height: 127.8mm / 5.03" Width: 120.8mm / 4.76" Length: 395mm / 15.55" |
| Weight | 2.3kg/ 5.07lb |
| Certification | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B |
User guides
Download User Guides:
Datasheet
Technical Drawing
User Manual
Operation Manual
Installation Guide
Installation and Configuration Guide
