Description
Description:

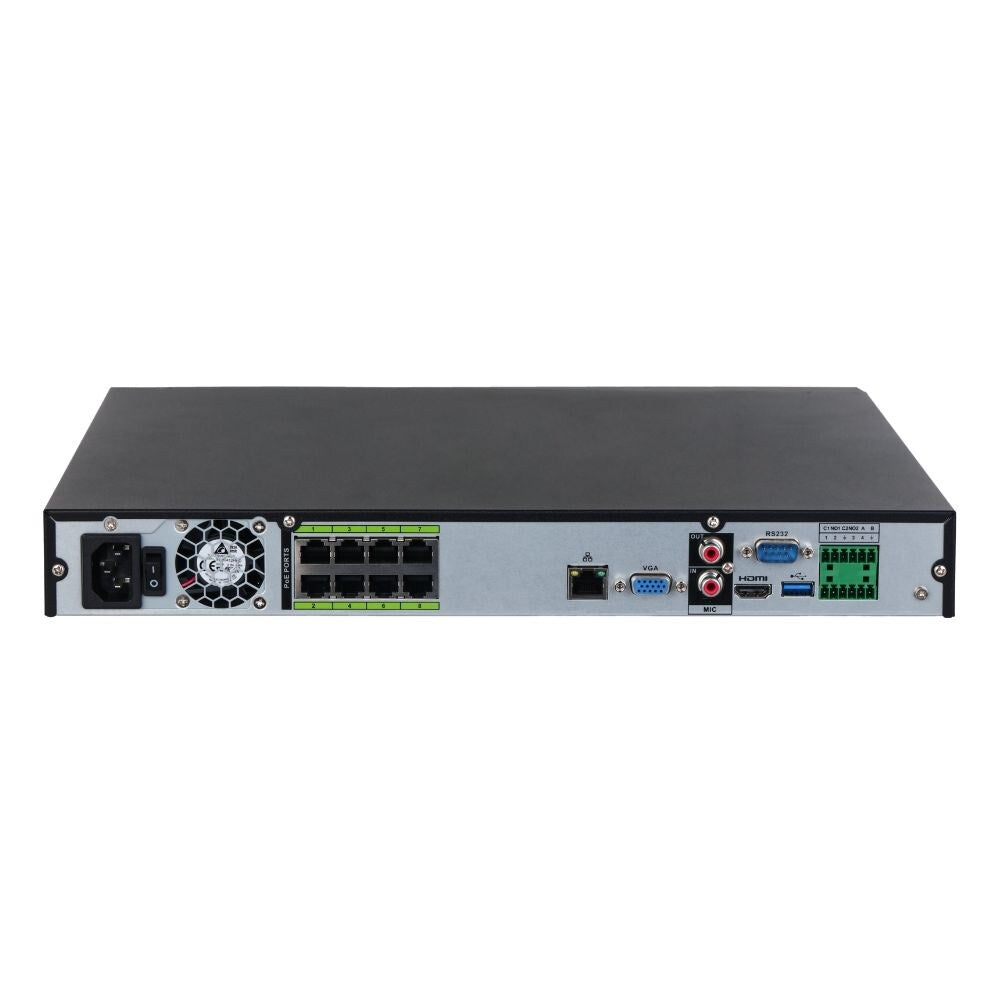

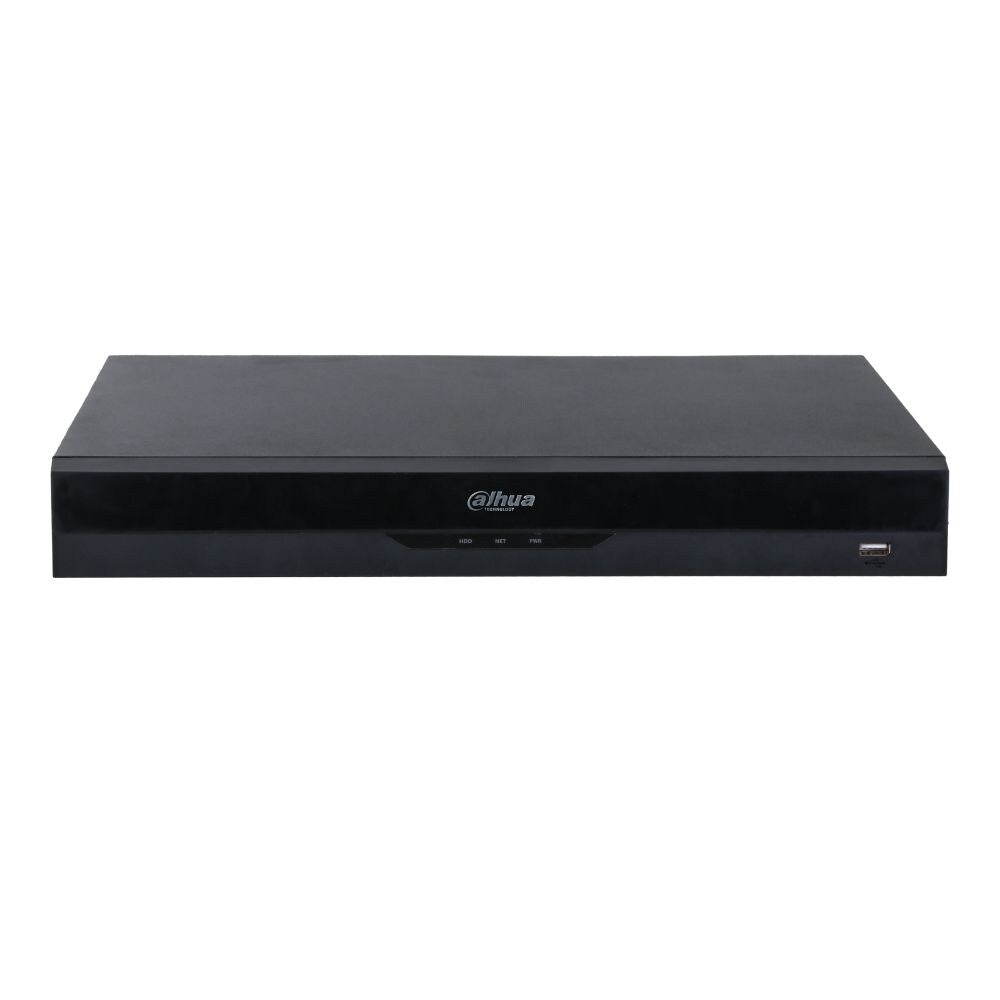

The Dahua NVR5208-8P-EI offers outstanding performance and high grade recording technology, which makes it ideal for IP video surveillance applications. It has a powerful processor offering high access and forwarding bandwidth and strong decoding capabilities that together produce unimpeded streams. Due to its built in AI chip and Dahua's advanced deep learning algorithms, this NVR support a variety of AI functions, such as high precision face recognition and perimeter protection.
Dahua Smart Motion Detection technology can categorise the targets that trigger motion detection and filter the motion detection alarm triggered by non concerned targets to realise effective and accurate alarm.
With AI functions including Perimeter Protection, automatically filtering out false alarms caused by animals, rustling leaves and bright lights, etc. this enables the system to perform secondary recognition for the targets, hence improving alarm accuracy.
Face detection detects if there are any human faces appearing in the video. This technology adopts a deep learning algorithm to support face detection, tracking, optimisation and capturing and then output the best face snapshot. With Face Recognition technology this NVR extracts the features of captured faces and compares them with those in a face database to recognise a persons identity.
With AcuPick this industry leading search technology effectively utilises both front end and back end intelligence to help with searching through massive video data to quickly and conveniently locate targets with greater precision.
Dahua's ANPR technology can recognise the number plate information of vehicles in the image with ANPR cameras. Supporting blocklist and allow list mode, enabling searching target vehicles from recorded video.
Based on Dahua's advanced technologies, the WizSense Series provides intelligent, simple and inclusive products and solutions ideal for IP video surveillance applications.
Features:
- Smart H.265+, H.265, Smart H.264+, H.264, MJPEG decoding format
- Max. decoding capability is 32 x 1080p@30 fps or 16 x 4MP@30 fps
- Max. 384 Mbps incoming, recording, outgoing bandwidth
- Support AcuPick with max. 8 Channel.
- AI by recorder with 2 channel face detection and recognition, 4 channel perimeter protection and 8 channel SMD Plus
- AI by camera with face detection and recognition and perimeter protection
- SMD Plus, metadata, ANPR and people counting.
Specifications:
| Channels | 8 |
| Hard Drives | 2 SATA Ports. Each dsk can contain up to 16TB Limit depends on environment temperature. |
| Network | |
| Interface | 1 RJ-45 Ports (10/100/1000Mbps) |
| PoE | 8 ports (IEEE802.3af/at) 1 to 8 ports support ePoE |
| Network Bandwidth | AI disabled: 384 Mbps incoming 384 Mbps recording and 384 Mbps outgoing AI enabled: 200 Mbps incoming 200 Mbps recording and 200 Mbps outgoing |
| Interoperability | ONVIF 22.06 (Profile T; Profile S; Profile G); CGI; SDK |
| Auxiliary Interface | 2 USB - 1 front USB 2.0 port, 1 rear USB 3.0 port , RS232 and RS485 |
| Video Output | Interface: 1 HDMI, 1 VGA HDMI: 3840 x 2160 , 1920 x 1080 , 1280 x 1024, 1280 x 720 VGA: 1920 x 1080 , 1280 x 1024, 1280 x 720 |
| Camera Compatible Resolution | 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 1080p; 720p; D1; CIF; QCIF |
| Decoding Capability |
AI disabled: 2 channel 32 MP@20 fps; 2 channel 24MP@20 fps; 4 channel 16 MP@30 fps; 5 channel 12MP@30 fps; 8 channel 8 MP@30 fps; AI enabled: 1 channel 32 MP@20 fps; 1 channel 24 MP@20 fps; 2 channel 16 MP@30 fps; 4 channel 12MP@30 fps; 4 channel 8 MP@30 fps; 8 channel 5MP@30 fps |
| Recording Bandwidth | Bit rate: 16Kbps to 20Mbps per channel Compression: Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Power | Single, AC100V to 240V 47 to 63Hz Consumption: NVR: <10W without HDD PoE: Max 25.5W for single port 130W total rated power |
| Dimensions | Height: 53mm / 2.1" Width: 375mm / 14.8" Depth: 329.1mm / 12.99" Rack Size: 1U |
| Weight | 2.57kg / 5.67lb without HDD |
| Certifications | FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032: 2015+A1: 2020; EN IEC 61000-3-2: 2019+A1: 2021; EN 61000-3-3:2013+A1: 2019+A2: 2021; EN 55035: 2017+A11: 2020; EN 50130-4: 2011+A1: 2014 CE-LVD: EN 62368-1: 2014 |
| Hard Drives | ||||
| Digital Storage Capacity | 4TB | 6TB | 8TB | 10TB |
| Hard Disk Interface | SATA 6 Gb/s | SATA 6 Gb/s | SATA 6 Gb/s | SATA 6 Gb/s |
| Hard Disk Form Factor | 3.5" | 3.5" | 3.5" | 3.5" |
| Installation Type | Internal hard drive | Internal hard drive | Internal hard drive | Internal hard drive |
| Cache | 256Mb | 256Mb | 256Mb | 256Mb |
| MPN | ST4000VX016 | ST6000VX009 | ST8000VE001 | ST10000VE001 |
