Description
Description:
Dahua's innovative ePoE technology offers a plug and play solution to transmit power and data over long distances via Ethernet or coaxial cables, reducing installation time and saving money. ePoE technology is a viable, cost effective solution for extending transmission distances and for converting existing, coax based analogue systems into IP systems. The ePoE technology from Dahua is an advanced 2D-PAM3 coding modulation offering full duplex transmission over 800 metres at the speed of 10Mbps or 300 metres at the speed of 100Mbps via Cat 5 or coaxial cable media. It features PoE and PoC power supplies, which greatly simplify construction and wiring. Dahua's ePoE technology offers a new way to achieve long distance transmission between IP camera and network switch, allowing more flexible surveillance system design, improved reliability and saved construction and wiring cost.
For video security and surveillance installers, ePoE technology saves time and money by reducing overall cabling requirements, allowing for existing coax cable to be used and minimising the number of peripheral devices needed.
For new installations, ePoE offers the ability to design long distance applications without the need for additional repeaters. Enhanced PoE encompasses pure IP systems where a single CAT 5 cable can carry signals up to 800 m (2624 ft) and IP/Analogue hybrid systems where the technology leverages existing analogue infrastructure to transmit power and data up to 1000 m (3281 ft) over RG59 coaxial cable. Enhanced PoE is compatible with three connection modes operating over the same network simultaneously i.e. traditional IP networks, long distance ePoE networks and coaxial networks.
ePoE technology seamlessly integrates the latest high definition IP cameras with a coaxial infrastructure using the Ethernet over Coaxial (EoC) protocol to convert between analogue and IP power and data transmissions. It also allows an upgrade of a coax wired systems to IP without re wiring.

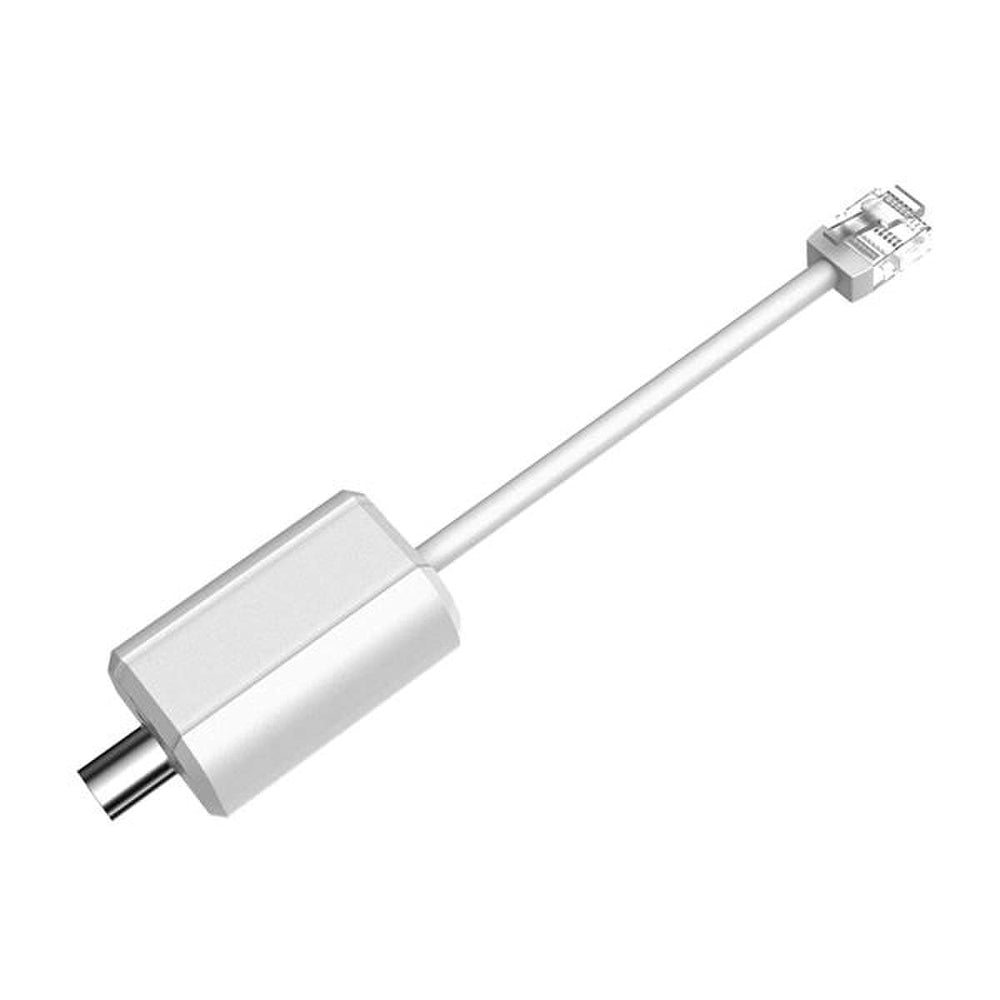

This converter cable conforms to IEEE802.3, IEEE802.3u standards.
Features:
- Supports IEEE802.3, IEEE802.3u standards
- 1 x RJ45 10/100Mbps port and 1x BNC·
- Supports RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps
- Supports MDI/MDIX self adaption
- Supports long range power supply transmission via coaxial cable
Specifications:
| Function Port | 1*10/100 Mbps Base-TX 1*B N C |
| Power Consumption | <1W |
| Transmission Bandwidth | RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps |
| PoE Protocol | Based on the power input from the ePoE switch |
| Network Standard | IEEE802.3, IEEE802.3u |
| Lightning Protection | Common Mode 6KV Differential Mode 2KV |
| Operating Temperature | -40°C / -40°F to 60°C / 140°F |
| Operating Humidity | 0% to 95% |
| Dimensions | Height: 21mm / 0.83" Width: 56mm / 2.21" Depth: 27mm / 1.06" |
| Weight | 28.3g / 0.06lb |
| Quantity | Supplied as a pair |
