Description
Description:

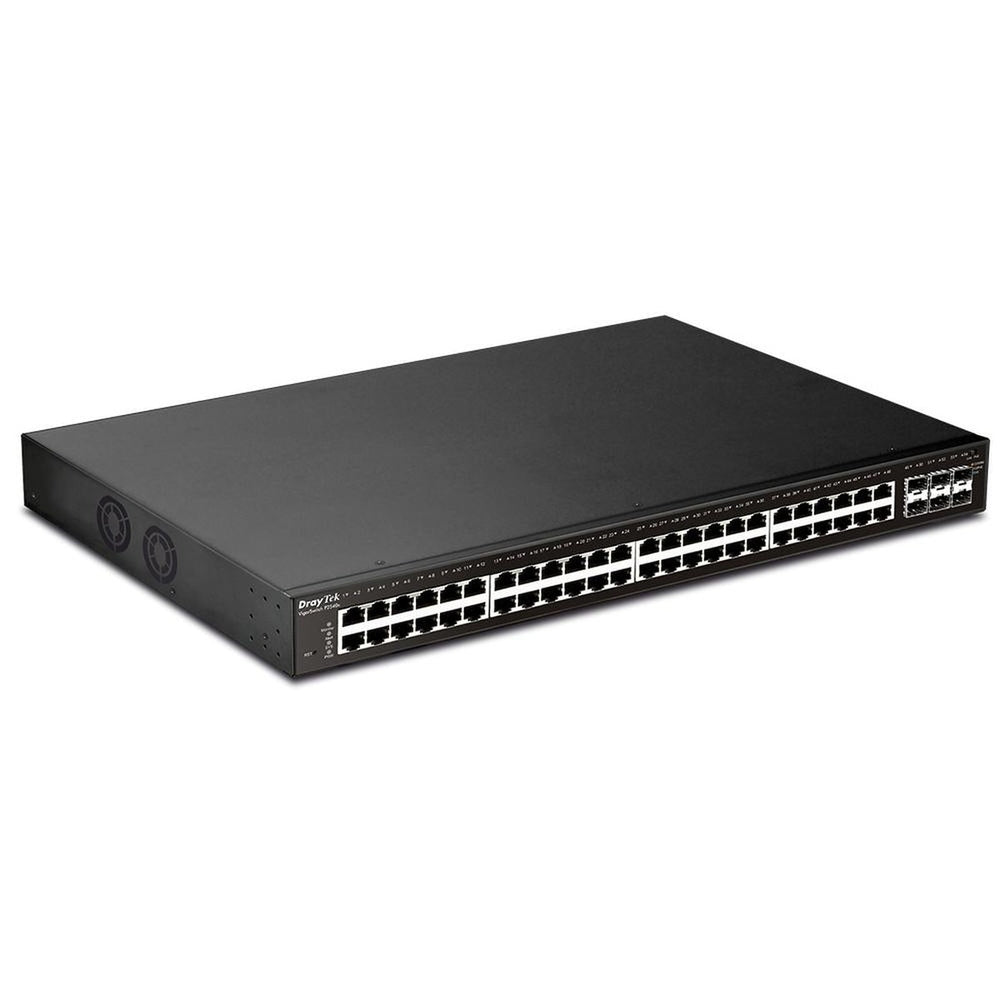

The Vigor Managed Switch has 48 PoE ports with a power budget of up to 400W for all connected PoE devices, allowing for connection of both standard PoE (802.3af) and high power PoE (802.3at) devices at up to 30 watts per port.
Thus switch has 6 dedicated SFP+ ports for uplinks, each operating at up to 10 Gigabits per second. The faster 10 Gigabit uplink capability allows you to make high bandwidth links to network attached storage, servers and other switches, to help reduce the risk of costly bottlenecks occurring within the network.
The P2540xs adds the layer 3 features VLAN routing, DHCP server and static route, which allow the switch to provide routing between VLANs at full speed. The switch's access control list gives full control of what traffic routes between those networks.
Also present is an integrated DHCP server to provide IP addressing to as many as 8 subnets on the switch, directly or with another server through DHCP Relay. Each DHCP Pool can have as many as 1023 IP addresses, potentially serving addresses to 8000 devices, allowing for expansive networks and taking load off of the router. With Bind IP to MAC, IP addresses can be easily reserved for individual devices such as servers, IP phones, cameras and more.
Features:
- 48 x RJ 45 Gigabit ethernet ports with PoE+
- 6 x SFP+ 10GbE ports for uplink / fibre
- PoE for IP phones, wireless access points, IP Cameras etc
- 400W PoE budget
- 802.1q VLANs with Dynamic MAC based, voice and surveillance VLAN
- VLAN routing and static route with DHCP server / relay
- Virtual router redundancy protocol
- QoS for application traffic prioritisation
- 802.1x RADIUS / TACACS+ port authentication with accounting
- Voice VLAN for QoS (OUI Mode)
- Access Control List (ACL)
- Port mirroring and link aggregation
- IGMP snooping and querying
- IPv4 and IPv6 Support with IP Conflict Prevention
- Hardware monitor with smart fan control
- Centrally managed or standalone operation
- Console port
Specifications:
| Physical Interfaces | 48 RJ-45 Ethernet Ports: 10/100/1000Mbps 6 SFP+ Ports: 1000Mbps/10Gbps Console Port. (RJ-45 physical, RS-232 electrical |
| PoE Specification | 48 ports 802.3af and 802.3at (High Power) PoE PSE 400W total power budget for PoE Up to 30W per port scheduling |
| VLANs | 802.1q Tag-based VLAN port based and MAC based VLANs QinQ (Basic) GVRP: General VLAN Registration Protocol Up to 256 VLANs. Out of 4096 VLAN IDs, 802.1v Protocol Based VLAN Voice VLAN (OUI Mode) Surveillance VLAN (OUI Mode) |
| QoS | Support 8 priority queues port based rate control, iIngress and egress. Priority queue schedule, WRR or Strict Priority |
| Network Security | IP Source Guard with ARP inspection Storm Control (Broadcast, Unknown Multicast, Unknown Unicast) DoS Attack protection AAA Authentication MAC Authentication Protected Port / Port Isolation Static Port Security |
| Protocol | TCP/UDP port Spanning Tree Protocol (STP) Rapid Spanning Tree Protocol (RSTP) Multiple Spanning Tree Protocol (MSTP) Link Aggregation |
| Networking Performance | Switching Capacity: 216Gbps Forwarding Rate: 160.7Mpps at 64 bytes MAC Addresses Supported: 32,000 Jumbo Frames up to 12KB Packet Buffer size: 16Mbit Layer 3 Routing Table: Up to 2000 Entries |
| Multicast | Up to 256 multicast groups Multicast Group Filtering / Throttling IGMP Snooping V2/V3 (BISS) IGMP V2/V3 Querier Multicast VLAN registration MLD Snooping V1/V2 Immediate Leave |
| ONVIF Surveillance Management | Discovery of ONVIF compliant IP Cameras Surveillance Topology Real Time Video Streaming ONVIF Device Maintenance |
| Power | Power Input Requirements: 100 to 240VAC Power Supply: Internal Maximum Input Power Consumption: 478W |
| Operating Requirements | Operating Temperature: 0°C / 32°F to 50°C / 122°F Relative Humidity: 10% to 90% non condensing |
| Rack Size | 1U |
| Dimensions | Height: 45mm / 1.77" Width: 441mm / 17.36" Depth: 330mm / 12.99" |
| Weight | Excluding SFP Modules and Cables: Weight: 5.66kg / 12.48lb |
| Included Accessories | Brackets included for rack or wall mounting |
User guides
Download User Guides:
Data Sheet
DrayTek Data Book
Quick Start Guide
Users Guide
Security Best Practice White Paper
