Description:

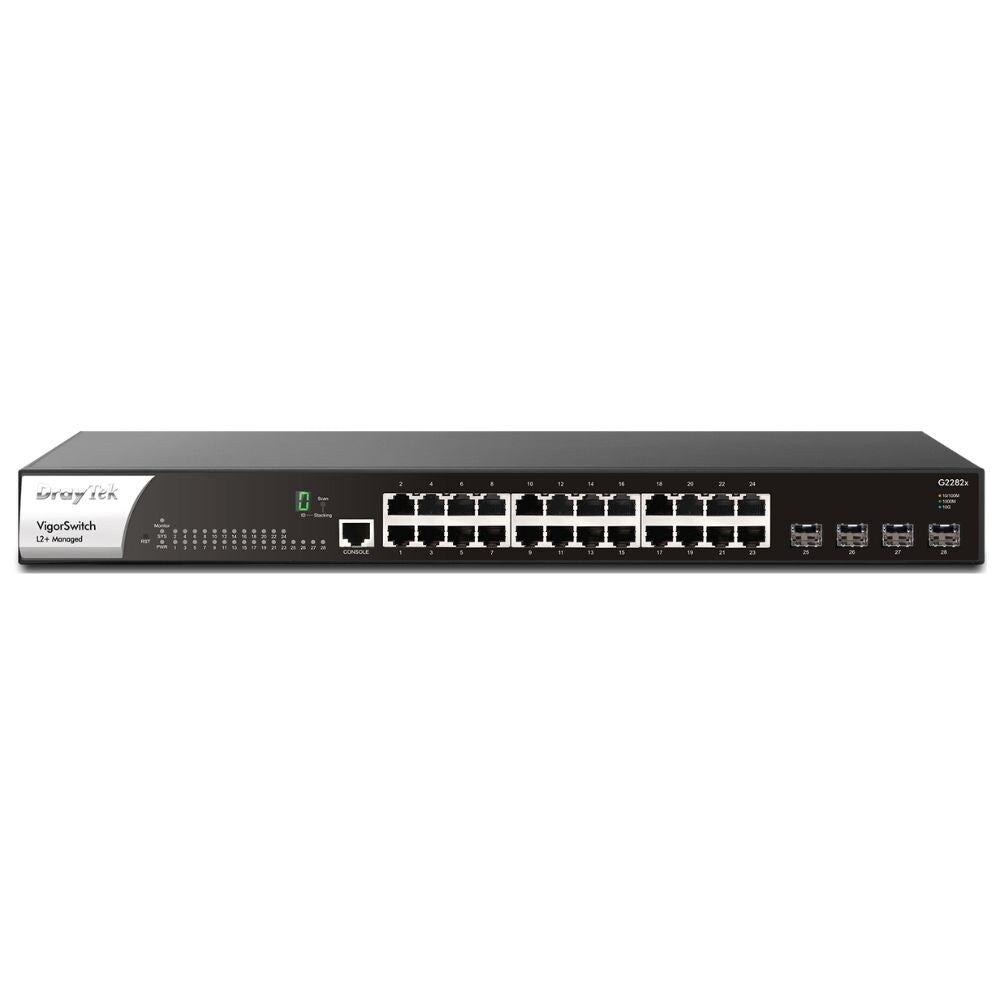

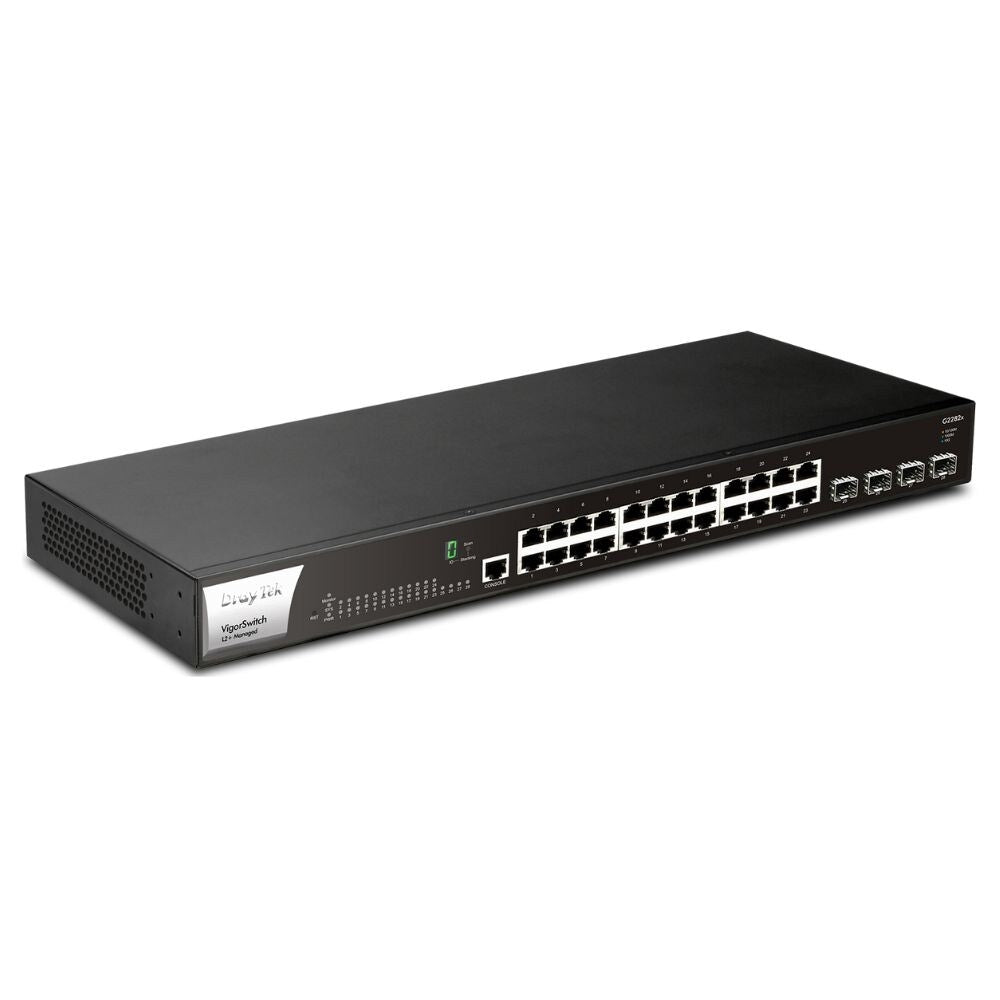

The Draytek VigorSwitch G2282x is a high performance L2+ managed Gigabit ethernet switch. With 24 x 1 Gigabit RJ-45 LAN ports and 4 x 10 Gigabit ethernet SFP+ ports, it is ideal for use in small to medium sized businesses and enterprise.
The 4 SFP+ ports are ideal for high speed uplinks between switches, servers and network attached storage at up to 10 Gigabits per port.
Designed for centralised management, the VigorSwitch G2282x can be managed directly through its web interface or provisioned and monitored through both the VigorACS management platform and/or a DrayTek Vigor router's central switch management.
Easily provision the VLAN configuration through the router and clone switch configurations. It will drastically reduce the setup time required for a complex network with VLANs spanning multiple switches.
This cutting edge networking switch with power redundancy options allows seamless operation and minimised downtime.

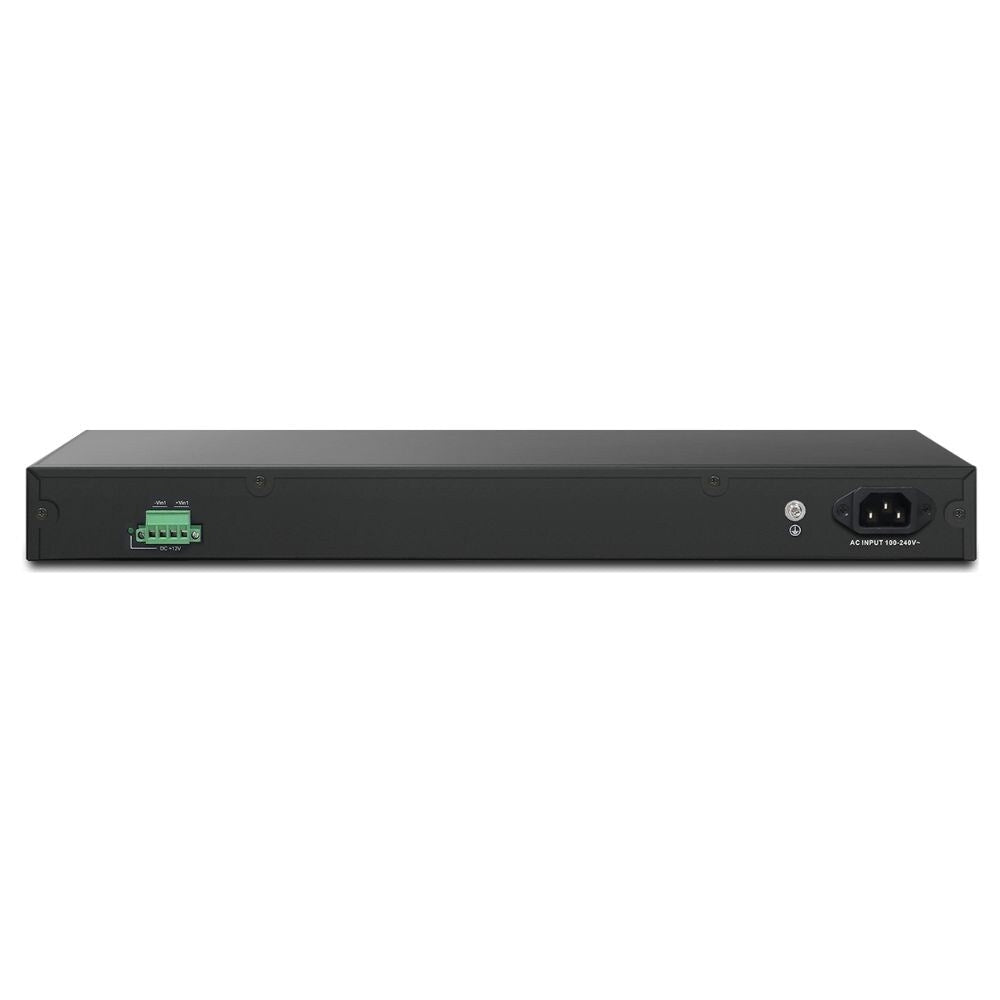

This versatile switch comes equipped with both DC and AC power options, providing ultimate flexibility to cater to your unique power requirements.
Features:
- 24 x RJ-45 Gigabit ethernet ports
- 4 x SFP+ 10GbE ports for uplink / fibre
- 802.1q VLANs. Tag, port and MAC based
- VLAN routing and static route with DHCP server or relay
- Virtual Router Redundancy Protocol
- QoS for application traffic prioritisation
- 802.1x RADIUS or TACACS+ port authentication with accounting
- Voice VLAN for QoS (OUI Mode)
- Access Control List (ACL)
- Port mirroring and link aggregation
- IGMP snooping or querier. Up to 256 multicast groups
- IPv4 and IPv6 Support
- Hardware monitoring
- Centrally managed or standalone operation
- Console port
- DC Power Input
- Stacking Scan Button Note: Available in future firmware release
Specifications:
| 10/100/1000 (RJ45) Ports | 24 RJ-45 Ethernet Ports |
| Uplink Ports | 10/100/1000Mbps 4 SFP+ Ports |
| Throughput | 128 Gbps |
| Forwarding Rate | 95.2Mbps |
| Switch Management | Standalone VigorACS Router that supports Switch Management |
| Switch Management Interface | Console Port. RJ-45 physical and RS-232 electrical |
| Power Supply | 100-240VAC |
| Power Backup Input | DC +12V @ 3A |
| Operating Temperature | 0°C / 32°F to 45°C / 113°F |
| Storage Temperature | -20°C / -4°F to 70°C / 158°F |
| Dimensions | Height: 45mm / 1.77" Width: 441mm / 17.36" Depth: 270mm / 10.62" Rack mountable: 1U |
| Weight | Weight: 2.69Kg / 5.94lb excluding SFP modules or cables |
| Included | UK IEC13power cable 1U rack mount fittings Console cable |
User guides
Download User Guides:
Data Sheet
Quick Start Guide
User Guide
Security Best Practice White Paper
Lane Top Farm Case Study
