Description
Description:

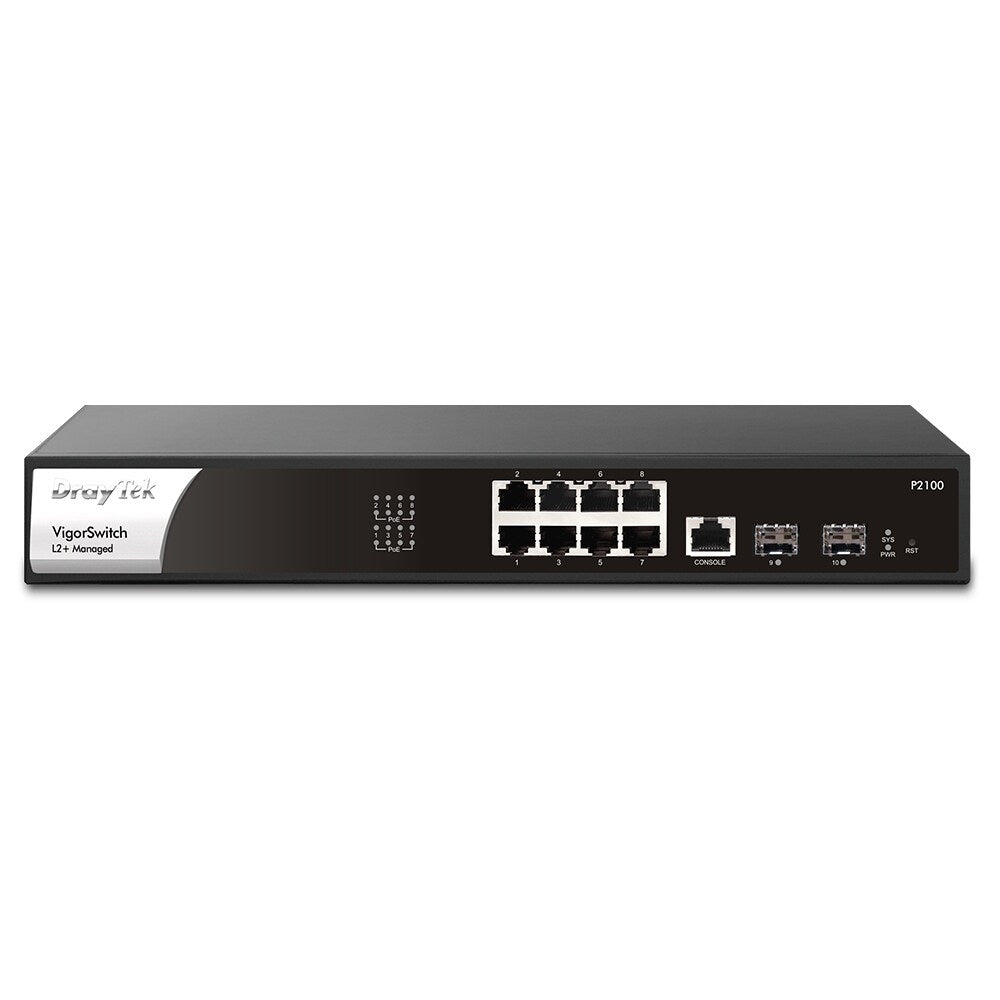

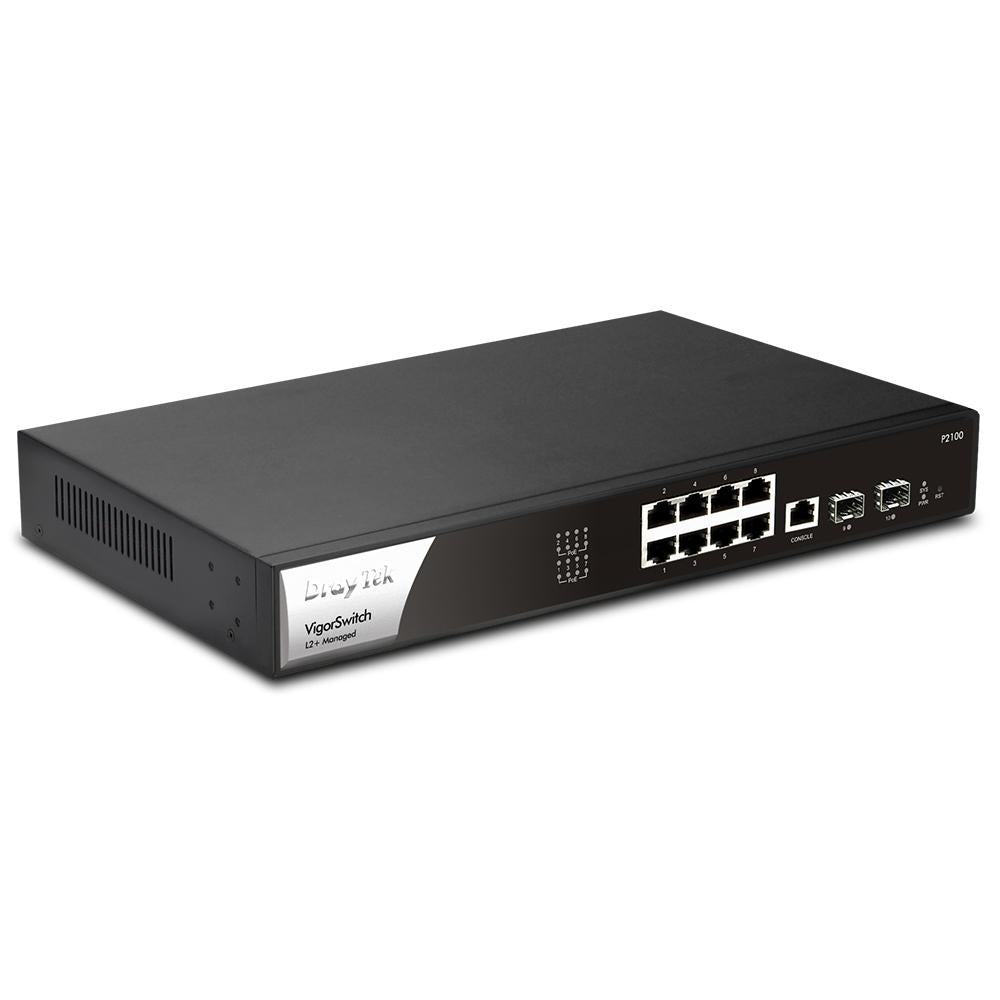

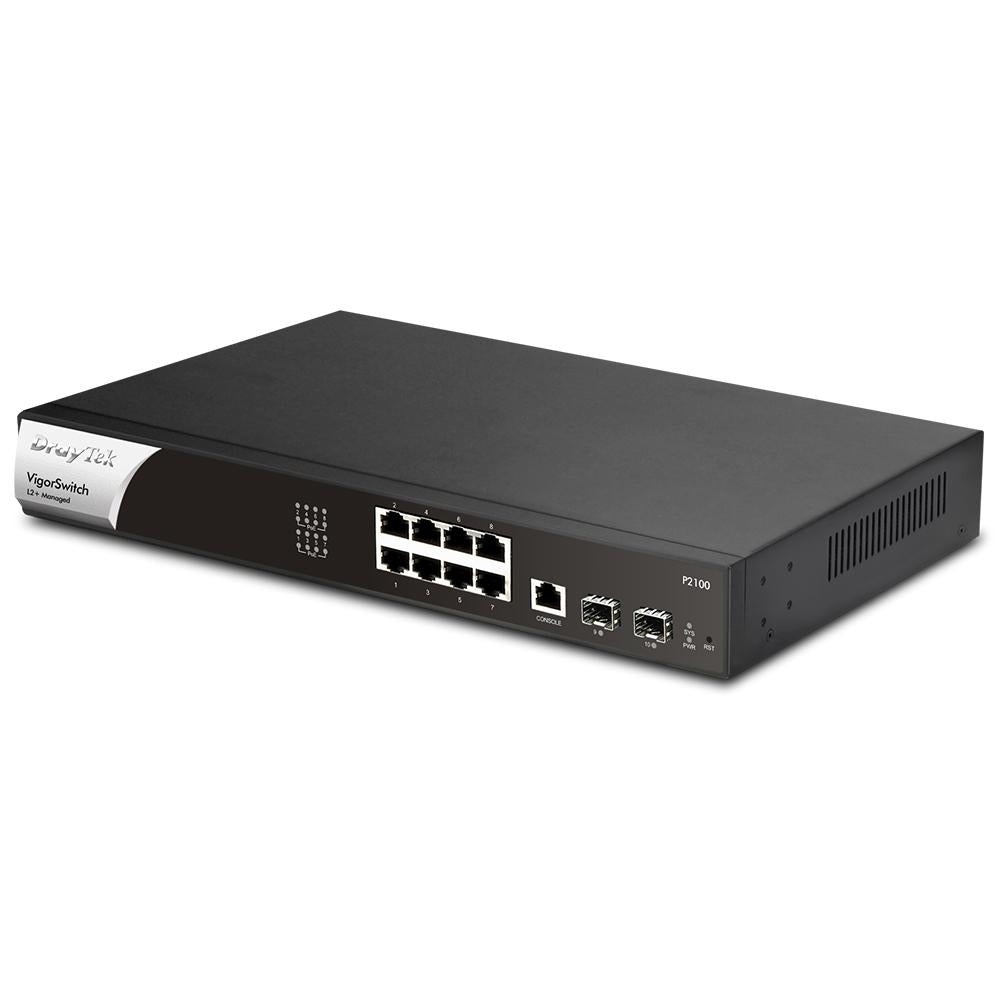

The VigorSwitch P2100 from Draytek is a high performance Layer 2+ managed Ethernet switch. With 8 RJ45 Gigabit LAN ports, it is ideal for adding network ports to a DrayTek Vigor router. The enterprise level features offered allow businesses to improve network stability and security, providing invaluable peace of mind.
The VigorSwitch P2100 is able to power network devices via Power over Ethernet (PoE), with a generous 140W power budget to provide power to each of its 8 PoE or PoE+ enabled Gigabit LAN ports.
This DrayTek switch works superbly in standalone mode and yet is designed for centralised management. It can be provisioned and monitored by one of DrayTek's central management platforms. These include the VigorACS management platform, VigorConnect on site management and DrayTek's router based switch management. These platforms allow drastically reduced setup times for a complex network and facilitates configuring an entire DrayTek network remotely.
This switch provides a fast and secure bridge between networks and is able to power and manager IP cameras, phones and wireless access point. Included in this product are rack mount fittings for any 19" rack with 1U height.
Being fan less and silent, the P2100 is also perfect for use in a quiet office or home environment.
Features:
- Eight RJ-45 Gigabit Ethernet ports with PoE+
- 140W Power over Ethernet (PoE) budget for demanding applications
- Cloud Managed with VigorACS
- 802.1q VLANs with Dynamic MAC based, voice and surveillance VLAN
- ONVIF IP camera surveillance management with PoE device check
- Access Control List (ACL) for port and traffic level security
- Port mirroring and link aggregation
- IGMP snooping and querying
- IPv4 and IPv6 support with IP conflict prevention
- Centrally managed or standalone operation
- Rack mount fittings for any 19" rack with 1U height are included
- Fabless operation
- Perfect for quiet offices or home environments due to the silent running of the switch
Specifications:
| Physical Interfaces | 8 RJ45 Ethernet ports - 10/100/1000Mbps |
| 2 SFP Ports | 1000Mbps |
| PoE Support | Yes PoE+ |
| PoE Budget | 140W |
| VLAN Support | Yes |
| QoS Support | Yes |
| Network Security | Yes |
| Spanning Tree Support | Yes |
| Link Aggregation | Up to 8 groups Up to 8 ports in each group |
| Switching Capacity | 20Gbps |
| Multicast Support | Up to 256 groups |
| IGMP (V2/V3) Support | Both snooping and querier |
| AAA (Authentication, Authorisation, Accounting) Support | Yes |
| ONVIF Surveillance Management | Discovery of ONVIF compliant IP cameras and stream preview |
| Management | Central Management VigorACS VigorConnect Vigor Router Switch Management (requires router firmware support) |
| L3 Networking Features | Static Route VLAN Routing DHCP Server |
| Power Supply | Internal with maximum input power consumption of 164.3W Power Input Requirements: 100 to 240VAC |
| Cooling | Passively cooled |
| Operating Temperature | 0°C / 32°F to 50°C / 122°F |
| Operating Humidity | 5% to 90% relative humidity non condensing |
| Rack Size | Rack mountable: 1U |
| Dimensions | Height: 44mm / 1.73" Width: 319mm / 12.56" Depth: 208mm / 8.19" |
| Weight | 2.61kg / 5lb |
| Included | Rack mount fittings for any 19" rack with 1U height |
| Certifications | RoHS and CE |
User guides
Download User Guides:
Data Sheet
DrayTek Data Book
Quick Start Guide
Users Manual
Security Best Practice White Paper
